fischer FAZ II PLUS 12/160 R M12 x 260 stainless steel through bolt [564625]

Barcode: 4048962462500
Pack Size: 20
£571.12

Usually shipped in 1-2 days

fischer FAZ II PLUS 12/160 R M12 x 260 stainless steel through bolt [564625] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

Fischer FAZ II PLUS 12/160 R M12 x 260 is a high-tensile strength stainless steel anchor for non-cracked/cracked concrete. It uses a tried-and-tested expansion clip to safely introduce loads into the concrete, enabling an immediately loadable high load-bearing capacity. It is ideal for anchoring railings, cable trays, and consoles.

Technical Datasheet

Declaration of Performance Document:

European Technical Approval (ETA) Document:

Applications

Steel constructions

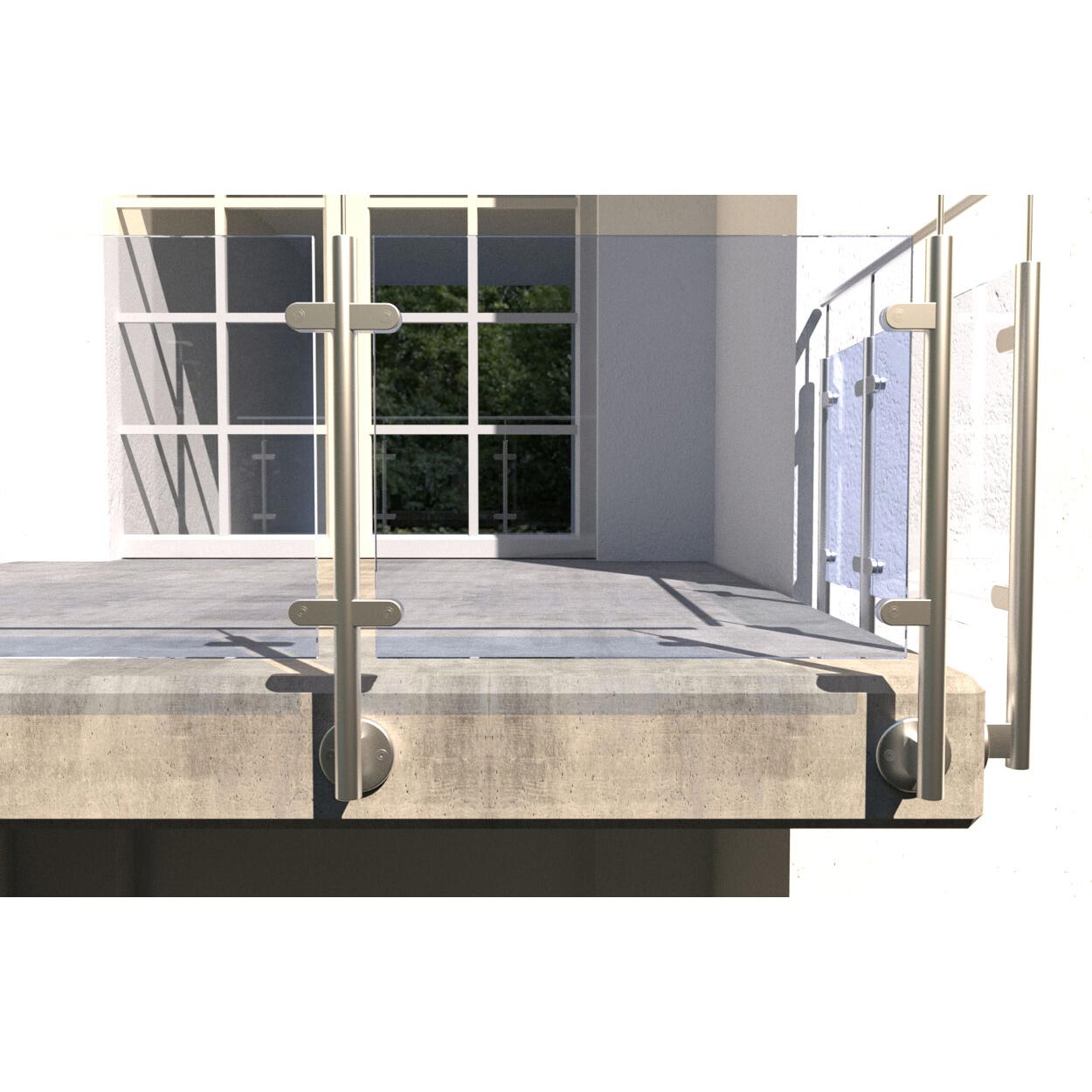

Guard rails

Consoles

Ladders

Cable trays

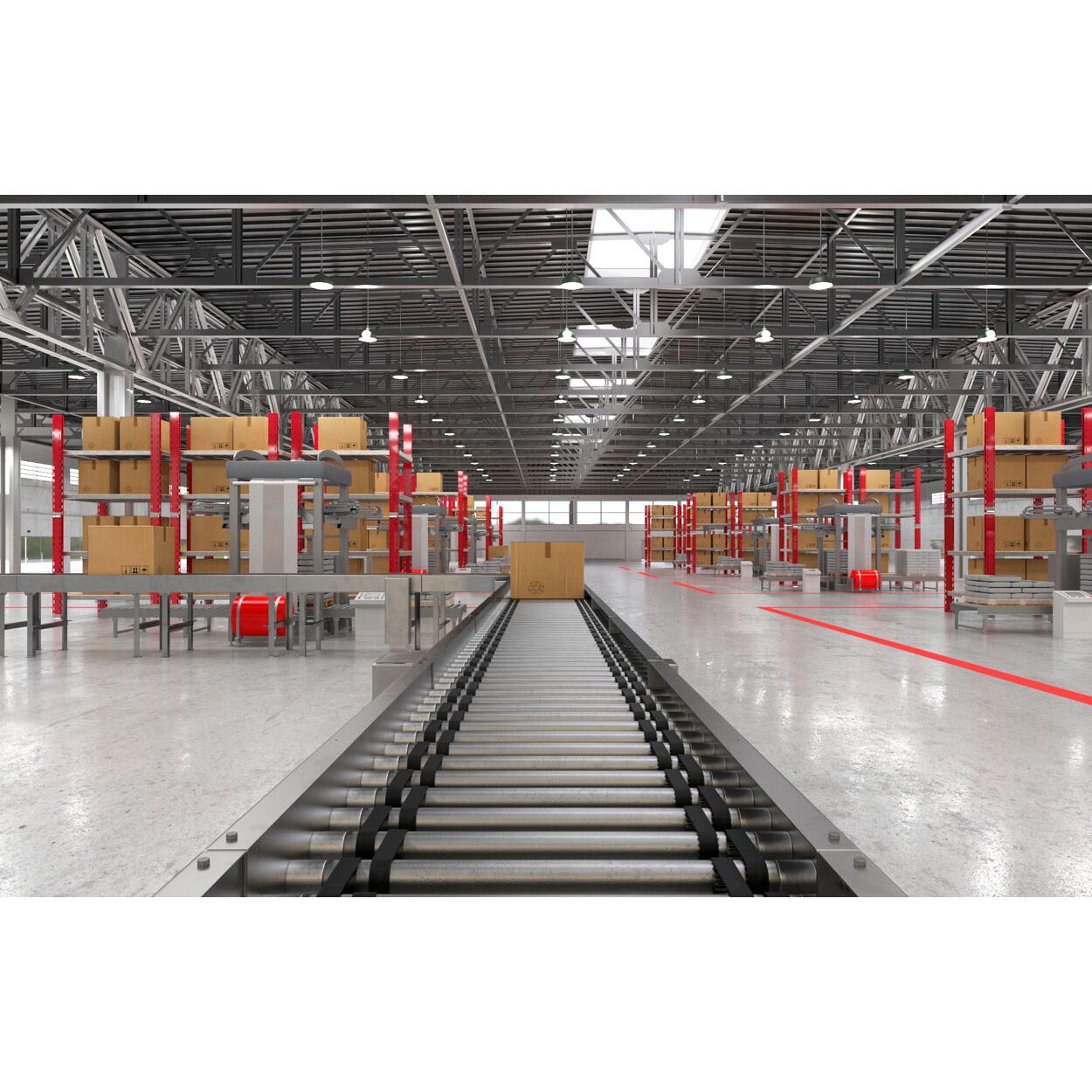

Machines

Staircases

Façades

Timber constructions

Building Materials

Approved for:

Concrete C20/25 to C50/60, cracked and non-cracked

Also suitable for:

Concrete C12/15 (classification available)

Concrete C80/95 (classification available)

Steel fibre concrete (classification available)

Solid sand-lime brick (classification available)

You can find detailed information on building materials in the registration document.

Certifications

ETA-19/0520

DoP 0334

Features

No need for drill hole cleaning (M8-M24): Quick and easier assembly.

Numerous approval certificates for different substrate materials (concrete C12/15-C80/90, steel fibre concrete, solid sand-lime brick): Increase the number of applications and fields of use.

With the new assessment (ETA), tensile strengths increase decisively: Fewer fixing points and anchors are required.

The ETA evaluation, together with other test reports (RWS, ZTV, ETK): High loads in case of fire.

Variable anchorage depths: Allows a millimetre-accurate adjustment to the loads.

The FAZ II Plus allows the absorption of high seismic loads of performance category C1 with and without the use of the filling disc FFD at installation: Flexible.

Specifications
  • Brand
    Fischer
  • Certifications
    ETA-19/0520

    DoP 0334
  • Drill Diameter (MM)
    12
  • Functionality

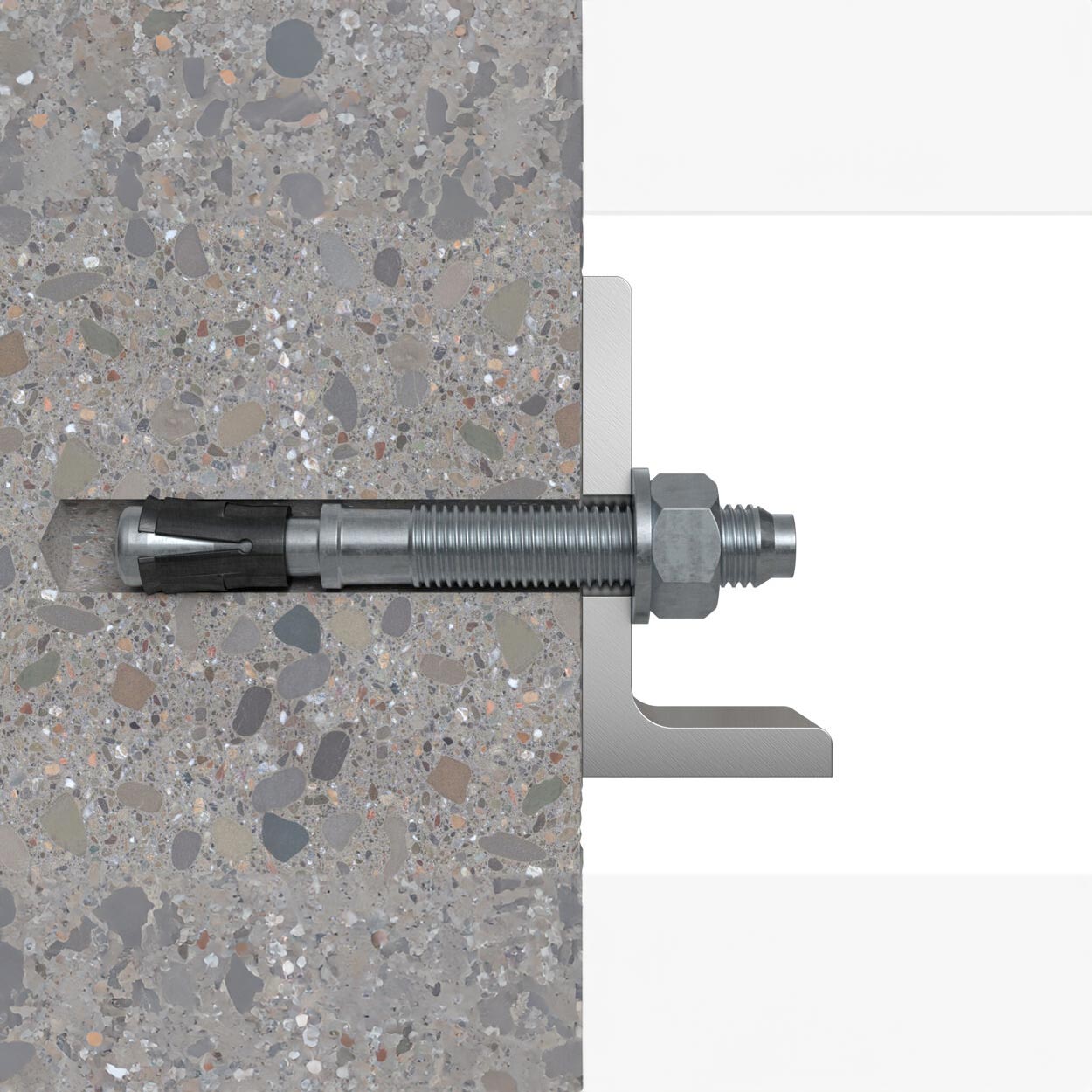

    The FAZ II PLUS K R is suitable for pre-positioned and push-through installation, and is also ideal for stand-off installation thanks to the long thread.

    When applying the torque, the cone bolt is pulled into the expansion sleeve and expand it against the drill hole wall.

    The anchor is set in line with the approval once the preset installation torque is achieved.

    In the case of series installation, we recommend using the FABS or FA-ST II anchor bolt setting tools.
  • Installation Torque (TINST) (NM)
    60
  • Length (MM)
    260
  • Material
    Stainless Steel
  • Max Usable Length HEF Stand/HEF Min
    160 / 180mm
  • Min Drill Hole Depth for Through Fixings (MM)
    250
  • Pack Size
    20
  • Seismic Approval
    C1 / C2
  • Thread
    M12 x 186mm
  • Type
    Through bolt
  • Width Across Nut (MM)
    19
