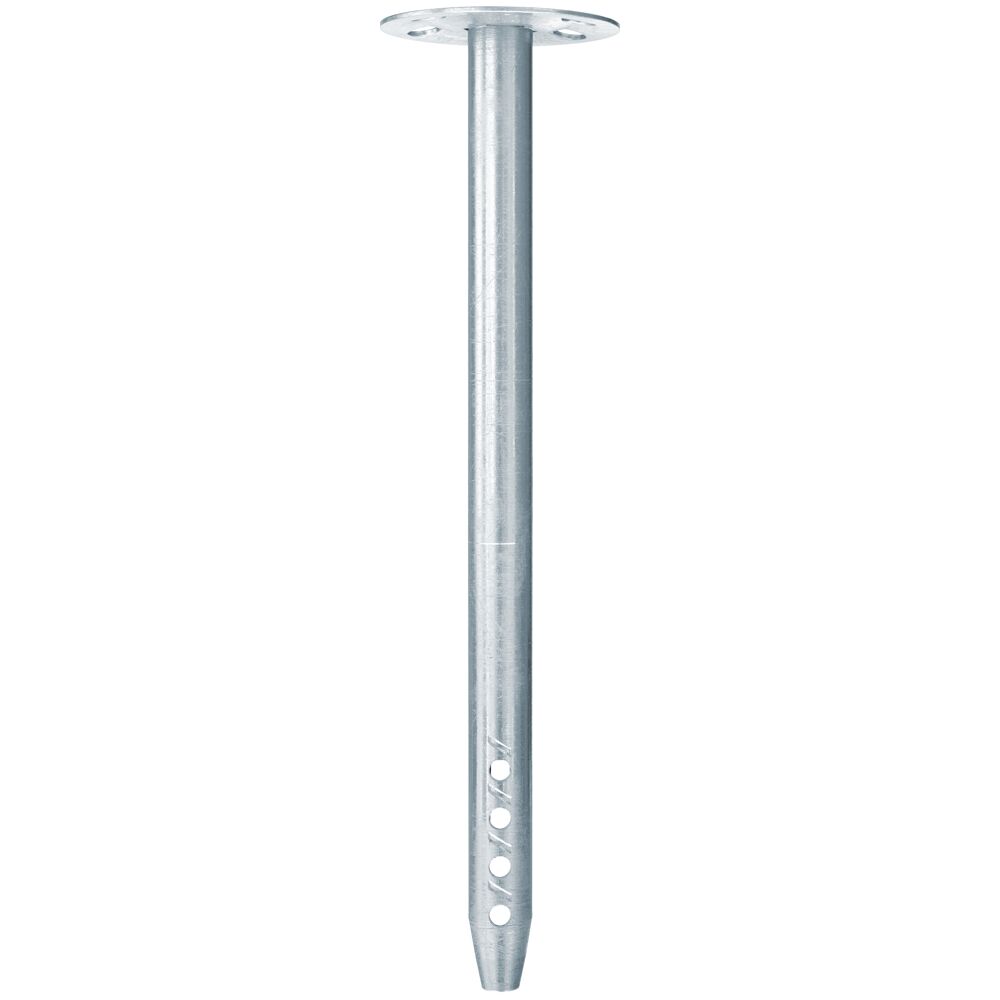

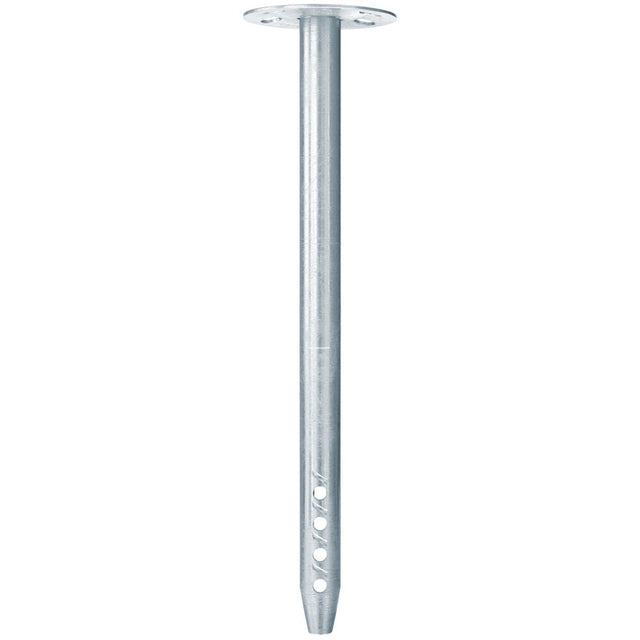

fischer DHM 70 Zinc insulation support anchor [536254]

Barcode: 4048962246957
Pack Size: 250
£60.82

Usually shipped in 1-2 days

fischer DHM 70 Zinc insulation support anchor [536254] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

The fischer metal insulation support DHM is a versatile and easy-to-use fixing solution for mineral/glass wool, foam glass tiles, and light building boards made of wood wool. It is simply hit in with a hammer, making it quick and easy to install. The hammer installation allows fast setting, thereby reducing the amount of work. The metal insulation support DHM is also fire resistant, with a fire resistance rating of F 120. This means that it can be used in applications where fire resistance is required.

Technical Datasheet

Environmental Product Declaration Document:

Load Table Document:

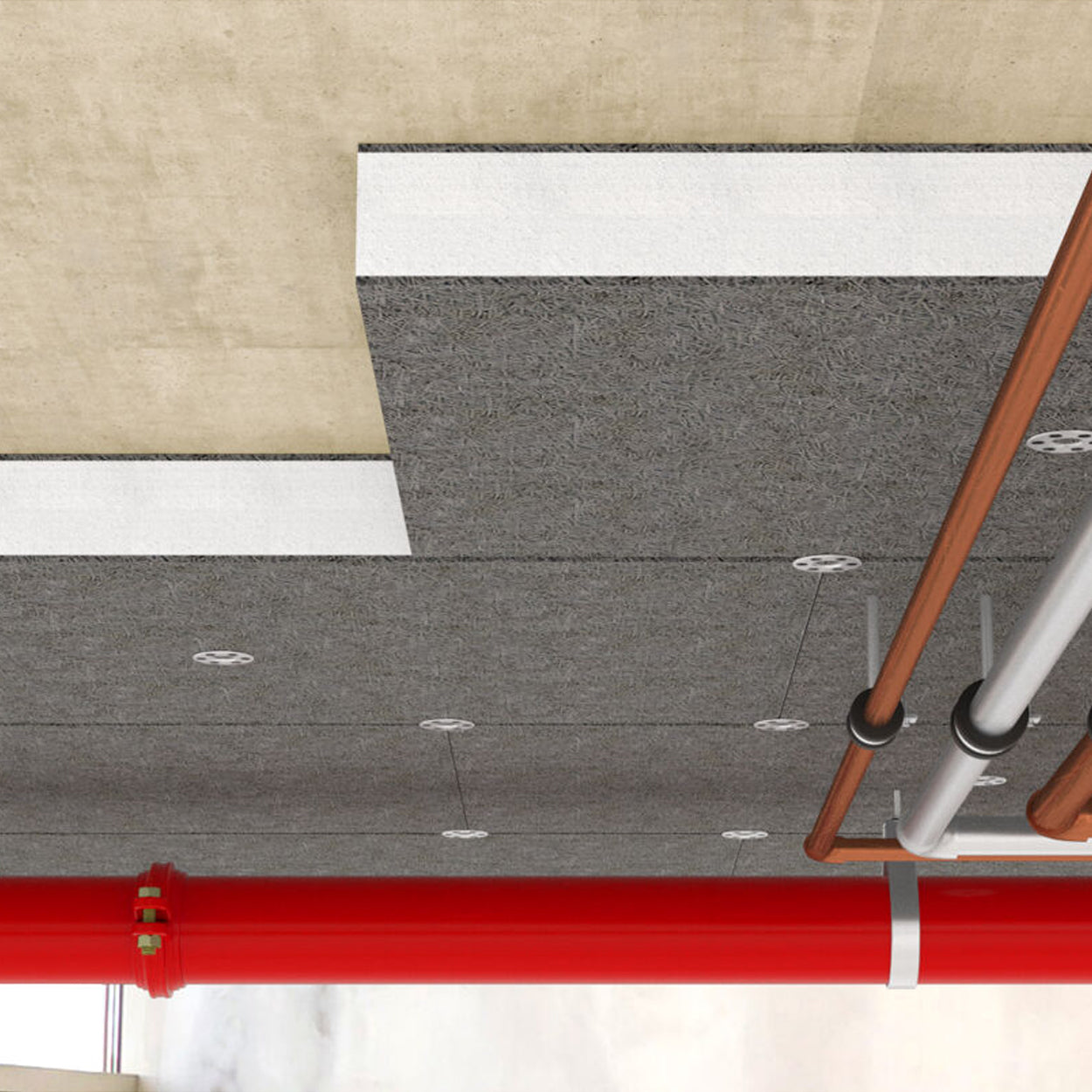

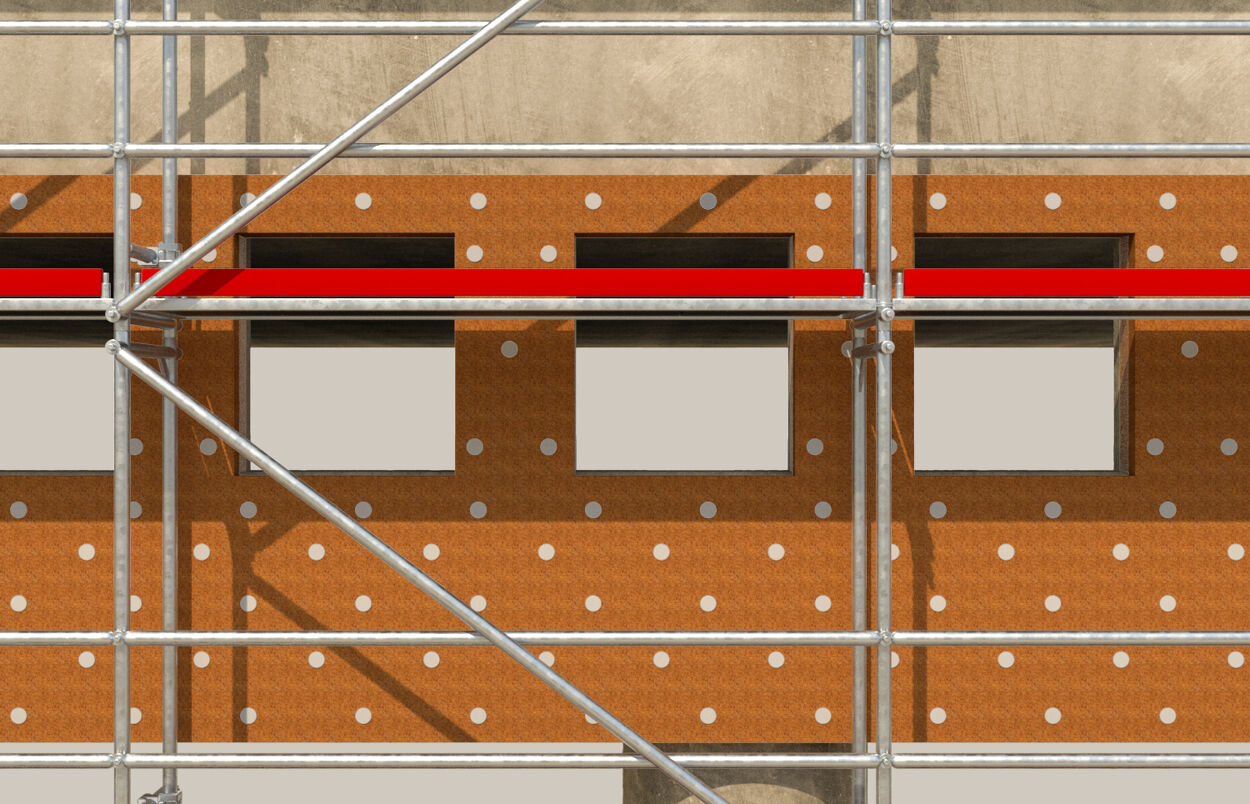

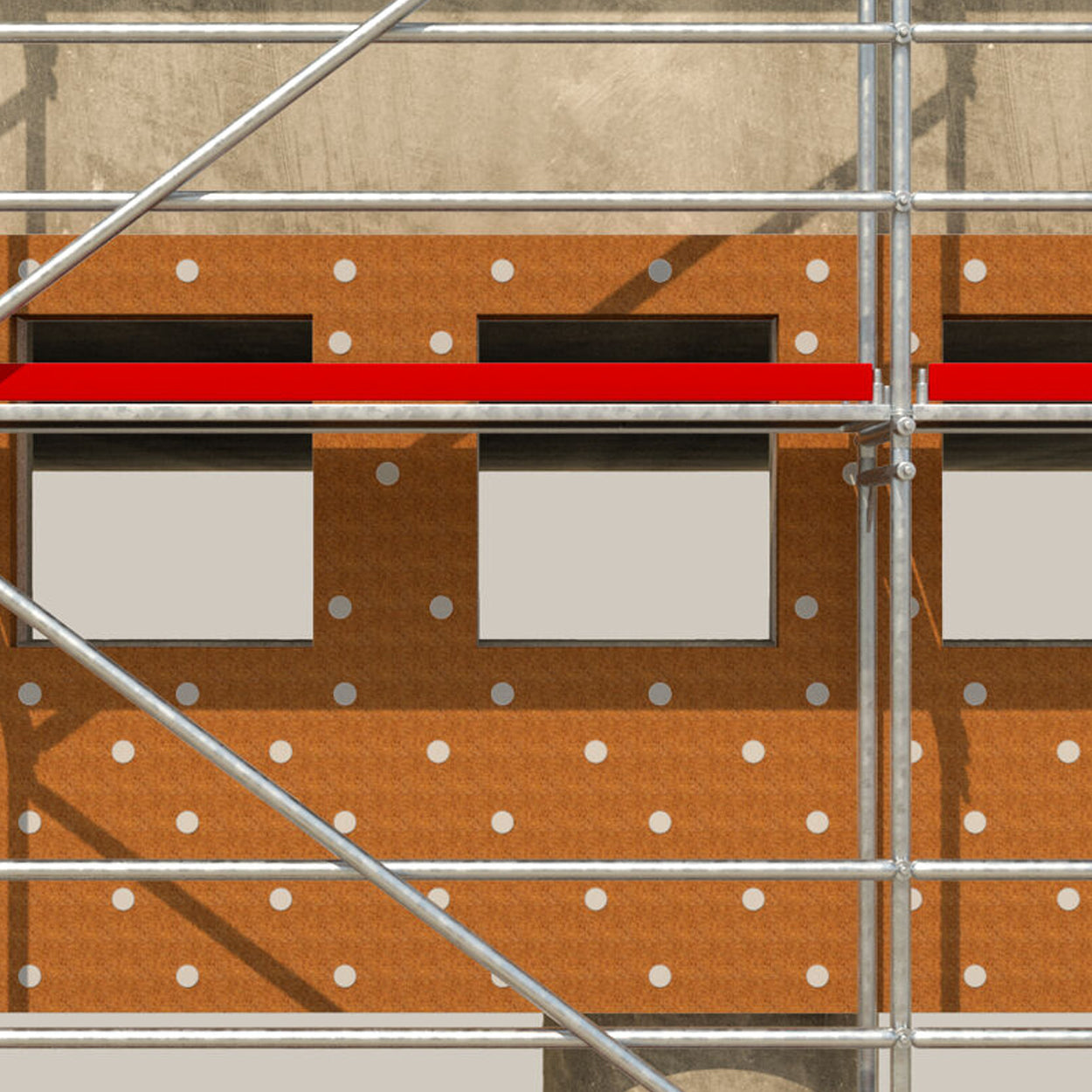

Applications

To fix fire-resistant soft or pressure-resistant insulating materials, such as:
Mineral wool
Light building boards made of wood wool
Foam glass tiles
Also suitable for:
Polystyrene boards
Coir matting

Building Materials

Concrete
Hollow blocks made from lightweight concrete
Vertically perforated brick
Perforated sand-lime brick
Solid sand-lime brick
Natural stone with dense structure
Aerated concrete
Solid brick made from lightweight concrete
Solid brick
You can find detailed information on building materials in the registration document.

Certifications

Z-21.8-2057
EPD-FIW-20210314-CBD1-EN

Features

The metal insulation support achieves fire resistance F 120: Can be used where there are fire resistance requirements.
DTM 80 plate for soft insulating materials (available separately): Simplifies storage and minimises costs.
Simple hammerset installation allows for a quick installation process and thus reduces workload.
The shaft geometry allows setting in aerated concrete without pre-drilling, thus saving a stage of installation.
Stainless steel version DHM A2 (1.4301) for wet and extirior applications.

Specifications
  • Brand
    Fischer
  • Certifications
    Z-21.8-2057
    EPD-FIW-20210314-CBD1-EN
  • Drill Diameter (MM)
    8
  • Functionality
    The insulation support is set in push-through installation using a hammer.
    When hammered in, the expansion part tightens like a spring with the substrate.
    Use the DTM 80 plate (available separately) to fix soft insulating materials.
  • Length (MM)
    110
  • Material
    Zinc-Plated
  • Min. Drill Hole Depth (mm)
    50.00
  • Pack Size
    250
  • Type
    Insulation anchor

Reviews (0)

Delivery & Returns

For full delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Fischer

fischer DHM 70 Zinc insulation support anchor [536254]

£60.82
The fischer metal insulation support DHM is a versatile and easy-to-use fixing solution for mineral/glass wool, foam glass tiles, and light building boards made of wood wool. It is simply hit in with a hammer, making it quick and easy to install. The hammer installation allows fast setting, thereby reducing the amount of work. The metal insulation support DHM is also fire resistant, with a fire resistance rating of F 120. This means that it can be used in applications where fire resistance is required.

Clamping Range (MM)

N/A

Diameter (MM)

N/A

Drill Diameter (MM)

8

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Insulation anchor

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

N/A

Pack Size

250

Package Contents

N/A

Material

N/A

Length (MM)

110

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

The metal insulation support achieves fire resistance F 120: Can be used where there are fire resistance requirements.
DTM 80 plate for soft insulating materials (available separately): Simplifies storage and minimises costs.
Simple hammerset installation allows for a quick installation process and thus reduces workload.
The shaft geometry allows setting in aerated concrete without pre-drilling, thus saving a stage of installation.
Stainless steel version DHM A2 (1.4301) for wet and extirior applications.
