fischer hammerfix N 10 x 100/50 S countersunk head zinc plated nylon [050346]

Barcode: 4006209503461
Pack Size: 50
£16.11

Usually shipped in 1-2 days

fischer hammerfix N 10 x 100/50 S countersunk head zinc plated nylon [050346] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

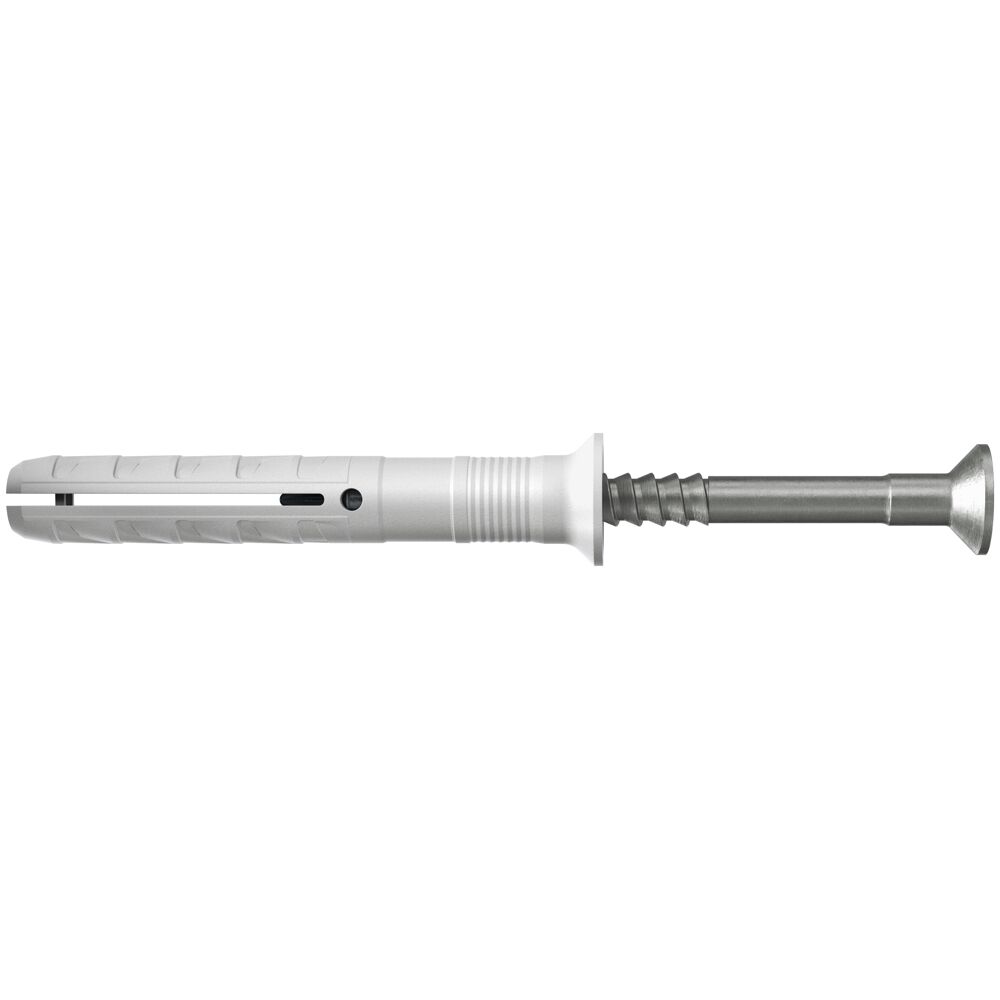

The fischer Hammerfix N 10 x 100/50 S with countersunk head is a versatile and reliable fixing solution for timber constructions in all building materials in internal areas. It is a pre-assembled fixing that consists of a high-quality nylon plug and a zinc-plated nail screw. The Hammerfix is installed in a through-type installation, which is quick and easy. When the nail screw is driven in, the fixing sleeve expands and anchors itself securely in the building material.

Applications

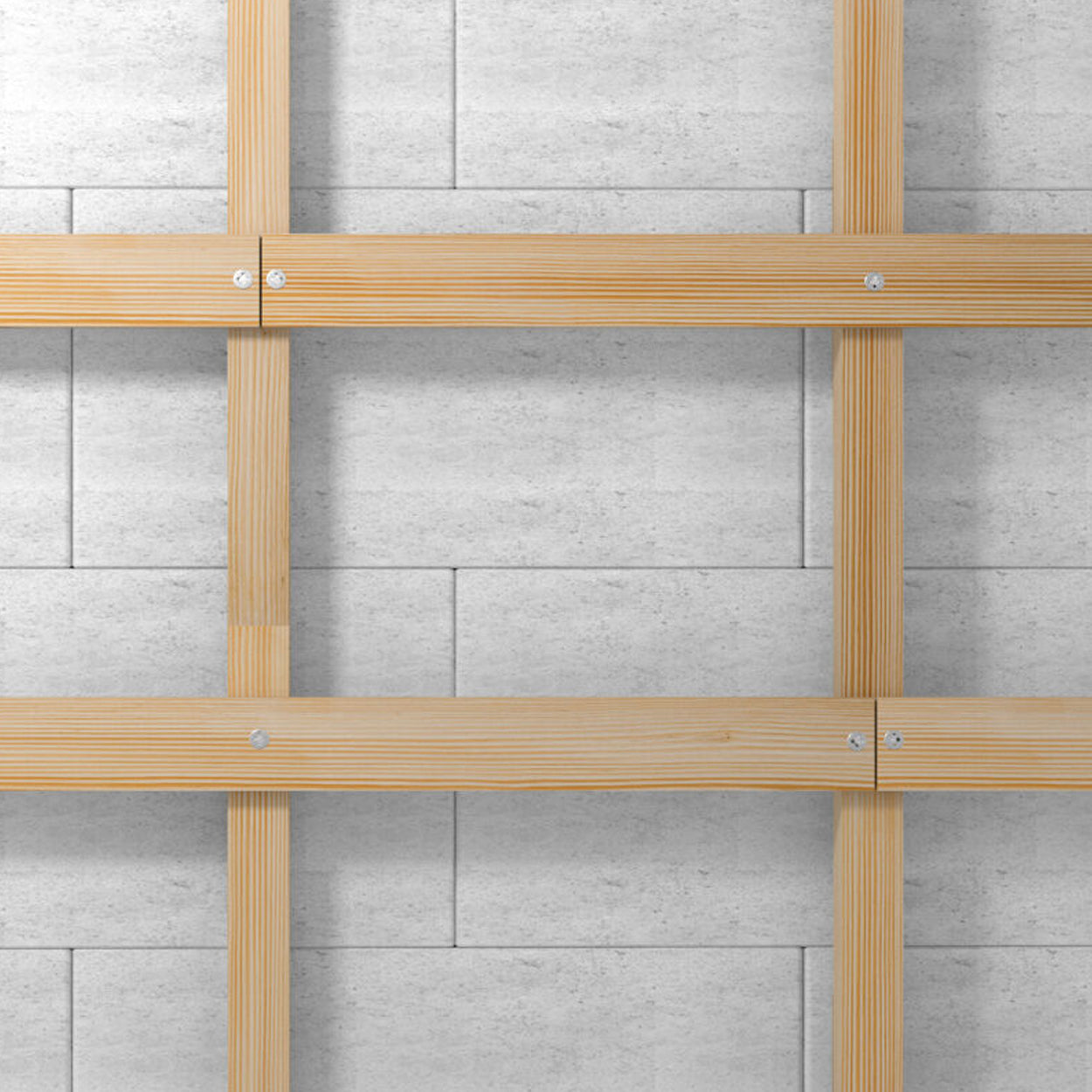

Substructures made of wood
Wall connection or plaster profiles

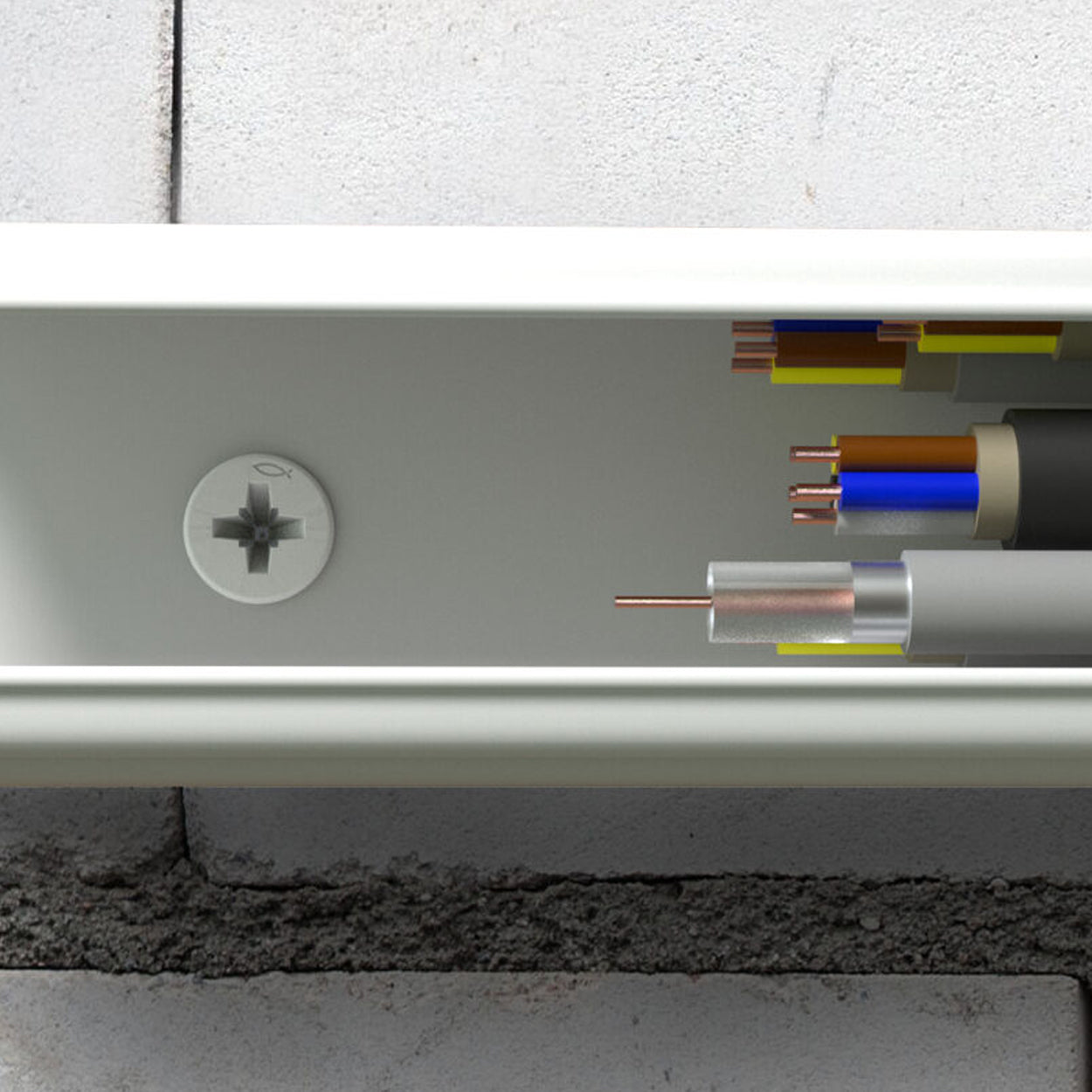

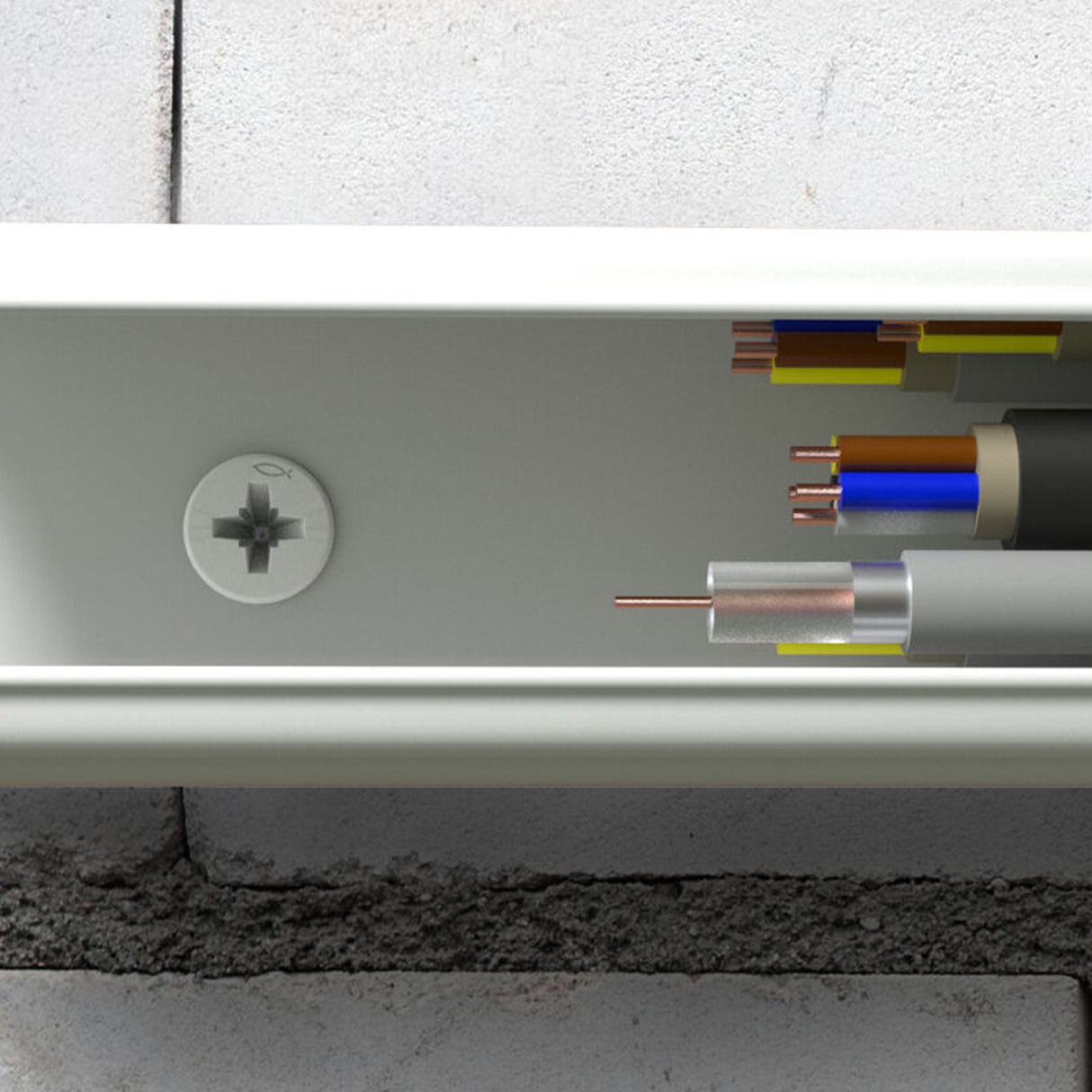

Cable and pipe clips
Perforated tapes

Building Materials

Concrete
Solid sand-lime brick
Building brick
Natural stone
Solid brick made from lightweight concrete
Aerated concrete
Solid panel made from gypsum
You can find detailed information on building materials in the registration document.

Features

Rapid hammerset installation reduces the amount of time required: Economic installation.
Integrated hammer-in stop prevents the plug from expanding prematurely (jamming): Problem-free installation.
Cross-slot recess and thread of the nail screw allows the screw to be removed: Allowing for subsequent dismantling.
Wide range of diameters and usage lengths: Provides the correct plug for every fixing.

Specifications
  • Brand
    Fischer
  • Drill Diameter (MM)
    10
  • Driver Type
    PZ3

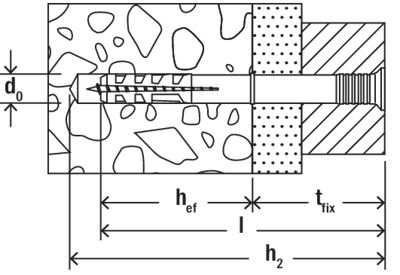

  • Effective Anchorage Depth (mm)
    50.00
  • Functionality
    Suitable for push-through installation.

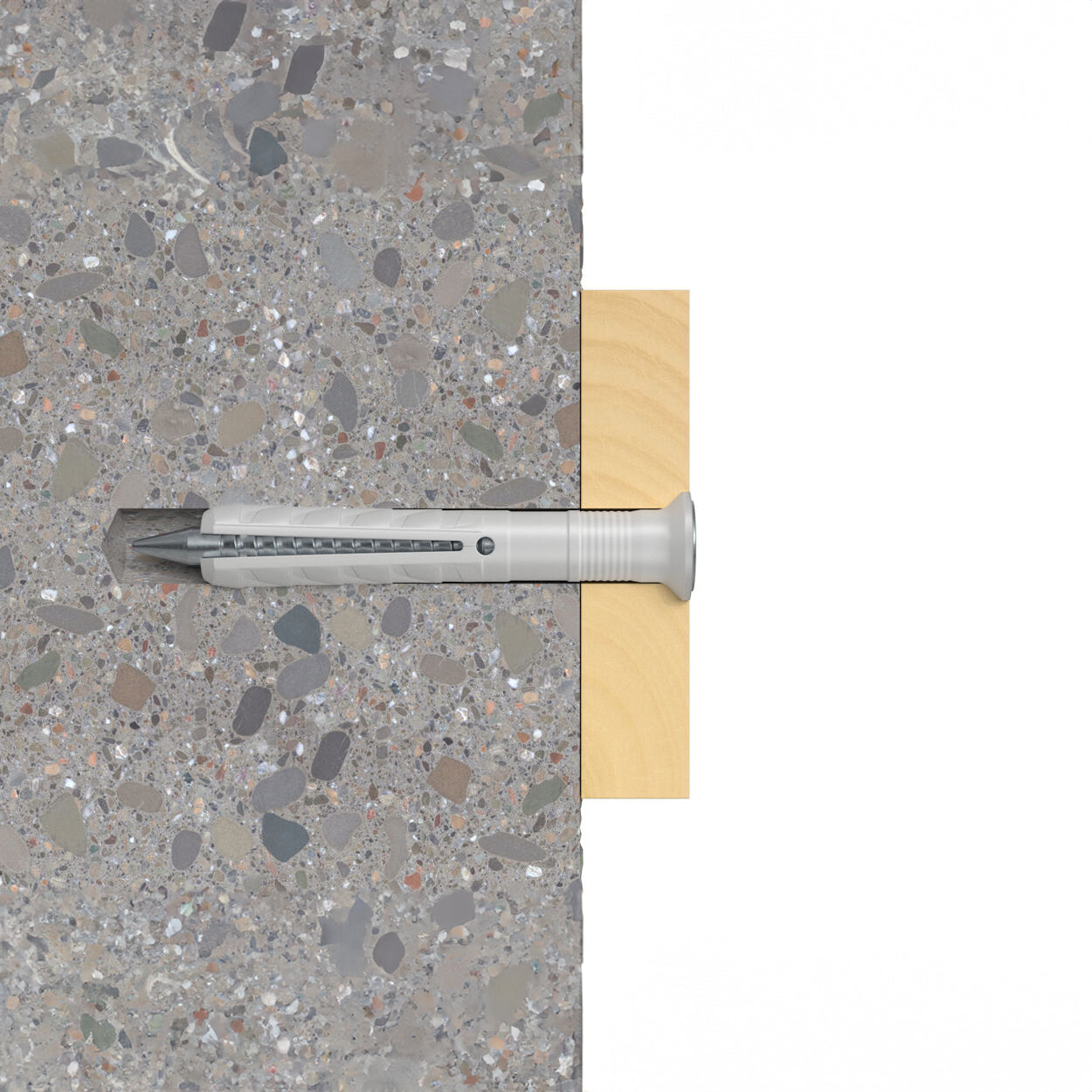

    When hammered in, the nail screw causes the plug to expand in two directions, thus providing a secure anchoring in the building material.
    Countersunk head plugs are recommended for the installation of timber constructions; in the case of metal constructions, use flat-head plugs, and use pan-head plugs for long holes.
  • Head Type
    Countersunk
  • Length (MM)
    100
  • Material
    Zinc-Plated
  • Max Fixture Thickness (MM)
    50
  • Min Drill Hole Depth for Through Fixings (MM)
    115
  • Pack Size
    50
  • Type
    Push-in anchor

Reviews (0)

Delivery & Returns

For full delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 or email sales@certifix.co.uk to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Fischer

fischer hammerfix N 10 x 100/50 S countersunk head zinc plated nylon [050346]

£16.11
The fischer Hammerfix N 10 x 100/50 S with countersunk head is a versatile and reliable fixing solution for timber constructions in all building materials in internal areas. It is a pre-assembled fixing that consists of a high-quality nylon plug and a zinc-plated nail screw. The Hammerfix is installed in a through-type installation, which is quick and easy. When the nail screw is driven in, the fixing sleeve expands and anchors itself securely in the building material.

Clamping Range (MM)

N/A

Diameter (MM)

N/A

Drill Diameter (MM)

10

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Push-in anchor

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

N/A

Pack Size

50

Package Contents

N/A

Material

N/A

Length (MM)

100

Min Drill Hole Depth for Through Fixings (MM)

115

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

50

Width Across Nut (MM)

N/A

Features

Rapid hammerset installation reduces the amount of time required: Economic installation.
Integrated hammer-in stop prevents the plug from expanding prematurely (jamming): Problem-free installation.
Cross-slot recess and thread of the nail screw allows the screw to be removed: Allowing for subsequent dismantling.
Wide range of diameters and usage lengths: Provides the correct plug for every fixing.
