fischer FFB-VS 50 51-100 VentiStop Cavity Barrier [545628]

Barcode: 4048962323375
Pack Size: 1
£40.32

Usually shipped in 1-2 days

fischer FFB-VS 50 51-100 VentiStop Cavity Barrier [545628] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

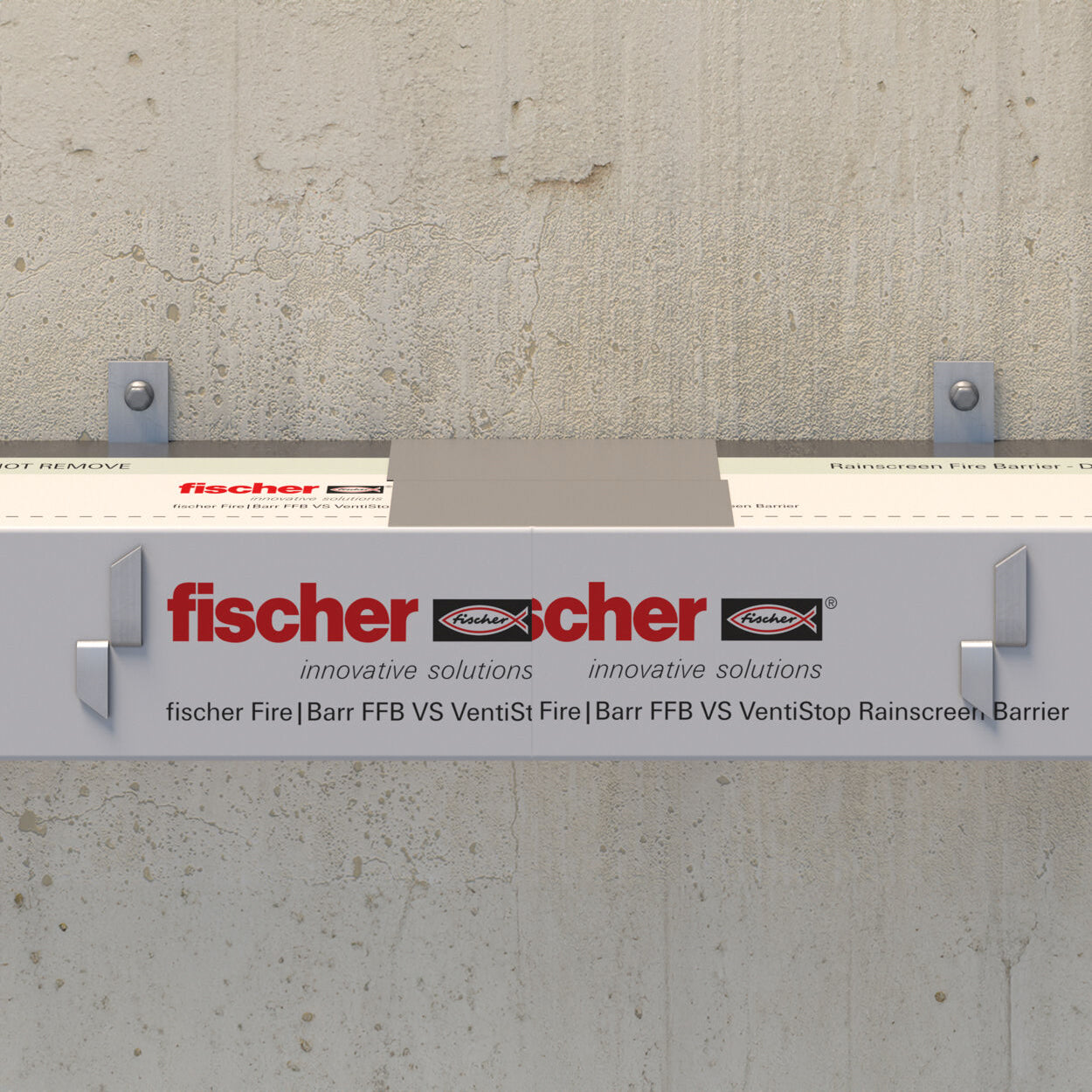

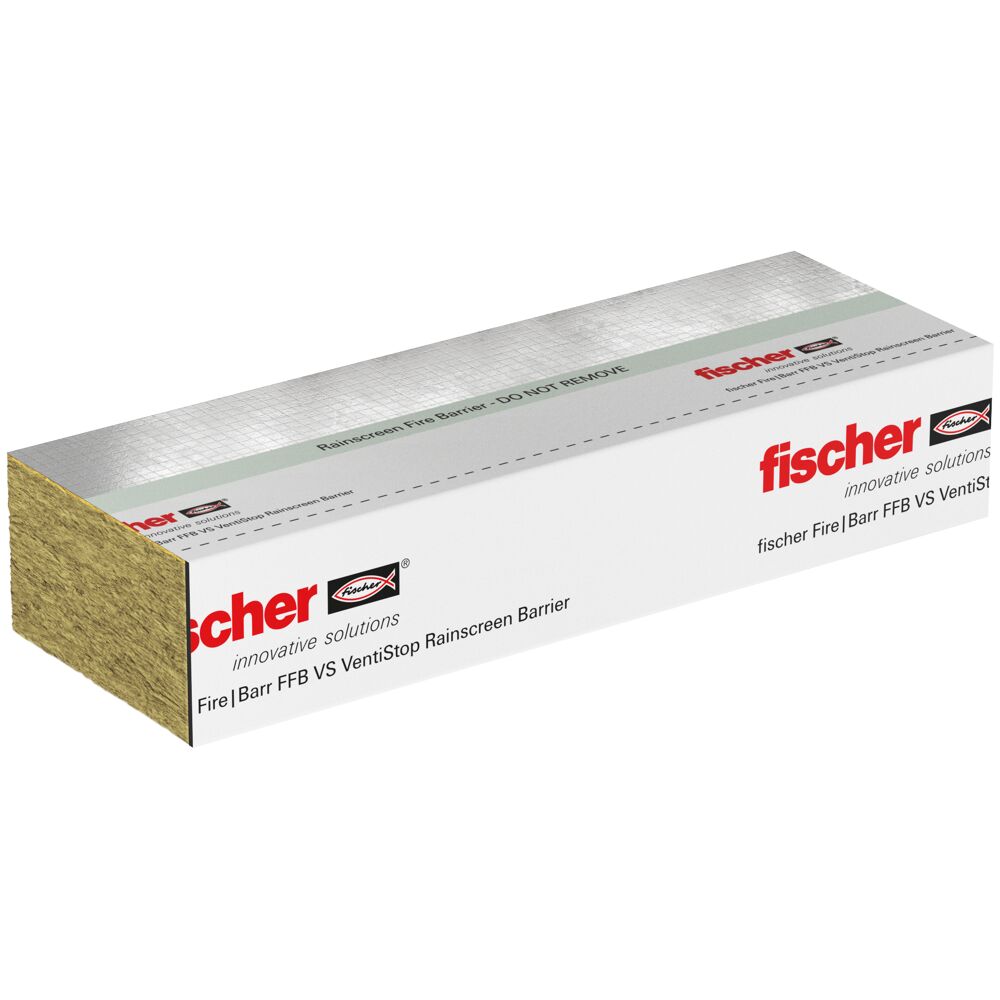

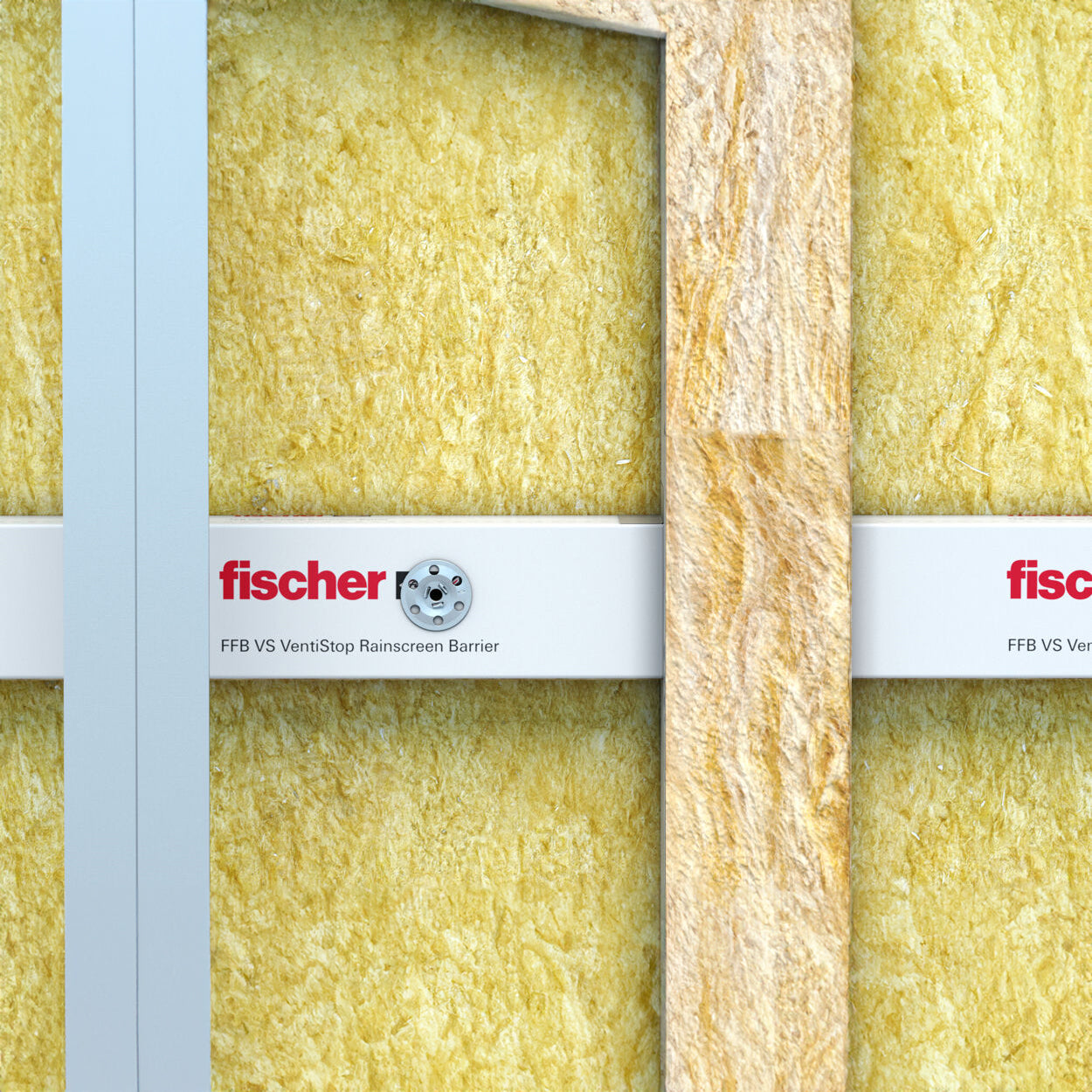

FFB-VS 50 51-100 is a foil-faced stone wool pre-cut unit with a powerful intumescent graphite strip that is bonded to the exposed face. The intumescent graphite strip is pre-wrapped with a durable polythene adhesive sheet to prevent water ingress. FFB-VS is designed to provide a 25 and 50 mm ventilation gap that allows air flow and moisture to pass down the back of the cladding. In the event of a fire, the intumescent graphite strip expands horizontally to close the gap and prevent the passage of fire.

Technical Datasheet

Safety Data Document:

Applications

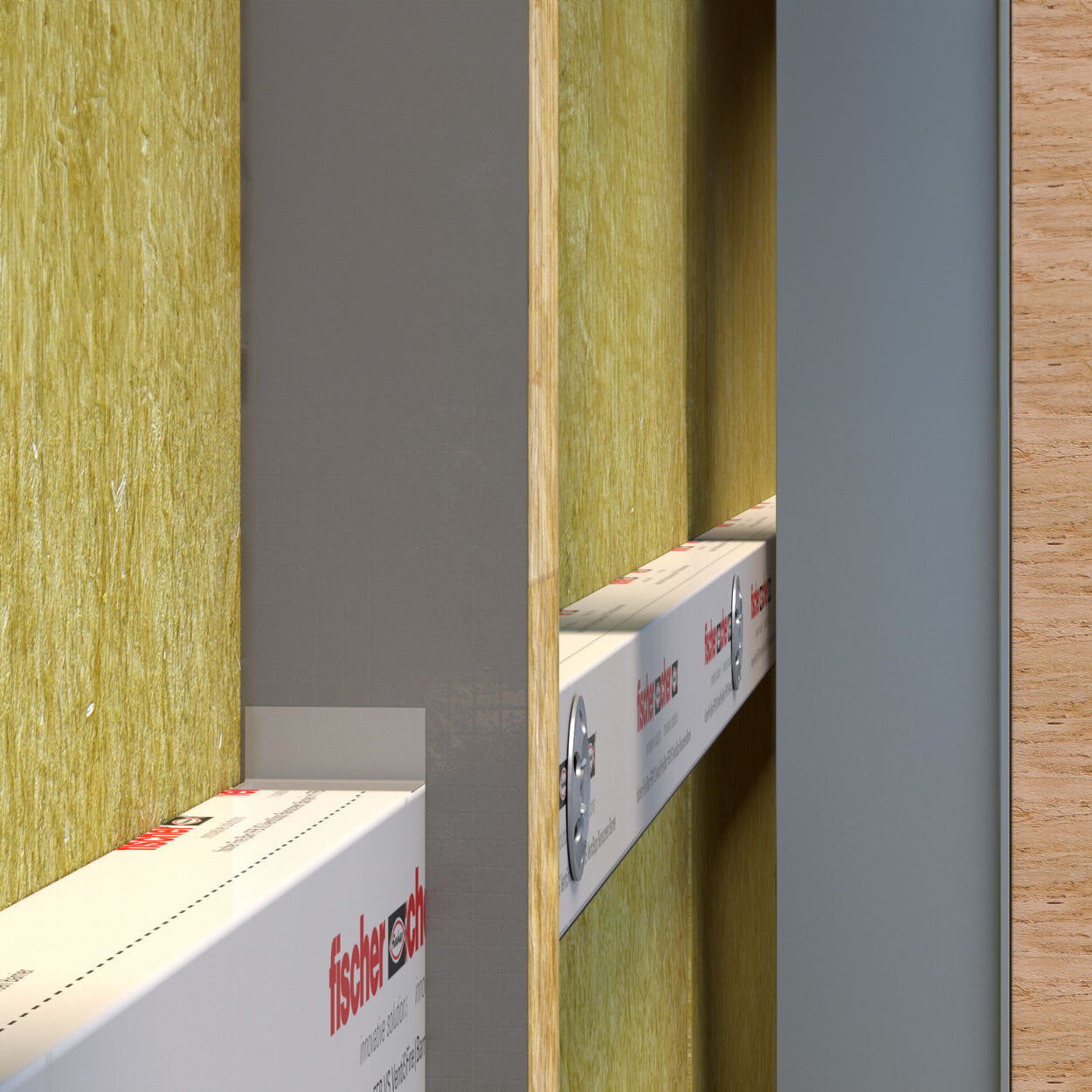

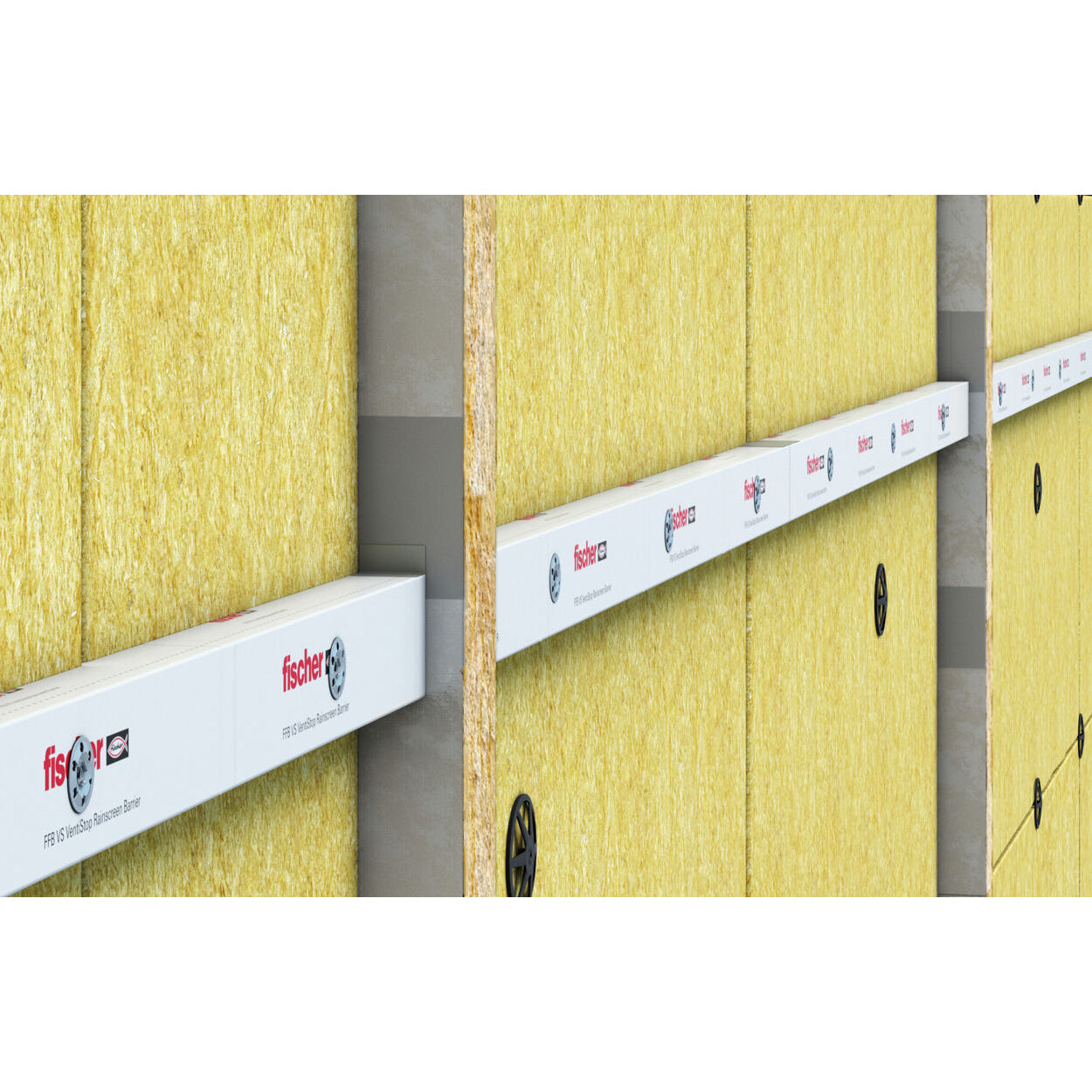

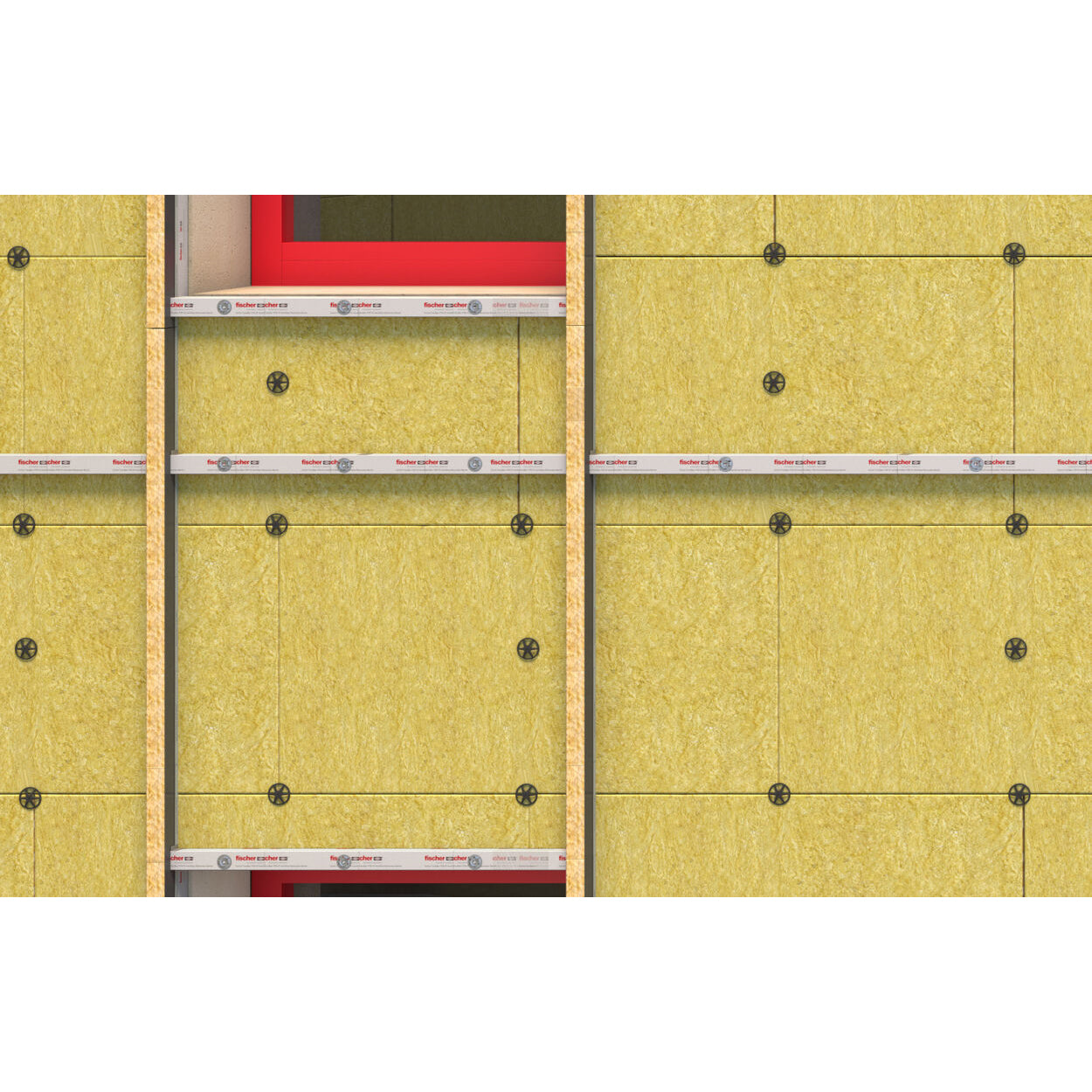

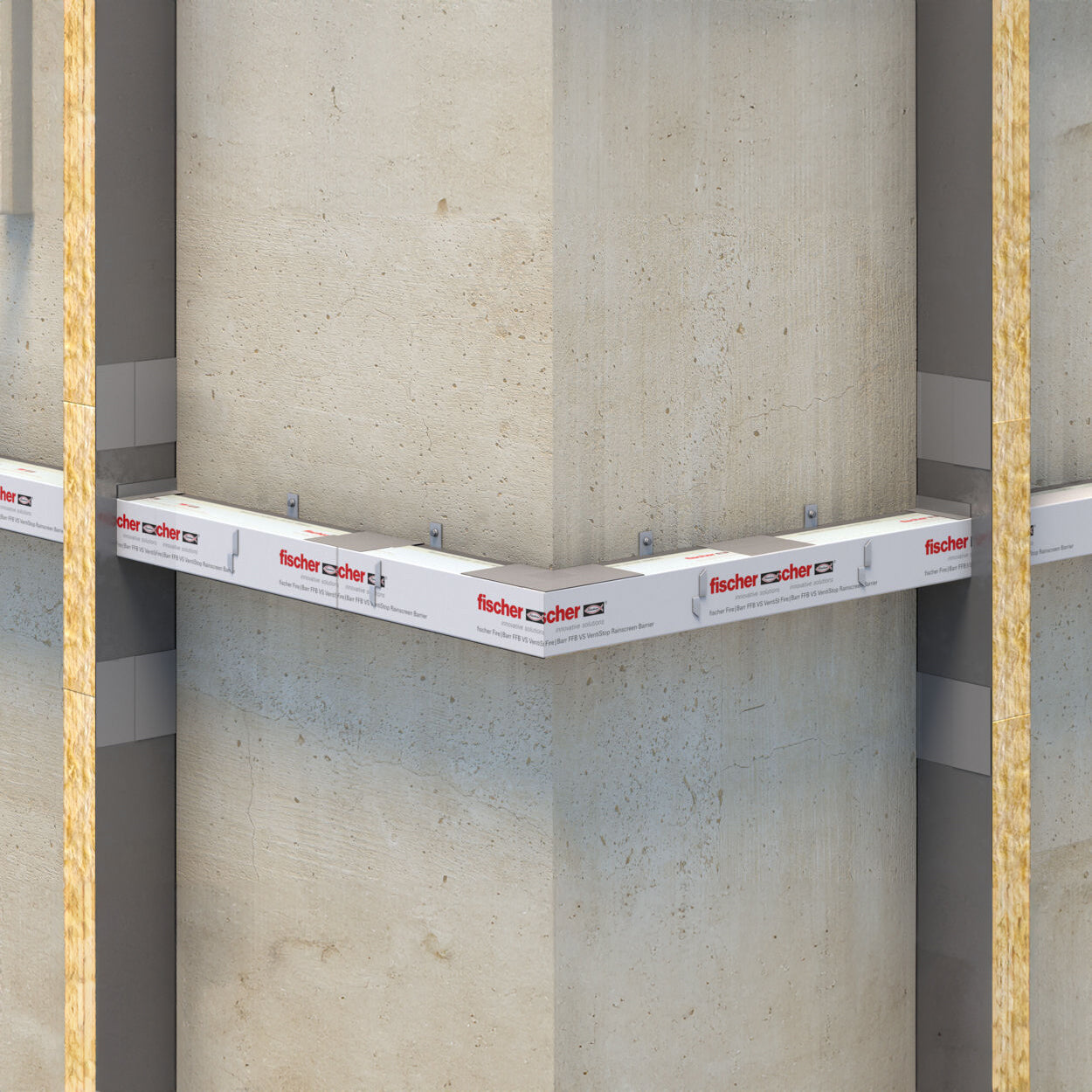

Horizontal cavities between the inner and outer construction elements

Building Materials

Concrete slabs, columns and walls
You can find detailed information on building materials in the registration document.

Features

Tested up to 120 minutes integrity and 90 minutes insulation (120 min insulation with FFB-VS HP80) utilising the heating and pressure conditions of EN 1363-1: 2017 and ASFP TGD19: 2014 - Open State Cavity Barriers: Effective.
Suitable to close 25 & 50 mm ventilation gap
Voids up to 450 mm wide: Useful.
Free of halogens, asbestos, fibres and silica and is non-toxic: Contributes to green building.
The intumescent graphite strip is pre-wrapped with a durable polythene adhesive sheet to prevent water ingress: Long life expectancy.

Specifications
  • Brand
    Fischer
  • Colour
    Black
  • Functionality
    FFB-VS a foil-faced stone wool pre-cut unit, which has a powerful intumescent graphite strip bonded to the exposed face. The intumescent graphite strip is pre-wrapped with a durable polythene adhesive sheet to prevent water ingress.
    FFB-VS has been designed to provide a 25 & 50 mm ventilation gap, that allows air fl ow and moisture to pass down the back of the cladding. Under fire conditions, the powerful intumescent along the front edge expands horizontally to close the gap and prevent the passage of fire.
  • Pack Size
    1
  • To Suit Cavity Void Width
    51 - 100mm
  • Type
    Cavity barrier
  • Ventilation Gap Size
    50mm

Reviews (0)

Delivery & Returns

For full delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 or email sales@certifix.co.uk to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Fischer

fischer FFB-VS 50 51-100 VentiStop Cavity Barrier [545628]

£40.32
FFB-VS 50 51-100 is a foil-faced stone wool pre-cut unit with a powerful intumescent graphite strip that is bonded to the exposed face. The intumescent graphite strip is pre-wrapped with a durable polythene adhesive sheet to prevent water ingress. FFB-VS is designed to provide a 25 and 50 mm ventilation gap that allows air flow and moisture to pass down the back of the cladding. In the event of a fire, the intumescent graphite strip expands horizontally to close the gap and prevent the passage of fire.

Clamping Range (MM)

N/A

Diameter (MM)

N/A

Drill Diameter (MM)

N/A

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Cavity barrier

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

N/A

Pack Size

1

Package Contents

N/A

Material

N/A

Length (MM)

N/A

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

Tested up to 120 minutes integrity and 90 minutes insulation (120 min insulation with FFB-VS HP80) utilising the heating and pressure conditions of EN 1363-1: 2017 and ASFP TGD19: 2014 - Open State Cavity Barriers: Effective.
Suitable to close 25 & 50 mm ventilation gap
Voids up to 450 mm wide: Useful.
Free of halogens, asbestos, fibres and silica and is non-toxic: Contributes to green building.
The intumescent graphite strip is pre-wrapped with a durable polythene adhesive sheet to prevent water ingress: Long life expectancy.
