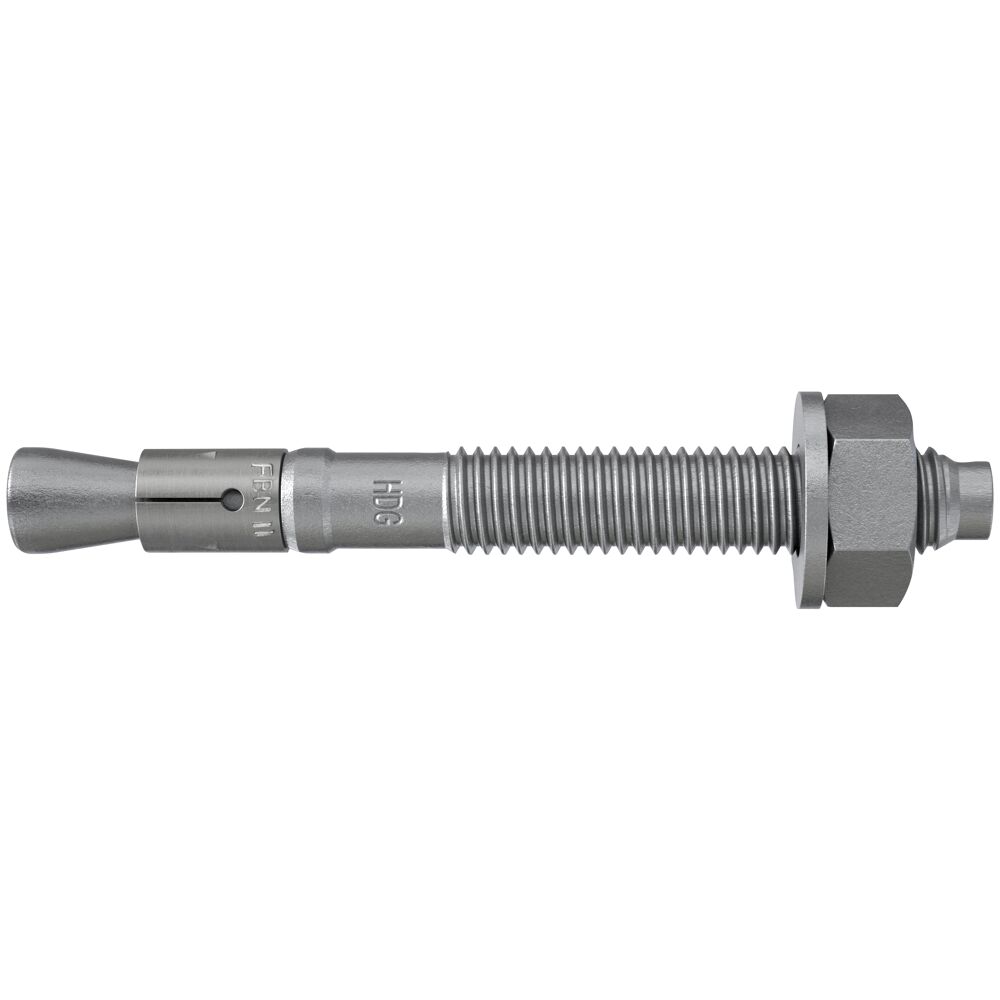

fischer FBN II 8/30 M8 x 91 Galvanised through bolt [507576]

Barcode: 4048962087635
Pack Size: 50
£51.21

Usually shipped in 1-2 days

fischer FBN II 8/30 M8 x 91 Galvanised through bolt [507576] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

The fischer bolt anchor FBN II 8/30 M8 x 91 Galvanised is a steel anchor for cost-effective fixings in non-cracked concrete. Due to the long thread, the fischer bolt anchor FBN II can be used in a particularly flexible manner. The bolt anchor is also suitable for stand-off installation as well as pre-positioned and in push-through installation. The zinc-plated steel version of the bolt anchor is suitable for fixing railings, cable trays, and consoles in internal areas.

Technical Datasheet

Declaration of Performance Document:

European Technical Approval (ETA) Document:

Load Table Document:

Tech Datasheet:

Applications

Steel constructions
Guard rails
Consoles
Ladders
Machines
Gates
Façades

Building Materials

Approved for:
Concrete C20/25 to C50/60, non-cracked
Also suitable for:
Concrete C12/15
Natural stone with dense structure
You can find detailed information on building materials in the approval document.

Certifications

ETA-07/0211
ETA-18/0101
DoP No. 0098
DoP No. 0268

Features

The standard anchorage depth achieves the maximum load-bearing capacities. Thus fewer fixing points and smaller anchor plates are required.
The reduced anchorage depth reduces the drill hole depth. This minimises the amount of time needed for installation whilst increasing flexibility.
The long thread balances component tolerances and allows for stand-off installations, thus increasing flexibility.
Few hammer blows and the minimal torque slippage allow for a noticeably simpler installation.
The drive-in pin protects the thread from damage, and thus ensures a faster installation and dismantling of the attachment.

Specifications
  • Brand
    Fischer
  • Certifications
    ETA-07/0211
    ETA-18/0101
    DoP No. 0098
    DoP No. 0268
  • Drill Diameter (MM)
    8
  • Functionality
    The FAZ II is suitable for pre-positioned and push-through installation and is also ideal for stand-off installation thanks to the long thread.

    When applying the torque, the cone bolt is pulled into the expansion sleeve and expand it against the drill hole wall.

    The anchor is set in line with the approval once the preset installation torque is achieved.

    In the case of series installation, we recommend using the FABS anchor bolt setting tool.
  • Length (MM)
    90
  • Material
    Galvanised Steel
  • Max Usable Length HEF Stand/HEF Min
    30 / 40mm
  • Min Drill Hole Depth for Through Fixings (MM)
    86
  • Pack Size
    50
  • Thread
    M8
  • Type
    Through bolt
  • Width Across Nut (MM)
    13

Reviews (0)

Delivery & Returns

For full delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 or email sales@certifix.co.uk to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Fischer

fischer FBN II 8/30 M8 x 91 Galvanised through bolt [507576]

£51.21
The fischer bolt anchor FBN II 8/30 M8 x 91 Galvanised is a steel anchor for cost-effective fixings in non-cracked concrete. Due to the long thread, the fischer bolt anchor FBN II can be used in a particularly flexible manner. The bolt anchor is also suitable for stand-off installation as well as pre-positioned and in push-through installation. The zinc-plated steel version of the bolt anchor is suitable for fixing railings, cable trays, and consoles in internal areas.

Clamping Range (MM)

N/A

Diameter (MM)

N/A

Drill Diameter (MM)

8

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Through bolt

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

M8

Size

N/A

Pack Size

50

Package Contents

N/A

Material

N/A

Length (MM)

90

Min Drill Hole Depth for Through Fixings (MM)

86

Max Usable Length HEF Stand/HEF Min

30 / 40mm

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

13

Features

The standard anchorage depth achieves the maximum load-bearing capacities. Thus fewer fixing points and smaller anchor plates are required.
The reduced anchorage depth reduces the drill hole depth. This minimises the amount of time needed for installation whilst increasing flexibility.
The long thread balances component tolerances and allows for stand-off installations, thus increasing flexibility.
Few hammer blows and the minimal torque slippage allow for a noticeably simpler installation.
The drive-in pin protects the thread from damage, and thus ensures a faster installation and dismantling of the attachment.
