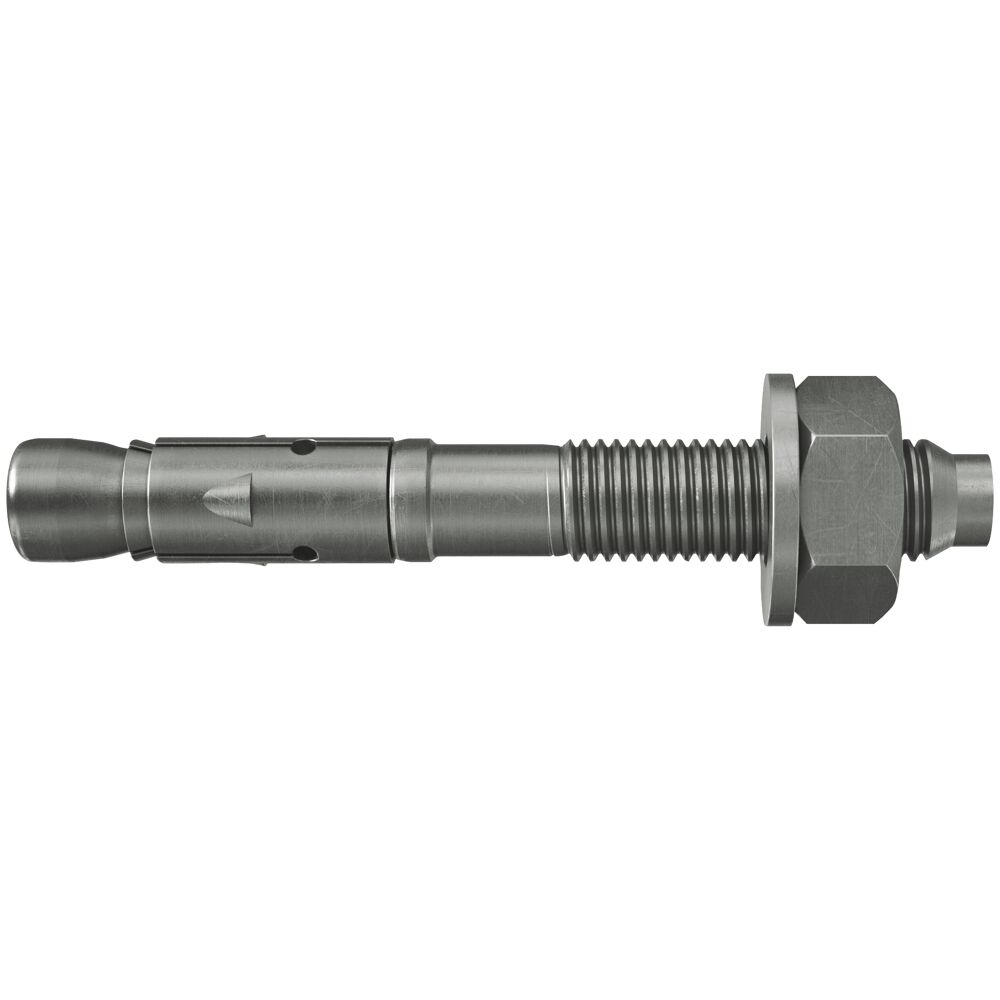

fischer FAZ II PLUS 8/5 K R M8 x 60 stainless steel through bolt short version [564676]

Barcode: 4048962463019
Pack Size: 50
£89.79

Usually shipped in 1-2 days

fischer FAZ II PLUS 8/5 K R M8 x 60 stainless steel through bolt short version [564676] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

Fischer FAZ II PLUS 8/5 K R M8 x 60 short version is a high-tensile strength stainless steel through bolt anchor for non-cracked/cracked concrete. It uses a tried-and-tested expansion clip to safely introduce loads into the concrete, enabling an immediately loadable high load-bearing capacity. It is ideal for anchoring railings, cable trays, and consoles.

Technical Datasheet

Declaration of Performance Document:

European Technical Approval (ETA) Document:

FM Approval Document:

Load Table Document:

Applications

Steel constructions

Guard rails

Consoles

Ladders

Cable trays

Machines

Staircases

Façades

Timber constructions

Building Materials

Approved for:

Concrete C20/25 to C50/60, cracked and non-cracked

Also suitable for:

Concrete C12/15 (classification available)

Concrete C80/95 (classification available)

Steel fibre concrete (classification available)

Solid sand-lime brick (classification available)

You can find detailed information on building materials in the registration document.

Certifications

ETA-19/0520

DoP 0334

Features

No need for drill hole cleaning (M8-M24): Quick and easier assembly.

Numerous approval certificates for different substrate materials (concrete C12/15-C80/90, steel fibre concrete, solid sand-lime brick): Increase the number of applications and fields of use.

With the new assessment (ETA), tensile strengths increase decisively: Fewer fixing points and anchors are required.

The ETA evaluation, together with other test reports (RWS, ZTV, ETK): High loads in case of fire.

Variable anchorage depths: Allows a millimetre-accurate adjustment to the loads.

The FAZ II Plus allows the absorption of high seismic loads of performance category C1 with and without the use of the filling disc FFD at installation: Flexible.

Specifications
  • Brand
    Fischer
  • Certifications
    ETA-19/0520

    DoP 0334
  • Drill Diameter (MM)
    8
  • Functionality
    The FAZ II PLUS K R is suitable for pre-positioned and push-through installation, and is also ideal for stand-off installation thanks to the long thread.

    When applying the torque, the cone bolt is pulled into the expansion sleeve and expand it against the drill hole wall.

    The anchor is set in line with the approval once the preset installation torque is achieved.

    In the case of series installation, we recommend using the FABS or FA-ST II anchor bolt setting tools.
  • Length (MM)
    60
  • Material
    Stainless Steel
  • Max Usable Length HEF Stand/HEF Min
    #N/A
  • Min Drill Hole Depth for Through Fixings (MM)
    45
  • Pack Size
    50
  • Seismic Approval
    C1
  • Thread
    M8 x 23mm
  • Type
    Through bolt
  • Width Across Nut (MM)
    13

Reviews (0)

Delivery & Returns

For full delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 or email sales@certifix.co.uk to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Fischer

fischer FAZ II PLUS 8/5 K R M8 x 60 stainless steel through bolt short version [564676]

£89.79
Fischer FAZ II PLUS 8/5 K R M8 x 60 short version is a high-tensile strength stainless steel through bolt anchor for non-cracked/cracked concrete. It uses a tried-and-tested expansion clip to safely introduce loads into the concrete, enabling an immediately loadable high load-bearing capacity. It is ideal for anchoring railings, cable trays, and consoles.

Clamping Range (MM)

N/A

Diameter (MM)

N/A

Drill Diameter (MM)

8

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Through bolt

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

M8 x 23mm

Size

N/A

Pack Size

50

Package Contents

N/A

Material

N/A

Length (MM)

60

Min Drill Hole Depth for Through Fixings (MM)

45

Max Usable Length HEF Stand/HEF Min

#N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

13

Features

No need for drill hole cleaning (M8-M24): Quick and easier assembly.

Numerous approval certificates for different substrate materials (concrete C12/15-C80/90, steel fibre concrete, solid sand-lime brick): Increase the number of applications and fields of use.

With the new assessment (ETA), tensile strengths increase decisively: Fewer fixing points and anchors are required.

The ETA evaluation, together with other test reports (RWS, ZTV, ETK): High loads in case of fire.

Variable anchorage depths: Allows a millimetre-accurate adjustment to the loads.

The FAZ II Plus allows the absorption of high seismic loads of performance category C1 with and without the use of the filling disc FFD at installation: Flexible.
