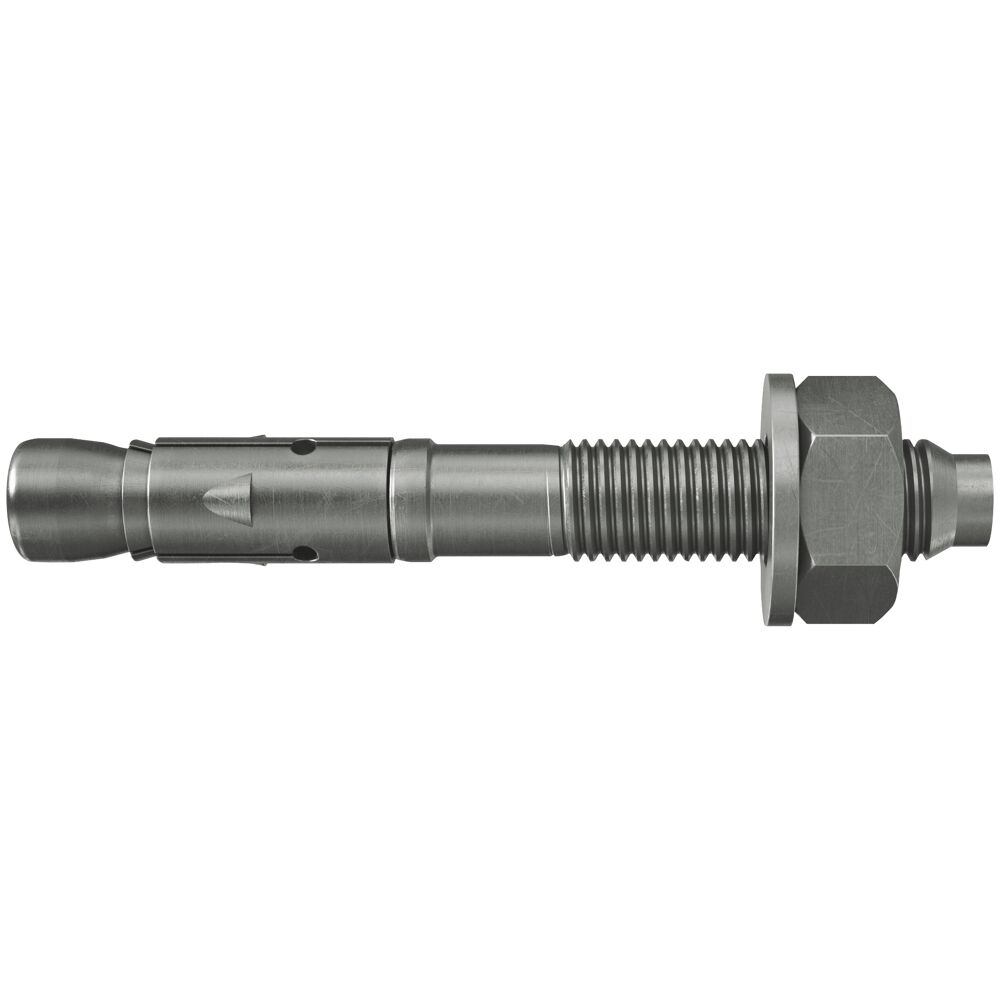

fischer FAZ II 10/20 K M10 x 85 A4 Stainless through bolt short version [522117]

Barcode: 4048962177664
Pack Size: 50
£204.91

Usually shipped in 1-2 days

fischer FAZ II 10/20 K M10 x 85 A4 Stainless through bolt short version [522117] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

The FAZ II 10/20 K M10 x 85 A4 Stainless through bolt short version has a unique expansion clip and design which allows for fixing heavy loads securely into both cracked and non-cracked concrete. The high load capacity allows for fewer fixings points to be used, which saves on installation time, and fixings cost as fewer fixings can be used. The zinc-plated version is used for fixing in indoor areas. By using the shorter FAZ version, (also available for M8 FAZ II), reduced drill hole depths and smaller diameters result in faster installation times. The FAZ II is approved for seismic, and also for installation with hollow drills.

Technical Datasheet

Declaration of Performance Document:

European Technical Approval (ETA) Document:

FM Approval Document:

Applications

Steel constructions

Guard rails

Consoles

Ladders

Cable trays

Machines

Staircases

Gates

Façades

Timber constructions

Building Materials

Approved for:

Concrete C20/25 to C50/60, cracked and non-cracked

Also suitable for:

Concrete C12/15

Concrete C80/95 (classification available)

You can find detailed information on building materials in the registration document.

Certifications

ETA-05/0069

DoP 0186

DoP No. 0009

DoP No. 0121

ESR-2948

Features

According to the new evaluation (ETA), the tensile strengths are decisive: Fewer anchors are required.
Variable anchorage depths with sizes M8 to M16: Allow a millimetre-accurate adjustment to the loads for the first time.
Version with cap nut:Offers an optically attractive anchoring and protects against injuries as well thanks to the round shape.
The first bolt anchor M6 with an ETA assessment Option 1 for secure and reliable anchorings: Pioneering.
International approvals: Guarantee maximum safety and the best performance.
General design certification for anchorage in steel fiber concrete for the fischer bolt anchors FAZ II, FAZ II R and FAZ II HCR (diameter M6 - M24).

Specifications
  • Brand
    Fischer
  • Certifications
    ETA-05/0069

    DoP 0186

    DoP No. 0009

    DoP No. 0121

    ESR-2948
  • Drill Diameter (MM)
    10
  • Functionality
    The FAZ II is suitable for pre-positioned and push-through installation and is also ideal for stand-off installation thanks to the long thread.

    When applying the torque, the cone bolt is pulled into the expansion sleeve and expand it against the drill hole wall.

    The anchor is set in line with the approval once the preset installation torque is achieved.

    In the case of series installation, we recommend using the FABS anchor bolt setting tool.
  • Length (MM)
    85
  • Material
    A4 Stainless Steel
  • Min Drill Hole Depth for Through Fixings (MM)
    75
  • Pack Size
    50
  • Seismic Approval
    C1 / C2
  • Thread
    M10 x 43mm
  • Type
    Through bolt
  • Width Across Nut (MM)
    17

Reviews (0)

Delivery & Returns

For full delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 or email sales@certifix.co.uk to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Fischer

fischer FAZ II 10/20 K M10 x 85 A4 Stainless through bolt short version [522117]

£204.91
The FAZ II 10/20 K M10 x 85 A4 Stainless through bolt short version has a unique expansion clip and design which allows for fixing heavy loads securely into both cracked and non-cracked concrete. The high load capacity allows for fewer fixings points to be used, which saves on installation time, and fixings cost as fewer fixings can be used. The zinc-plated version is used for fixing in indoor areas. By using the shorter FAZ version, (also available for M8 FAZ II), reduced drill hole depths and smaller diameters result in faster installation times. The FAZ II is approved for seismic, and also for installation with hollow drills.
