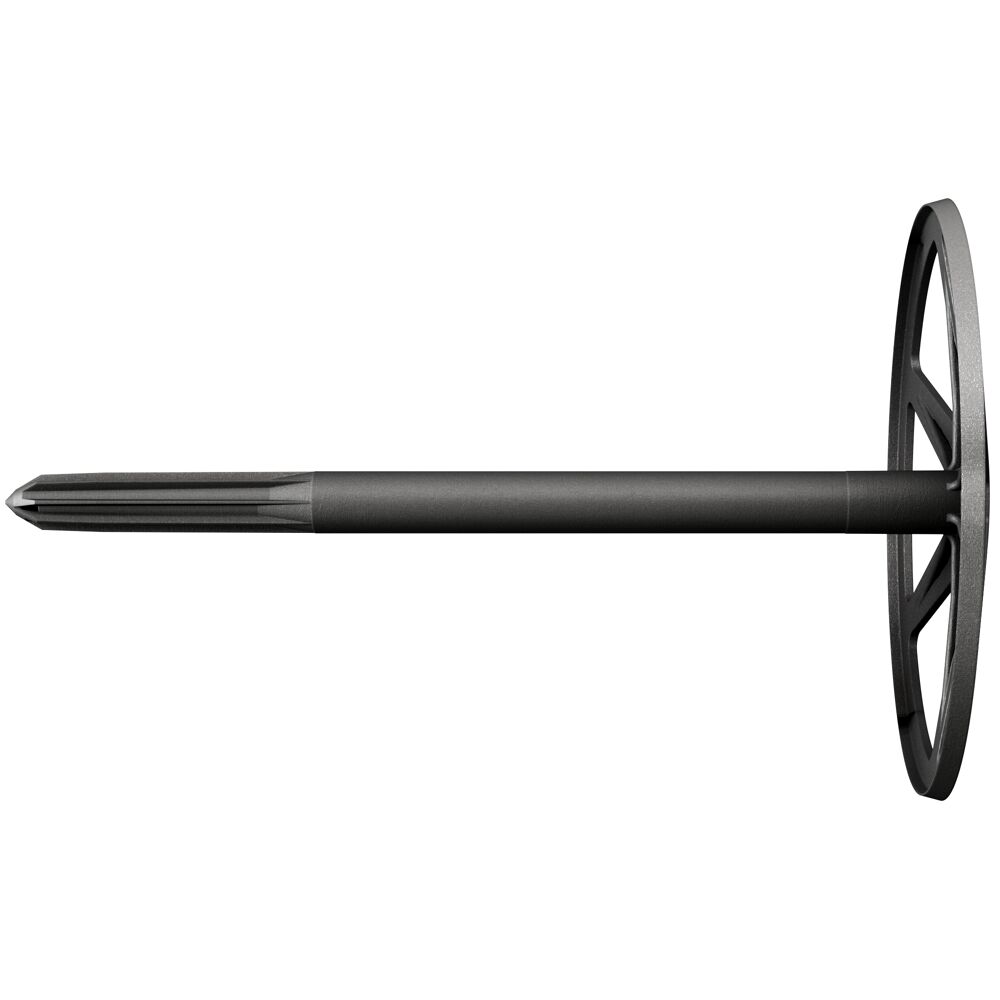

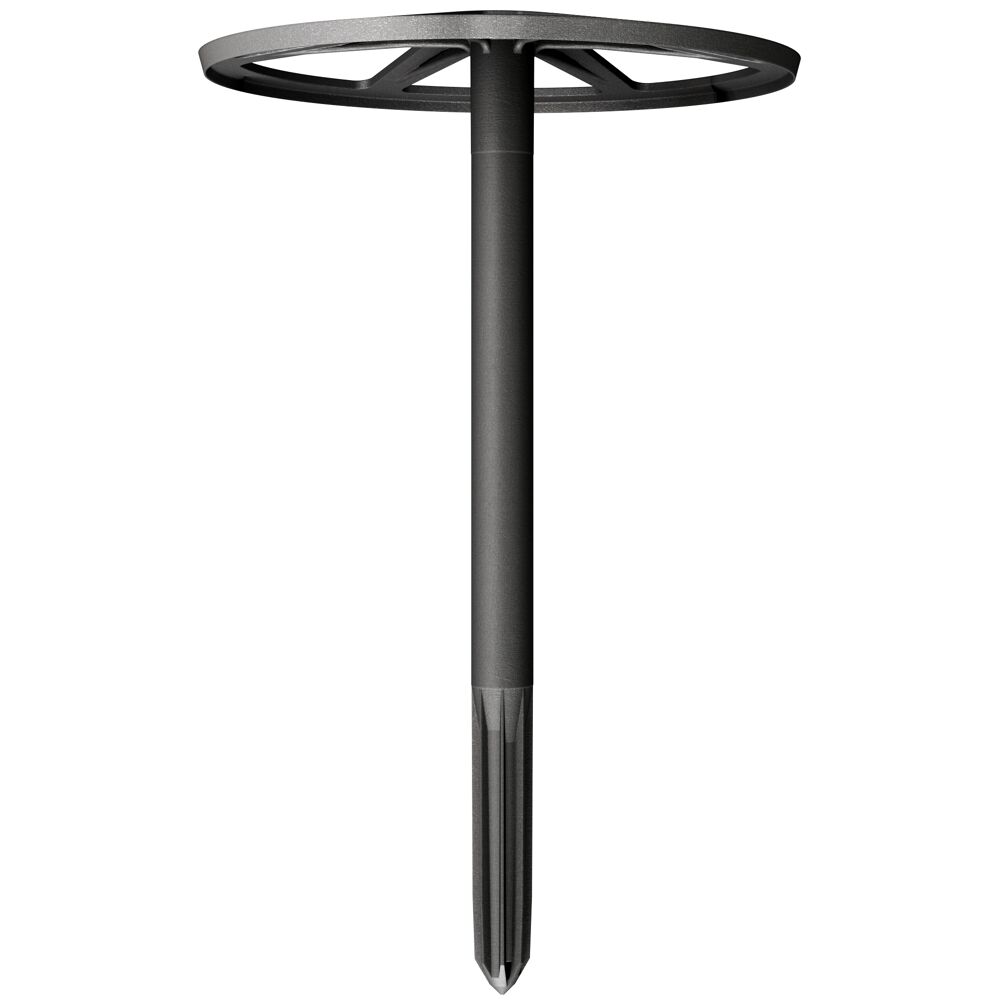

fischer DHK 140 Insulation support [80949]

Barcode: 4006209809495
Pack Size: 200
£102.32

Usually shipped in 1-2 days

fischer DHK 140 Insulation support [80949] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

The fischer insulation support DHK 140 is a cost-effective and versatile plastic insulation support that is ideal for anchoring insulating boards in solid and perforated brick, concrete, and aerated concrete. It is installed using the push-through method, making it quick and easy to install. The DHK 140 is knocked into the pre-drilled hole with a hammer. When knocking in, the ribs expand in the drill hole and the DHK is ideally pressed in. This ensures that the insulation support is securely fastened to the material and can withstand even heavy loads.

Technical Datasheet

Environmental Product Declaration Document:

Load Table Document:

Applications

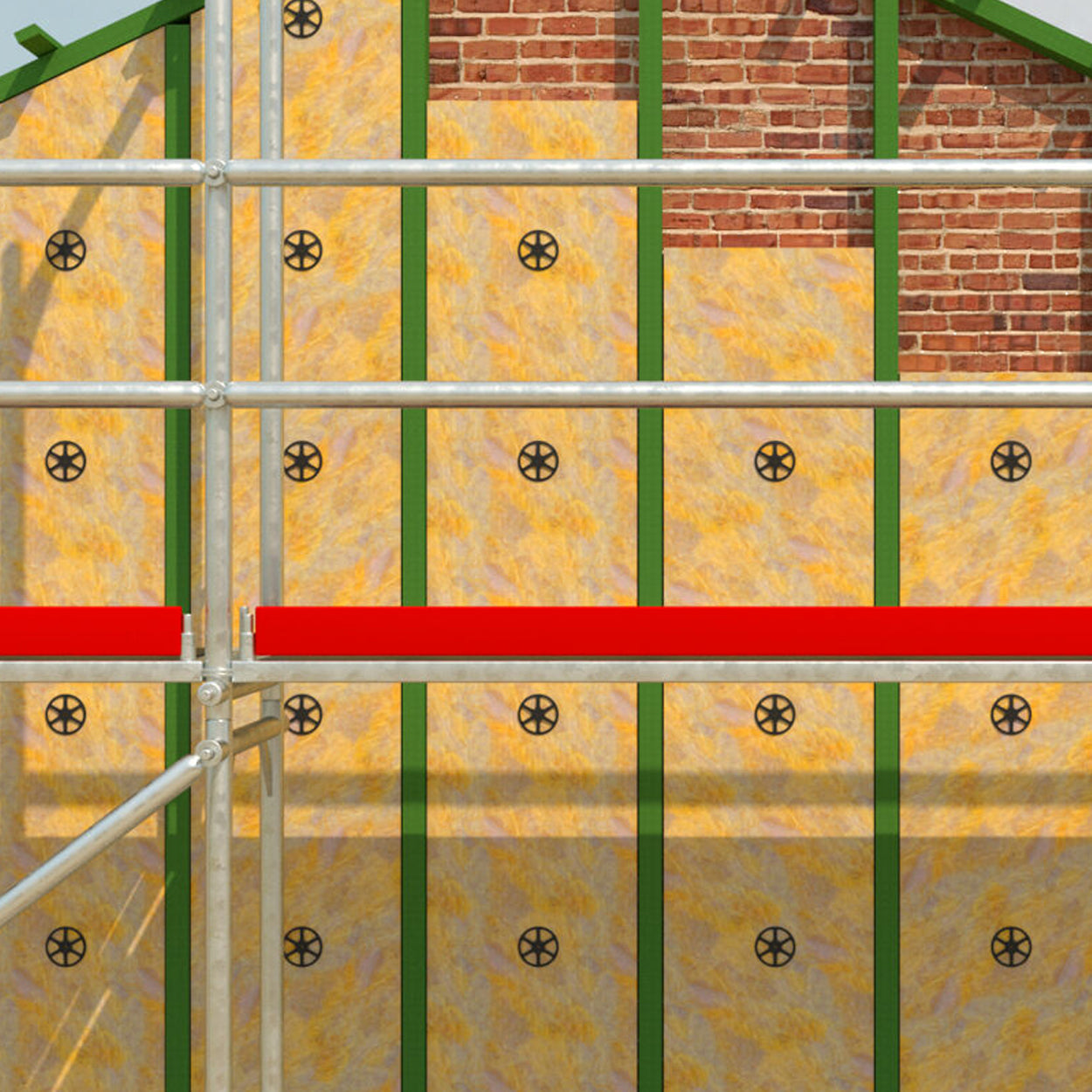

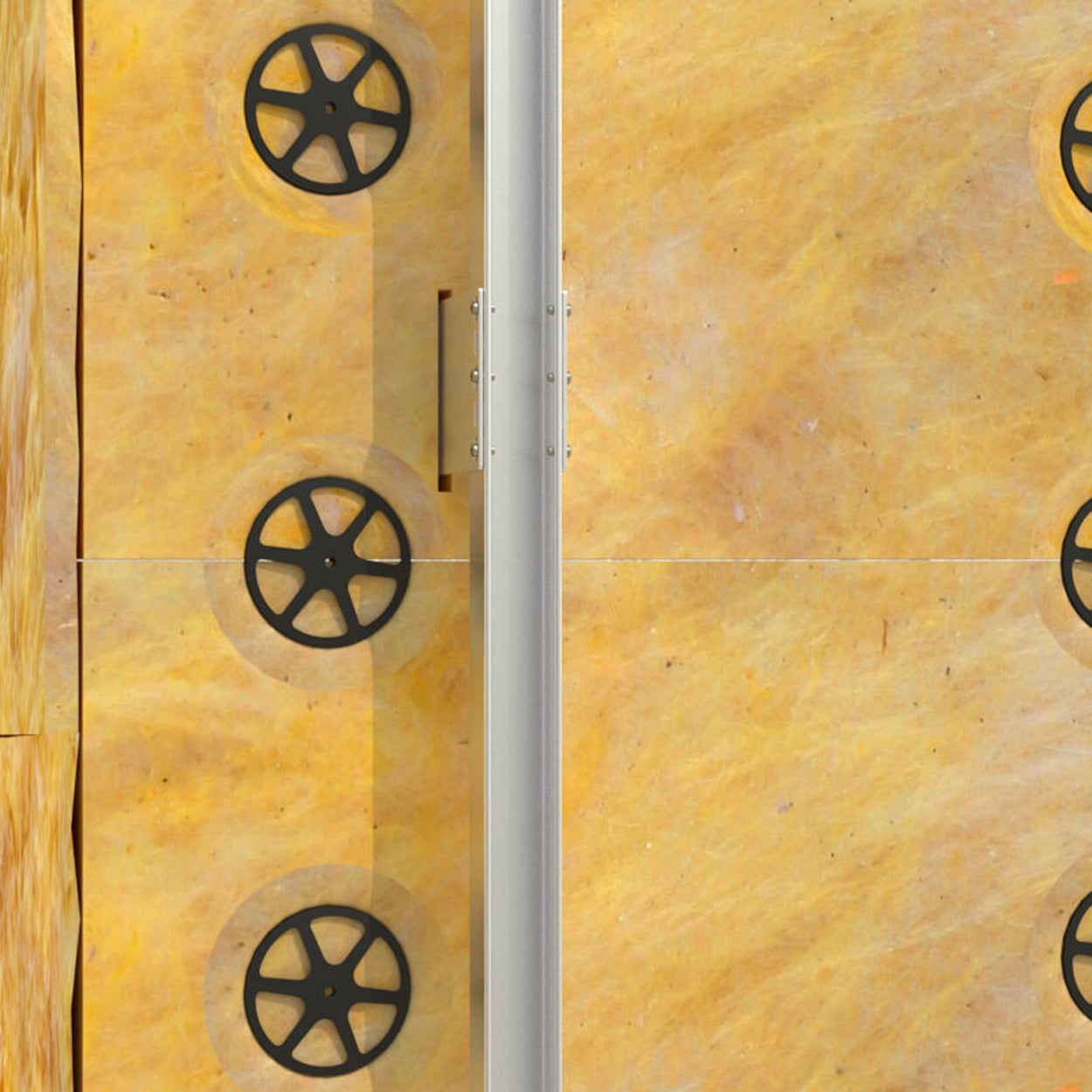

To fix soft and pressure-resistant insulating materials in rear-ventilated façades, such as:
Mineral wool
PU panels
Light building boards made of wood wool
Cork boards / coir matting
Polystyrene
Foam glass tiles

Building Materials

Concrete
Hollow blocks made from lightweight concrete
Vertically perforated brick
Perforated sand-lime brick
Solid sand-lime brick
Natural stone with dense structure
Aerated concrete
Solid brick made from lightweight concrete
Solid brick
You can find detailed information on building materials in the registration document.

Certifications

EPD-FIW-20210314-CBD1-EN

Features

Optimised geometry of the expansion section: Ensures a low anchorage depth and reduces the amount of drilling required.
Flexible pins in the plate area adapt to the insulating material: Sustained contact pressure.
Simple hammerset installation: Allows for a quick installation process and thus reduces workload.
Colouring of the DHK: Ddoes not stand out on black clad insulating material in rear-ventilated façades.

Specifications
  • Brand
    Fischer
  • Certifications
    EPD-FIW-20210314-CBD1-EN
  • Drill Diameter (MM)
    8
  • Effective Anchorage Depth (mm)
    20.00
  • Functionality
    The DHK is set in push-through installation using a hammer.
    The plate size of the insulation support is to be selected in line with the compressive strength of the insulating material: DHK 45 for pressure-resistant; DHK 90 for soft insulating materials.
    The expansion of the ribs in the drill hole gives the DHK an ideal contact pressure.
    Temperature range when installed: -40 °C to +80 °C.
  • Length (MM)
    165
  • Material
    Plastic
  • Max Fixture Thickness (MM)
    140
  • Min. Drill Hole Depth (mm)
    30.00
  • Pack Size
    200
  • Type
    Insulation anchor
