fisher FH II 18/50 S Sleeve anchor with hexagonal head [44896]

Barcode: 4006209448960
Pack Size: 20
£123.77

Usually shipped in 1-2 days

fisher FH II 18/50 S Sleeve anchor with hexagonal head [44896] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

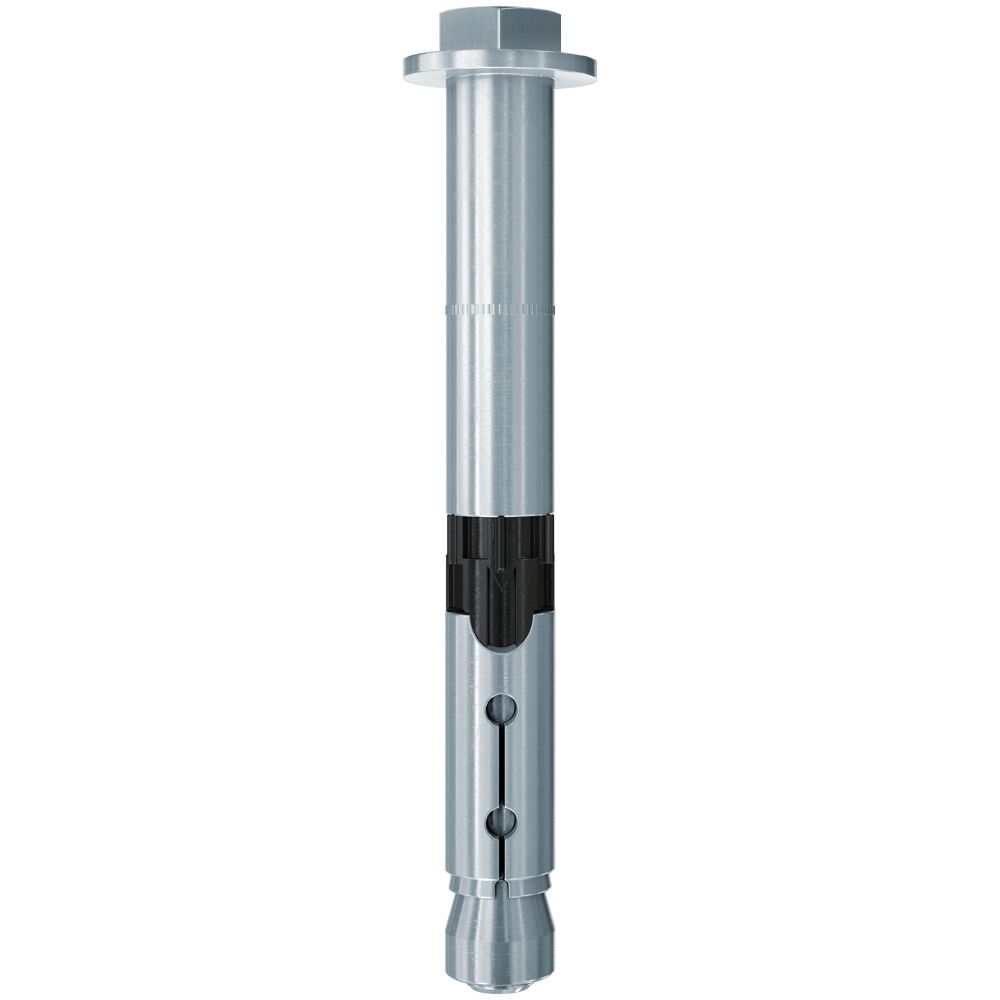

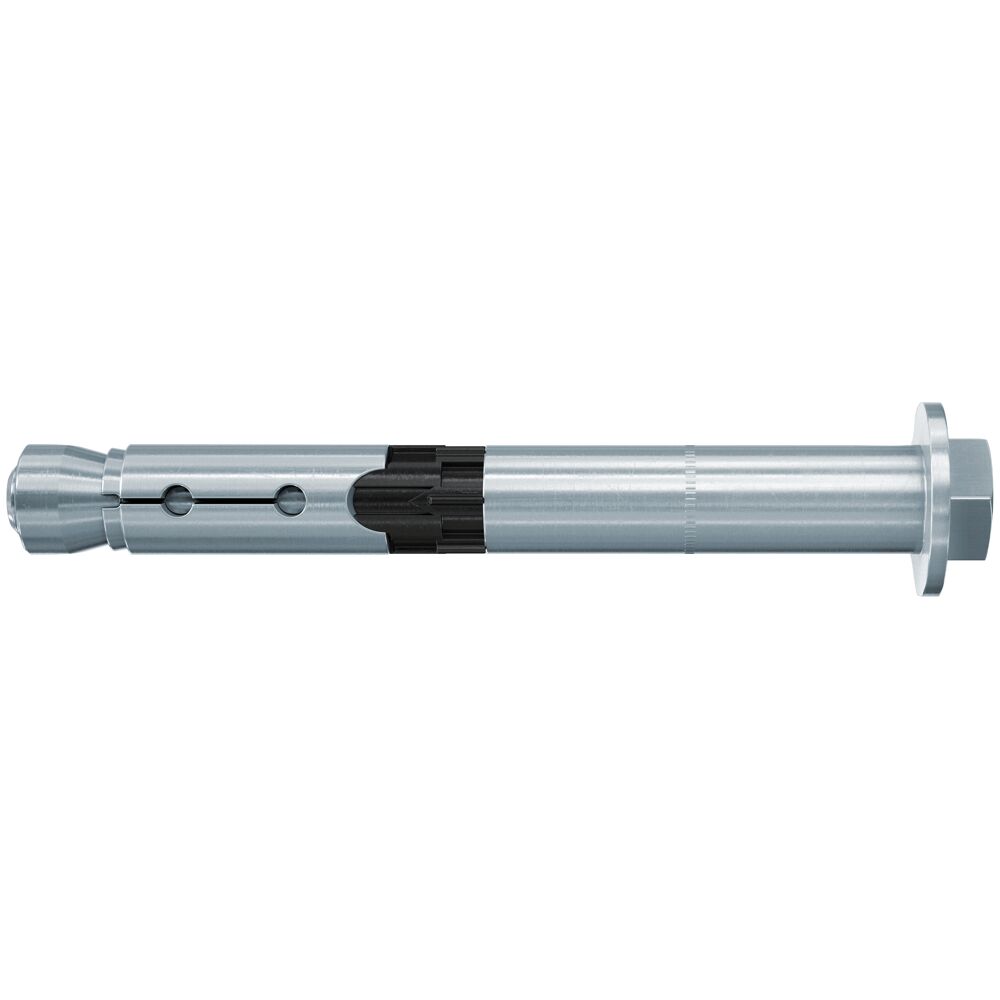

The fischer high-performance anchor FH II 18/50 S with hexagonal head is a zinc-plated sleeve anchor that expands against the hole wall when tightened, creating a secure hold in cracked and non-cracked concrete. The black plastic ring prevents the anchor from rotating and torque slipping, ensuring that the fixture is pulled tight against the anchoring base. This hex head anchor is ideal for fixing consoles, steel constructions, and railings in external areasable trays. It is also approved for use in earthquake regions.

Technical Datasheet

Declaration of Performance Document:

European Technical Approval (ETA) Document:

FM Approval Document:

Load Table Document:

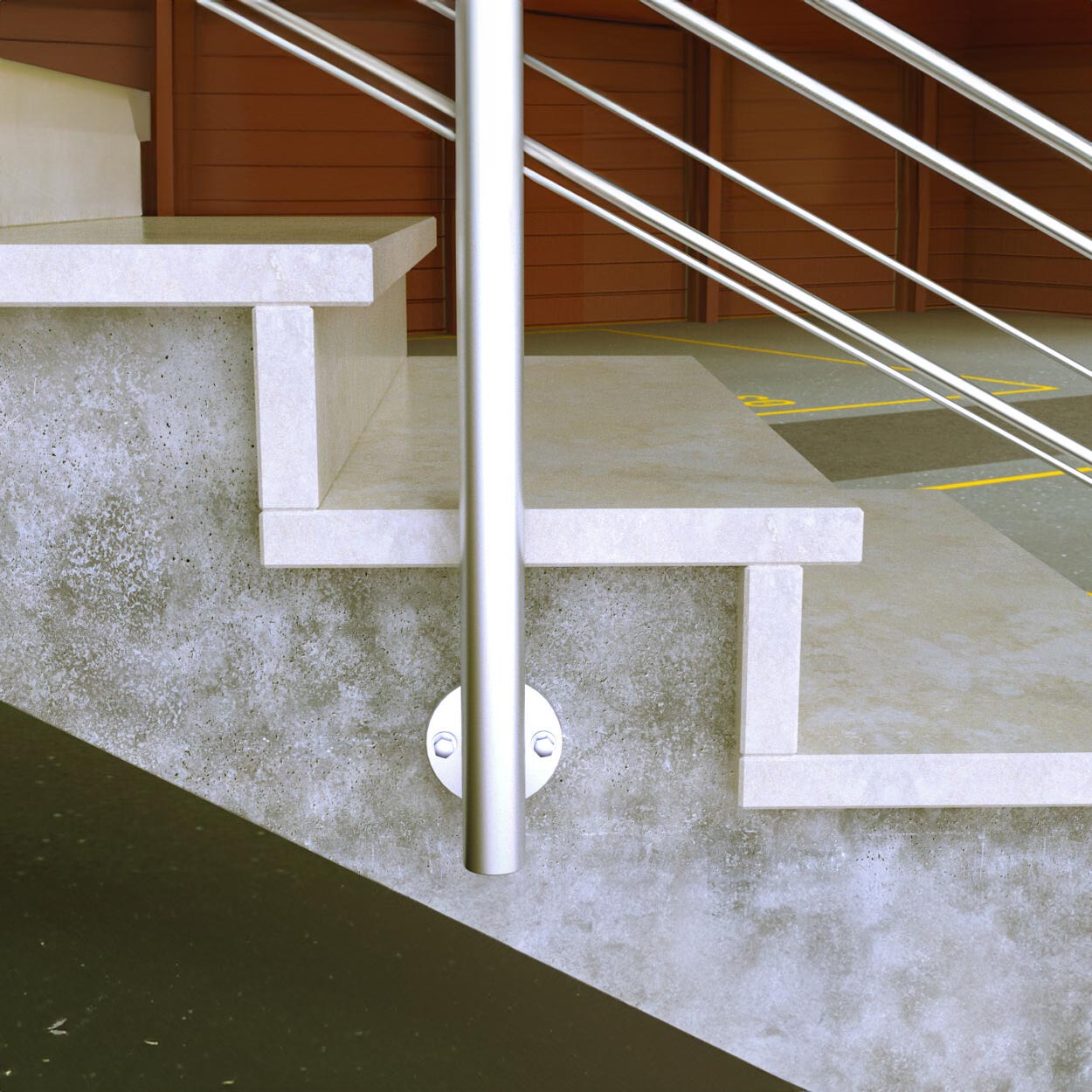

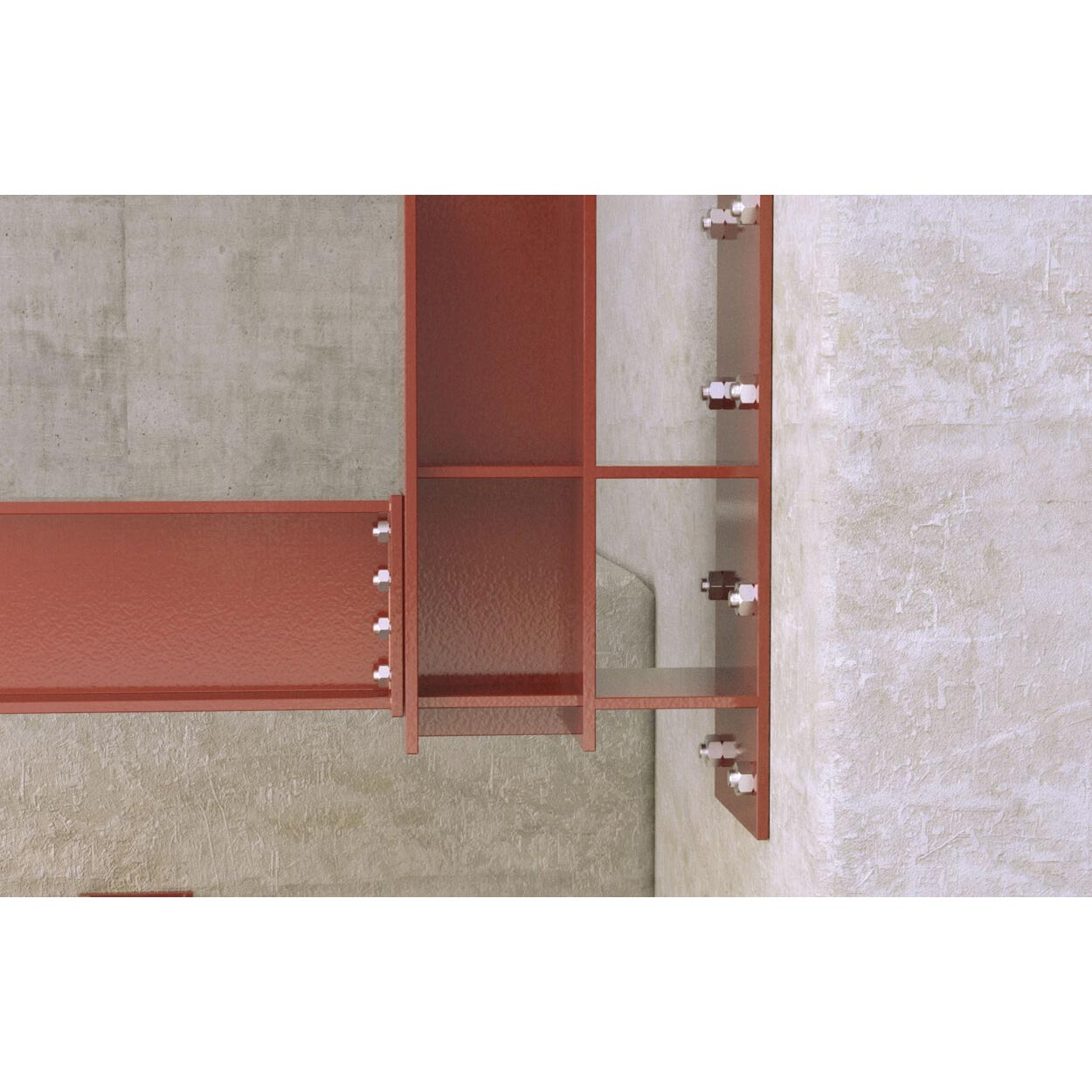

Applications

Guard rails
Staircases
Consoles
Steel constructions
Cable trays
Machines
Gates
Façades

Building Materials

Approved for:

Concrete C20/25 to C50/60, cracked and non-cracked

Also suitable for:

Concrete C12/15

Natural stone with dense structure

You can find detailed information on building materials in the registration document.

Certifications

ETA-07/0025

DoP 0197

DoP No. 0127

ESR-2698

Features

Product Features

The international approvals guarantee maximum safety and the best performance. The European Technical Assessment even cover use in earthquake zones (seismic C1 and C2).

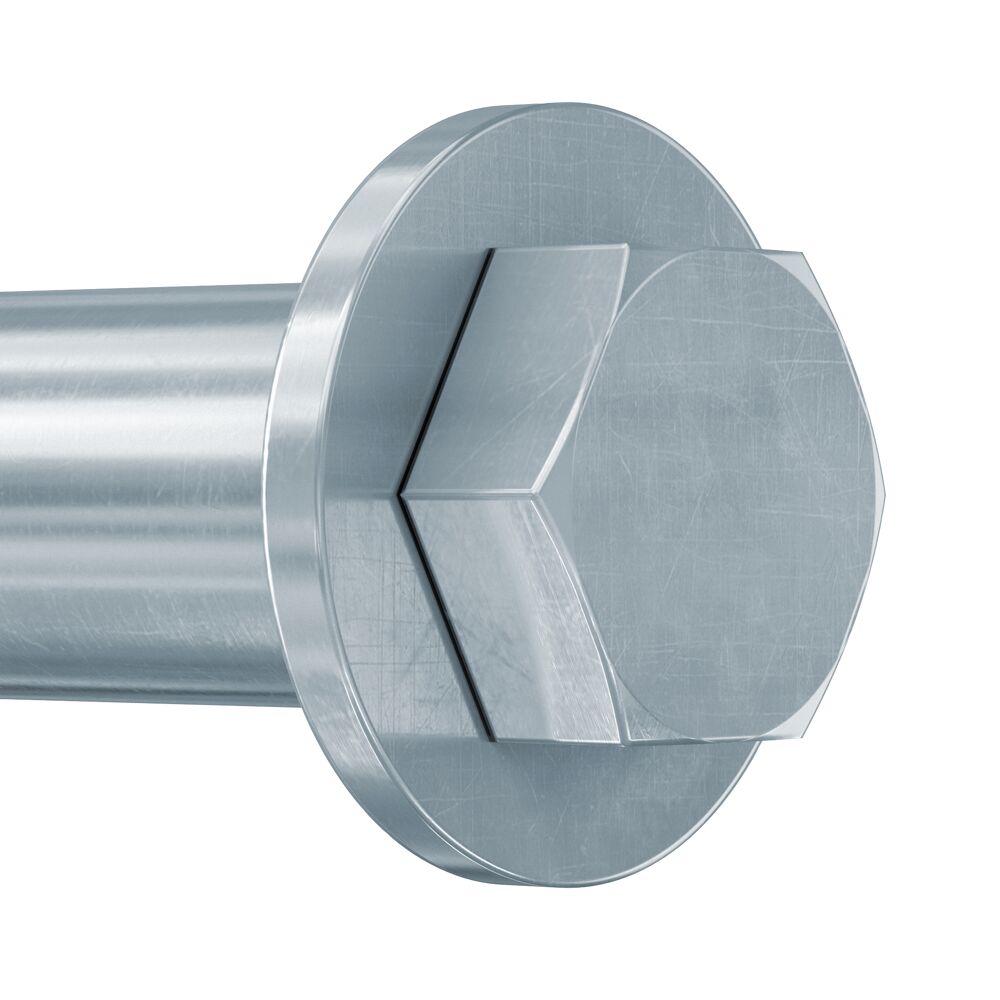

The low profile of the screw head ensures for a discreet fixing.

The design between the bolt and the sleeve ensures high shear load-bearing capacity. Thus, fewer fixing points are required.

The optimised geometry intelligently reduces the energy required for assembly.

The approval regulates the use of hollow drills.

Specifications
  • Brand
    Fischer
  • Certifications
    ETA-07/0025

    DoP 0197

    DoP No. 0127

    ESR-2698
  • Drill Diameter (MM)
    18
  • Functionality
    The FH II is suitable for push-through installation.
    When applying the torque, the cone is pulled into the expansion sleeve and expands it against the drill hole wall.
    The black plastic ring prevents rotation when tightening the anchor, and acts as a crumple zone to take the torque slippage so that the fixture is pulled onto the anchor base.
    Available head shapes for flexible design solutions: Countersunk head (type SK) and hexagon head (type S).
  • Head Type
    Hexagonal
  • Material
    Zinc-Plated
  • Max Fixture Thickness (MM)
    50
  • Min Drill Hole Depth for Through Fixings (MM)
    155
  • Pack Size
    20
  • Seismic Approval
    C1 / C2
  • Thread
    M12
  • Type
    Sleeve anchor
  • Width Across Nut (MM)
    19
