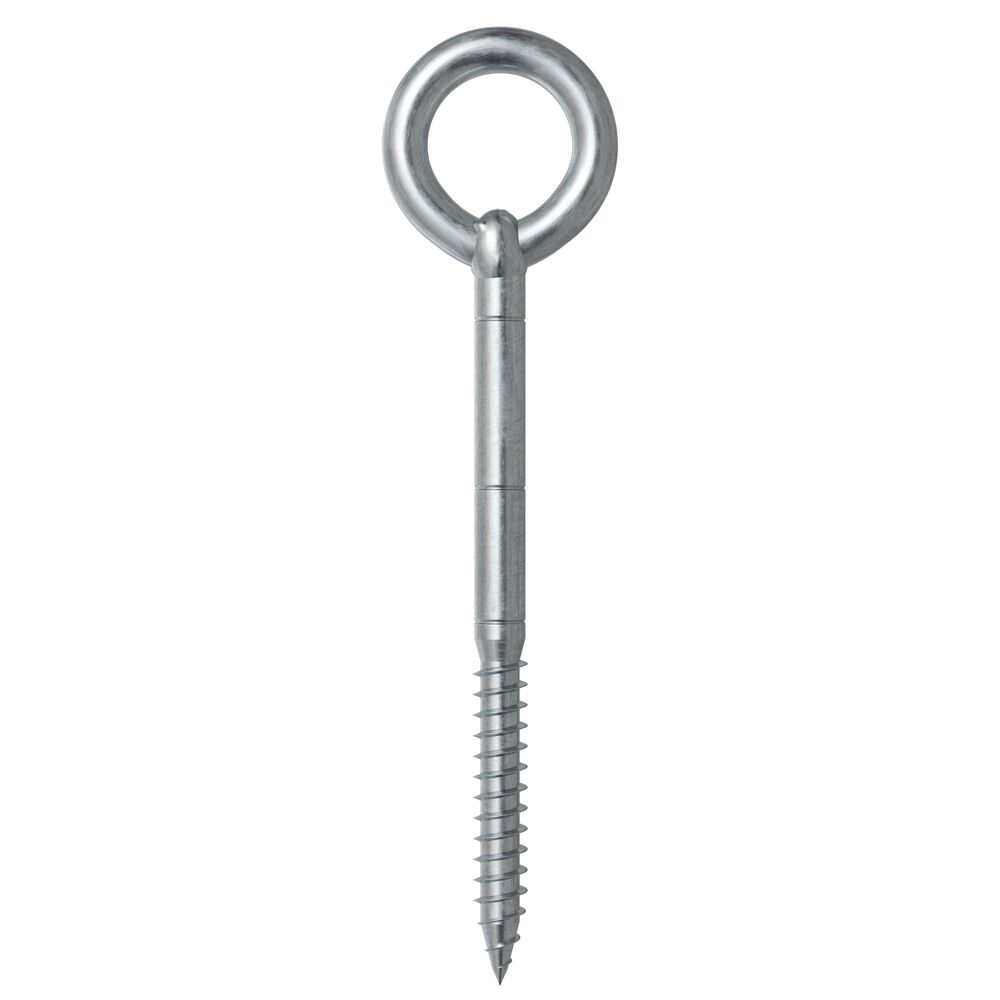

Fischer GS 12 x 300 Scaffold eyebolt [081269]

Barcode: 4006209812693
Pack Size: 25
£78.76

Usually shipped in 1-2 days

Fischer GS 12 x 300 Scaffold eyebolt [081269] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

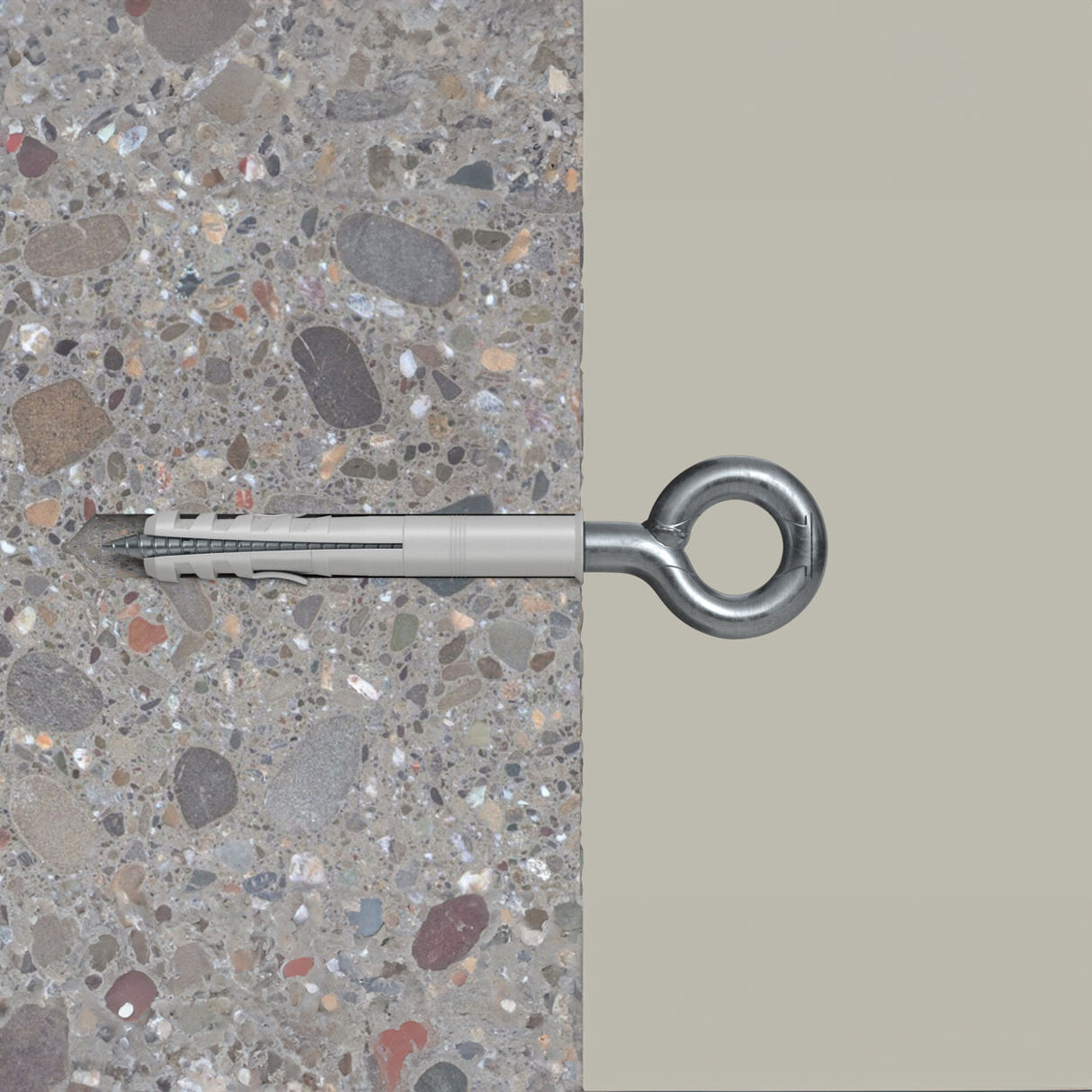

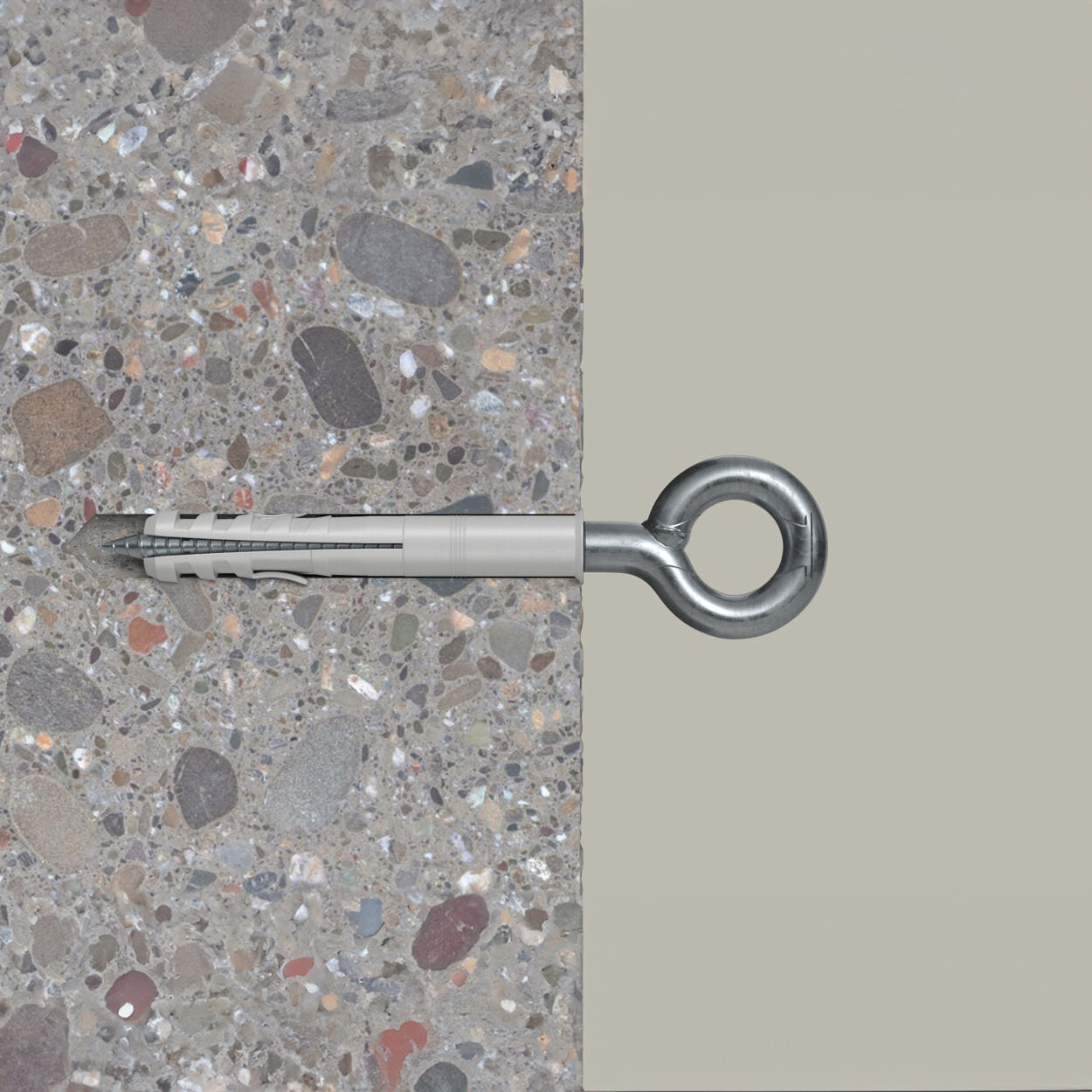

Made of zinc-plated steel, the fischer eye bolt GS 120 x 300 is suitable for fixing into concrete, solid brick, and masonry made of hollow building materials and aerated concrete. The eye bolt is used in conjunction with the fischer expansion plug S 14 ROE or the frame fixing S 16 H, depending on the type of material being fixed. The screw-in markings on the eye bolt provide a visual control during assembly and prevent the eye from being unintentionally broken off. This makes the eye bolt a safe and reliable solution for fixing façade scaffolds, cables, or chains.

Technical Datasheet

Load Table Document:

Applications

Façade scaffolds
Ropes
Chains
Trellises
Lighting
Clothes lines
Hanging baskets

Building Materials

GS 12 + S 14 ROE suitable for:
Concrete
Solid sand-lime brick
Natural stone with dense structure
Solid brick
Solid brick made from lightweight concrete
GS 12 + S 16 H R suitable for:
Vertically perforated brick
Perforated sand-lime brick
Aerated concrete
You can find detailed information on building materials in the registration document.

Features

The ideal interaction of the scaffold eye screw and plug allows for a high load-bearing capacity: Increased safety.
High-quality weld: Stops the eye from opening.
Large diameter of the cover caps (available separately) covers drill holes completely and discreetly, even those with slightly broken edges: Professional finish.

Specifications
  • Brand
    Fischer
  • coated
    No
  • Eye Diameter (mm)
    23.00
  • Functionality
    In order to achieve the maximum load-bearing capacity, nylon plugs should only be used once.
    In perforated brick and aerated concrete, we recommend combination with the plug S 16 H R.
    The screw-in markings provide a visual control during assembly, and thus allow for a simple and problem-free installation.
    Pre-drill into wood when not using plugs. The drill bit diameter should correspond to the core diameter of the screw.
    Suitable cover caps AD 12x40 for closing off residual drill holes for S 14 ROE.
    Not suitable for swings, hammocks etc.
  • Matching Anchor Type
    S 14 ROE 185 / S 16 H 160 R
  • Material
    Zinc-Plated
  • Max. Thickness of Non-Bearing Layer
    110/70mm
  • Pack Size
    25
  • Shaft Diameter (mm)
    12.00
  • Shaft Length (mm)
    300.00
  • Type
    Scaffold anchor

Reviews (0)

Delivery & Returns

For full delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Fischer

Fischer GS 12 x 300 Scaffold eyebolt [081269]

£78.76
Made of zinc-plated steel, the fischer eye bolt GS 120 x 300 is suitable for fixing into concrete, solid brick, and masonry made of hollow building materials and aerated concrete. The eye bolt is used in conjunction with the fischer expansion plug S 14 ROE or the frame fixing S 16 H, depending on the type of material being fixed. The screw-in markings on the eye bolt provide a visual control during assembly and prevent the eye from being unintentionally broken off. This makes the eye bolt a safe and reliable solution for fixing façade scaffolds, cables, or chains.

Clamping Range (MM)

N/A

Diameter (MM)

N/A

Drill Diameter (MM)

N/A

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Scaffold anchor

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

N/A

Pack Size

25

Package Contents

N/A

Material

N/A

Length (MM)

N/A

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

The ideal interaction of the scaffold eye screw and plug allows for a high load-bearing capacity: Increased safety.
High-quality weld: Stops the eye from opening.
Large diameter of the cover caps (available separately) covers drill holes completely and discreetly, even those with slightly broken edges: Professional finish.
