fischer FAZ II PLUS 16/60 R M16 x 183 stainless steel through bolt [564629]

£605.67

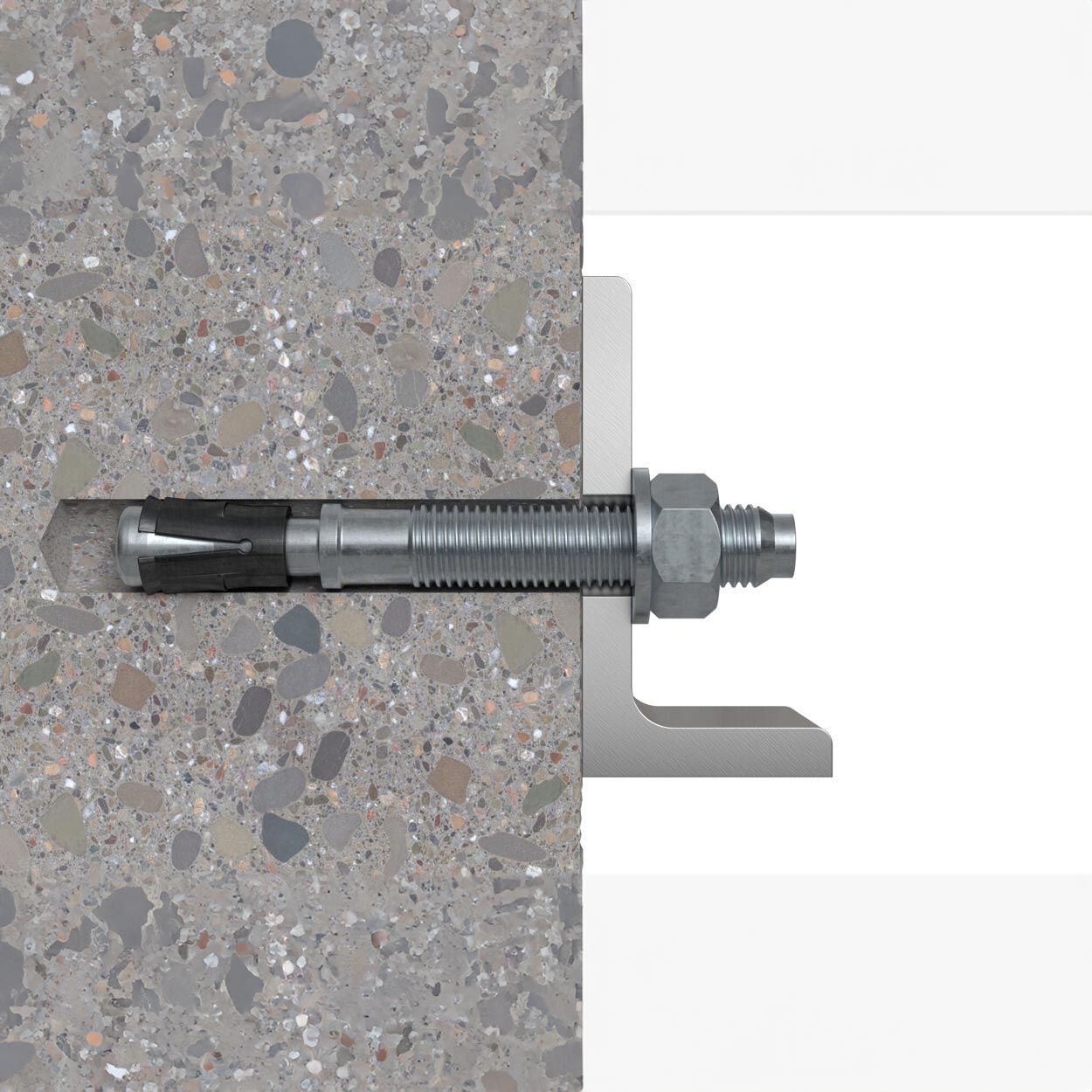

Fischer FAZ II PLUS 16/60 R M16 x 183 stainless steel is a high-tensile strength stainless steel anchor for non-cracked/cracked concrete. It uses a tried-and-tested expansion clip to safely introduce loads into the concrete, enabling an immediately loadable high load-bearing capacity. It is ideal for anchoring railings, cable trays, and consoles.

fischer FAZ II PLUS 16/60 R M16 x 183 stainless steel through bolt [564629] is backordered and will ship as soon as it is back in stock.

Applications

Steel constructions

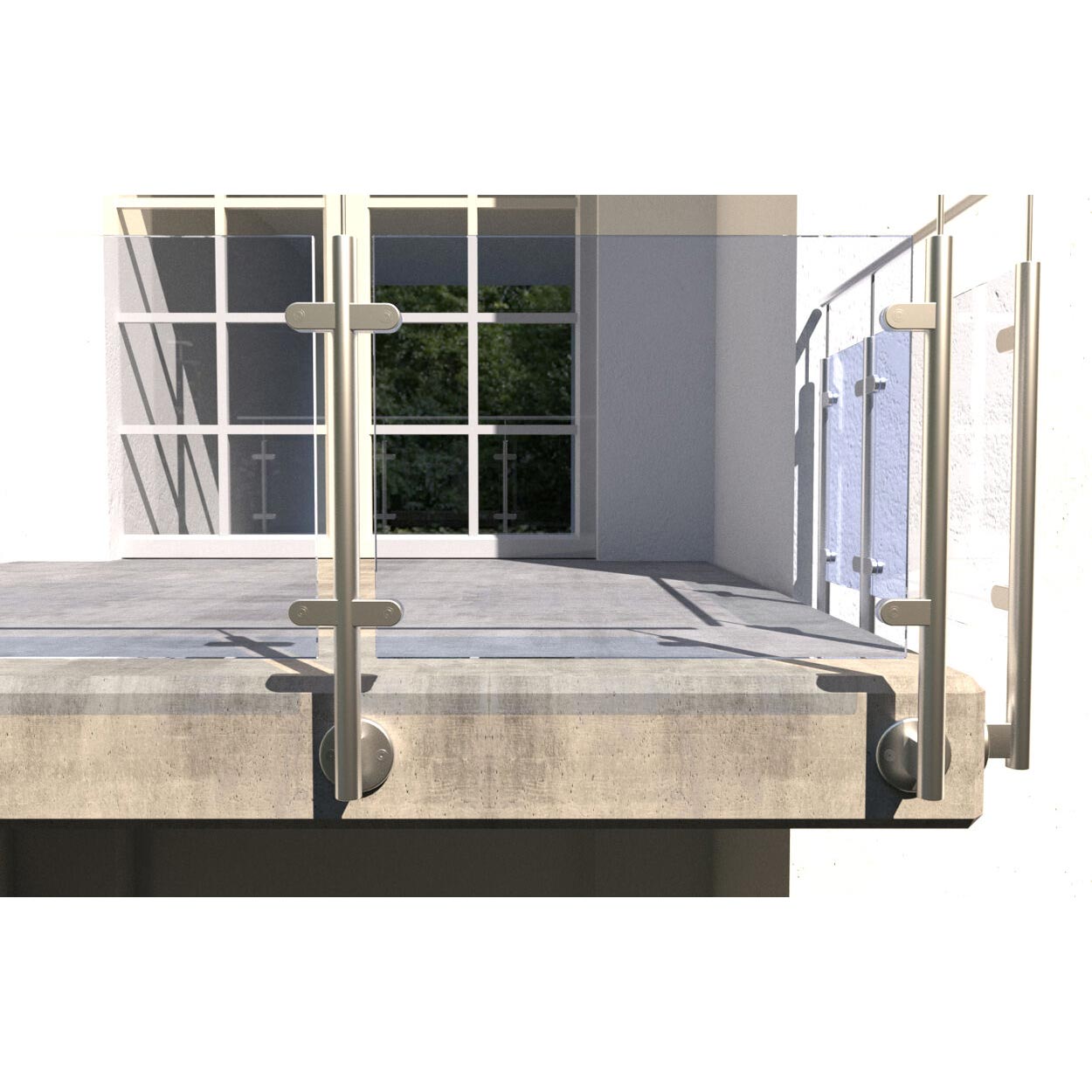

Guard rails

Consoles

Ladders

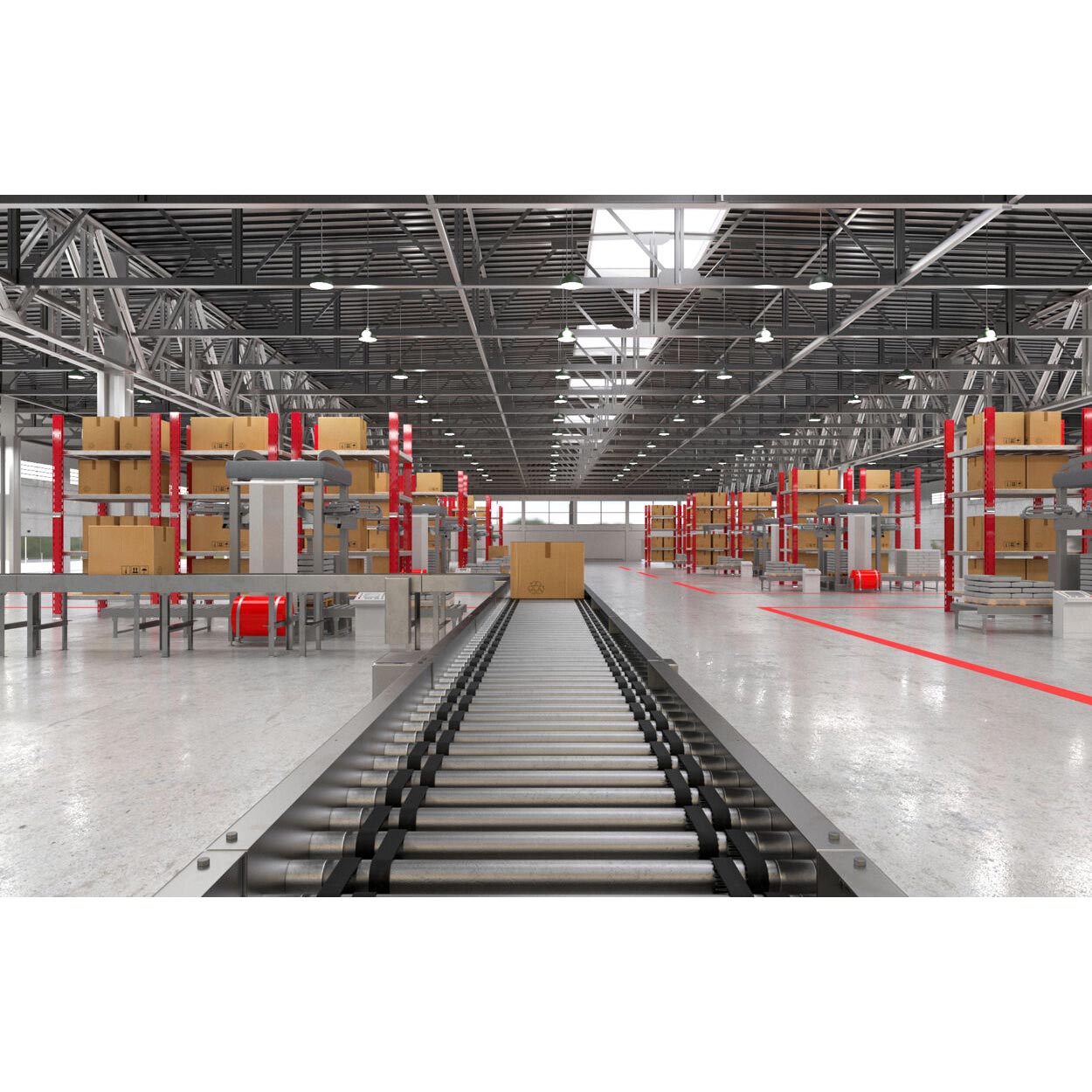

Cable trays

Machines

Staircases

Façades

Timber constructions

Building Materials

Approved for:

Concrete C20/25 to C50/60, cracked and non-cracked

Also suitable for:

Concrete C12/15 (classification available)

Concrete C80/95 (classification available)

Steel fibre concrete (classification available)

Solid sand-lime brick (classification available)

You can find detailed information on building materials in the registration document.

Certifications

ETA-19/0520

DoP 0334

Features

No need for drill hole cleaning (M8-M24): Quick and easier assembly.

Numerous approval certificates for different substrate materials (concrete C12/15-C80/90, steel fibre concrete, solid sand-lime brick): Increase the number of applications and fields of use.

With the new assessment (ETA), tensile strengths increase decisively: Fewer fixing points and anchors are required.

The ETA evaluation, together with other test reports (RWS, ZTV, ETK): High loads in case of fire.

Variable anchorage depths: Allows a millimetre-accurate adjustment to the loads.

The FAZ II Plus allows the absorption of high seismic loads of performance category C1 with and without the use of the filling disc FFD at installation: Flexible.

Specifications
  • Drill Diameter (MM)
    16
  • Min Drill Hole Depth for Through Fixings (MM)
    170
  • Installation Torque (TINST) (NM)
    110
  • Type
    Through bolt
  • Thread
    M16 x 119mm
  • Pack Size
    20
  • Material
    Stainless Steel
  • Length (MM)
    183
  • Max Usable Length HEF Stand/HEF Min
    60 / 80mm
  • Seismic Approval
    C1 / C2
  • Width Across Nut (MM)
    24
  • Min. Drill Hole Depth for Through Fixings (mm)
    170

Reviews (0)

Delivery & Returns

Lorem Ipsum Dolor Sit Amet

Safe & Secure

  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Fischer

fischer FAZ II PLUS 16/60 R M16 x 183 stainless steel through bolt [564629]

£605.67
Fischer FAZ II PLUS 16/60 R M16 x 183 stainless steel is a high-tensile strength stainless steel anchor for non-cracked/cracked concrete. It uses a tried-and-tested expansion clip to safely introduce loads into the concrete, enabling an immediately loadable high load-bearing capacity. It is ideal for anchoring railings, cable trays, and consoles.

Clamping Range (MM)

N/A

Diameter (MM)

N/A

Drill Diameter (MM)

16

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

110

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Through bolt

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

M16 x 119mm

Size

N/A

Pack Size

20

Package Contents

N/A

Material

Stainless Steel

Length (MM)

183

Min Drill Hole Depth for Through Fixings (MM)

170

Max Usable Length HEF Stand/HEF Min

60 / 80mm

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

24

Features

No need for drill hole cleaning (M8-M24): Quick and easier assembly.

Numerous approval certificates for different substrate materials (concrete C12/15-C80/90, steel fibre concrete, solid sand-lime brick): Increase the number of applications and fields of use.

With the new assessment (ETA), tensile strengths increase decisively: Fewer fixing points and anchors are required.

The ETA evaluation, together with other test reports (RWS, ZTV, ETK): High loads in case of fire.

Variable anchorage depths: Allows a millimetre-accurate adjustment to the loads.

The FAZ II Plus allows the absorption of high seismic loads of performance category C1 with and without the use of the filling disc FFD at installation: Flexible.
