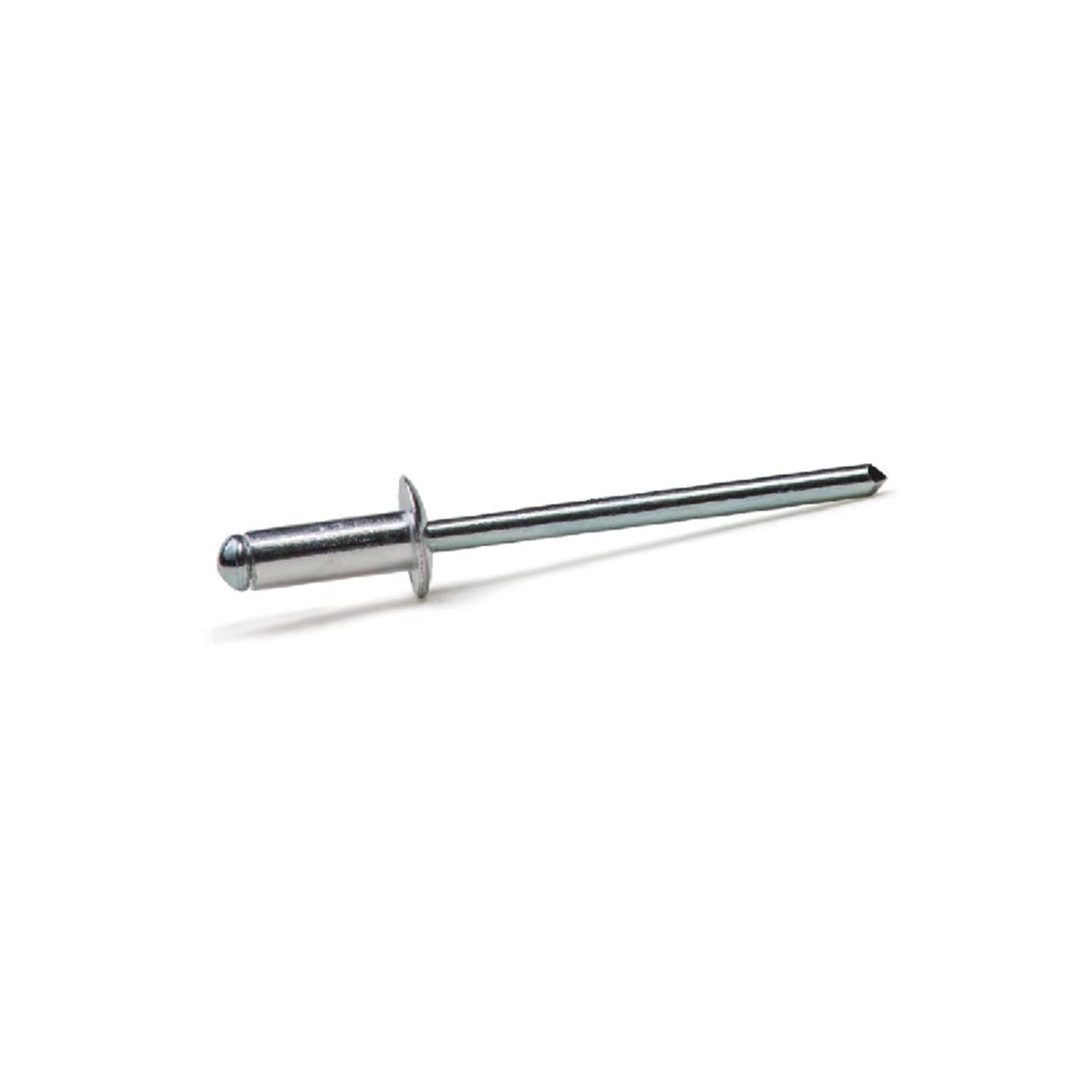

Certifix RS-AL-ST Dome headed standard aluminium/steel rivet 4.0 x 8

£17.32
Certifix Standard rivets are versatile blind rivets featuring a breaking mandrel. They offer a swift and effortless solution for joining various materials where exceptionally high torque isn't required. Available in a wide diameter range of 2.4mm to 7.8mm, Certifix Standard rivets accommodate a broad spectrum of grip ranges, from 0.8mm to 185mm. The extensive material selection and diverse finishing options, including lacquering and protective coatings, provide unparalleled customization possibilities.

Certifix RS-AL-ST Dome headed standard aluminium/steel rivet 4.0 x 8 is backordered and will ship as soon as it is back in stock.

Technical Datasheet

Download the technical datatsheet here.

Applications

Automotive industry
Bodyworks – commercial vehicles
Electronics
Air Conditioning and Heating
Construction
Metal industry
Metal furniture
Electrical appliances
Ladder manufacturing

Building Materials

Certifications

Features

Single-side access (blind rivet).
It covers a wide grip range; from 0.8 mm. to 185 mm.
Can be fixed from both ends.
Wide range of diameters: from 2.4 mm. to 7.8 mm.
Can fasten different materials with different types of manufacturing: composites, laminate materials, heat treated, etc.
Does not deform surfaces after the riveting process is finished (painted, glazed surfaces, etc.)
Good resistance to temperature variations.
Does not come loose from dynamic stress (vibrations in general)
Available in alloy magnesium contents of 3.5 and 5.0, which give a great tensile and shear strength, an excellent clamping force and a high resistance to corrosion.
Fast, simple and great quality assembly.
The riveting process is environmentally friendly, free of smoke, sparks, fumes.
It requires simple, fast and lightweight tools.

Specifications
  • Type
    Rivet
  • Pack Size
    500
  • Material
    Aluminium/Zinc-Plated Steel
  • Tech Datasheet
    Certifix_standard_alu_steel_rivet_TDS-compressed.pdf
  • Head Type
    Domed
  • Head Diameter (mm)
    8.00
  • Grip Range
    3.0-5.0mm
  • Shear (N)
    1250 N
  • Tensile (N)
    1800 N
  • Tensile N/mm
    1800 N
  • Body Material
    Aluminium
  • Mandrel Material
    Zinc Plated Steel
