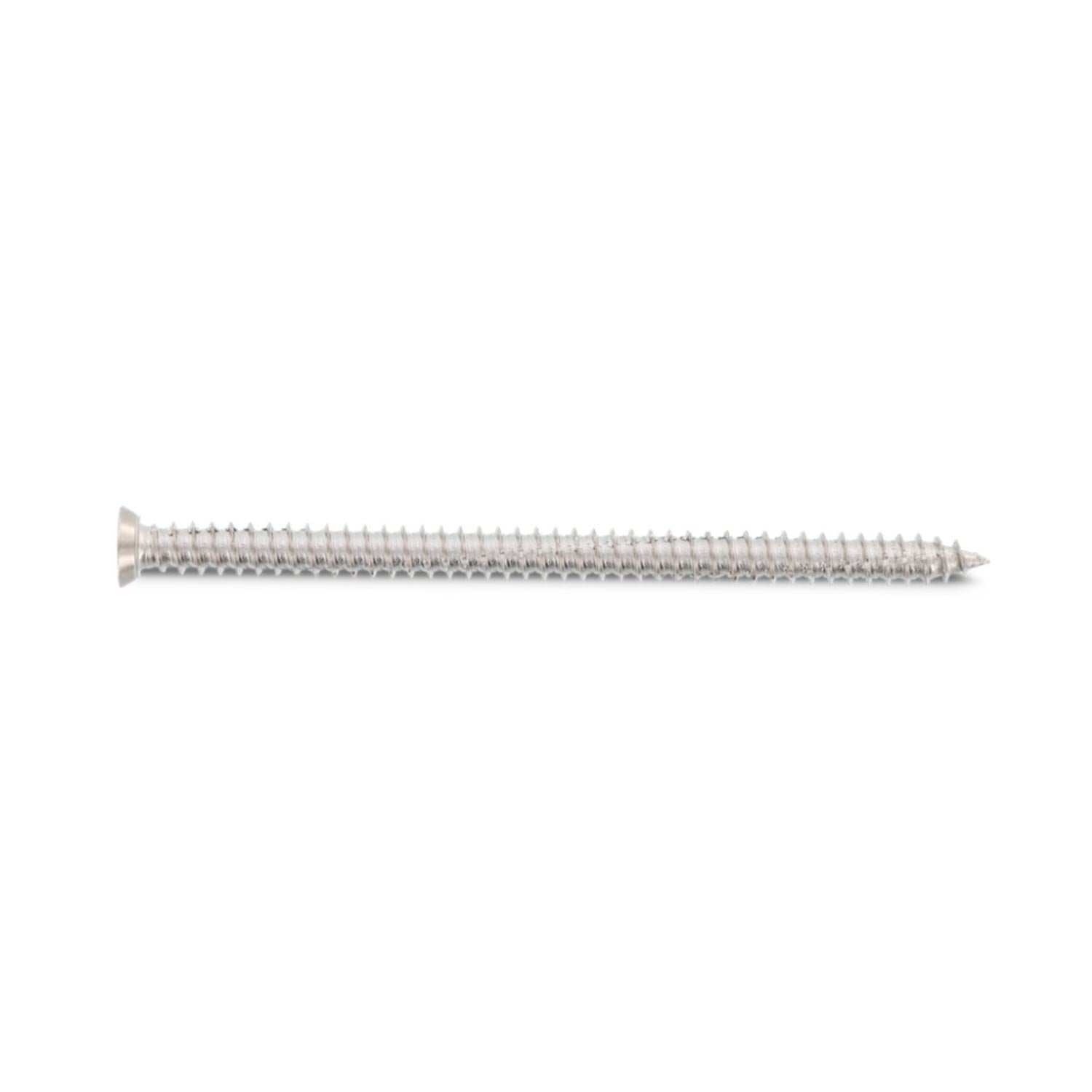

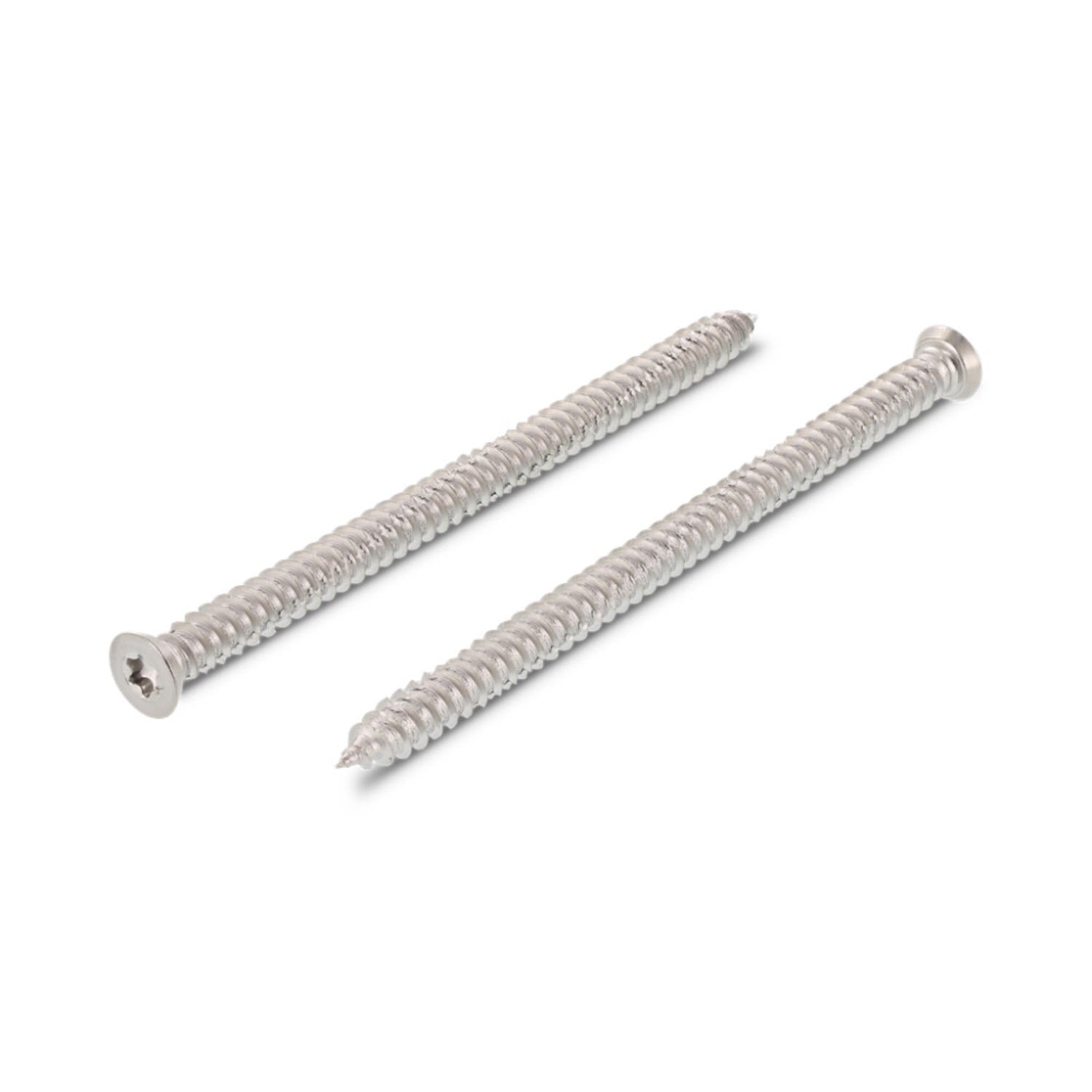

Certifix CCSM2 countersunk window frame screw A2 7.5 x 100/100 TX30

SKU: 17898
Barcode: 4043377394170
Pack Size: 100
£143.91

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

The CERTIFIX CCMS2 Window Frame Screw offers fast, plug-free installation for wood, metal, and plastic frames without creating pulling forces against the masonry. Featuring a TX drive for slip-free torque and a small countersunk head, it ensures a secure, professional finish in concrete, stone, and brick.

Technical Datasheet

Tech Datasheet:

Applications

Fully threaded screw for wood, metal or plastic window and door frames in various surfaces.

Features

Full thread (except length 212mm).

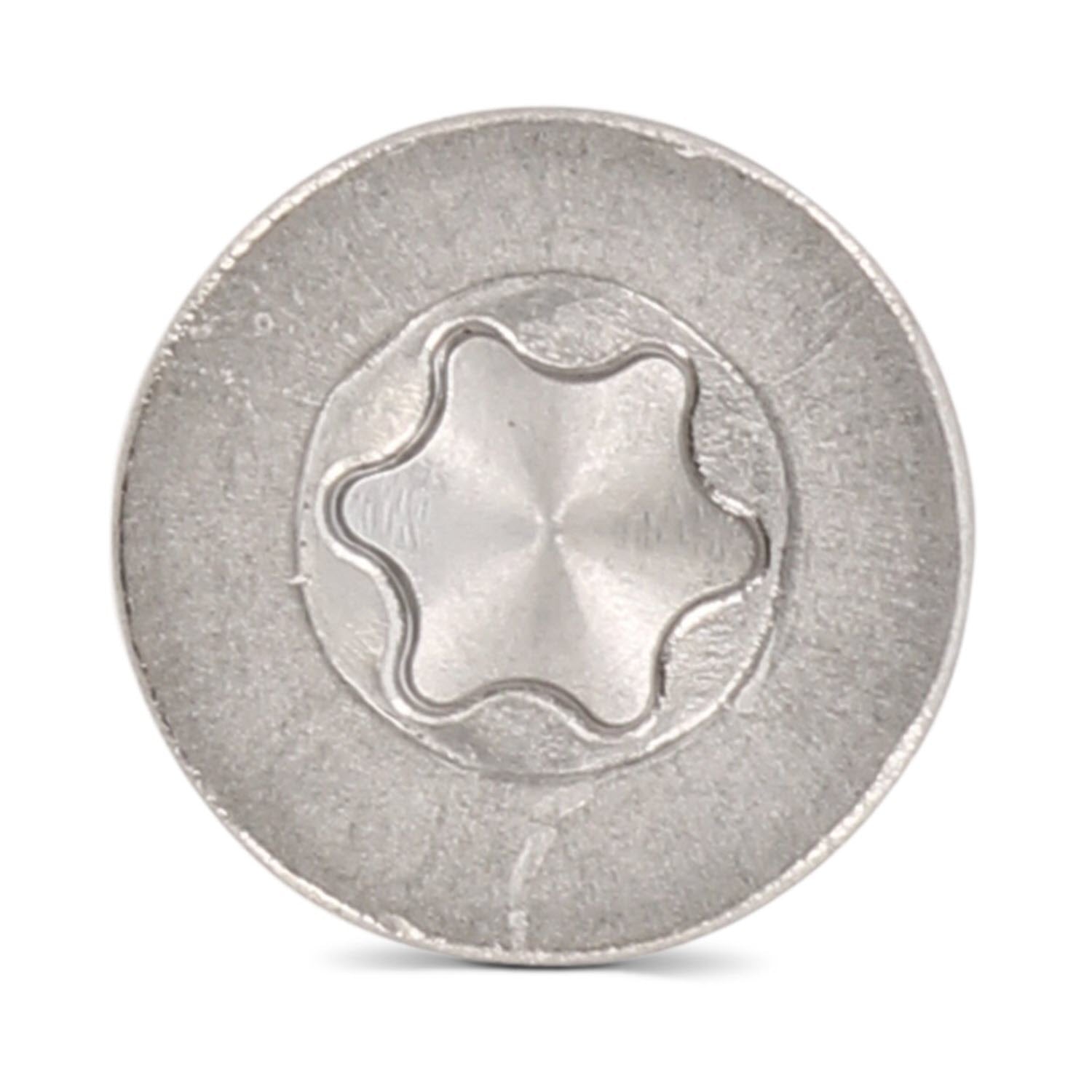

TX drive.
Small countersunk head.
Stainless steel.
Fast and safe installation in various surfaces.
No pulling force between frame and masonry.
Can be used without plugs in masonry.
Optimal torque transmission, no "cam out" effect of the bit.
Available in 60, 80, 100, 120, 132, 150, 180 & 212mm lengths

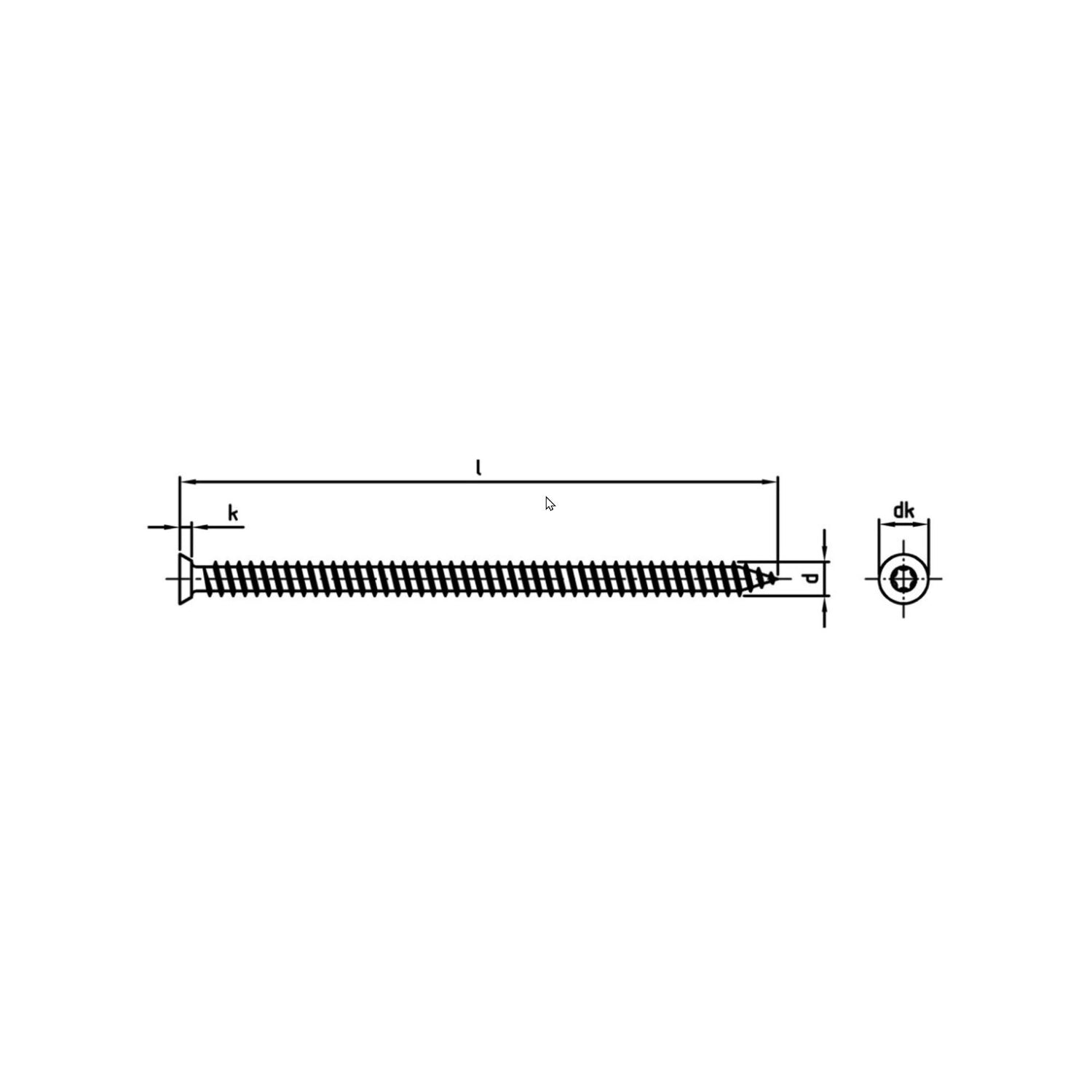

Specifications
  • Brand
    Certifix
  • Diameter (mm)
    7.50
  • Driver Type
    TX30
  • Head Diameter (mm)
    11.00
  • Head Height (mm)
    2.60
  • Head Type
    Countersunk
  • Length (MM)
    100
  • Material
    A2 Stainless Steel
  • Pack Size
    100
  • Type
    Window Frame Screw

Reviews (0)

Delivery & Returns

For full UK delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 or email sales@certifix.co.uk to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Certifix

Certifix CCSM2 countersunk window frame screw A2 7.5 x 100/100 TX30

£143.91
The CERTIFIX CCMS2 Window Frame Screw offers fast, plug-free installation for wood, metal, and plastic frames without creating pulling forces against the masonry. Featuring a TX drive for slip-free torque and a small countersunk head, it ensures a secure, professional finish in concrete, stone, and brick.

Clamping Range (MM)

N/A

Diameter (MM)

7.50

Drill Diameter (MM)

N/A

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Window Frame Screw

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

N/A

Pack Size

100

Package Contents

N/A

Material

N/A

Length (MM)

100

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

Full thread (except length 212mm).
TX drive.
Small countersunk head.
Stainless steel.
Fast and safe installation in various surfaces.
No pulling force between frame and masonry.
Can be used without plugs in masonry.
Optimal torque transmission, no "cam out" effect of the bit.
Available in 60, 80, 100, 120, 132, 150, 180 & 212mm lengths
