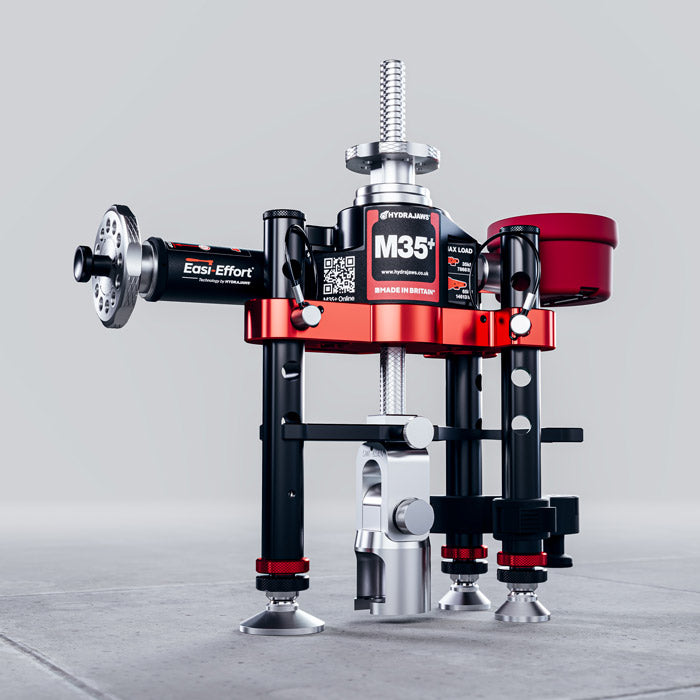

Hydrajaws M35+ Standard Pull Tester Kit with digital rechargeable gauge 0-35kN

SKU: 17901
Pack Size: 1
£1,875.00

Hydrajaws M35+ Standard Pull Tester Kit with digital rechargeable gauge 0-35kN is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

The Hydrajaws M35+ sets a new industry benchmark with its innovative ‘Easi-Effort®’ technology, designed specifically to maximize efficiency during mechanical anchor pull testing. By drastically reducing the torque required to reach high tension levels, the M35+ allows professionals to achieve significant results with minimal physical strain. For instance, while it only requires 9.8Nm of torque to reach 35kN and 18.8Nm, the older M2050 model requires a much more strenuous 68Nm just to reach 50kN. This technical leap means that the M35+ delivers comparable performance using only a quarter of the effort required by its predecessors. This shift not only enhances operational speed and user safety on-site but also reinforces Hydrajaws’ reputation for engineering state-of-the-art tools.

Technical Datasheet

Tech Datasheet:

Applications

To confirm the holding power of anchors in most construction materials, either for the purpose of establishing safe working loads or to validate the correct installation of existing fixing.

Features

Superior Efficiency: Achieving 65kN of force requires only 18.8Nm of torque, whereas the M2050 requires 68Nm just to reach 50kN.

User-Centric Design: By reducing the torquing effort by 75%, the M35+ minimizes operator fatigue and improves safety during high-load mechanical anchor pull testing.

Industry Innovation: This advancement highlights Hydrajaws’ focus on state-of-the-art engineering that redefines field-testing standards.

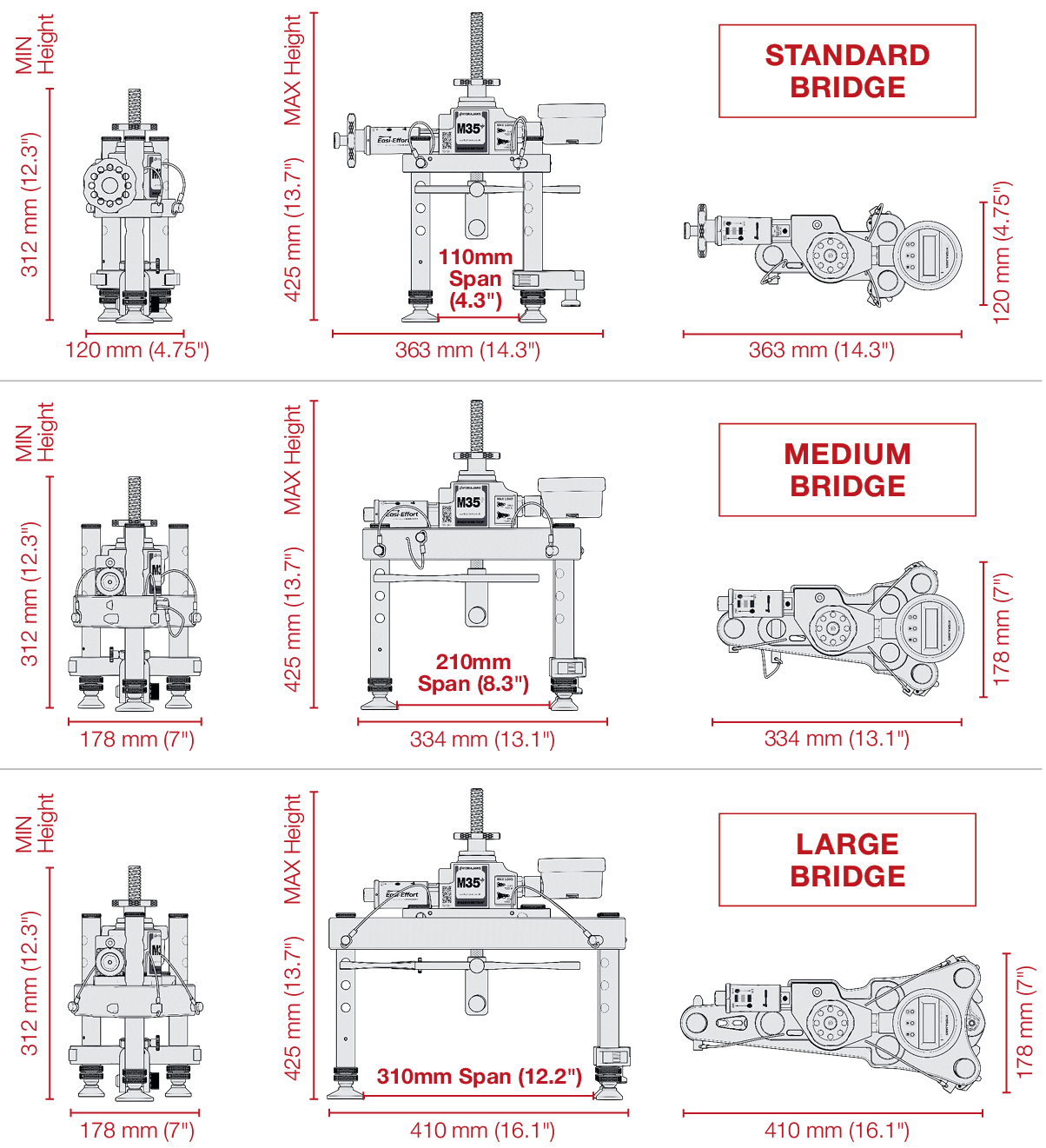

Pull-out load range: 0-35 kN/7,868 lbf (Standard Bridge), 0-65 kN/14,613 lbf (optional Medium/Large Bridge).

Max torque: @35kN = 9.8Nm/7.2ft-lbs, @65kN = 18.8Nm/13.9ft-lbs.

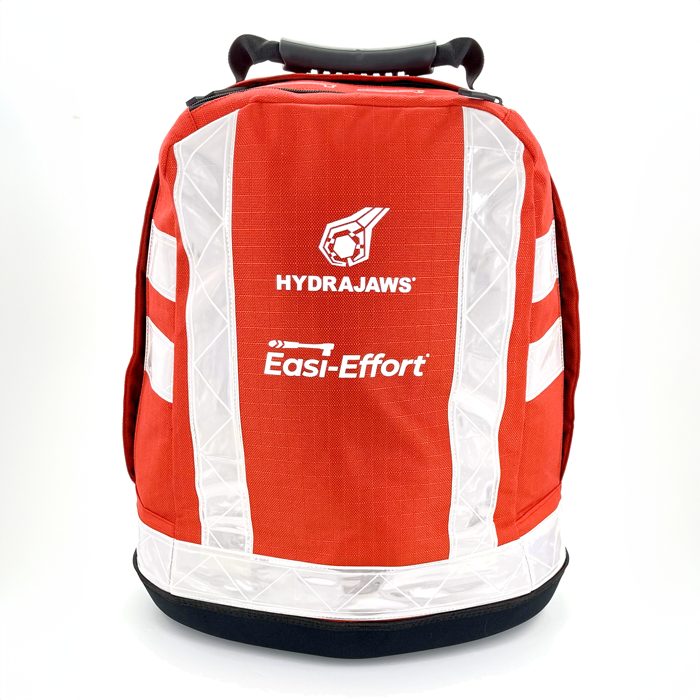

Weight: Tester only: 3.7kg/8.16lbs, Standard kit with Rucksack: 8.7kg/19.18lbs.

Hydraulic Oil: Light Mineral DTE Type VISCOSITY 32.

Configurable units: kN, lbf.

Certification and standards: CE, UKCA. EMC Standard EN IEC 61326-1, EN 301 489-1, EN 301 489-17, RoHs Directive IEC 63000. Radio Equipment Directive ETSI EN 300 328 V2.2.2, EN 62479. Machinery Directive Type A EN ISO 12100:2020, EN ISO 4412:2010. Low Voltage Directive IEC 61010-1

Specifications
  • Brand
    HydraJaws
  • IP Rating
    IP54
  • Operating Temperature Range
    ‑10° C to +50° C (14° F to 122° F)
  • Operating Voltage
    9v
  • Package Contents

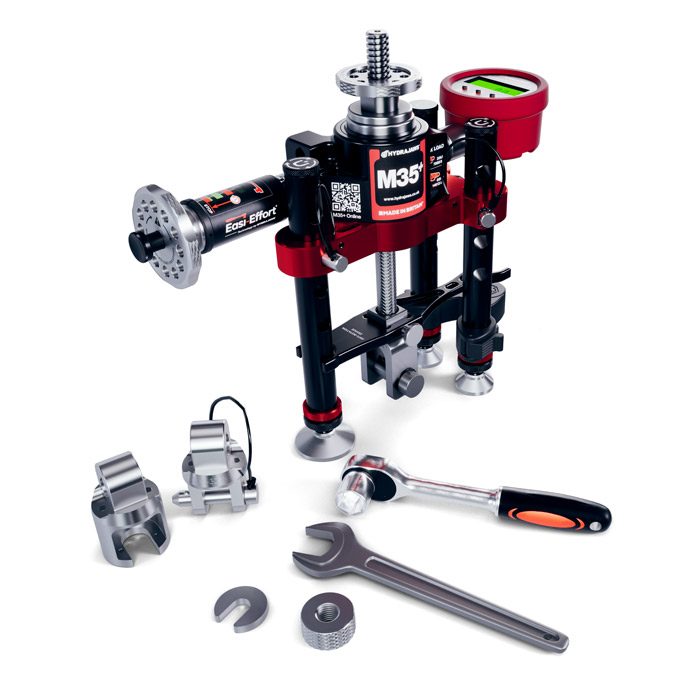

    5 slotted button adaptors (6.5, 8.5, 10.5, 13 and 16.5mm),6 threaded button adaptors: M6, M8, M10, M12, M16 and M20,1x full operating instructions,1x Bolt test adaptor,20mm and 24mm clevis forks
  • Pack Size
    1
  • Type
    Pull tester
  • Weight (kg)
    3.70

Reviews (0)

Delivery & Returns

For full UK delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 or email sales@certifix.co.uk to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

HydraJaws

Hydrajaws M35+ Standard Pull Tester Kit with digital rechargeable gauge 0-35kN

£1,875.00
The Hydrajaws M35+ sets a new industry benchmark with its innovative ‘Easi-Effort®’ technology, designed specifically to maximize efficiency during mechanical anchor pull testing. By drastically reducing the torque required to reach high tension levels, the M35+ allows professionals to achieve significant results with minimal physical strain. For instance, while it only requires 9.8Nm of torque to reach 35kN and 18.8Nm, the older M2050 model requires a much more strenuous 68Nm just to reach 50kN. This technical leap means that the M35+ delivers comparable performance using only a quarter of the effort required by its predecessors. This shift not only enhances operational speed and user safety on-site but also reinforces Hydrajaws’ reputation for engineering state-of-the-art tools.

Clamping Range (MM)

N/A

Diameter (MM)

N/A

Drill Diameter (MM)

N/A

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Pull tester

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

N/A

Pack Size

1

Package Contents

5 slotted button adaptors (6.5, 8.5, 10.5, 13 and 16.5mm),6 threaded button adaptors: M6, M8, M10, M12, M16 and M20,1x full operating instructions,1x Bolt test adaptor,20mm and 24mm clevis forks

Material

N/A

Length (MM)

N/A

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

Superior Efficiency: Achieving 65kN of force requires only 18.8Nm of torque, whereas the M2050 requires 68Nm just to reach 50kN.

User-Centric Design: By reducing the torquing effort by 75%, the M35+ minimizes operator fatigue and improves safety during high-load mechanical anchor pull testing.

Industry Innovation: This advancement highlights Hydrajaws’ focus on state-of-the-art engineering that redefines field-testing standards.

Pull-out load range: 0-35 kN/7,868 lbf (Standard Bridge), 0-65 kN/14,613 lbf (optional Medium/Large Bridge).

Max torque: @35kN = 9.8Nm/7.2ft-lbs, @65kN = 18.8Nm/13.9ft-lbs.

Weight: Tester only: 3.7kg/8.16lbs, Standard kit with Rucksack: 8.7kg/19.18lbs.

Hydraulic Oil: Light Mineral DTE Type VISCOSITY 32.

Configurable units: kN, lbf.

Certification and standards: CE, UKCA. EMC Standard EN IEC 61326-1, EN 301 489-1, EN 301 489-17, RoHs Directive IEC 63000. Radio Equipment Directive ETSI EN 300 328 V2.2.2, EN 62479. Machinery Directive Type A EN ISO 12100:2020, EN ISO 4412:2010. Low Voltage Directive IEC 61010-1
