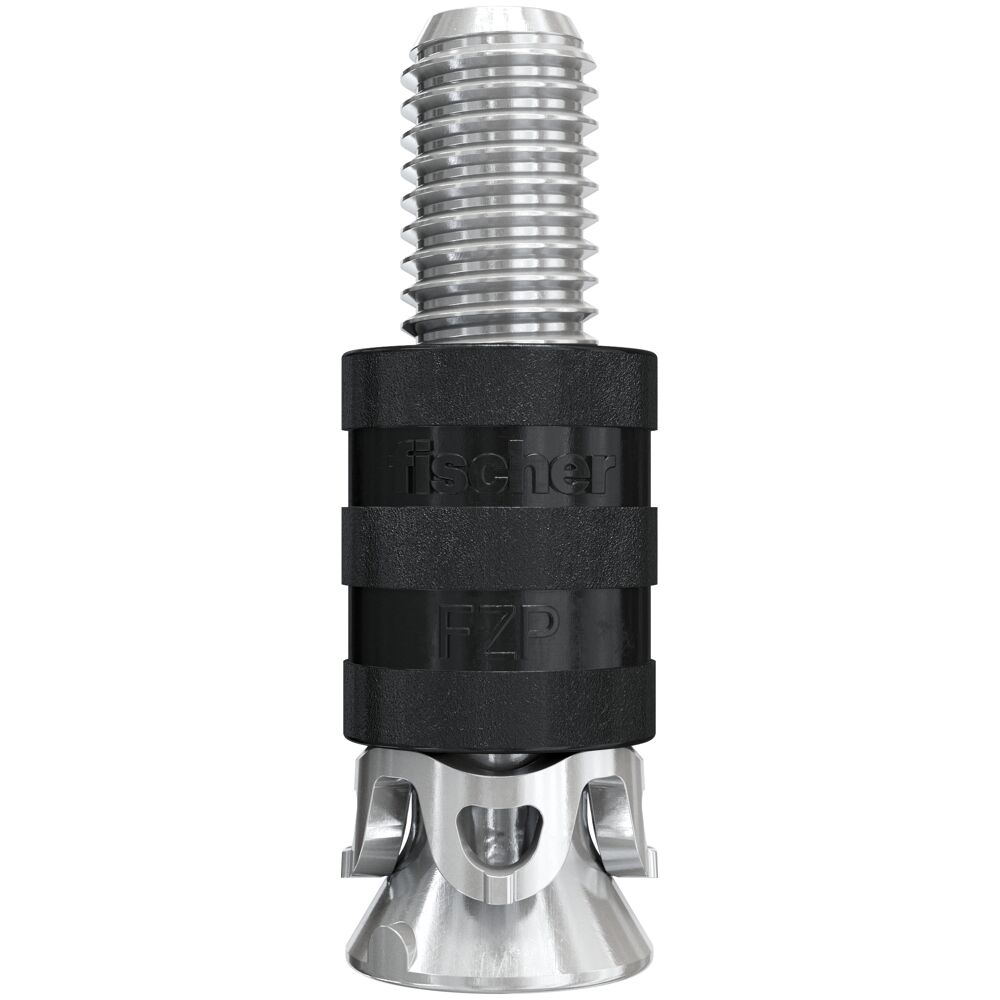

fischer FZP II 13 x 21 M8/22 Carbon Panel Anchor [511976]

Barcode: 4048962111637
Pack Size: 250
£926.22

Usually shipped in 1-2 days

fischer FZP II 13 x 21 M8/22 Carbon Panel Anchor [511976] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

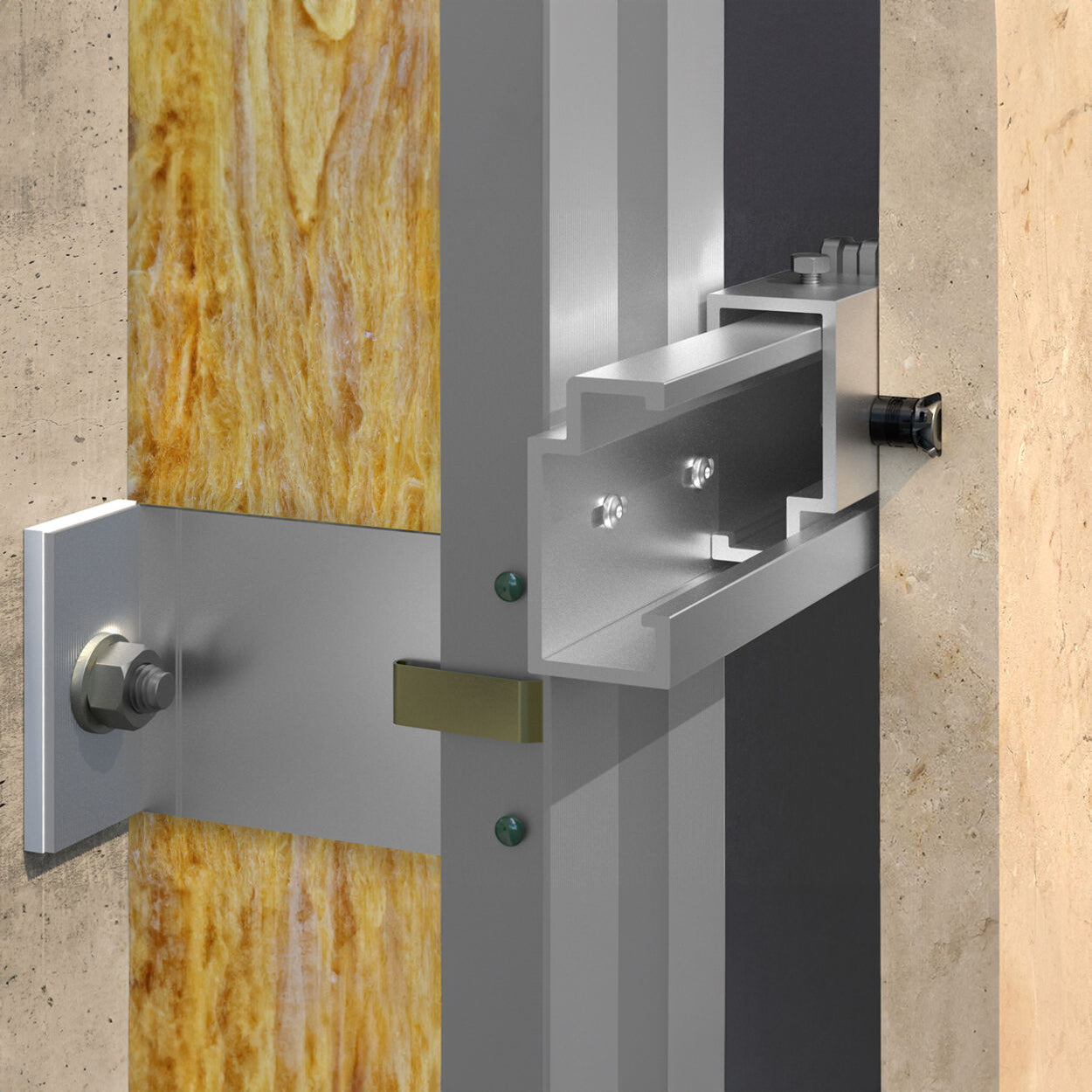

Fisher FZP II - The concealed fixing solution for heavy, natural stone façade panels uses carbon fibre-reinforced undercut anchors with flush installation. The anchors are fixed with a consistent drill hole depth aligned to the back of the panel, and are typically used with calibrated façade panels or for reveal angle installation.

Applications

Exterior façades

Interior façades

Façade reveals

Natural stone heating systems

Building Materials

Natural stone (>20mm)
Artificial concrete panels
You can find detailed information on building materials in the registration document.

Features

Adapted shape of the undercut anchor: Ensures a positive-locking attachment free from expansion pressure in a conical undercut drill hole.

Fixing of the undercut anchor is not visible on the exposed side: Creating a visually attractive and consistent façade surface.

Setting the anchor using undercut technology allows the user to always select the optimal structural position in the façade panel: This greatly reduces panel deflection.

The anchor allows for higher pull-out loads, compared to commonly available systems: High performance.

Flush-mounting technology of the undercut anchor: Allows an easy, economical handling of reveals.

Specifications

Reviews (0)

Delivery & Returns

For full delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Fischer

fischer FZP II 13 x 21 M8/22 Carbon Panel Anchor [511976]

£926.22
Fisher FZP II - The concealed fixing solution for heavy, natural stone façade panels uses carbon fibre-reinforced undercut anchors with flush installation. The anchors are fixed with a consistent drill hole depth aligned to the back of the panel, and are typically used with calibrated façade panels or for reveal angle installation.

Clamping Range (MM)

N/A

Diameter (MM)

13.00

Drill Diameter (MM)

N/A

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Flush anchor

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

M8

Pack Size

250

Package Contents

N/A

Material

N/A

Length (MM)

43

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

Adapted shape of the undercut anchor: Ensures a positive-locking attachment free from expansion pressure in a conical undercut drill hole.

Fixing of the undercut anchor is not visible on the exposed side: Creating a visually attractive and consistent façade surface.

Setting the anchor using undercut technology allows the user to always select the optimal structural position in the façade panel: This greatly reduces panel deflection.

The anchor allows for higher pull-out loads, compared to commonly available systems: High performance.

Flush-mounting technology of the undercut anchor: Allows an easy, economical handling of reveals.
