fischer FZP II 13 x 12 M6 I Panel Anchor [512958]

Barcode: 4048962120653
Pack Size: 250
£711.55

Usually shipped in 1-2 days

fischer FZP II 13 x 12 M6 I Panel Anchor [512958] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

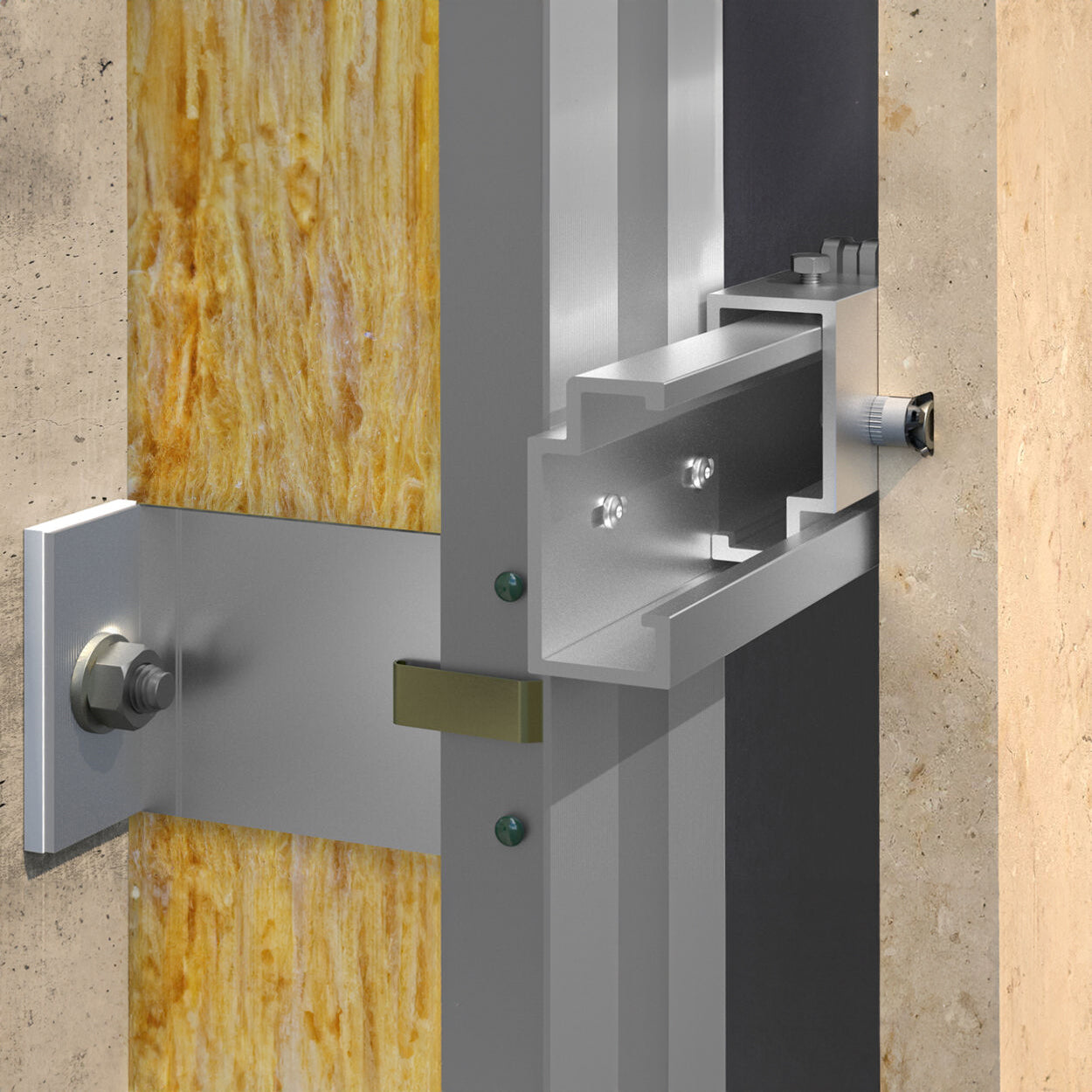

The concealed FZP II 15 x 15 M8 I flush or stand-off installation solution with internal thread is a versatile and reliable option for natural stone façade panels. This technology can be used for both flush mounting of calibrated panels or reveal panels, and to calibrate panel thickness tolerances caused by using the stand-off installation technology. The integrated internal thread allows the panels to be prefabricated and transported securely, improving the economic efficiency and flexibility of the system.

Applications

Indoor applications (such as wash basins, natural stone heating systems, ...)

Building Materials

Natural stone (>20mm)

You can find detailed information on building materials in the registration document.

Features

Integrated internal thread: Allows panels to be pre-fabricated and transported securely.
Matching shape of the undercut anchor: An inter-locking and stress-free fixing in the conical undercuted drill hole.
Fixing is not externally visible: Visually appealing façade surface.
Setting the anchor using undercut technology allows the user to select the best structural position in the façade panel. This significantly reduces the bending moment of the panel.
The anchor allows higher failure loads compared to common systems.

Specifications
  • Anchorage Depth (mm)
    12mm
  • Brand
    Fischer
  • Cylindrical Diameter (mm)
    13.00
  • Functionality
    The hole is either drilled to a constant reference dimension for the remaining wall thickness (RWT) or with an absolute anchoring depth.
    The anchor can be installed flush or stand-off.
    The compensation of panel thickness tolerances results in a completely flat façade surface.

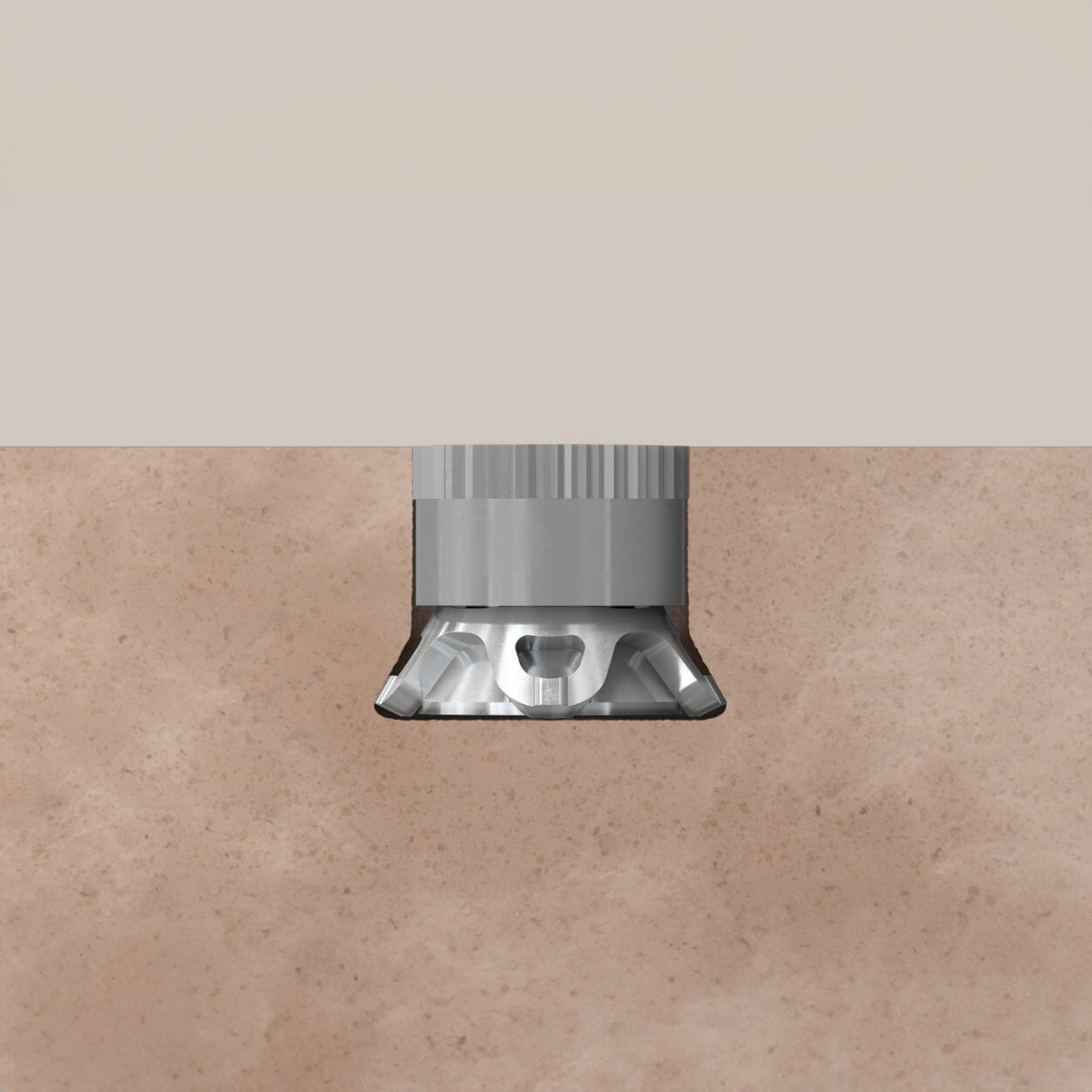

    Wet diamond drilling: first cylindrical, then conical - to create the undercut. #Inserting the undercut anchor in the cylindrical-conical undercut hole
    Expanding the undercut anchor by "pressing down" the washer using the setting tools
    Stress-free and geometrical inter-locking fixing
  • Length (MM)
    12
  • Material
    A4 Stainless Steel
  • Min. Panel Thickness (mm)
    20.00
  • Pack Size
    250
  • Size
    M6
  • Sleeve Material
    A4 Stainless Steel
  • Type
    Internal thread anchor
  • Undercut Diameter (mm)
    15.50
