fischer FZP II 11 x 6 M6/T/14 PA Zykon Panel Anchor [520365]

£516.02

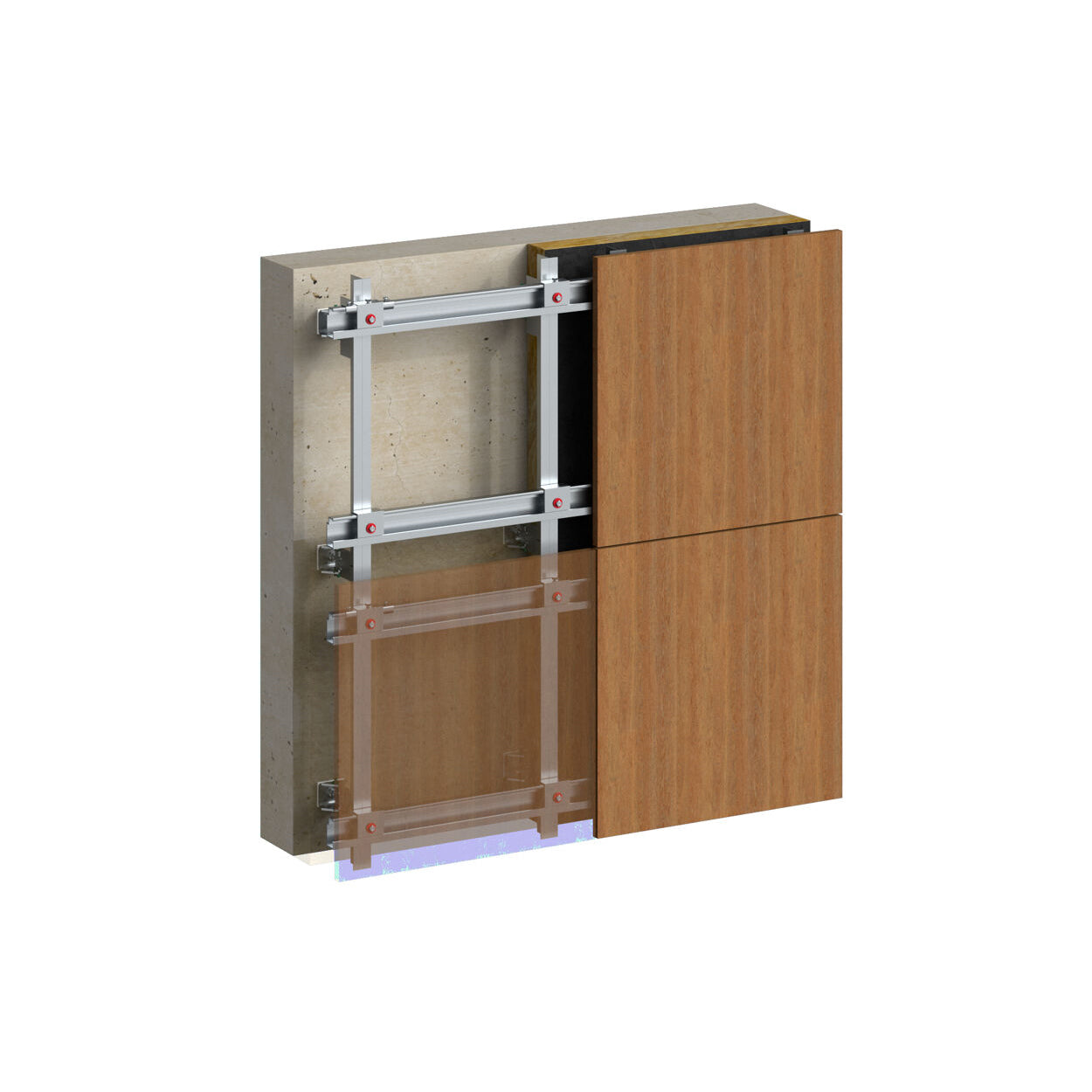

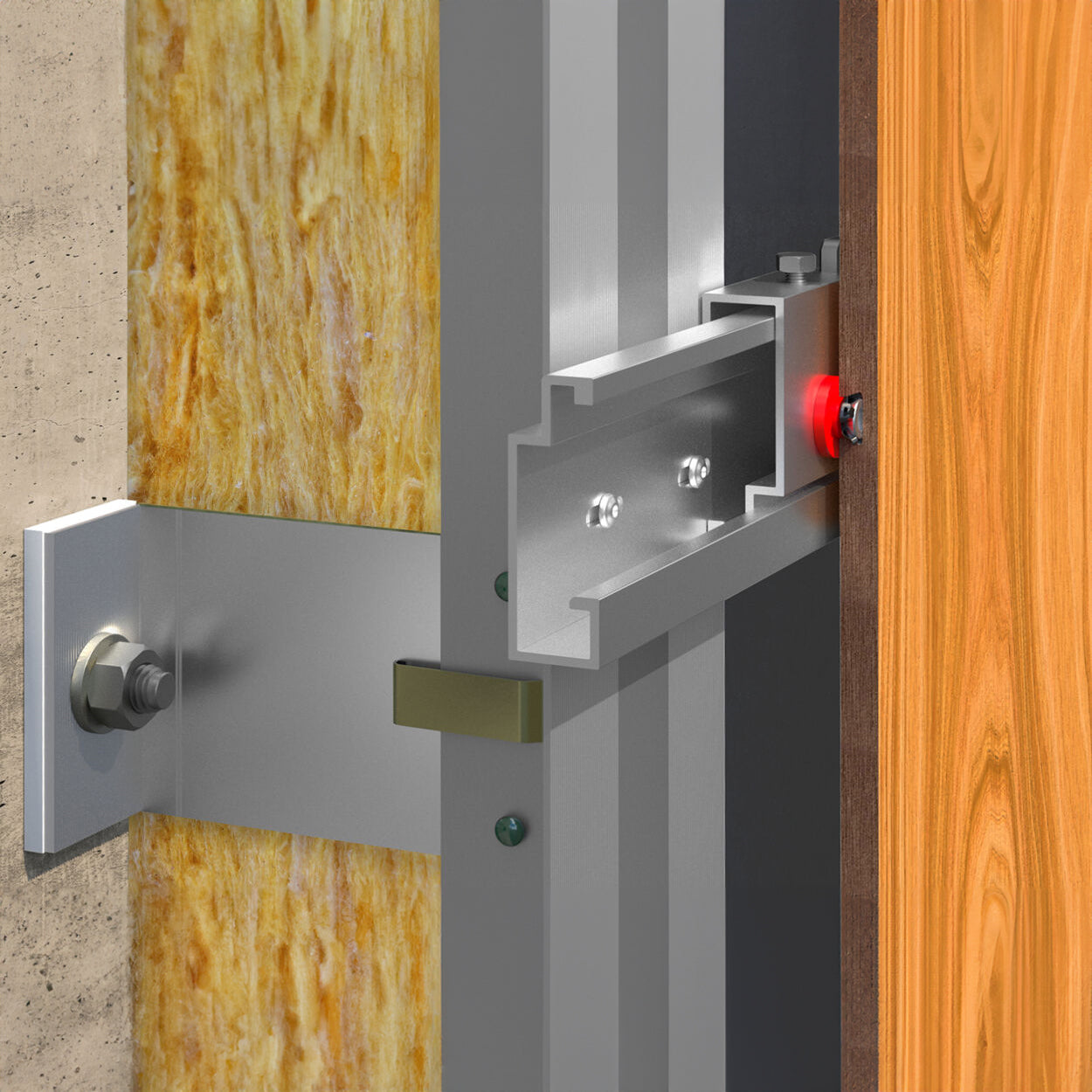

The fischer FZP II 11 x 6 M6/T/14 PA - a concealed fixing system for thin façade panels, such as HPL, fiber cement, and solid surface panels, can be used in conjunction with clasp systems on façades or with other attachments.

fischer FZP II 11 x 6 M6/T/14 PA Zykon Panel Anchor [520365] is backordered and will ship as soon as it is back in stock.

Applications

For high aesthetical requrements:
The concealed fixing of thin façade panels on exterior and interior façade as well as reveal panels.

Building Materials

Fibre cement
HPL panels
Thin panel materials (? 8 mm)
You can find detailed information on building materials in the registration document.

Certifications

ETA-11/0465
DoP No. 0262
DoP No. 0756-CPD-0441

Features

Short geometry anchor: Can be used in thin panels starting from 8 mm thickness.
Fixing is not externally visible: Visually appealing façade surface.
Matching shape of the undercut anchor: Creates an inter-locking and stress-free fixing in the conical undercuted drill hole.
Setting the anchor using undercut technology allows the user to select the best structural position in the façade panel: Significantly reduces the bending moment of the panel.
The anchor allows higher failure loads compared to common systems: High performance.
This anchor provides much better holding forces than commonly available systems: Allows for the use of large format panels.

Specifications
  • Type
    Thin panel anchor
  • Size
    M6
  • Pack Size
    250
  • Material
    A4 Stainless Steel
  • Length (MM)
    9
  • Declaration of Performance Document
    Fischer_FZPII_M6_PA_DOP3.pdf
  • European Technical Approval (ETA) Document
    Fischer_FZPII_M6_PA_ETA1.pdf
  • Colour
    Red
  • Size
    M6

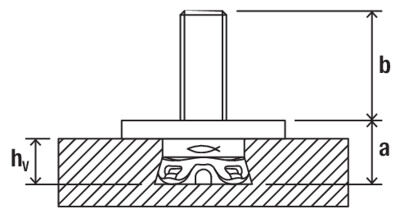

  • Anchorage Depth (mm)
    6mm
  • Sleeve Material
    Polyamid PA 6
  • Min. Panel Thickness (mm)
    10.00
  • Projection Length (mm)
    10.00
  • Cylindrical Diameter (mm)
    11.00
  • Undercut Diameter (mm)
    13.50
