fischer FZP II 11 x 10 M6/T/19 PA Zykon Panel Anchor [520369]

£524.80

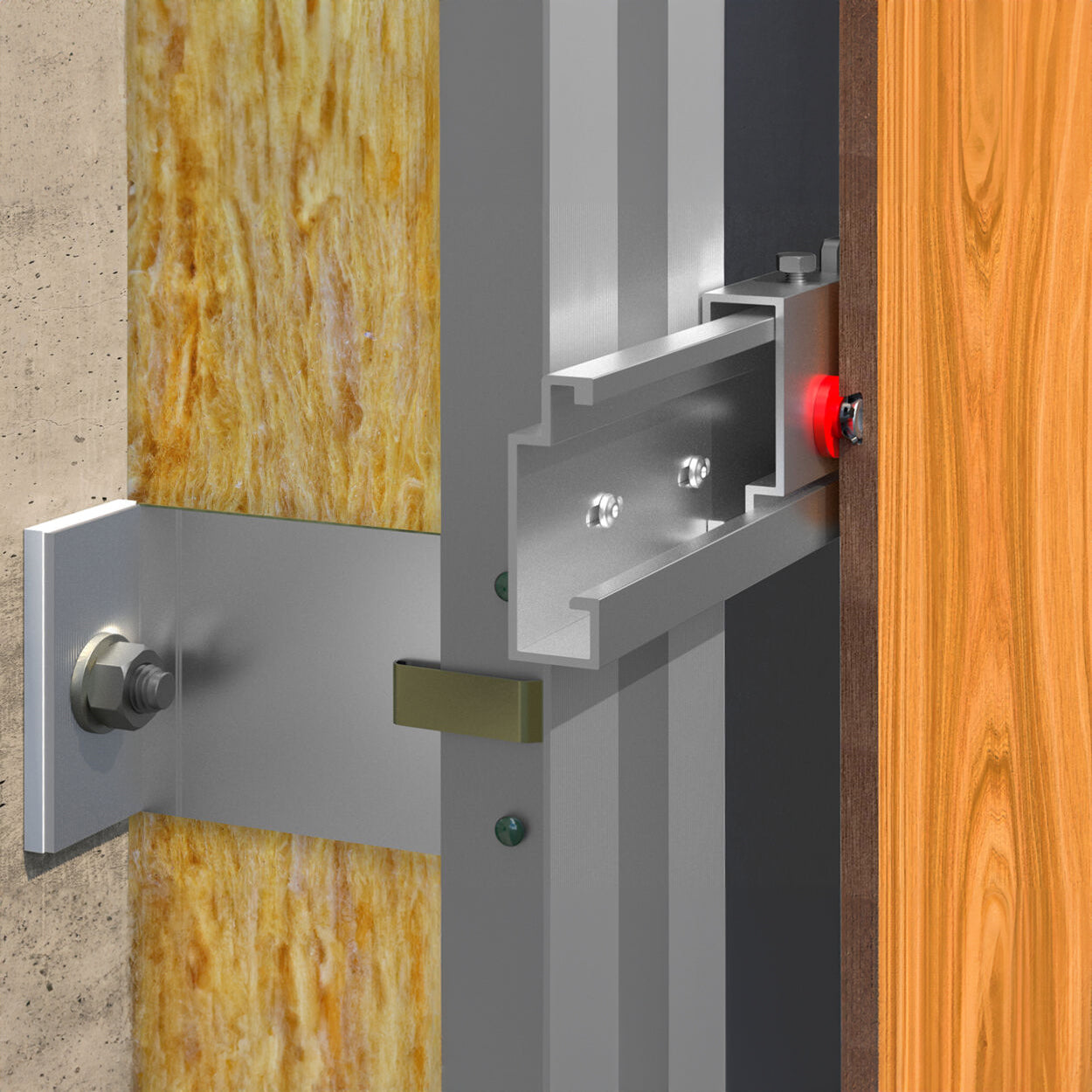

The Fisher FZP II 11 x 10 M6/T/19 PA - a concealed fixing system for thin façade panels, such as HPL, fiber cement, and solid surface panels, can be used in conjunction with clasp systems on façades or with other attachments.

fischer FZP II 11 x 10 M6/T/19 PA Zykon Panel Anchor [520369] is backordered and will ship as soon as it is back in stock.

Applications

For high aesthetical requrements:

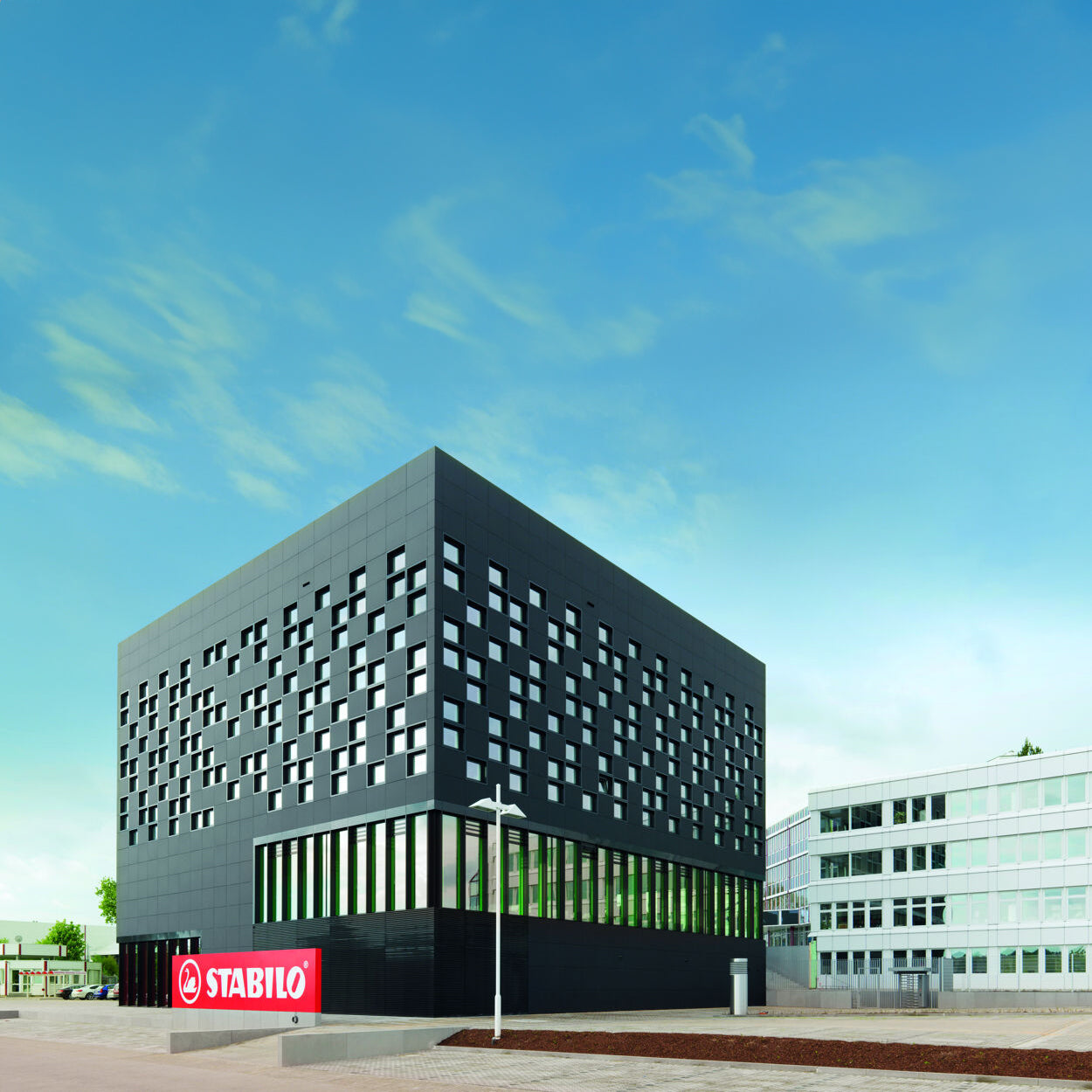

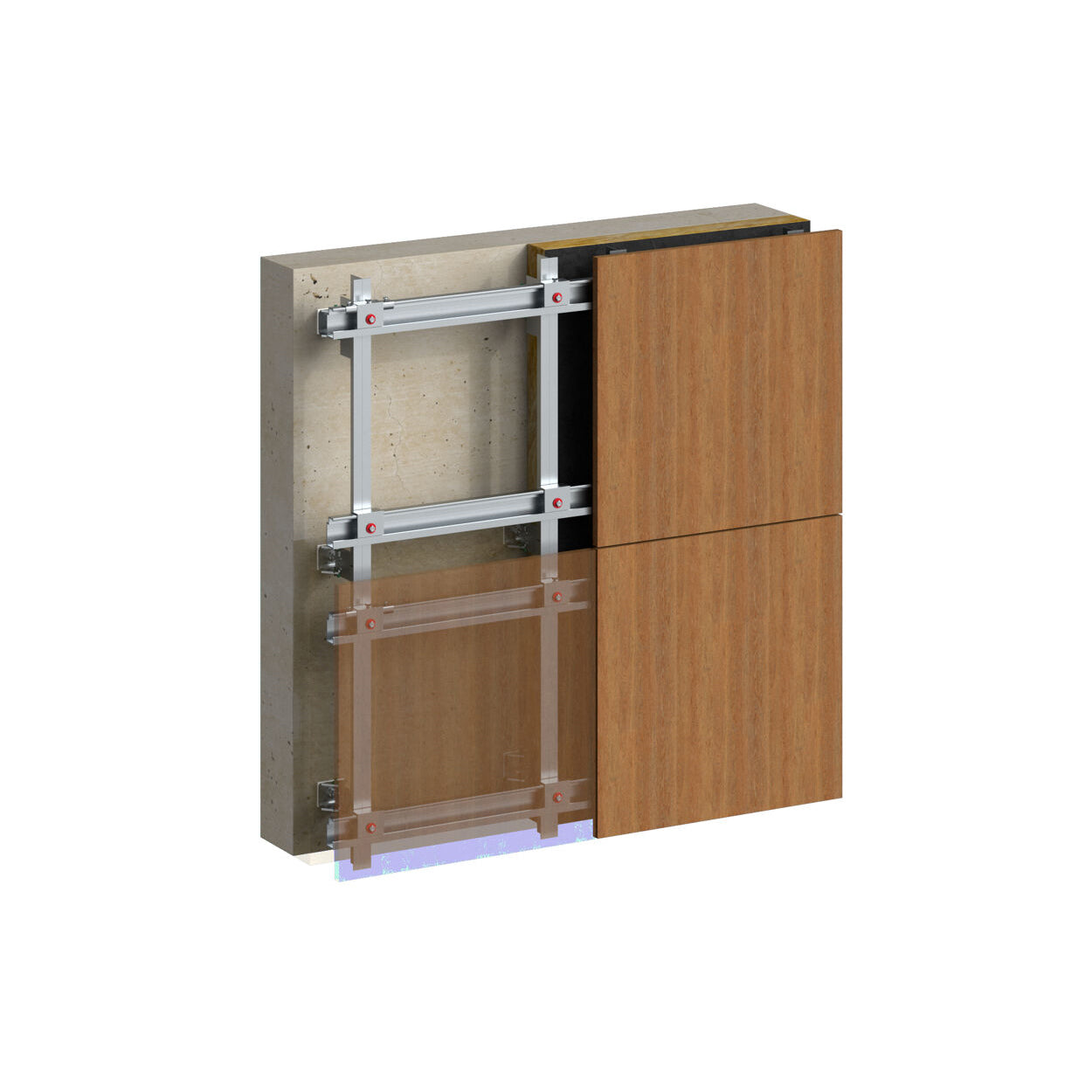

The concealed fixing of thin façade panels on exterior and interior façade as well as reveal panels.

Building Materials

Fibre cement
HPL panels
Thin panel materials (? 8 mm)
You can find detailed information on building materials in the registration document.

Certifications

ETA-11/0465
DoP No. 0262
DoP No. 0756-CPD-0444

Features

Short geometry anchor: Can be used in thin panels starting from 8 mm thickness.
Fixing is not externally visible: Visually appealing façade surface.
Matching shape of the undercut anchor: Creates an inter-locking and stress-free fixing in the conical undercuted drill hole.
Setting the anchor using undercut technology allows the user to select the best structural position in the façade panel: Significantly reduces the bending moment of the panel.
The anchor allows higher failure loads compared to common systems: High performance.
This anchor provides much better holding forces than commonly available systems: Allows for the use of large format panels.

Specifications
  • Type
    Thin panel anchor
  • Size
    M6
  • Pack Size
    250
  • Material
    A4 Stainless Steel
  • Length (MM)
    13
  • Declaration of Performance Document
    Fischer_FZPII_M6_PA_DOP3.pdf
  • European Technical Approval (ETA) Document
    Fischer_FZPII_M6_PA_ETA1.pdf
  • Colour
    Green
  • Size
    M6

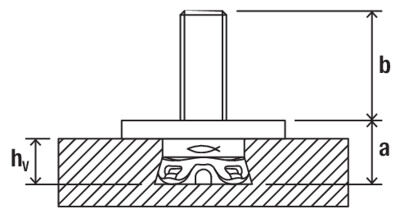

  • Anchorage Depth (mm)
    10mm
  • Sleeve Material
    Polyamid PA 6
  • Min. Panel Thickness (mm)
    14.00
  • Projection Length (mm)
    9.00
  • Cylindrical Diameter (mm)
    11.00
  • Undercut Diameter (mm)
    13.50

Reviews (0)

Delivery & Returns

Lorem Ipsum Dolor Sit Amet

Safe & Secure

  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Fischer

fischer FZP II 11 x 10 M6/T/19 PA Zykon Panel Anchor [520369]

£524.80
The Fisher FZP II 11 x 10 M6/T/19 PA - a concealed fixing system for thin façade panels, such as HPL, fiber cement, and solid surface panels, can be used in conjunction with clasp systems on façades or with other attachments.

Clamping Range (MM)

N/A

Diameter (MM)

N/A

Drill Diameter (MM)

N/A

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Thin panel anchor

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

M6

Pack Size

250

Package Contents

N/A

Material

A4 Stainless Steel

Length (MM)

13

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

Short geometry anchor: Can be used in thin panels starting from 8 mm thickness.
Fixing is not externally visible: Visually appealing façade surface.
Matching shape of the undercut anchor: Creates an inter-locking and stress-free fixing in the conical undercuted drill hole.
Setting the anchor using undercut technology allows the user to select the best structural position in the façade panel: Significantly reduces the bending moment of the panel.
The anchor allows higher failure loads compared to common systems: High performance.
This anchor provides much better holding forces than commonly available systems: Allows for the use of large format panels.
