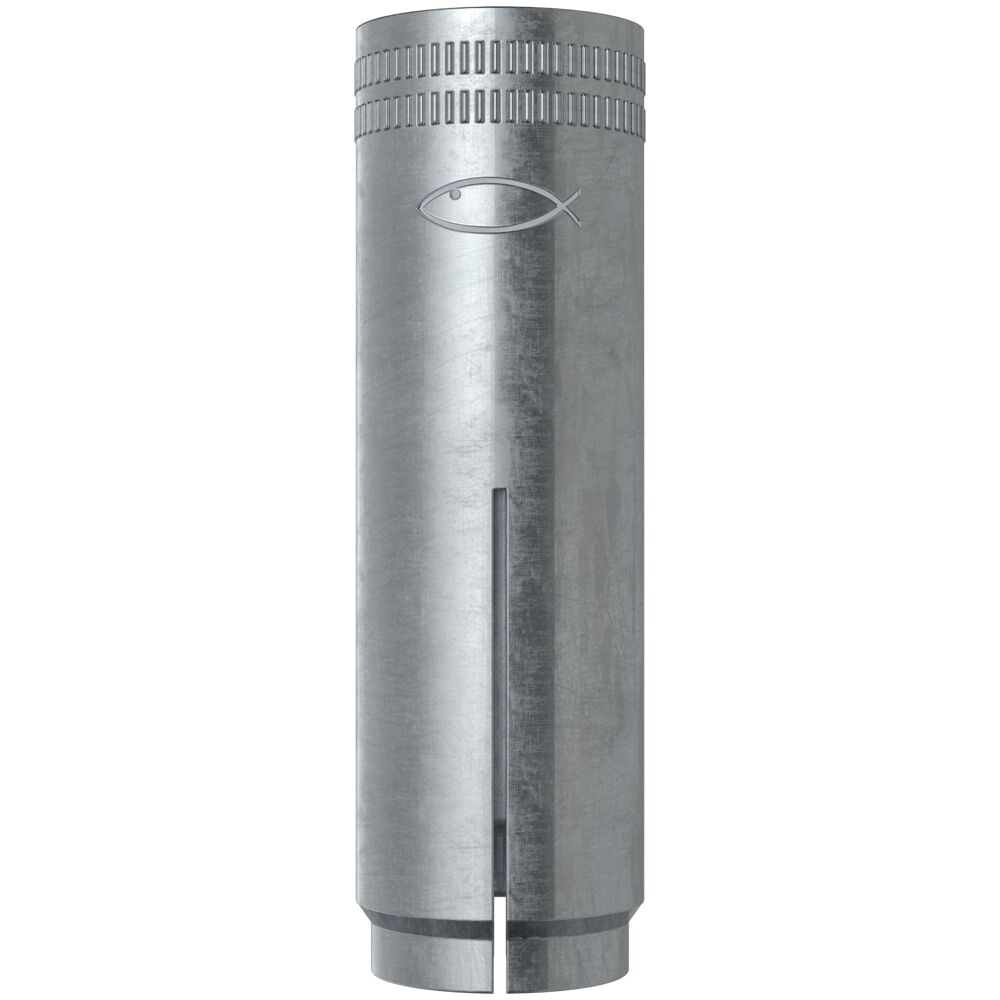

fischer EA M10 N Hammerset Anchor [090161]

Barcode: 4006209901618
Pack Size: 50
£6.81

Usually shipped in 1-2 days

fischer EA M10 N Hammerset Anchor [090161] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

The fischer hammerset anchor EA M10 N is an internal thread anchor made from zinc-plated and stainless steel. It is ideal for the multiple fixation of non-structural systems that do not require approved anchorage. The assembly of the EA N is extremely cost-effective thanks to its low embedment depth, fast hammerset installation, and direction-controlled screwing process. The anchor is installed flush to the base material using a hammer and the EA-ST setting tool. The sleeve is expanded and braced against the drill hole wall by driving in the internal pin. No torque should be applied to the screw to enable correct expansion.

Technical Datasheet

Load Table Document:

Applications

Pipelines
Cable trays
Consoles

Building Materials

Concrete C12/15, non-cracked
Concrete C20/25, non-cracked
You can find detailed information on building materials in the registration document.

Features

Simple hammerset installation: Time-saving.
Metric internal thread: Allows for the use of standard screws or threaded rods for ideal adaptation in line with the intended use.
Hand setting tool EA-ST: Facilitates fast installation.

Specifications
  • Brand
    Fischer
  • Drill Diameter (MM)
    12
  • Functionality
    The EA N is suitable for pre-positioned installation.

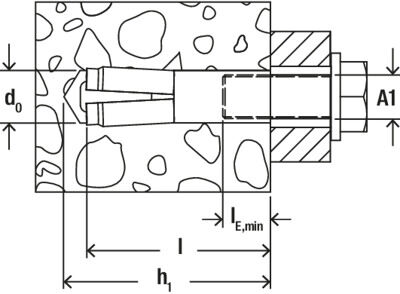

    Position the hammerset anchor in the drill hole and drive in flush to the surface of the base material using the hammer.
    The setting tool EA-ST is then used to expand the sleeve against the drill hole wall by driving in the internal pin.
    The setting tools must sit on the edge of the anchor to ensure correct expansion.
  • Length (MM)
    40
  • Material
    Zinc-Plated
  • Max. Bolt Penetration (lE.max) (mm)
    17.00
  • Minimum Bolt Penetration (mm)
    10.00
  • Pack Size
    50
  • Size
    M10
  • Type
    Drop-in anchor
