fischer EA II M10 x 25 zinc hammerset drop in anchor [532232]

Barcode: 4048962215311
Pack Size: 50
£11.75

Usually shipped in 1-2 days

fischer EA II M10 x 25 zinc hammerset drop in anchor [532232] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

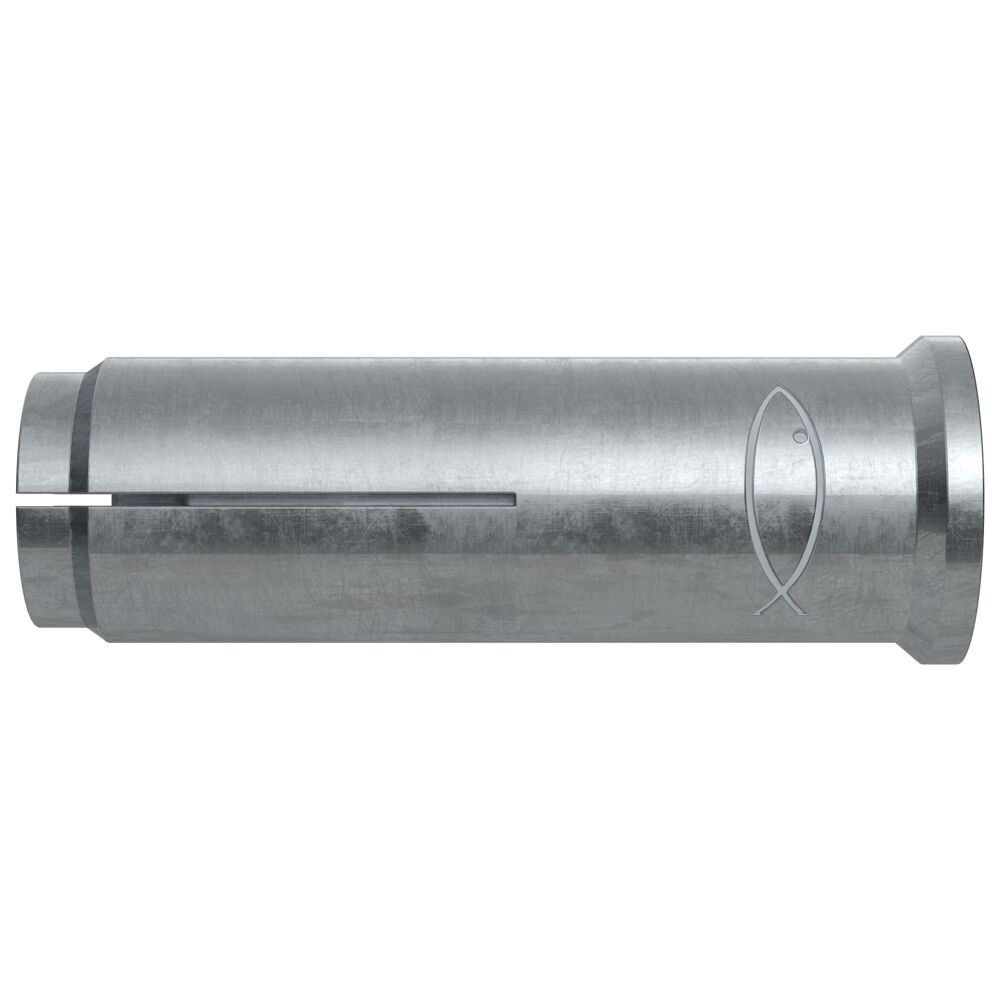

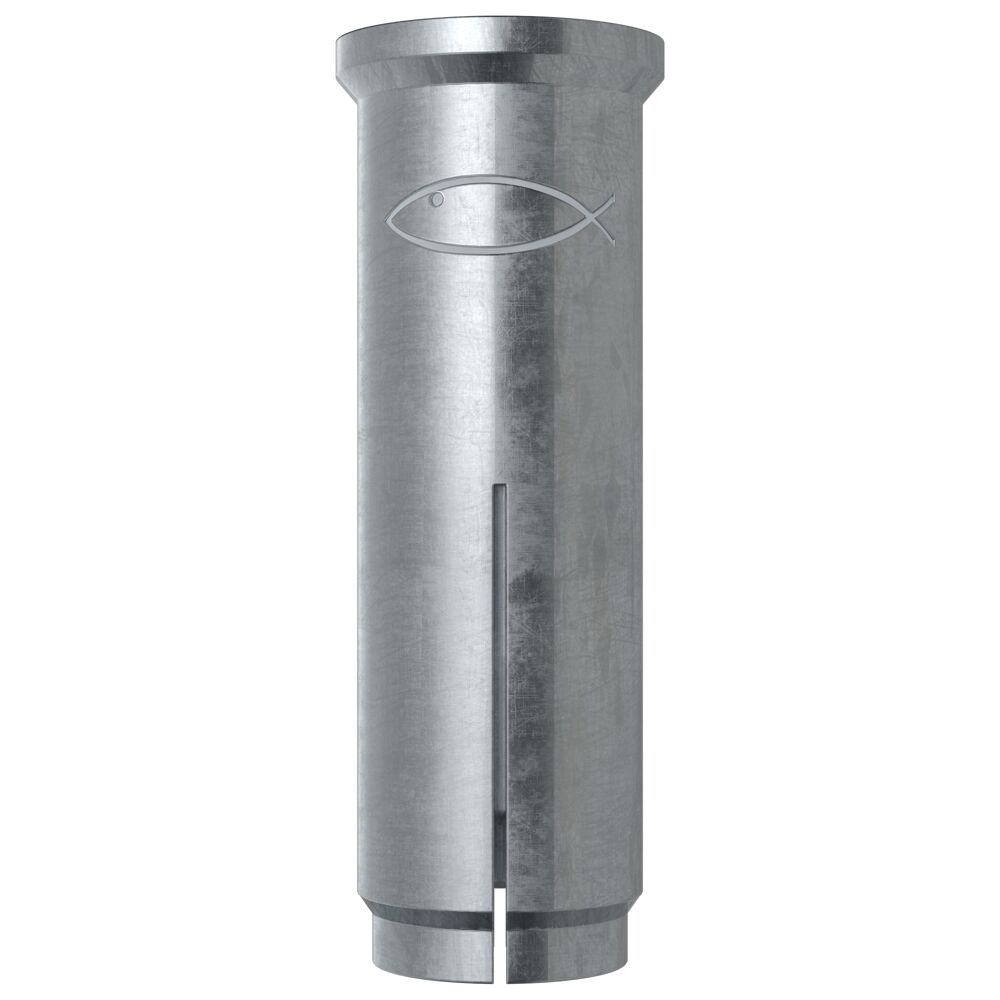

The fischer Hammerset anchor EA II M10 x 25 is a versatile and easy-to-use internal threaded anchor made of zinc-plated steel. It can be installed using a hammer or a machine setting tool, and it is flush to the surface of the anchoring base when installed. The sleeve is expanded by driving in the internal rod, which expands against the drill hole wall. No torque must be applied to the screw or the threaded rod for correct expansion to take place. The fischer Hammerset anchor EA II is ideal for fixing sprinkler systems, gratings, and consoles in internal areas with approval.

Technical Datasheet

Declaration of Performance Document:

European Technical Approval (ETA) Document:

FM Approval Document:

No PDF files found for Installations Instructions Document.

Load Table Document:

Applications

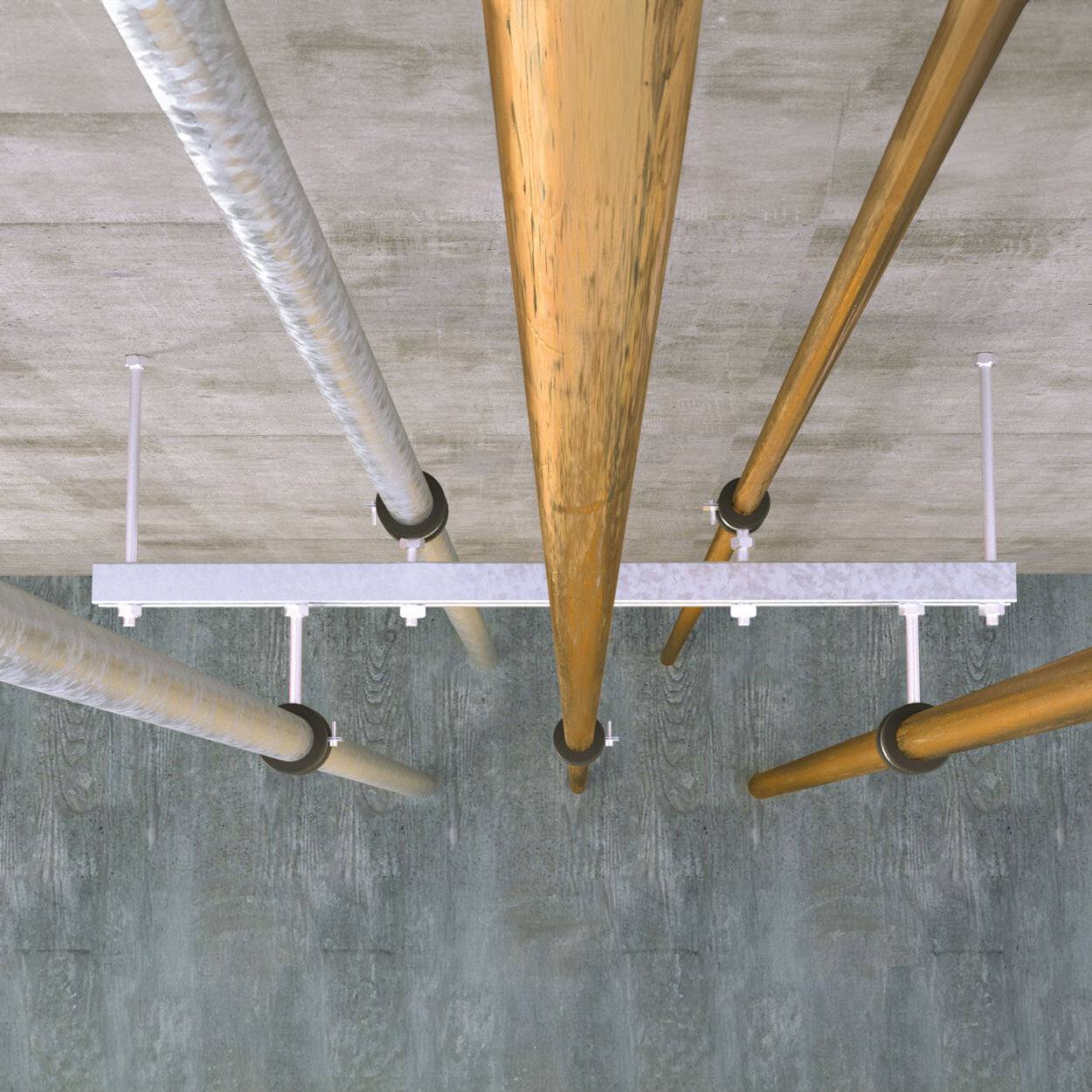

Pipelines and ventilation ducts

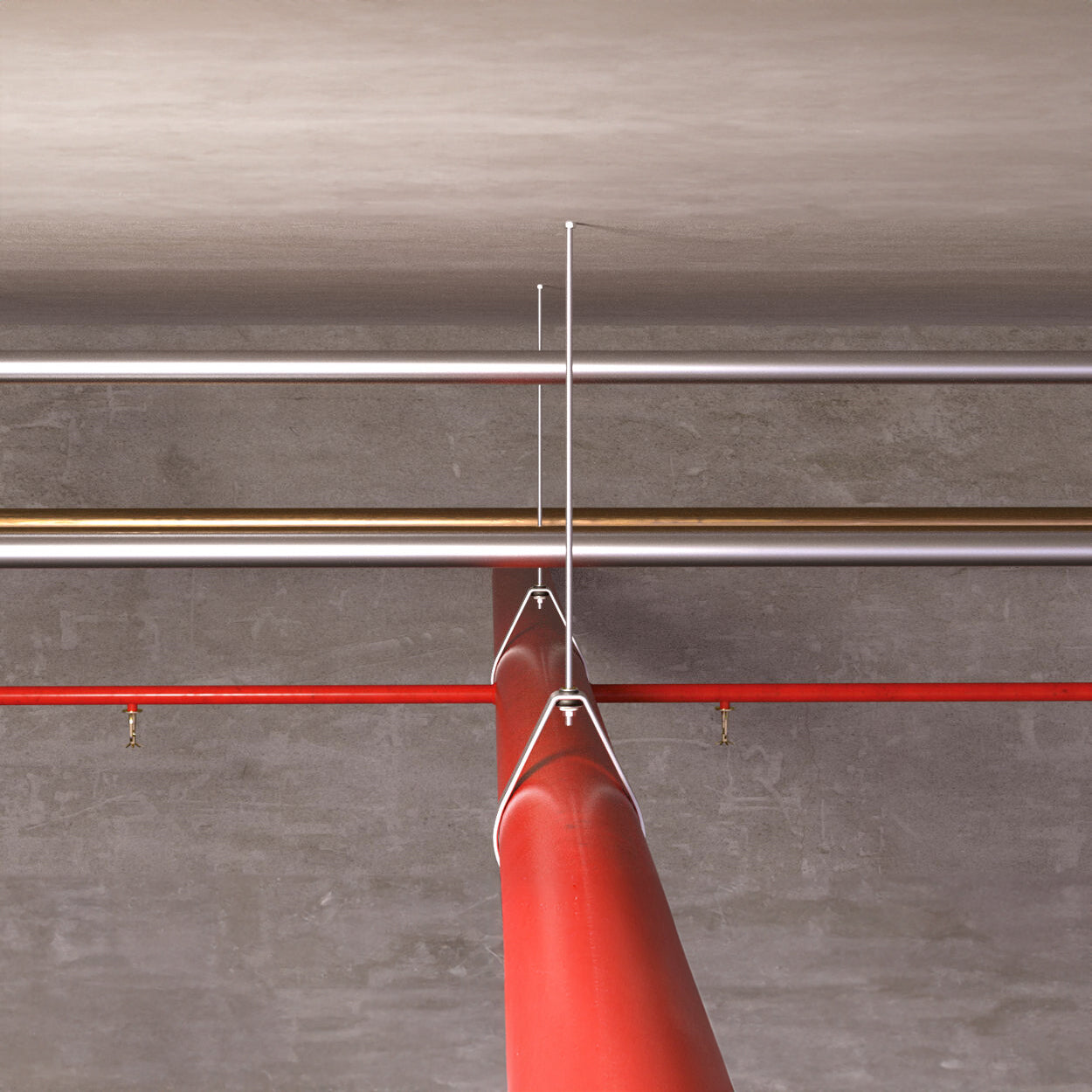

Sprinkler systems
Cable conduits and wires
Gratings
Steel constructions
Machines
Consoles
Shuttering props

Building Materials

Approved for:
Concrete C20/25 to C50/60, cracked, for the multiple fixings of non-load-bearing systems
Concrete C20/25 to C50/60, non-cracked
Also suitable for:
Concrete C12/15
Natural stone with dense structure
You can find detailed information on building materials in the registration document.

Certifications

ETA-07/0135
ETA-07/0142
DoP No. 0291
DoP No. 0292
DoP No. 0756-CPD-0332

Features

Embossed rim prevents the anchor sleeve from slipping: Ensures a trouble-free hammerset installation.
Metric internal thread: Possible to use standard screws or threaded rods for the ideal adaptation to suit the intended use.
EMS machine setting tool allows for effortless installation:Handy in the case of series installations.
Embossing is applied when expanding with the EHS Plus setting tool: Offers a simple control of the anchoring and provides increased safety.
Fixing point at hef 25 mm: Prevents anchor of falling out of the drill hole before being expanded.
Black fixing point: Prevents the anchor from falling out of the drill hole during overhead installation.

Specifications
  • Brand
    Fischer
  • Certifications
    ETA-07/0135
    ETA-07/0142
    DoP No. 0291
    DoP No. 0292
    DoP No. 0756-CPD-0332
  • Drill Diameter (MM)
    12
  • Functionality

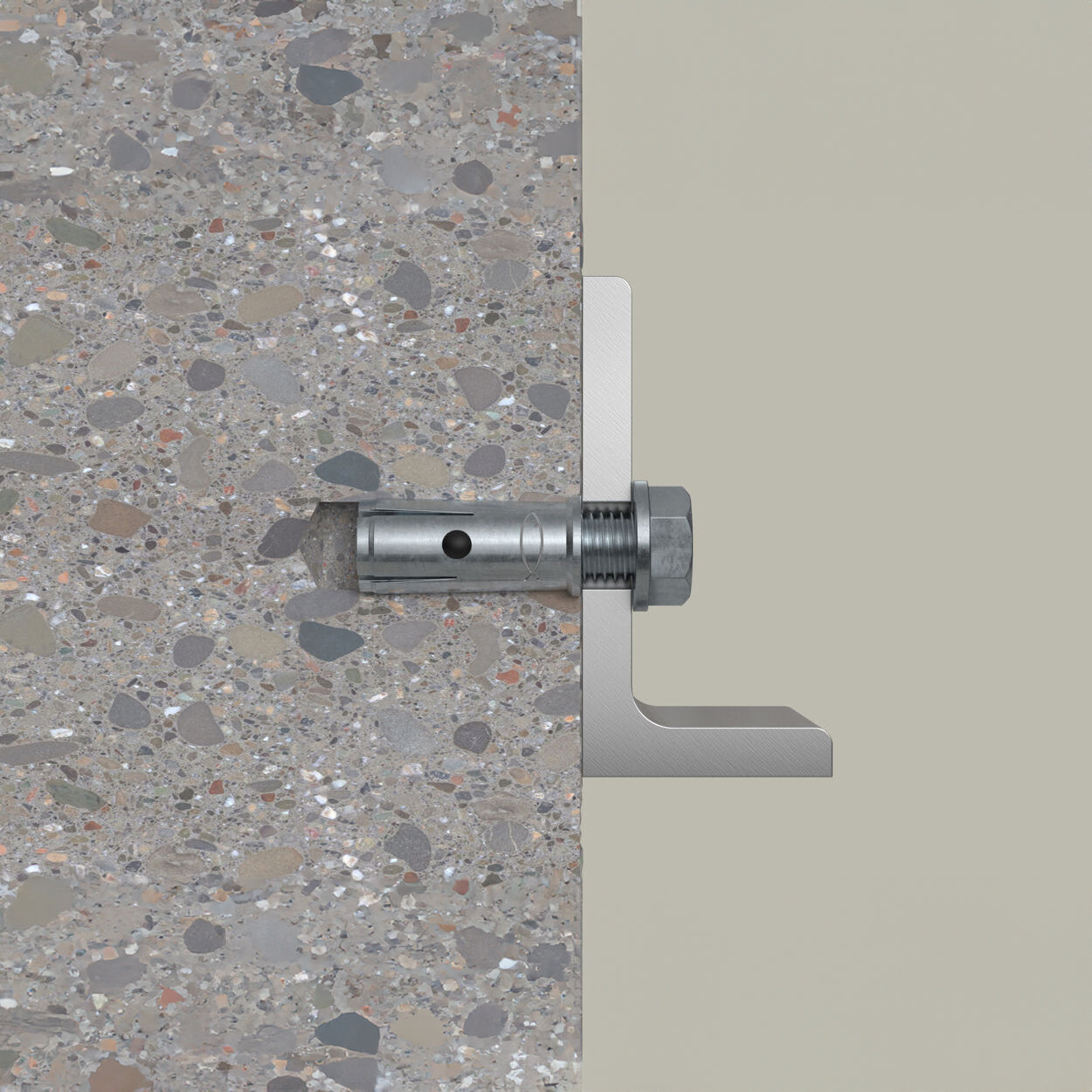

    The EA II is suitable for pre-positioned installation.
    Position the hammerset anchor in the drill hole and drive in flush to the surface of the anchor base using the hammer.
    The sleeve is then expanded by driving in the internal bolt with the EHS Plus setting tool (alternative: EMS machine setting tool), and expanded against the drill hole wall.
    The setting tools must sit on the rim of the anchor to ensure correct expansion.
  • Length (MM)
    25
  • Material
    Zinc-Plated
  • Max. Bolt Penetration (lE.max) (mm)
    14.00
  • Minimum Bolt Penetration (mm)
    10.00
  • Pack Size
    50
  • Size
    M10
  • Type
    Drop-in anchor
