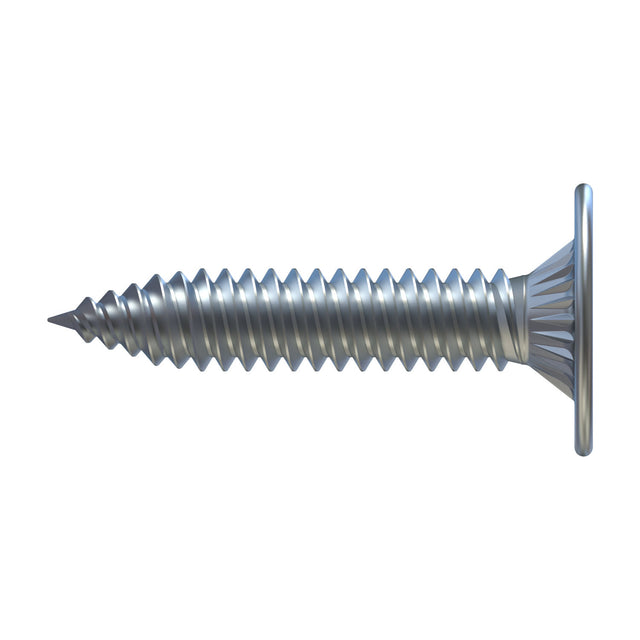

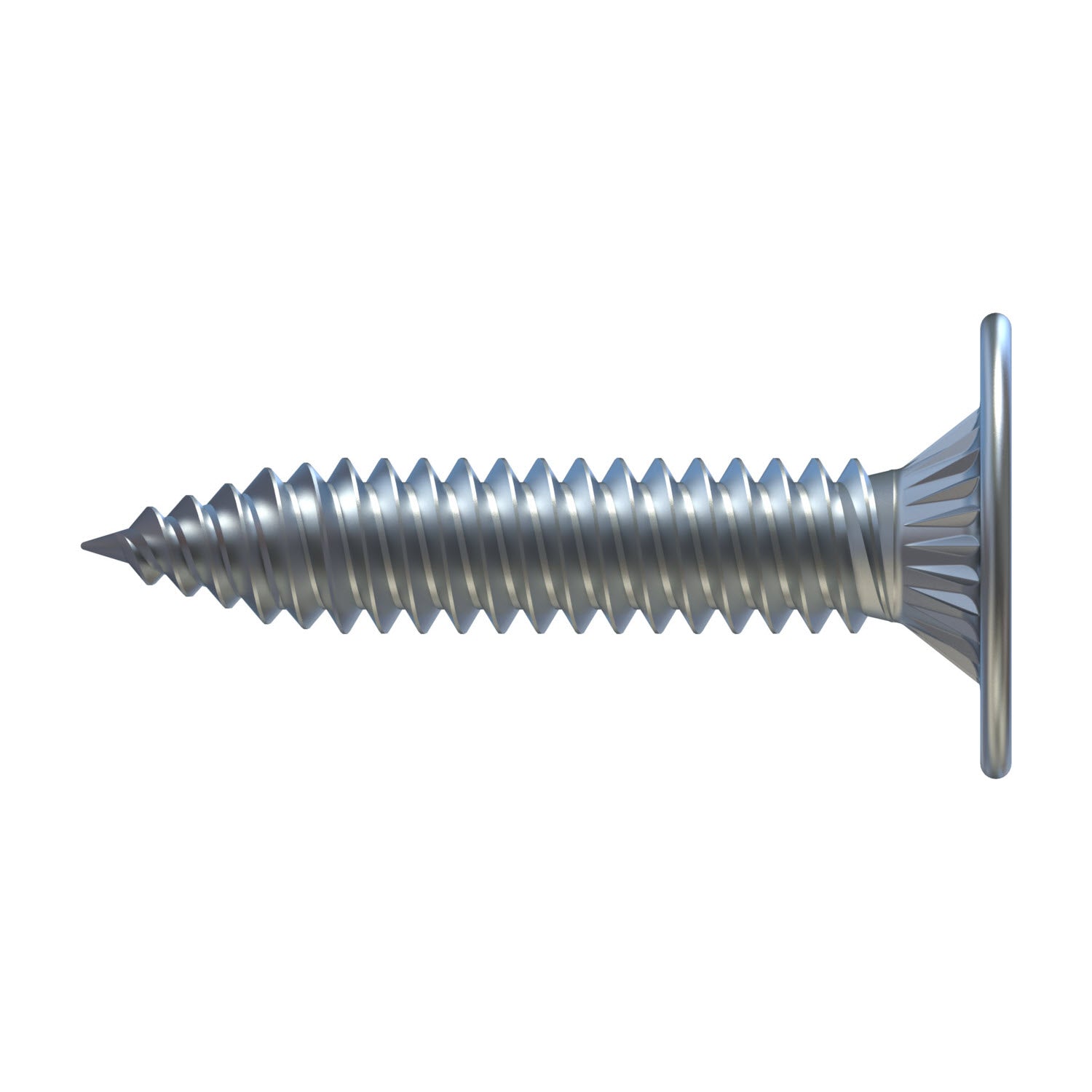

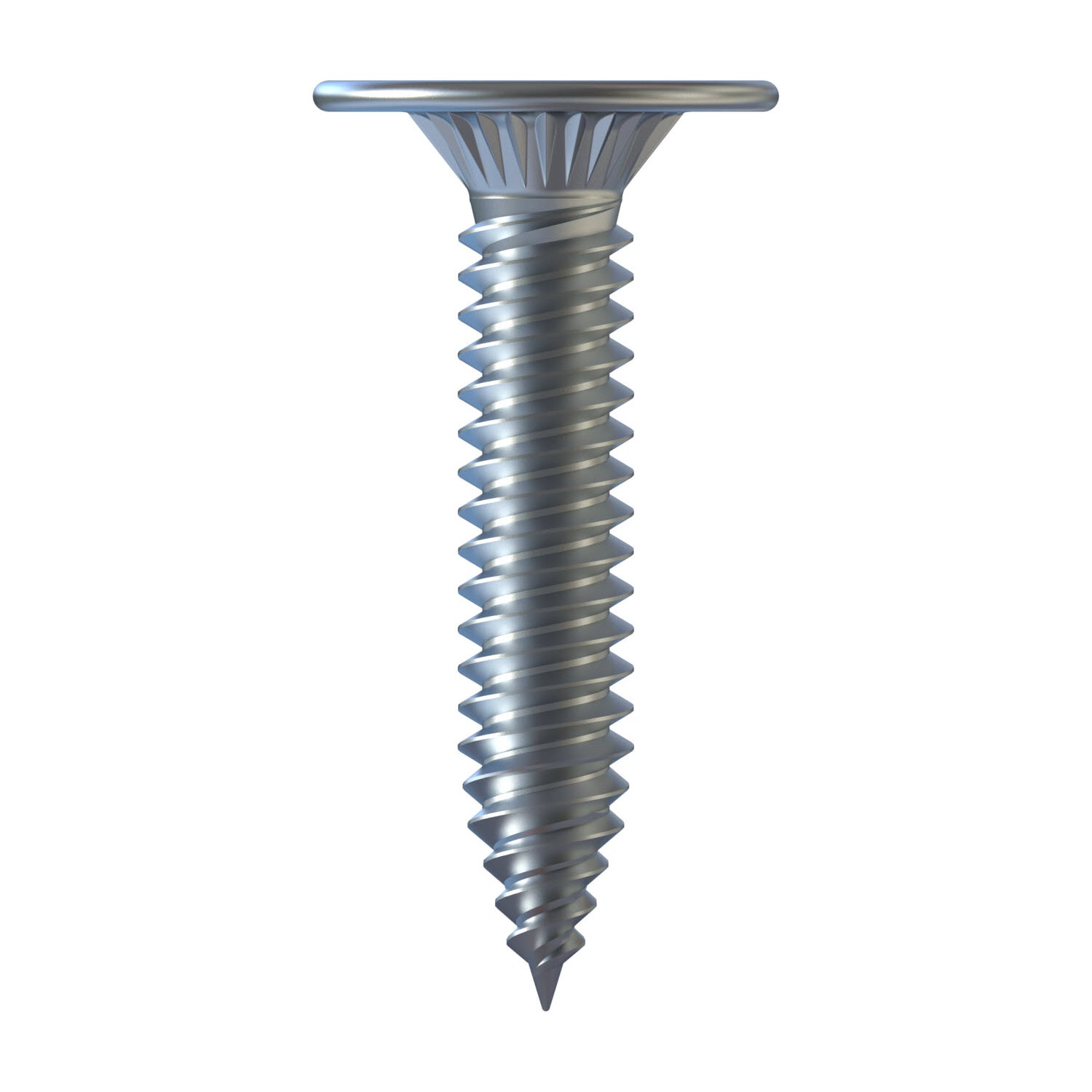

Certifix CFSSC2 BiMetal A2, 4.5x24mm Countersunk with SIT®20 cleat screw

SKU: 16898
Pack Size: 200
£69.00

Usually shipped in 1-2 business days

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

The Certifix CFSSC2 BiMetal A2, 4.5x24mm Countersunk with SIT®20 cleat screw is a specialized drilling solution designed for the chipless fixing of standing seam cleats to thin-walled sheet metal substructures under 1 mm. Built from high-quality A2 stainless steel bimetal with a blue zinc-plated finish and nickel strike, these screws are engineered specifically for roofing and façade construction. The unique thin sheet metal tip displaces material downwards rather than cutting it, which prevents sharp metal chips from damaging sensitive, non-breathable membranes. This displacement also creates more thread turns in the material, resulting in exceptionally high pull-out values even in very thin components. Designed for speed and reliability, the CF-RP-T2-SSK features a double thread for fast screw-in times and a flat washer countersunk head that allows standing seam sheets to slide smoothly over the fastening point. Installation is made secure by the SIT® 20 drive and a specialized locking serration that provides both overtightening protection and permanent loosening resistance. This ensures that the screws do not work loose over time while still allowing for easy position corrections during the initial install without damaging the cleat.

Technical Datasheet

Tech Datasheet:

Applications

Drilling screw for chipless fixing of standing seam cleats to sheet metal substructures under 1 mm.
Roofing, façade construction

Features

The sheet metal material is displaced downwards with no chips, preventing damage to the non-breathable membrane.

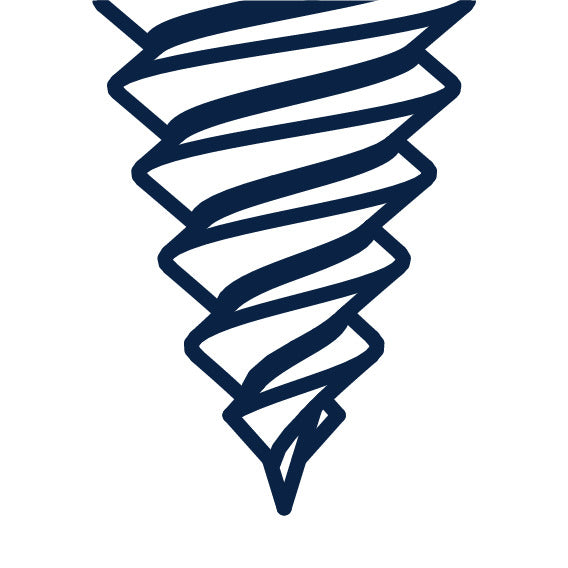

High pull-out values even in thin-walled components. More thread turns are formed in the displaced material owing to the thin sheet metal tip.

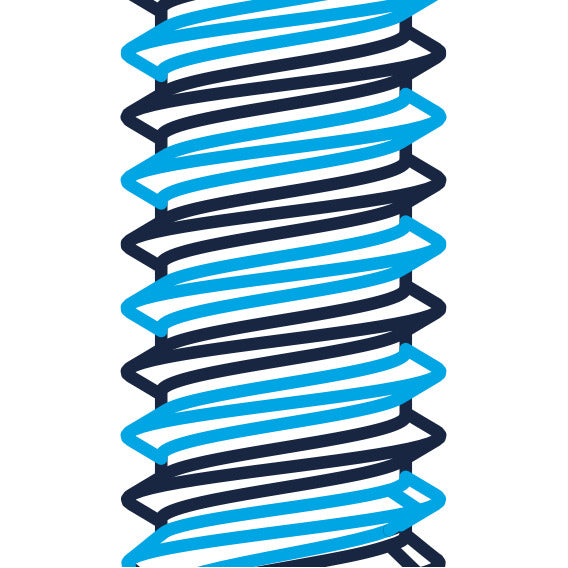

Fast screw-in speed due to double thread.
Flat head for smooth sliding of the standing seam sheets.
Positions can be easily corrected without damaging the cleat.

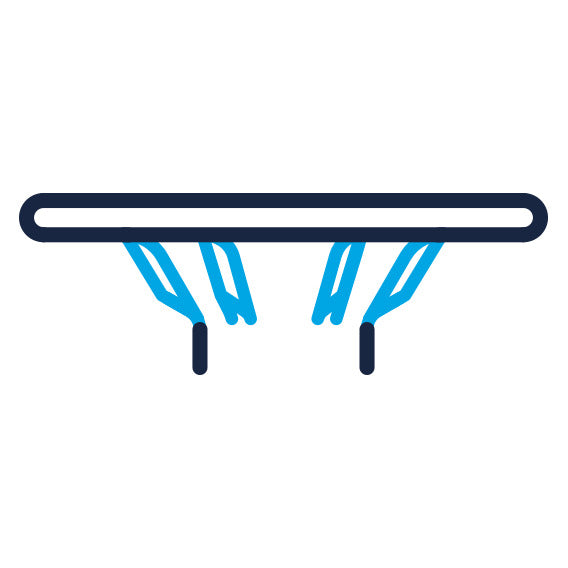

High processing reliability thanks to locking serration, which makes it much less easy to overtighten in thin sheet metal.
Screw loosening protection thanks to locking serration = Screws do not work loose.

Specifications
  • Brand
    Certifix
  • Diameter (mm)
    4.50
  • Drilling Capacity
    Component 1 [mm]: A2 stainless steel (pre-punched) 0.5 - 1.0 Component 2 [mm]: Steel 0.5 - 1.0; Aluminium 0.5 - 1.2; Copper 0.5 - 1.2
  • Driver Type

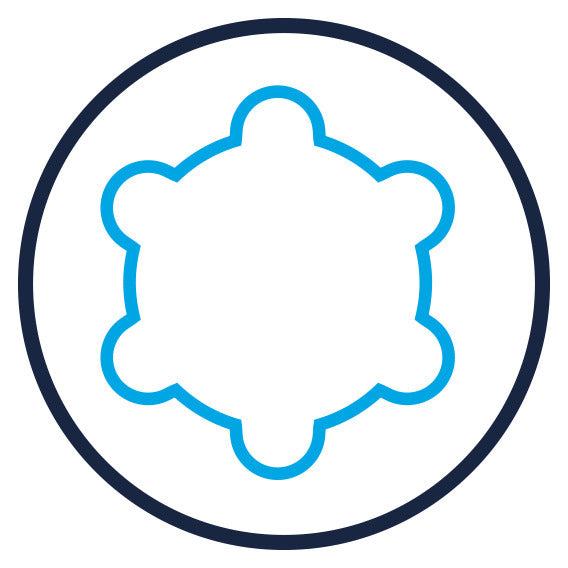

    SIT® 20
  • Head Diameter (mm)
    12.00
  • Head Height (mm)
    0.80
  • Head Type
    Washer countersunk head
  • Length (MM)
    24
  • Material
    Bimetal (stainless steel A2/steel)
  • Pack Size
    200
  • Thread Length (MM)
    21
  • Thread Type
    Double threaded thin sheet metal thread
  • Type
    Self drilling screw
  • Weight
    528.00 g
