fischer ULTRACUT FBS II 6x55 M10/21 hex head with internal thread Zinc Concrete Screw [546399]

Barcode: 4048962329575
Pack Size: 100
£67.76

Usually shipped in 1-2 days

fischer ULTRACUT FBS II 6x55 M10/21 hex head with internal thread Zinc Concrete Screw [546399] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

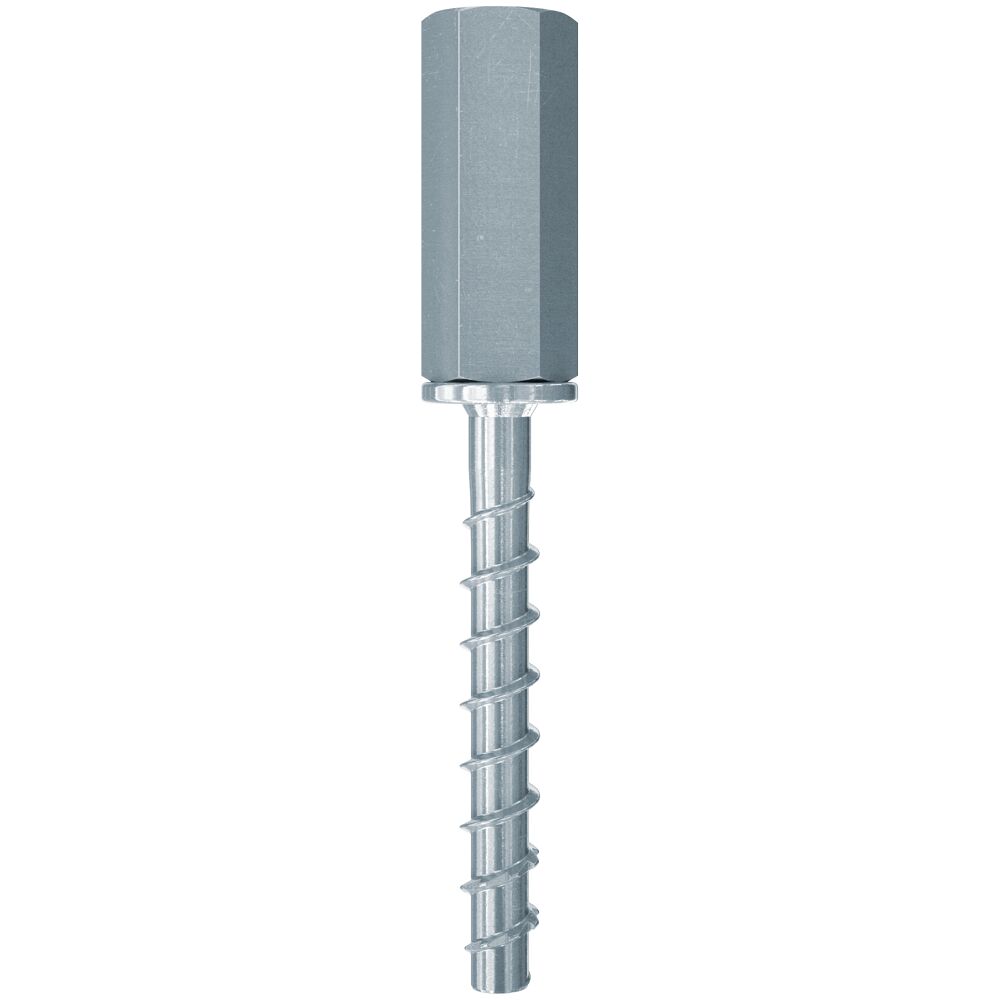

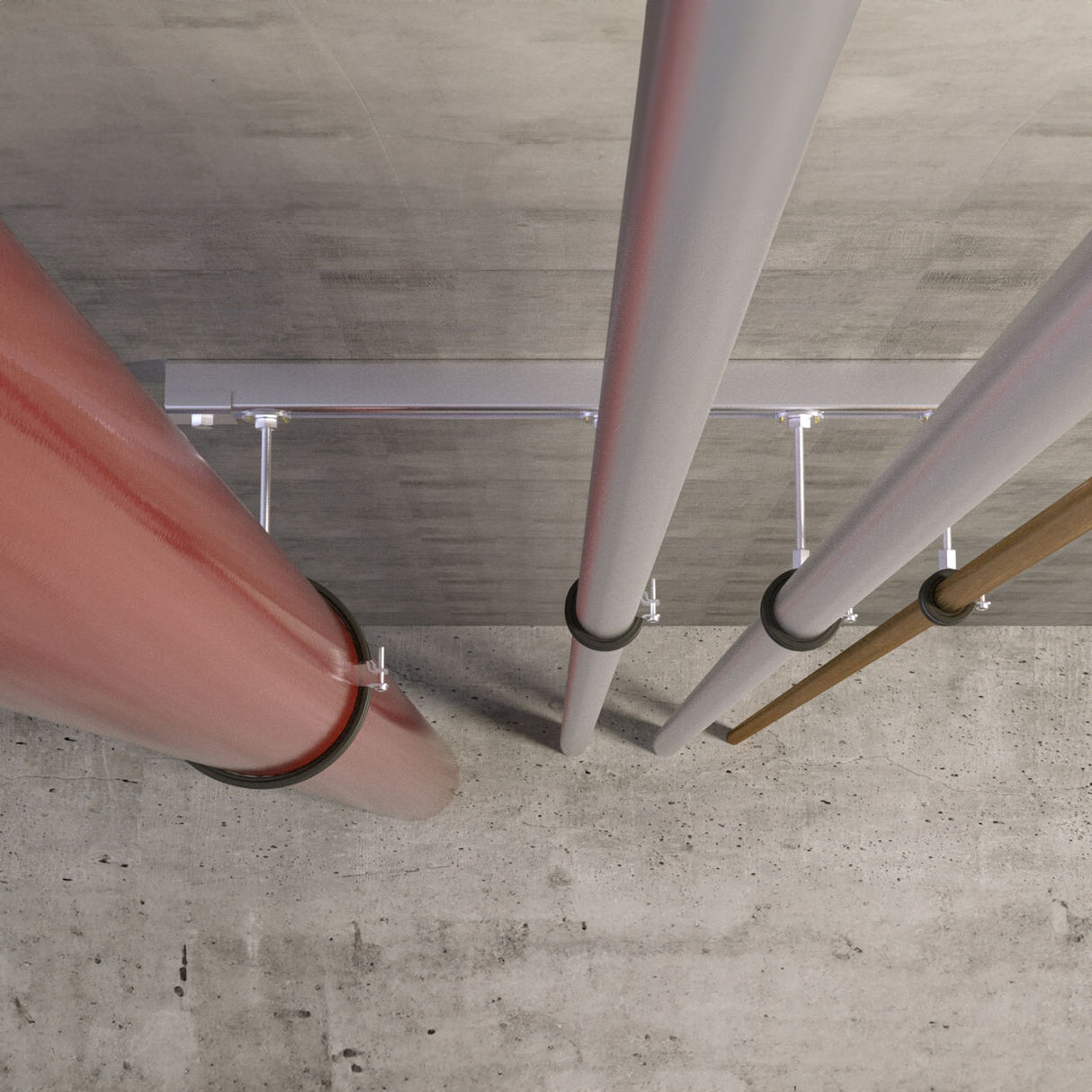

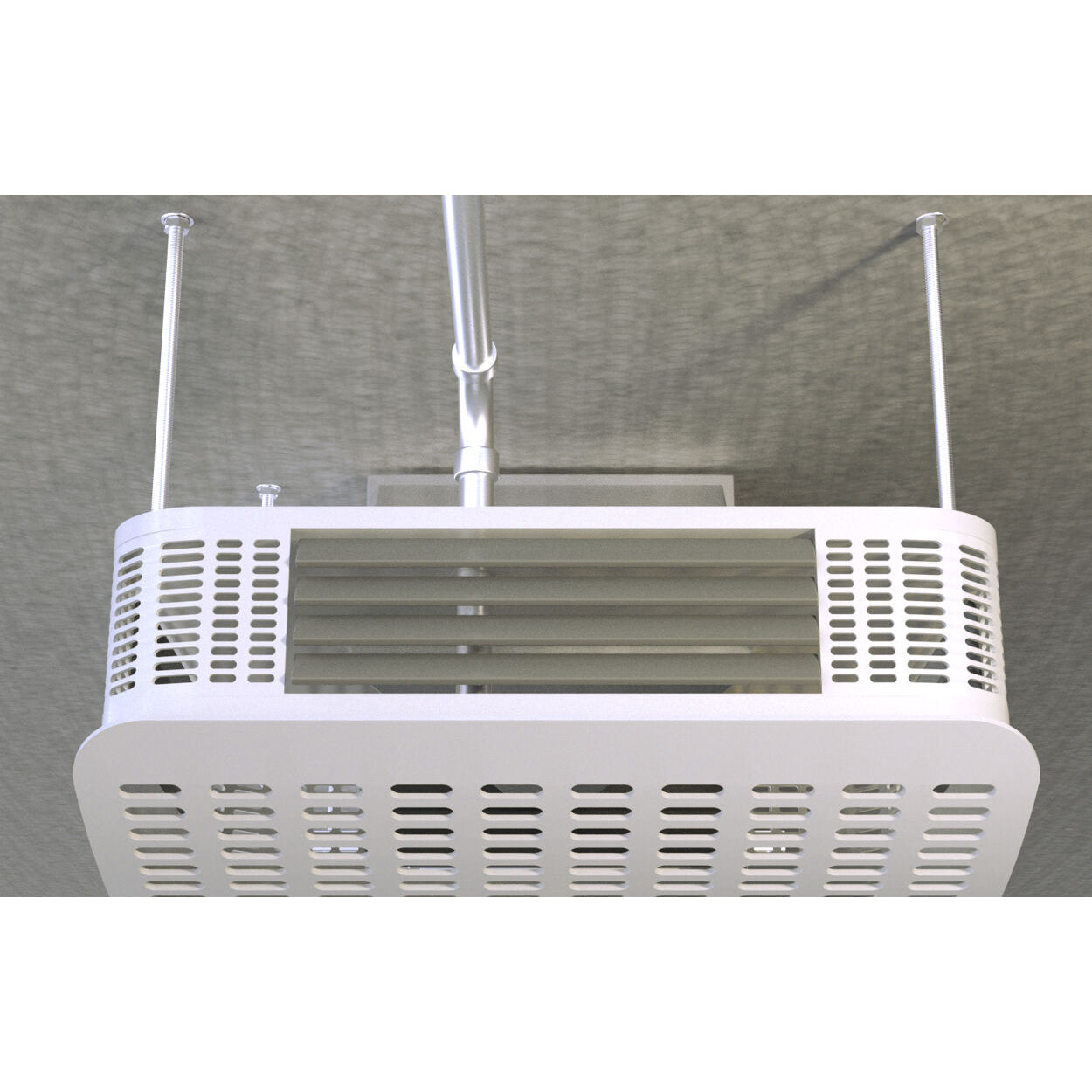

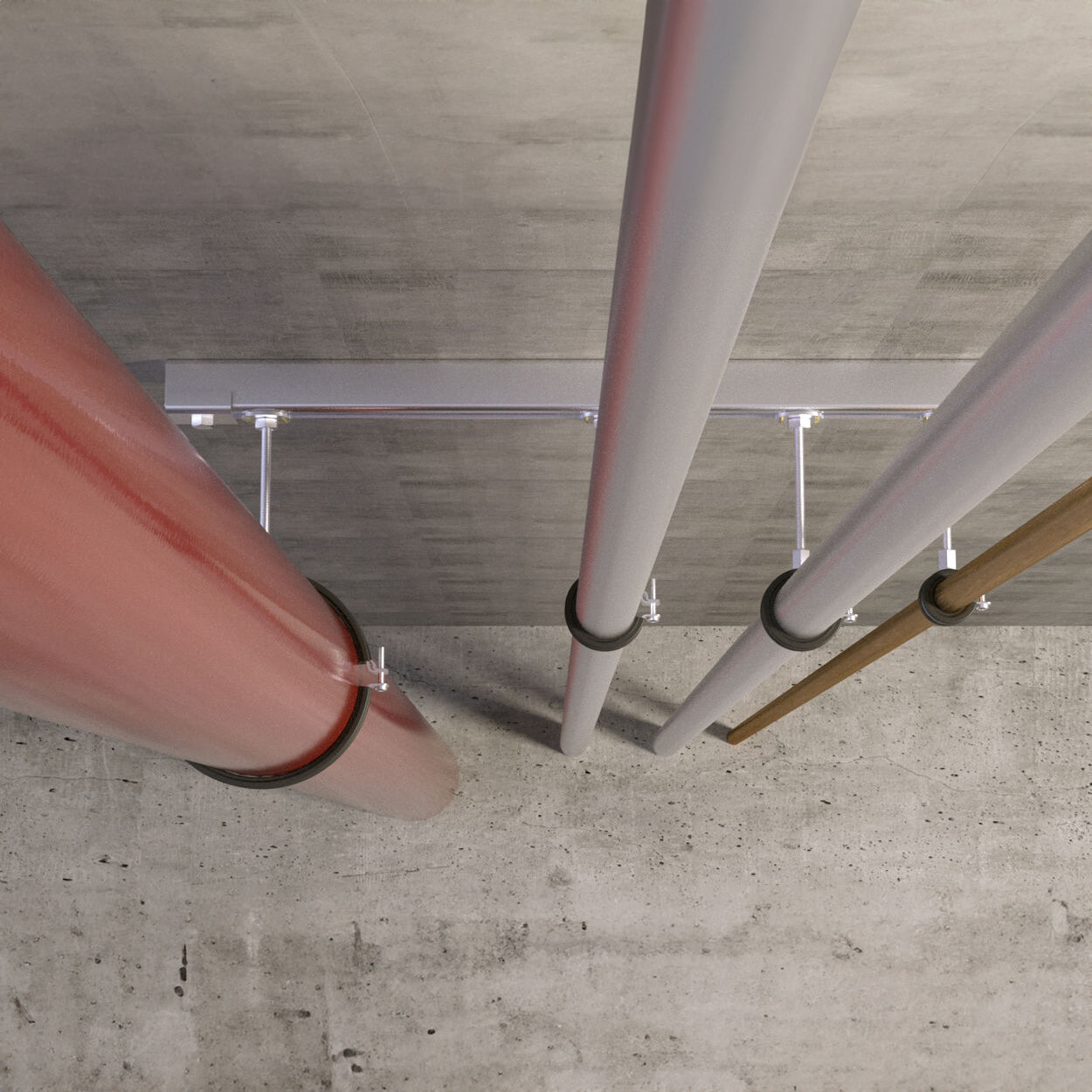

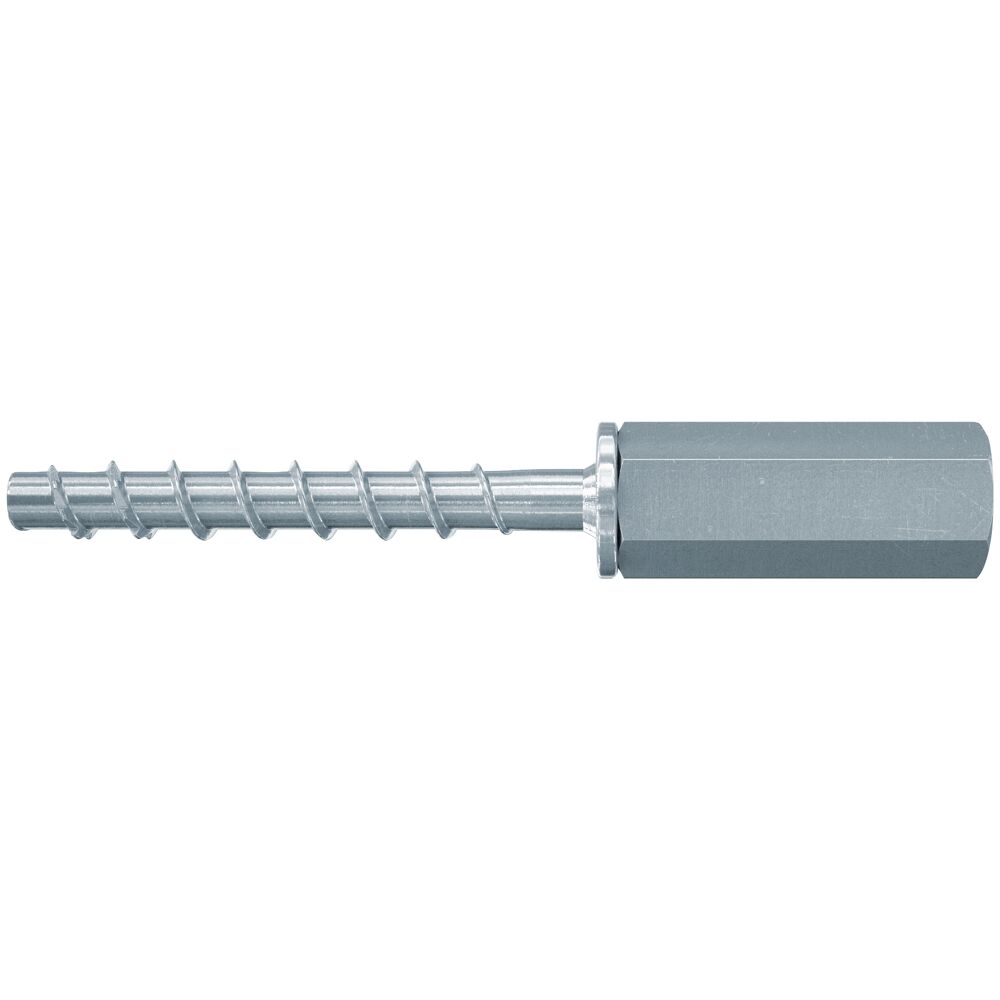

Manufactured from Zinc-plated steel, with hex head and internal thread, the ULTRACUT FBS II 6x55 M10/21 provides improved versatility. Designed for use in applications such as channel systems, pipe routes, ventilation ducts, etc. Ultracut FBS has ETA Approval for cracked and non-cracked concrete as well as seismic loads, and classification in fire resistance class R 120. The UltraCut FBS II I is perfectly designed for applications such as fixings of pipe routes, channel systems, ventilation ducts and facilities in the building service engineering. When the concrete screw is screwed into the drill hole using an impact driver, the thread flanks cut deep into the concrete, thus ensuring top load-bearing capacity. The low drilling effort saves time in the case of multiple fixations.

Technical Datasheet

Declaration of Performance Document:

European Technical Approval (ETA) Document:

Installations Instructions Document:

Load Table Document:

Applications

Guard rails

Consoles/Base plates

Metal Profiles

Steel Constructions

Facades

Protection barriers

Building Materials

Approved for:

Concrete C20/25 to C50/60, cracked and non-cracked
Also suitable for:

Concrete C12/15
Solid building materials
Masonry with a dense structure

Features

The first concrete screw with diameter 6 and variable embedment depths: High flexibility and a precise adaption on the loads.

ETA assessment option 1 includes the use in cracked and non-cracked concrete: Highest safety requirements.

First 6 mm diameter concrete screw with an ETA assessment for C1 seismic performance category for additional safety standards: Pioneering technology.

Approved for multiple use of non-load bearing systems: Ideal for the installation of pipe routes, cable trays and prestressed hollow concrete ceilings.

Drill holes do not need to be cleaned during vertical installation (ceiling and floor): Fast installation (Note: For floor fixings, the hole must be drilled 3x drill hole diameter deeper).

Different head designs available: Maximum application flexibility.

Hexagonal head with pressed washer and ribs under the head: Prevents accidental loosening of the anchor, making the system more secure.

Special head geometry for use in mounting rails with a socket (SW10): Simple installation of the add-on part.

Approved adjustment for the concrete screws allows the screw to be unscrewed twice to place maximum 10 mm packing below the base plate head or to align the attached part, and then to tighten the screw again: Precision fixing.

For use in masonry (solid building material): Versatile anchoring.

Hex head with internal thread: Improved versatility.

Specifications
  • Brand
    Fischer
  • Drill Diameter (MM)
    6
  • Driver Type
    SW13
  • Head Type
    External Thread
  • Length (MM)
    55
  • Material
    Zinc-Plated
  • Min Drill Hole Depth for Through Fixings (MM)
    60
  • Pack Size
    100
  • Screw-in Depth
    55mm
  • Type
    Concrete screw
  • Width Across Nut (MM)
    13
