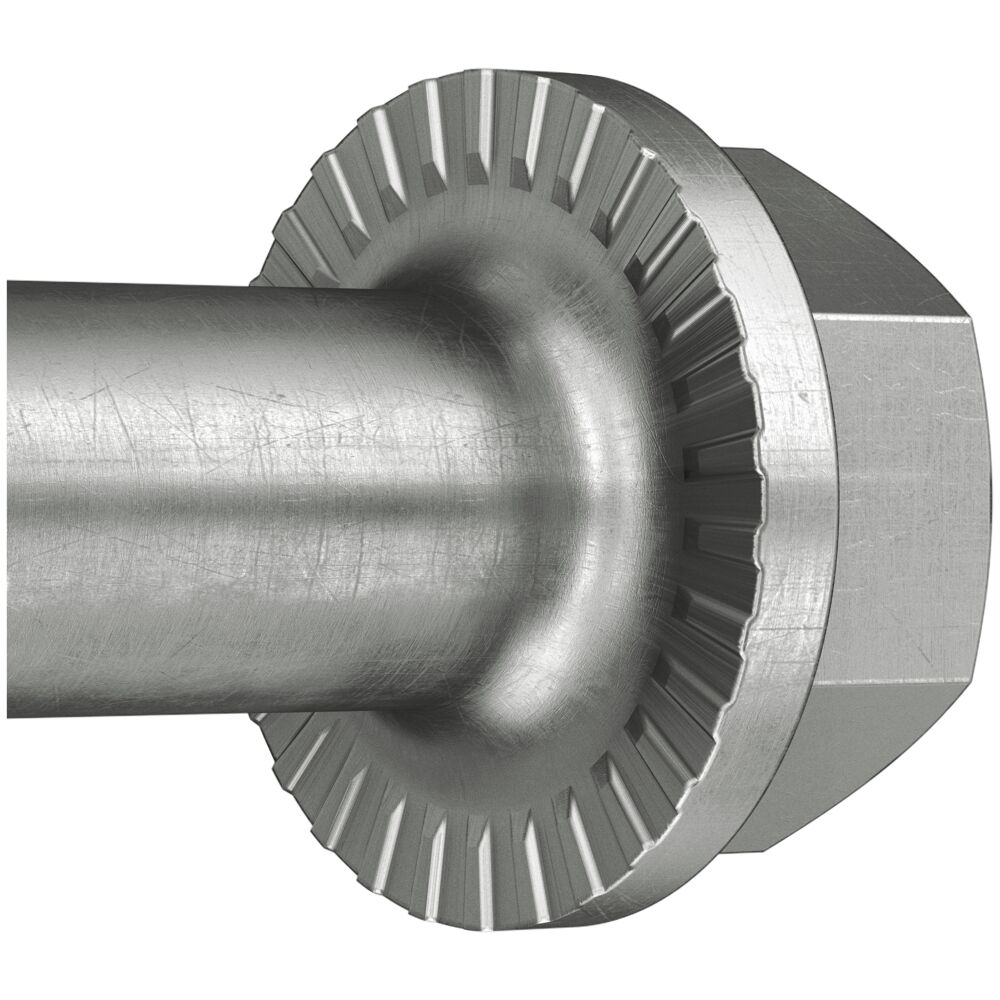

fischer ULTRACUT FBS II 12x70 10/-/- US R hex head A4 Stainless Concrete Screw [543575]

Barcode: 4048962308273
Pack Size: 20
£165.45

Usually shipped in 1-2 days

fischer ULTRACUT FBS II 12x70 10/-/- US R hex head A4 Stainless Concrete Screw [543575] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

The fischer ULTRACUT FBS II 12x70 10/-/- US R hex head A4 Stainless Concrete Screws with specially hardened red tips are a versatile choice for a variety of applications. They are resistant to corrosion, making them ideal for use in wet rooms and external environments. The red tip also helps to provide a faster and more secure installation by cutting into the concrete more easily. Additionally, the approved adjustment feature allows the screw to be unscrewed twice to align the attached part, and then to be tightened again. This can be helpful for correcting mistakes during installation, or for adjusting the screw's position after it has been installed.

Technical Datasheet

Declaration of Performance Document:

European Technical Approval (ETA) Document:

Installations Instructions Document:

Load Table Document:

Applications

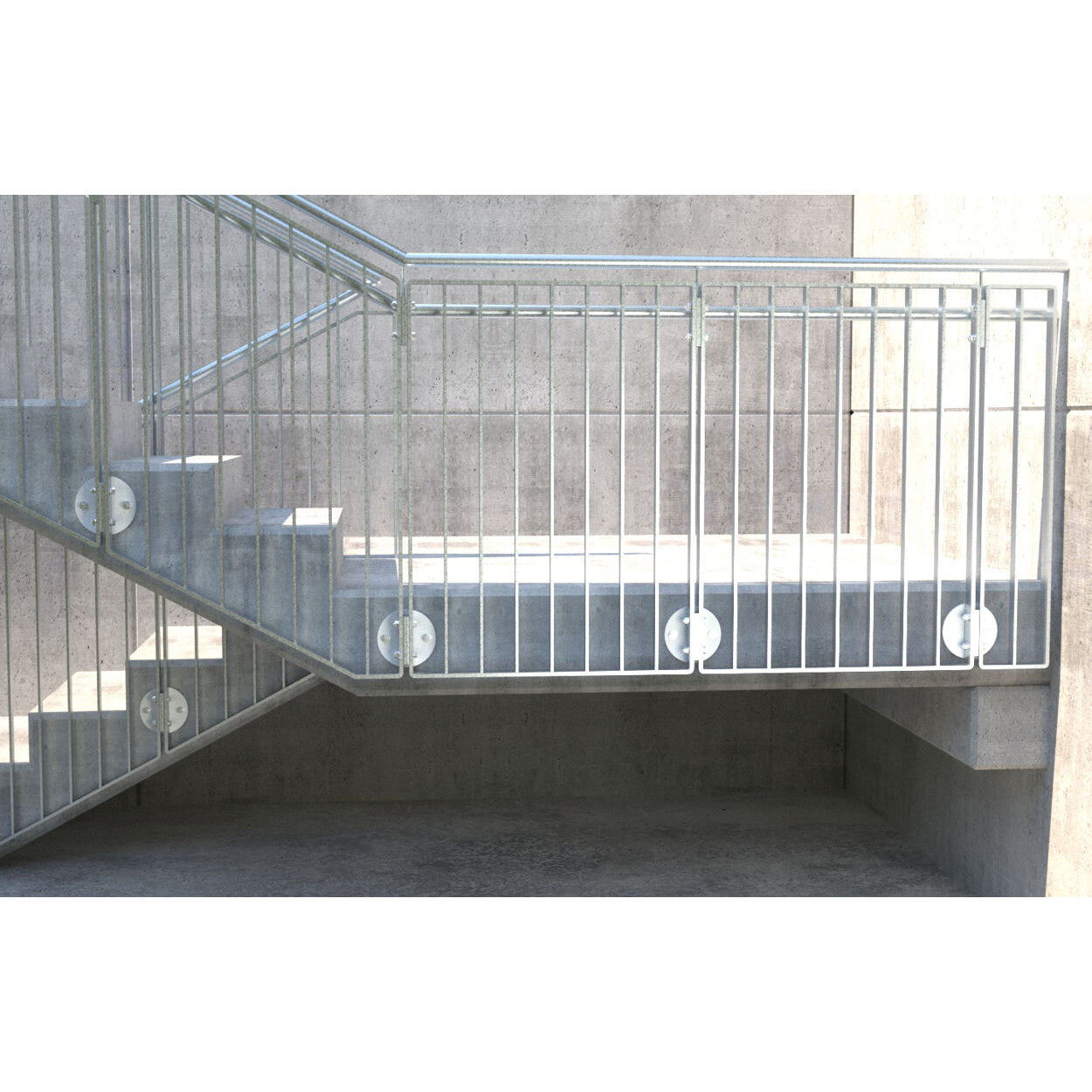

Guard rails

Consoles/Base plates

Metal Profiles

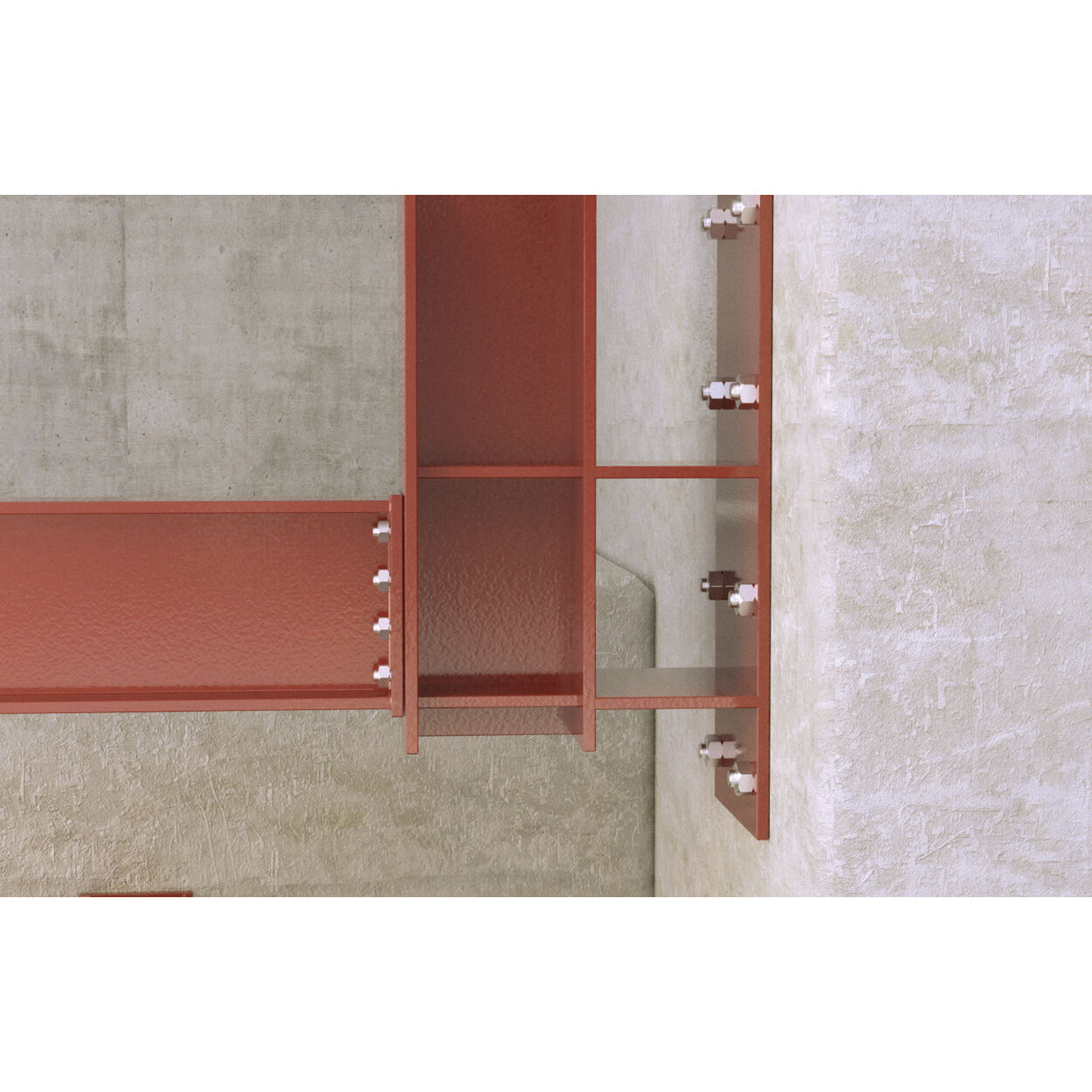

Steel Constructions

Facades

Protection barriers

Building Materials

Approved for:

Concrete C20/25 to C50/60, cracked and non-cracked
Also suitable for:

Concrete C12/15
Solid building materials
Masonry with a dense structure

Features

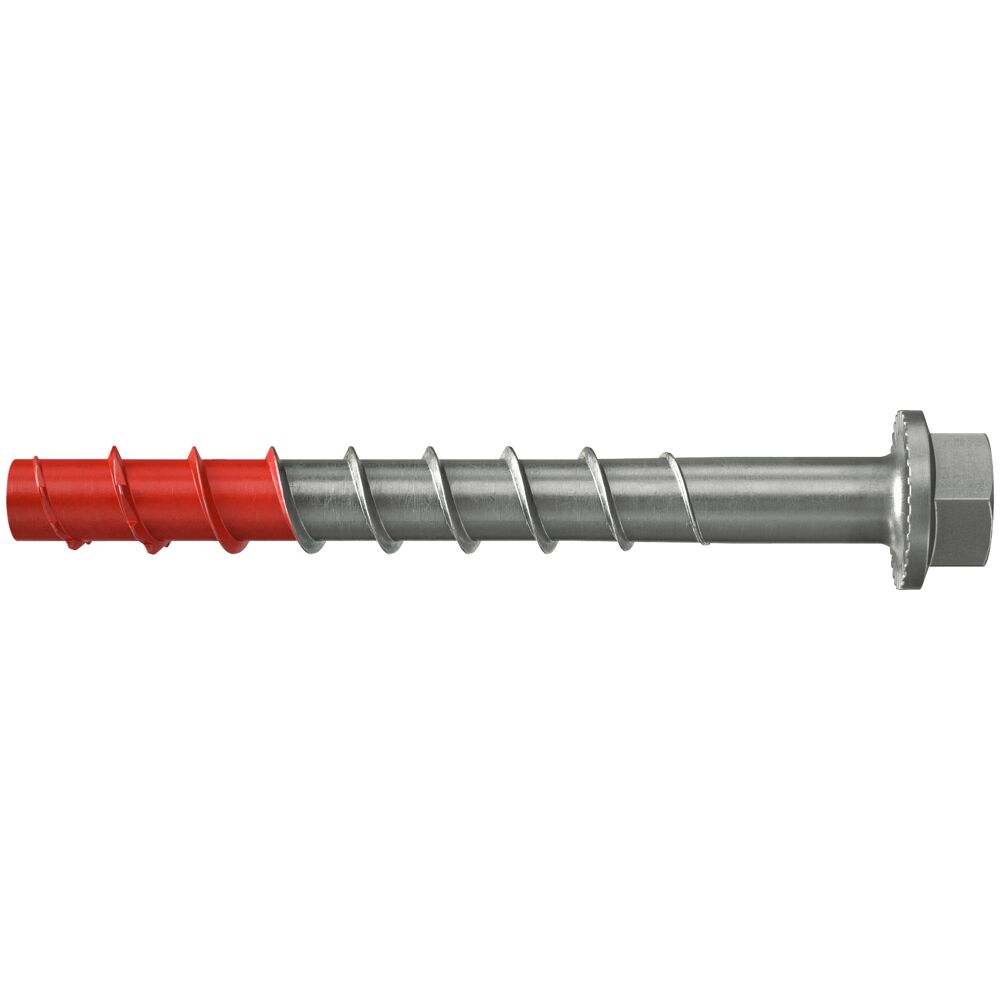

Specially hardened red tip: Faster and more secure installation.

A4 stainless steel concrete screw: Guarantees a high level of corrosion resistance especially for wet rooms and external applications.

Special saw tooth geometry: Enables fast cutting into the concrete.

Drill holes do not need to be cleaned during vertical installation (ceiling and floor): Fast installation (Note: For floor fixings the hole must be drilled 3x drill hole diameter deeper.)

ETA approval covers applications in cracked concrete and seismic power categories C1 and C2: Safe and approved.

Approved adjustment for the concrete screws allows the screw to be unscrewed twice to place maximum 10 mm packing below the base plate head or to align the attached part, and then to tighten the screw again: Precision fixing.

Three embedment depths: Allows use in many different applications.

Short UltraCut FBS II R, with a reduced embedment in depth: Allows for a short drill hole depth, fast installation and less reinforcement hits.

Specifications
  • Brand
    Fischer
  • Diameter (mm)
    14.00
  • Drill Diameter (MM)
    12
  • Driver Type
    SW17

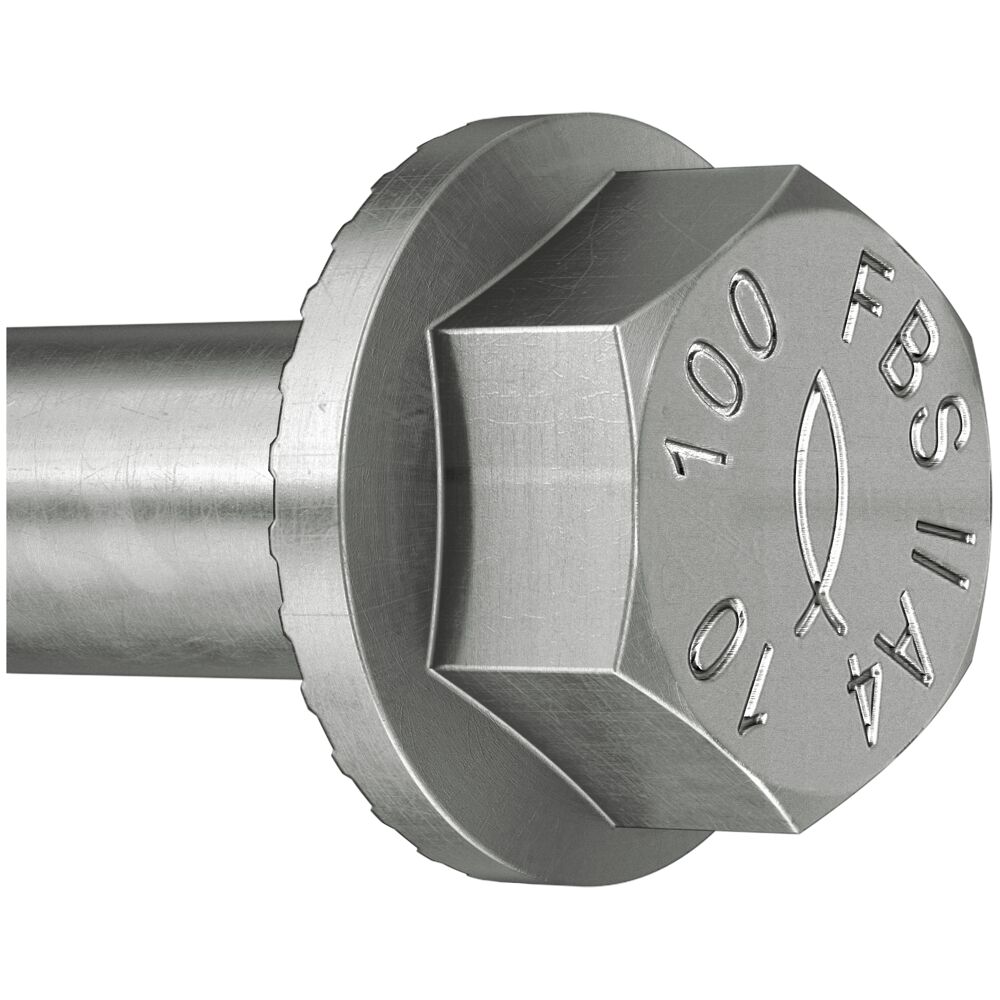

  • Head Type
    Hexagonal
  • Length (MM)
    70
  • Material
    A4 Stainless Steel
  • Min Drill Hole Depth for Through Fixings (MM)
    80
  • Pack Size
    20
  • Screw-in Depth with Fixture Thickness 1
    55 / 85mm
  • Type
    Concrete screw

Reviews (0)

Delivery & Returns

For full delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Fischer

fischer ULTRACUT FBS II 12x70 10/-/- US R hex head A4 Stainless Concrete Screw [543575]

£165.45
The fischer ULTRACUT FBS II 12x70 10/-/- US R hex head A4 Stainless Concrete Screws with specially hardened red tips are a versatile choice for a variety of applications. They are resistant to corrosion, making them ideal for use in wet rooms and external environments. The red tip also helps to provide a faster and more secure installation by cutting into the concrete more easily. Additionally, the approved adjustment feature allows the screw to be unscrewed twice to align the attached part, and then to be tightened again. This can be helpful for correcting mistakes during installation, or for adjusting the screw's position after it has been installed.

Clamping Range (MM)

N/A

Diameter (MM)

14.00

Drill Diameter (MM)

12

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Concrete screw

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

N/A

Pack Size

20

Package Contents

N/A

Material

N/A

Length (MM)

70

Min Drill Hole Depth for Through Fixings (MM)

80

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

Specially hardened red tip: Faster and more secure installation.

A4 stainless steel concrete screw: Guarantees a high level of corrosion resistance especially for wet rooms and external applications.

Special saw tooth geometry: Enables fast cutting into the concrete.

Drill holes do not need to be cleaned during vertical installation (ceiling and floor): Fast installation (Note: For floor fixings the hole must be drilled 3x drill hole diameter deeper.)

ETA approval covers applications in cracked concrete and seismic power categories C1 and C2: Safe and approved.

Approved adjustment for the concrete screws allows the screw to be unscrewed twice to place maximum 10 mm packing below the base plate head or to align the attached part, and then to tighten the screw again: Precision fixing.

Three embedment depths: Allows use in many different applications.

Short UltraCut FBS II R, with a reduced embedment in depth: Allows for a short drill hole depth, fast installation and less reinforcement hits.
