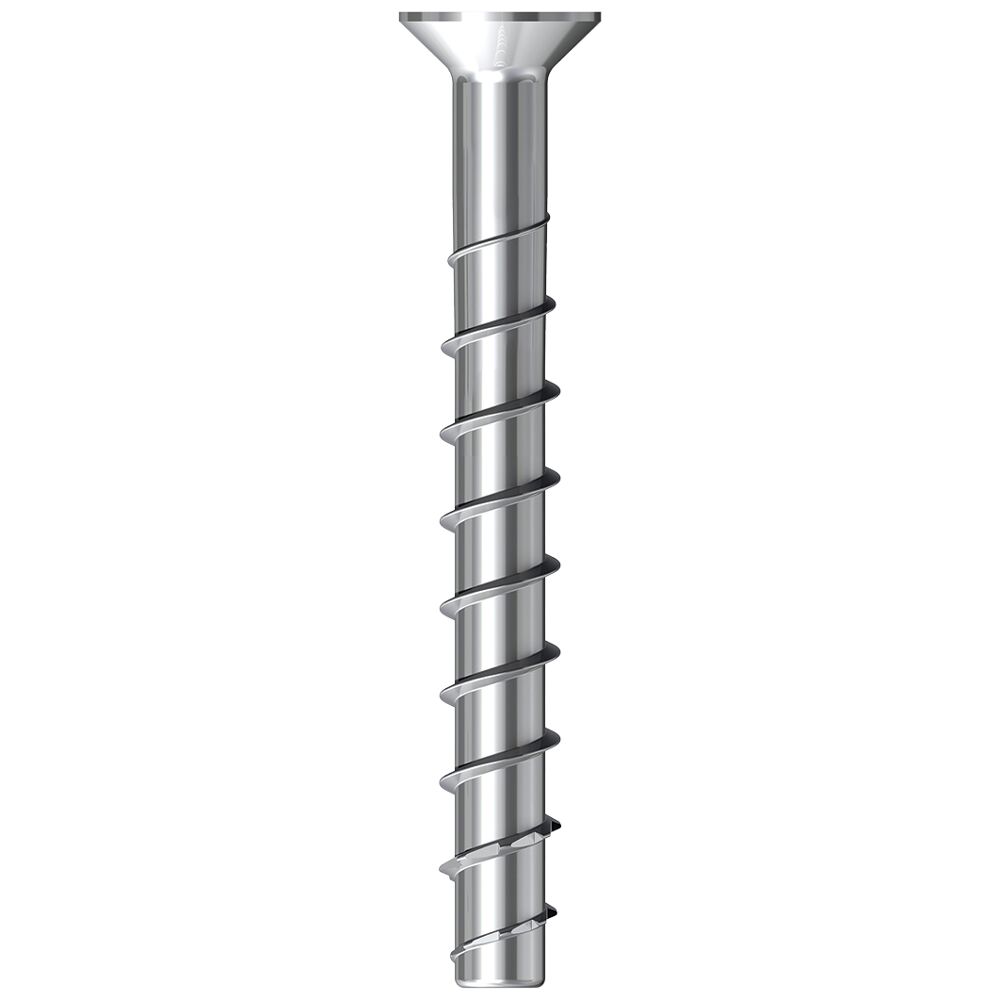

fischer ULTRACUT FBS II 10x65 10/-/- SK countersunk head TX50 Zinc concrete screw [536884]

Barcode: 4048962251678
Pack Size: 50
£70.89

Usually shipped in 1-2 days

fischer ULTRACUT FBS II 10x65 10/-/- SK countersunk head TX50 Zinc concrete screw [536884] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

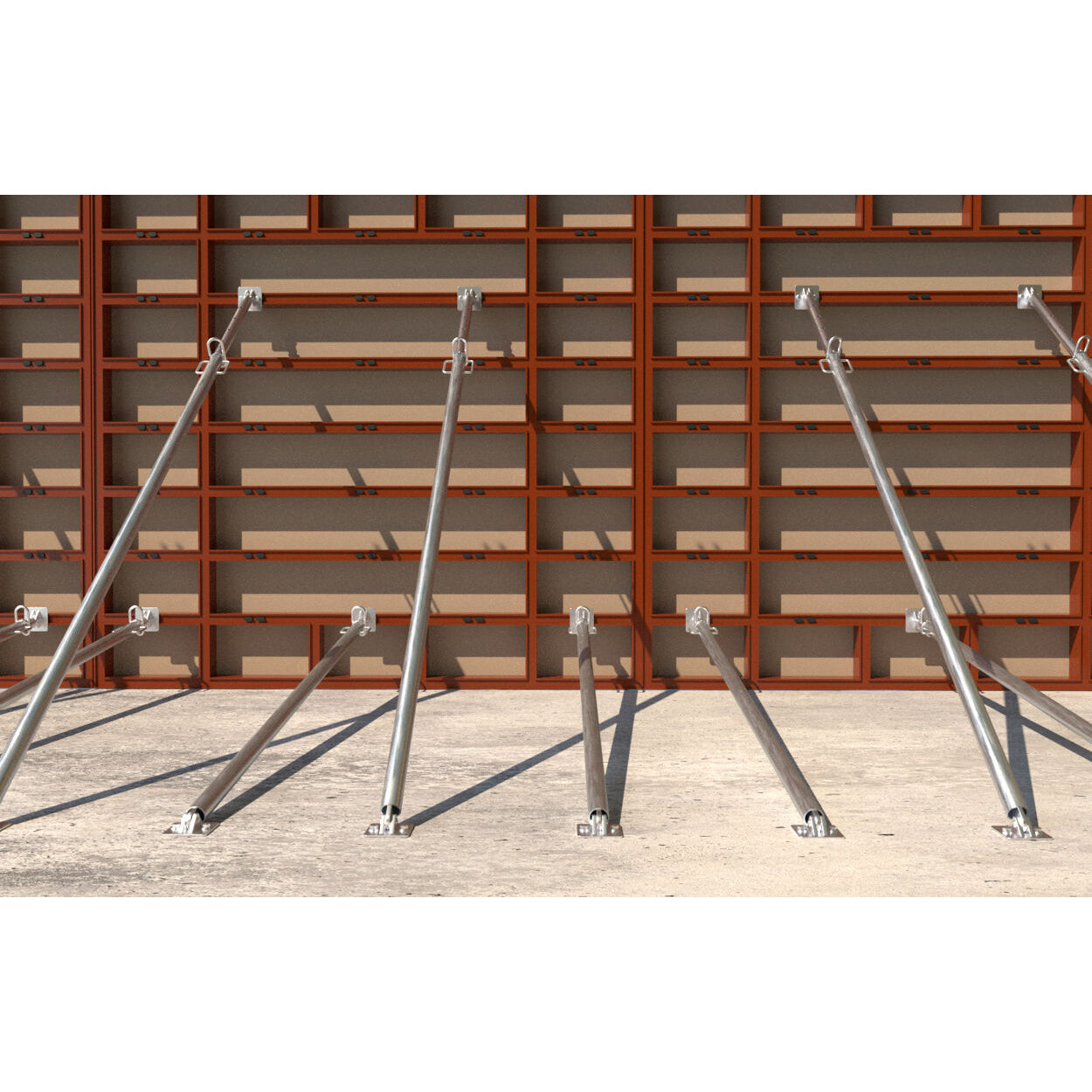

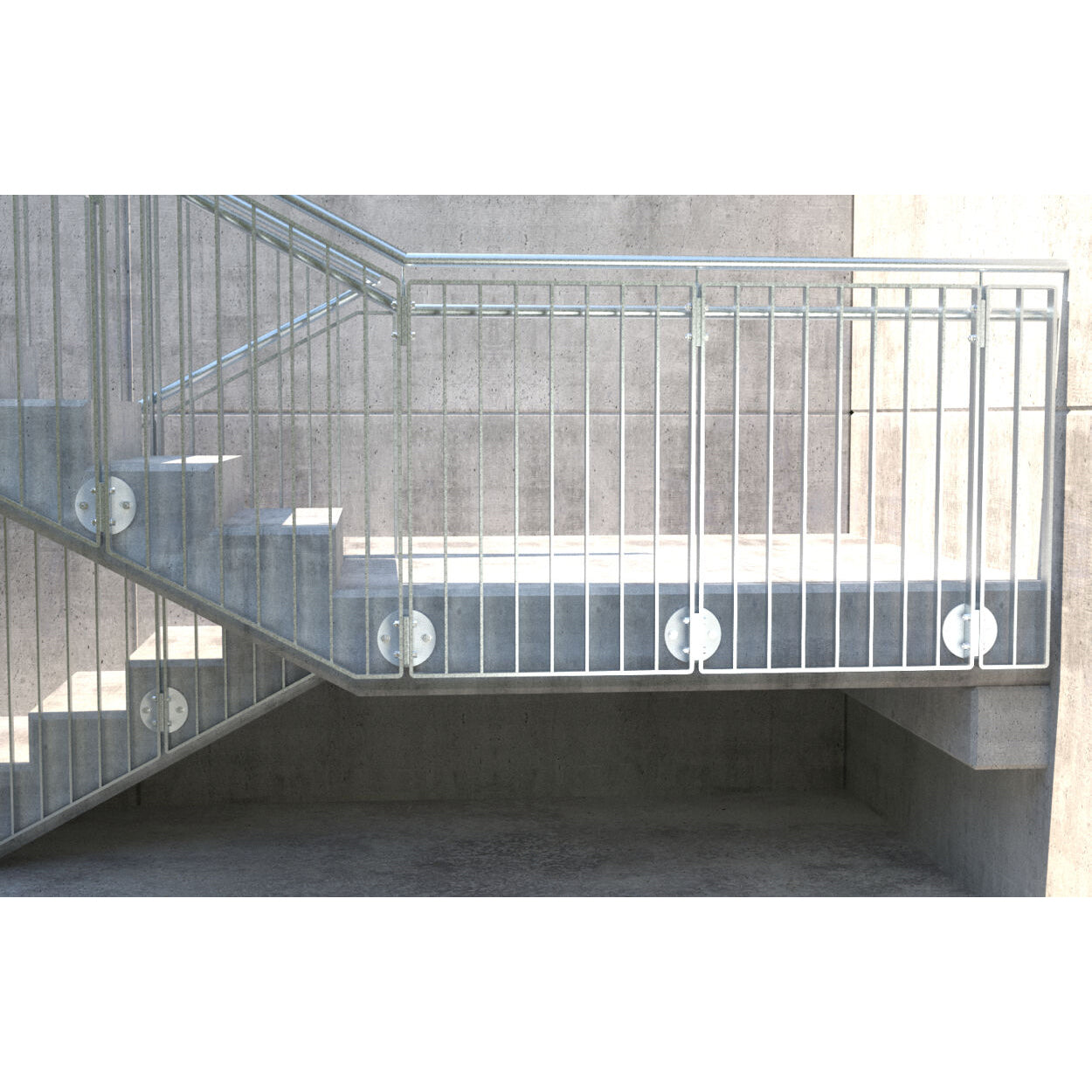

The fischer ULTRACUT FBS II 10x65 10/-/- SK countersunk head TX50 Zinc concrete screw, with it's special tooth geometry is the perfect choice for top installation comfort and fast cutting into concrete. No drill hole cleaning is required for ceilings or floors, and multiple usage for temporary anchorings is permitted thanks to national approval. The concrete screw is ideal for fixing railings, protection barriers, cantilevers, and formwork bracings. Countersunk head for a flush appearance.

Technical Datasheet

Declaration of Performance Document:

European Technical Approval (ETA) Document:

Installations Instructions Document:

Load Table Document:

Applications

Guard rails

Consoles/Base plates

Metal Profiles

Steel Constructions

Facades

Protection barriers

Building Materials

Approved for:

Concrete C20/25 to C50/60, cracked and non-cracked
Also suitable for:

Concrete C12/15
Solid building materials
Masonry with a dense structure

Features

Up to 3 embedment depths: Allows for the same screw to be used for different component thicknesses.
Special saw tooth geometry: Fast cutting into the concrete.
No need to clean drill holes during vertical installation (ceiling and floor): Time saving. (Note: For floor fixings, the hole must be drilled 3x drill hole diameter deeper.)
The ETA approval covers applications in cracked concrete and seismic power categories C1 and C2: Safe and approved.
Expansion-free anchoring (undercut): Lowest edge- and axial spacings.
Approved adjustment for the concrete screws allows the screw to be unscrewed twice to place maximum 10mm packing below the base plate head or to align the attached part, and then to tighten the screw again: Precision fixing.
Countersunk Head: For a neat and tidy finish.

Specifications
  • Brand
    Fischer
  • Diameter (mm)
    12.00
  • Drill Diameter (MM)
    10
  • Driver Type
    TX50
  • Head Type
    Countersunk
  • Length (MM)
    65
  • Material
    Zinc-Plated
  • Min Drill Hole Depth for Through Fixings (MM)
    75
  • Pack Size
    50
  • Screw-in Depth with Fixture Thickness 1
    55 / 10mm
  • Type
    Concrete screw

Reviews (0)

Delivery & Returns

For full delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Fischer

fischer ULTRACUT FBS II 10x65 10/-/- SK countersunk head TX50 Zinc concrete screw [536884]

£70.89
The fischer ULTRACUT FBS II 10x65 10/-/- SK countersunk head TX50 Zinc concrete screw, with it's special tooth geometry is the perfect choice for top installation comfort and fast cutting into concrete. No drill hole cleaning is required for ceilings or floors, and multiple usage for temporary anchorings is permitted thanks to national approval. The concrete screw is ideal for fixing railings, protection barriers, cantilevers, and formwork bracings. Countersunk head for a flush appearance.

Clamping Range (MM)

N/A

Diameter (MM)

12.00

Drill Diameter (MM)

10

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Concrete screw

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

N/A

Pack Size

50

Package Contents

N/A

Material

N/A

Length (MM)

65

Min Drill Hole Depth for Through Fixings (MM)

75

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

Up to 3 embedment depths: Allows for the same screw to be used for different component thicknesses.
Special saw tooth geometry: Fast cutting into the concrete.
No need to clean drill holes during vertical installation (ceiling and floor): Time saving. (Note: For floor fixings, the hole must be drilled 3x drill hole diameter deeper.)
The ETA approval covers applications in cracked concrete and seismic power categories C1 and C2: Safe and approved.
Expansion-free anchoring (undercut): Lowest edge- and axial spacings.
Approved adjustment for the concrete screws allows the screw to be unscrewed twice to place maximum 10mm packing below the base plate head or to align the attached part, and then to tighten the screw again: Precision fixing.
Countersunk Head: For a neat and tidy finish.
