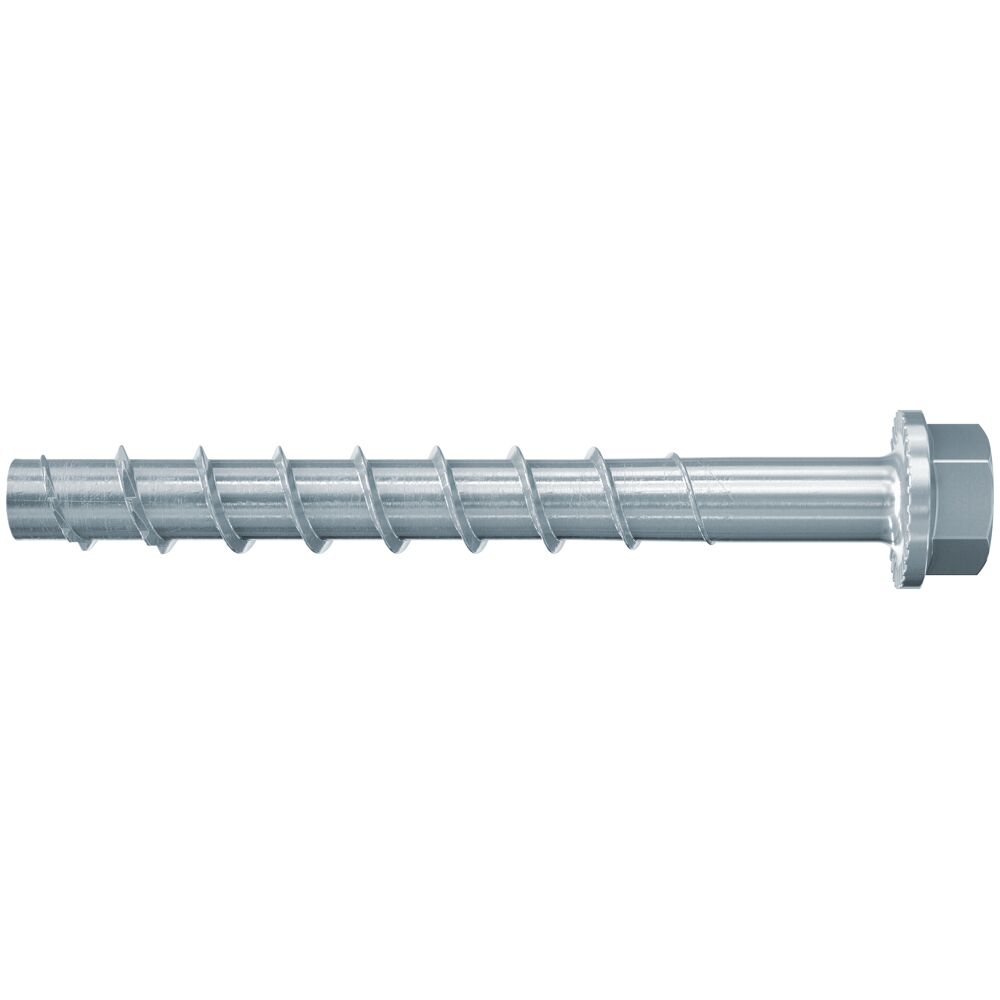

fischer ULTRACUT FBS II 10x200 145/135/115 US hex head Zinc concrete screw [536866]

Barcode: 4048962251494
Pack Size: 20
£73.19

Usually shipped in 1-2 days

fischer ULTRACUT FBS II 10x200 145/135/115 US hex head Zinc concrete screw [536866] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

The fischer ULTRACUT FBS II 10x200 145/135/115 US hex head Zinc concrete screw is the perfect choice for top installation comfort and fast cutting into concrete. No drill hole cleaning is required for ceilings or floors. We recommend using a tangential impact driver with a compatible socket or a special TX bit for installation. The concrete screw is ideal for fixing railings, protection barriers, cantilevers, and formwork bracings.

Technical Datasheet

Declaration of Performance Document:

European Technical Approval (ETA) Document:

Installations Instructions Document:

Load Table Document:

Applications

Guard rails

Consoles/Base plates

Metal Profiles

Steel Constructions

Facades

Protection barriers

Building Materials

Approved for:

Concrete C20/25 to C50/60, cracked and non-cracked
Also suitable for:

Concrete C12/15
Solid building materials
Masonry with a dense structure

Features

Up to 3 embedment depths: Allows for the same screw to be used for different component thicknesses.
Special saw tooth geometry: Fast cutting into the concrete.
No need to clean drill holes during vertical installation (ceiling and floor): Time saving. (Note: For floor fixings, the hole must be drilled 3x drill hole diameter deeper.)
The ETA approval covers applications in cracked concrete and seismic power categories C1 and C2: Safe and approved.
Expansion-free anchoring (undercut): Lowest edge- and axial spacings.
Approved adjustment for the concrete screws allows the screw to be unscrewed twice to place maximum 10mm packing below the base plate head or to align the attached part, and then to tighten the screw again: Precision fixing.

Specifications
  • Brand
    Fischer
  • Diameter (mm)
    12.00
  • Drill Diameter (MM)
    10
  • Driver Type
    SW15
  • Head Type
    Hexagonal
  • Length (MM)
    200
  • Material
    Zinc-Plated
  • Min Drill Hole Depth for Through Fixings (MM)
    210
  • Pack Size
    20
  • Screw-in Depth with Fixture Thickness 1
    55 / 145mm
  • Screw-in Depth with Fixture Thickness 2
    65 / 135mm
  • Screw-in Depth with Fixture Thickness 3
    85 / 115mm
  • Type
    Concrete screw
