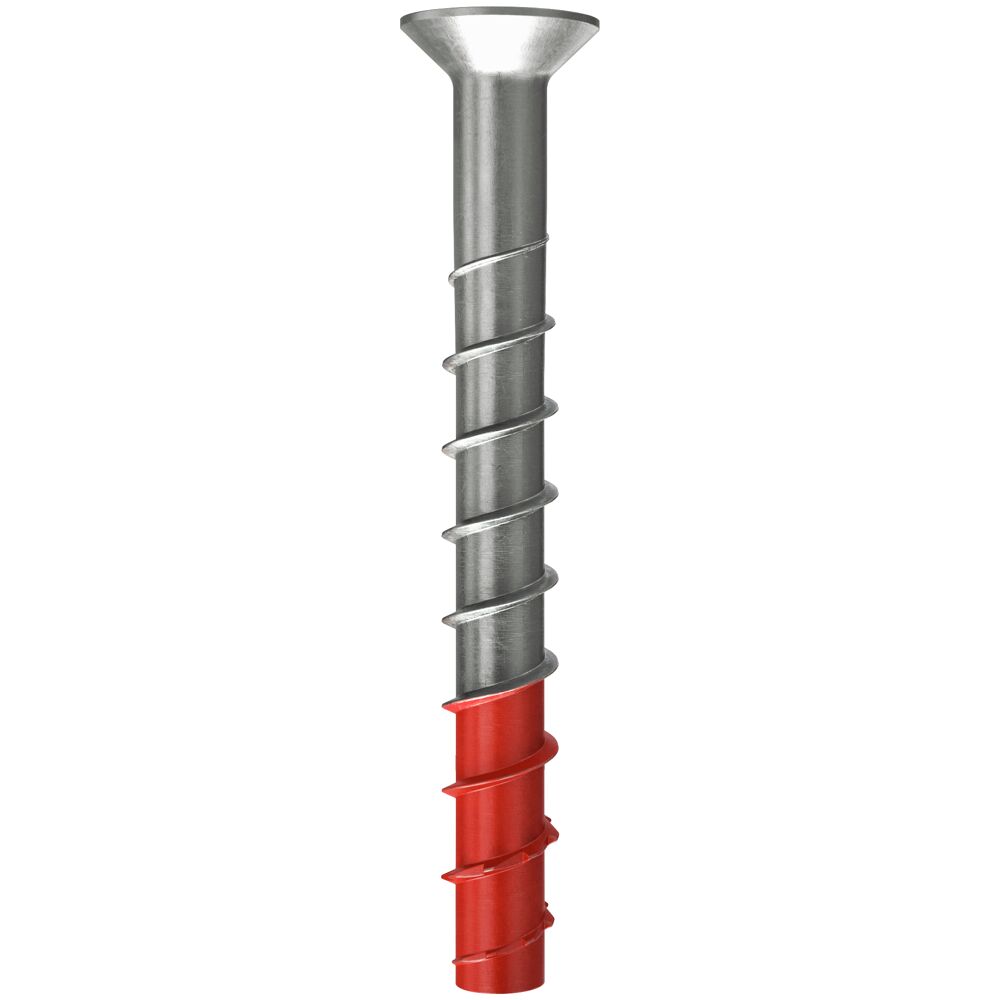

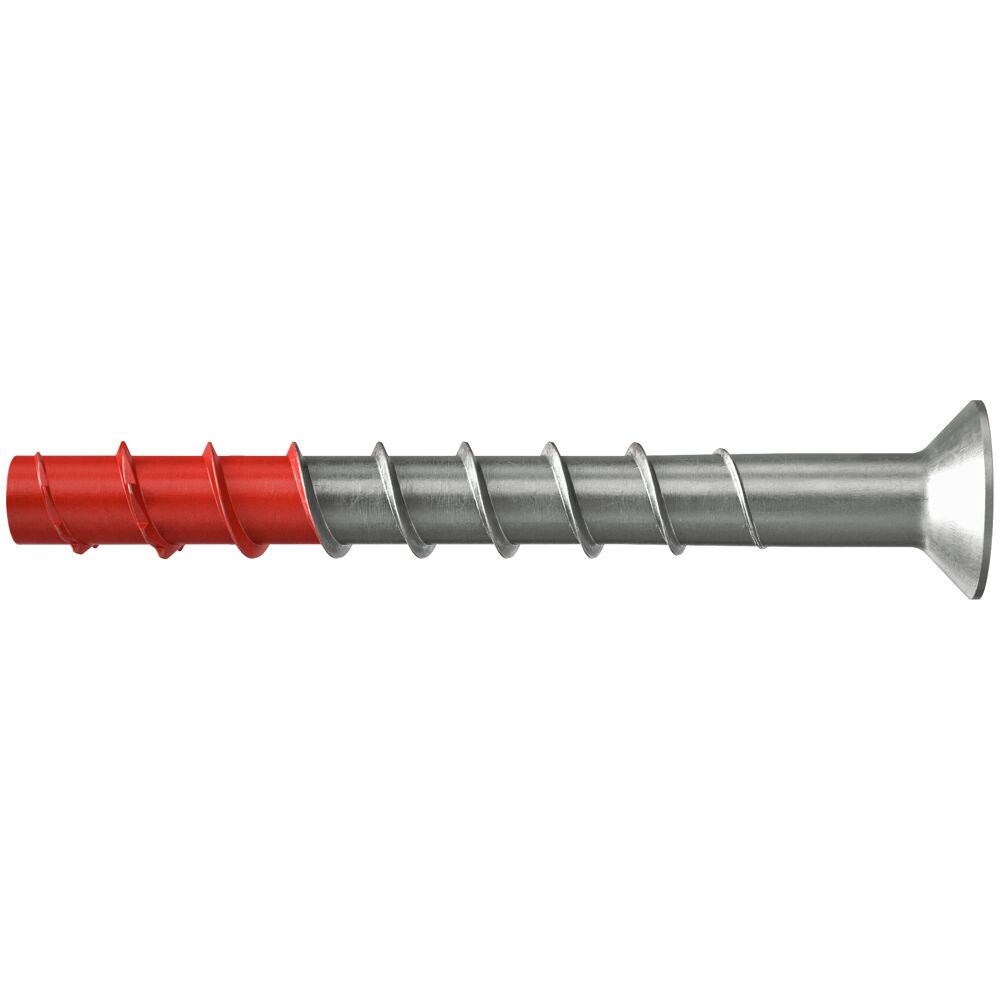

fischer ULTRACUT FBS II 10x120 35/- SK R Countersunk head A4 Stainless Concrete Screw [543586]

Barcode: 4048962308389
Pack Size: 50
£386.01

Usually shipped in 1-2 days

fischer ULTRACUT FBS II 10x120 35/- SK R Countersunk head A4 Stainless Concrete Screw [543586] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

The fischer ULTRACUT FBS II 10x120 35/- SK R Countersunk head A4 Stainless Concrete Screws with specially hardened red tips are a versatile choice for a variety of applications. They are resistant to corrosion, making them ideal for use in wet rooms and external environments. The red tip also helps to provide a faster and more secure installation by cutting into the concrete more easily. Additionally, the approved adjustment feature allows the screw to be unscrewed twice to align the attached part, and then to be tightened again. This can be helpful for correcting mistakes during installation, or for adjusting the screw's position after it has been installed. A countersunk head provides a flush appearance,

Technical Datasheet

Declaration of Performance Document:

European Technical Approval (ETA) Document:

Installations Instructions Document:

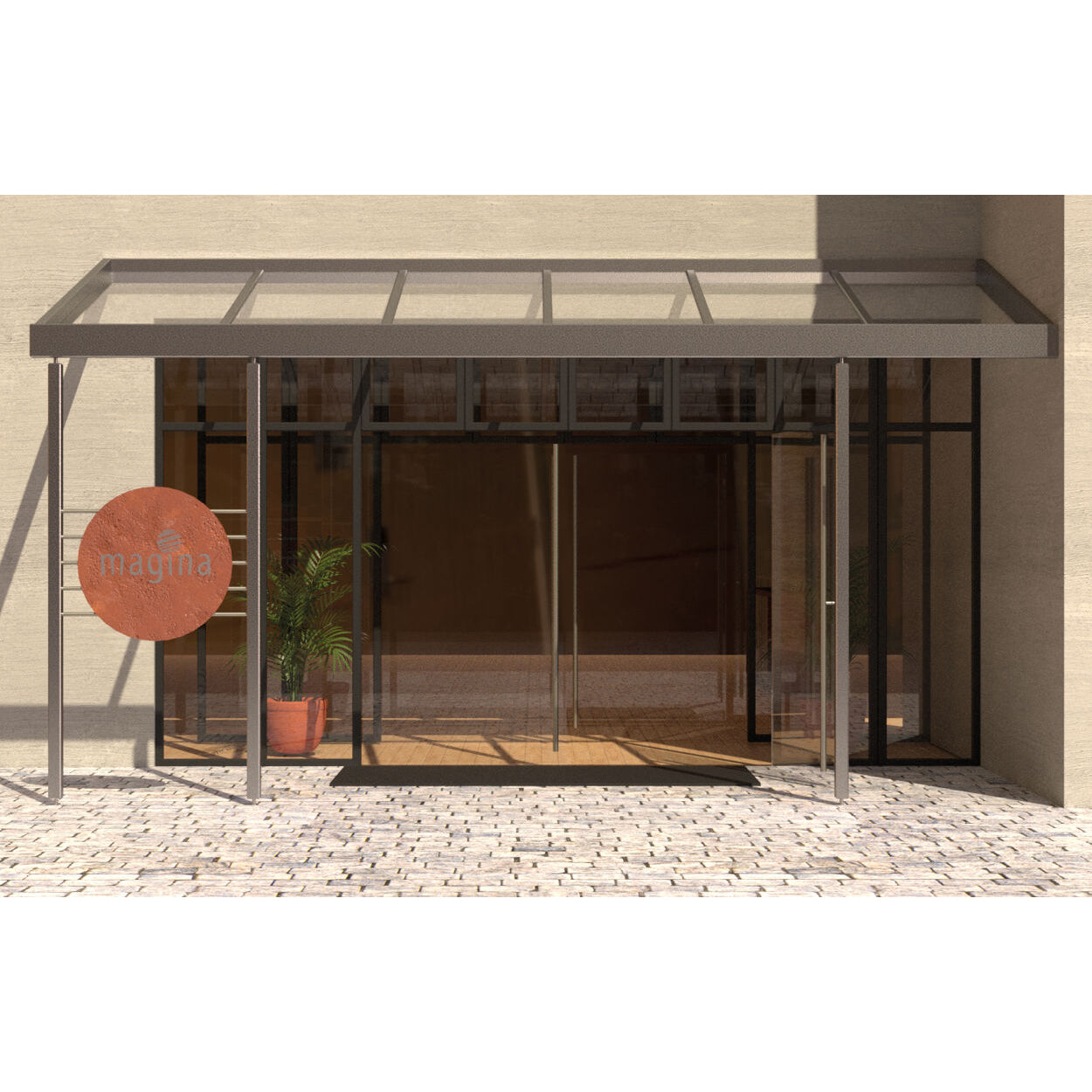

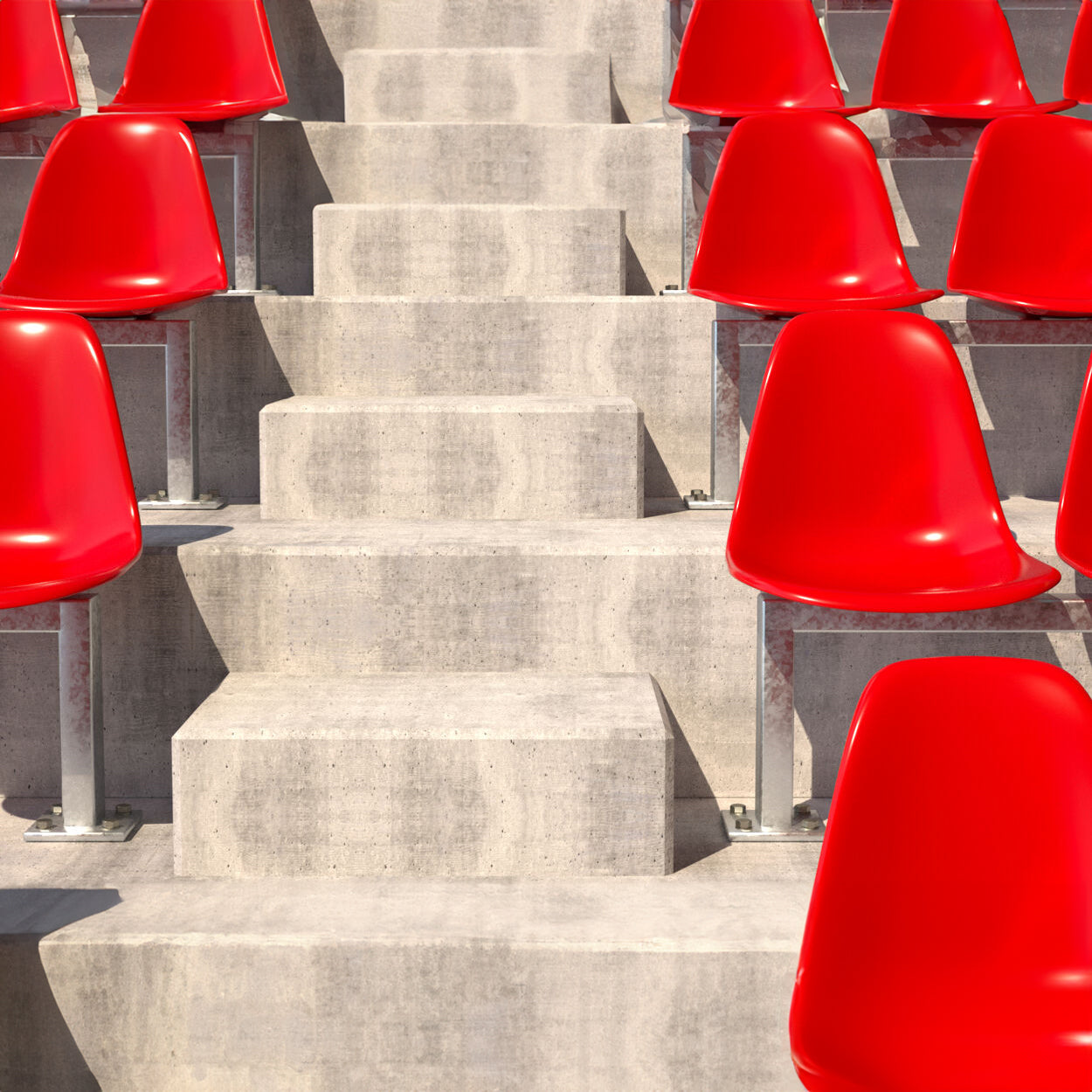

Applications

Guard rails

Consoles/Base plates

Metal Profiles

Steel Constructions

Facades

Protection barriers

Building Materials

Approved for:

Concrete C20/25 to C50/60, cracked and non-cracked
Also suitable for:

Concrete C12/15
Solid building materials
Masonry with a dense structure

Features

Specially hardened red tip: Faster and more secure installation.

A4 stainless steel concrete screw: Guarantees a high level of corrosion resistance especially for wet rooms and external applications.

Special saw tooth geometry: Enables fast cutting into the concrete.

Drill holes do not need to be cleaned during vertical installation (ceiling and floor): Fast installation (Note: For floor fixings the hole must be drilled 3x drill hole diameter deeper.)

ETA approval covers applications in cracked concrete and seismic power categories C1 and C2: Safe and approved.

Approved adjustment for the concrete screws allows the screw to be unscrewed twice to place maximum 10 mm packing below the base plate head or to align the attached part, and then to tighten the screw again: Precision fixing.

Three embedment depths: Allows use in many different applications.

Short UltraCut FBS II R, with a reduced embedment in depth: Allows for a short drill hole depth, fast installation and less reinforcement hits.

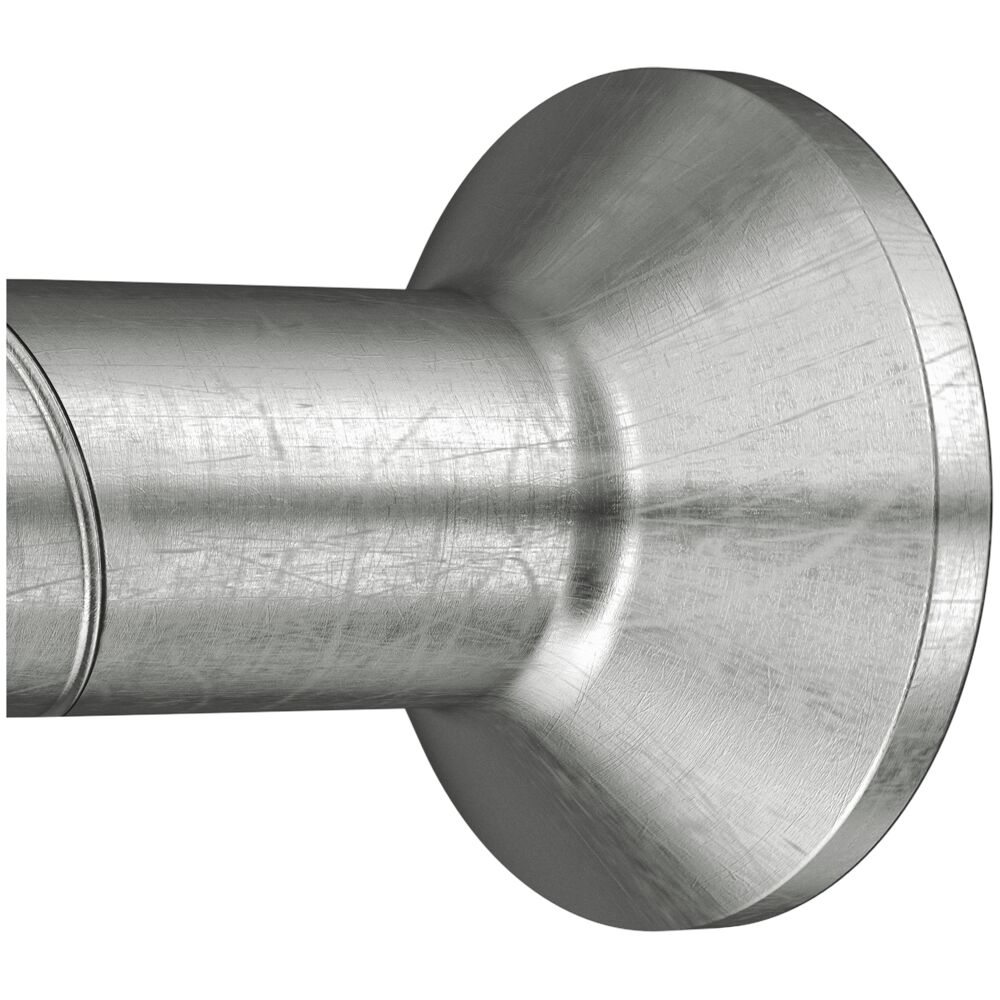

Countersunk head: Neat and tidy finish

Specifications
  • Brand
    Fischer
  • Diameter (mm)
    12.00
  • Drill Diameter (MM)
    10
  • Driver Type
    TX50
  • Head Type
    Countersunk
  • Length (MM)
    120
  • Material
    A4 Stainless Steel
  • Min Drill Hole Depth for Through Fixings (MM)
    130
  • Pack Size
    50

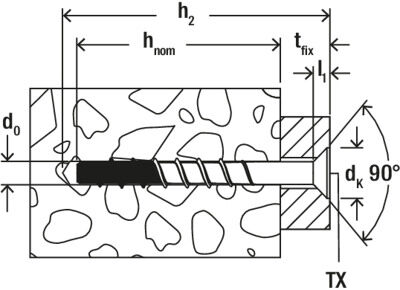

  • Screw-in Depth with Fixture Thickness 1
    55 / 65mm
  • Screw-in Depth with Fixture Thickness 2
    65 / 55mm
  • Screw-in Depth with Fixture Thickness 3
    85 / 35mm
  • Type
    Concrete screw
