fischer FFD 46 x 23 x 8 [538461]

Barcode: 4048962263725
Pack Size: 4
£35.30

Usually shipped in 1-2 days

fischer FFD 46 x 23 x 8 [538461] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

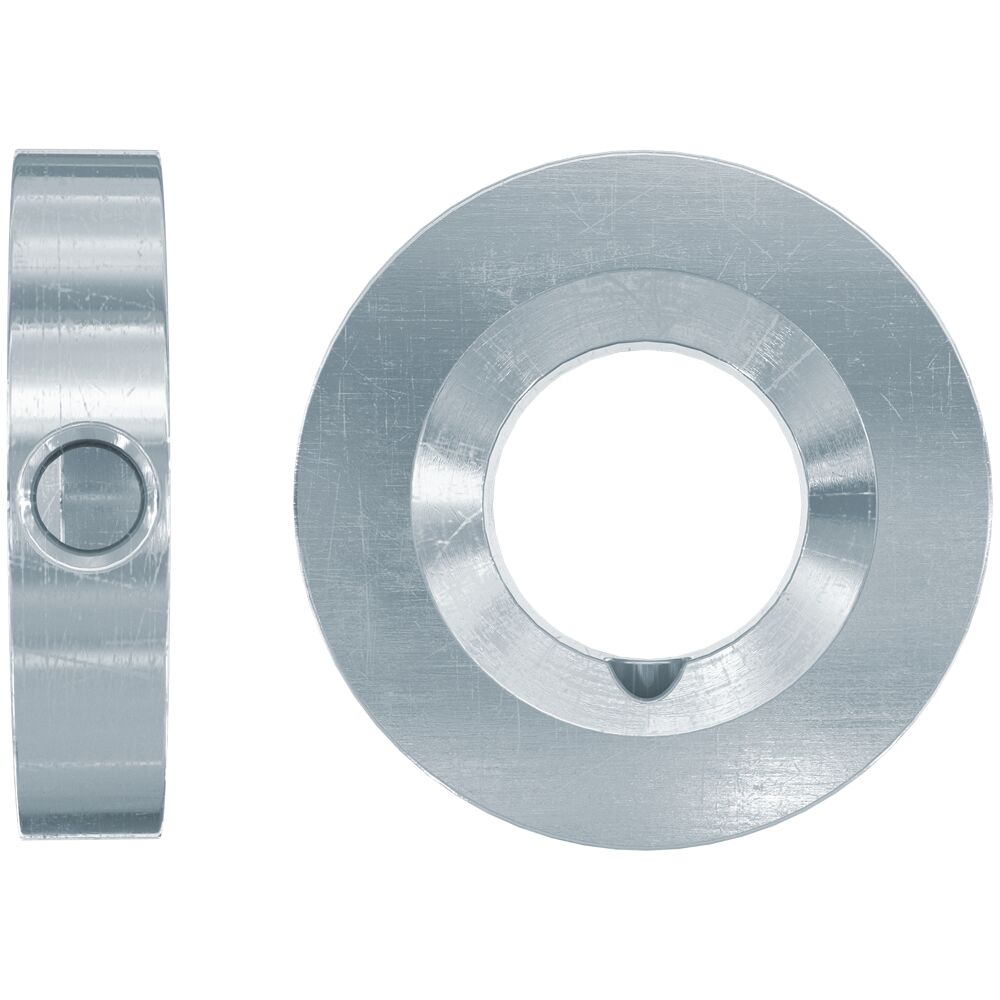

The filling disc fischer FFD 46 x 23 x 8 is suitable for the subsequent filling of the annular gap between the anchor plate and the steel anchor. The FFD can be combined with the concrete screw UltraCut FBS II 6 to 14 or with the bolt anchor FAZ II M8 to M24 for this. Fischer injection mortar FIS V, FIS SB, or FIS EM Plus can be used for the filling.

Applications

For the subsequent filling of the annular gap between the anchor plate and the steel anchor.

Features

Special filling disc: Allows the use of concrete screws for applications with seismic requirements (C1 und C2) and enables the subsequent filling of annular gaps.

Specifications
  • Brand
    Fischer
  • External Diameter (mm)
    46.00
  • Height (mm)
    8.00
  • Internal Diameter (mm)
    23.00
  • Matching Anchor Type
    FAZ II Plus M20
  • Pack Size
    4
  • Type
    Filling disc

Reviews (0)

Delivery & Returns

For full delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Fischer

fischer FFD 46 x 23 x 8 [538461]

£35.30
The filling disc fischer FFD 46 x 23 x 8 is suitable for the subsequent filling of the annular gap between the anchor plate and the steel anchor. The FFD can be combined with the concrete screw UltraCut FBS II 6 to 14 or with the bolt anchor FAZ II M8 to M24 for this. Fischer injection mortar FIS V, FIS SB, or FIS EM Plus can be used for the filling.

Clamping Range (MM)

N/A

Diameter (MM)

N/A

Drill Diameter (MM)

N/A

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Filling disc

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

N/A

Pack Size

4

Package Contents

N/A

Material

N/A

Length (MM)

N/A

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

Special filling disc: Allows the use of concrete screws for applications with seismic requirements (C1 und C2) and enables the subsequent filling of annular gaps.
