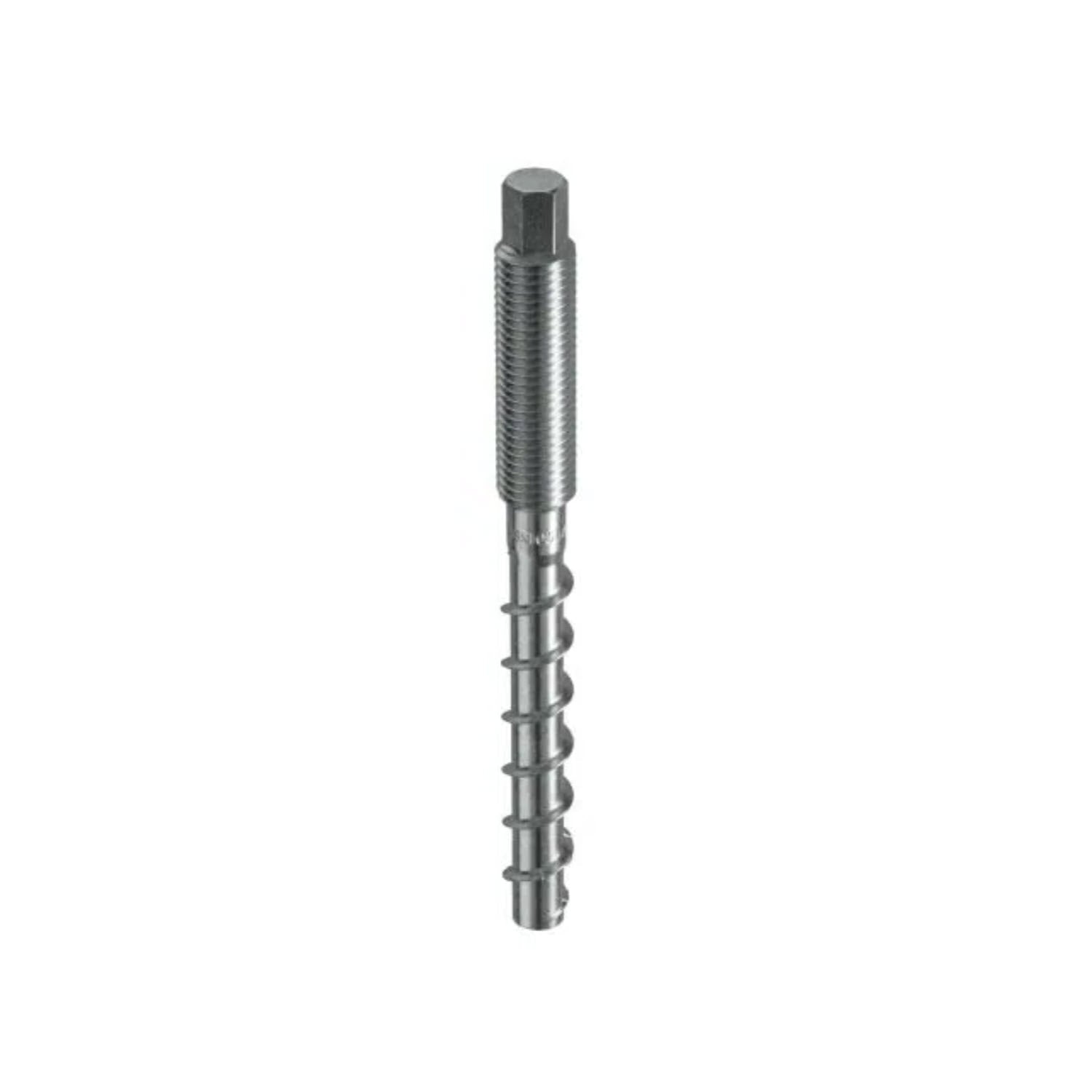

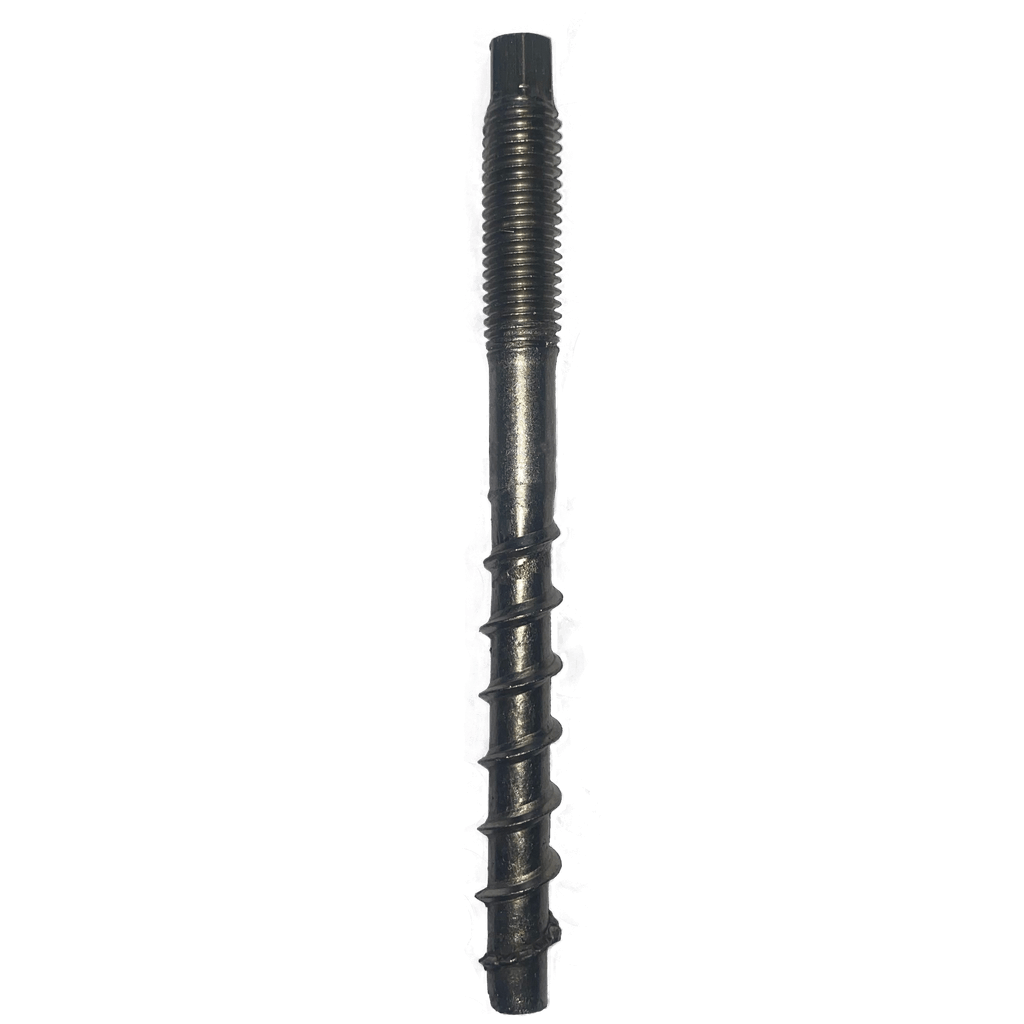

Certifix CFCS concrete screw 10x140 / M12x35 with external metric thread A4 stainless SW9

Pack Size: 50
£358.35

Usually shipped in 1-2 days

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

Certifix CFCS is a high performance, highly versatile concrete screw, ideally suited for use on Rainscreen Cladding but also for use helping fasten hand brackets, fire barrier brackets, high racking, safety rails, metal profiles, base plates and consoles. Available in both A4 Stainless and Zinc-Plated steel, Certifix CFCS Concrete Screws feature a saw tooth geometry, making them perfect for a quick and easy installation and eliminating the need to clean the drill hole for installation in ceilings and walls. The external metric thread allows for multiple adjustments once set.

Technical Datasheet

Tech Datasheet:

Applications

Helping hand brackets into substrate
Where post install checks are required
Fire barrier brackets into substrate
Railing systems for bridge construction
High racking
Safety rails into substrate
Metal profiles into substrate
U Channel into substrate*
Base plates/consoles into substrate
Fastening of facade panels back to concrete reveals*

*Please check our head type

Features

Saw tooth geometry: Quick, safe and easy installation.
Available in stainless steel A4 and HCR: Ideal for use in reinforced and unreinforced normal concrete and in cracked and non-cracked concrete
Available in zinc-coated steel, tested to DIN EN ISO 9227 – for corrosion category C5 – 4800hrs
Can be loaded immediately, with adjustment possible: Time saving.
Extrenal Thread: Multiple adjustments possible.
Fire rated and ETA approved: Pedigree.

Specifications
  • Brand
    Certifix
  • coated
    No
  • Diameter (mm)
    10.00
  • Drill Diameter (MM)
    10
  • Driver Type
    SW9
  • Head Type
    External Thread
  • Length (MM)
    140
  • Pack Size
    50
  • Size
    M12
  • Thread Length (MM)
    35
  • Type
    Concrete screw

Reviews (0)

Delivery & Returns

For full delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Certifix

Certifix CFCS concrete screw 10x140 / M12x35 with external metric thread A4 stainless SW9

£358.35
Certifix CFCS is a high performance, highly versatile concrete screw, ideally suited for use on Rainscreen Cladding but also for use helping fasten hand brackets, fire barrier brackets, high racking, safety rails, metal profiles, base plates and consoles. Available in both A4 Stainless and Zinc-Plated steel, Certifix CFCS Concrete Screws feature a saw tooth geometry, making them perfect for a quick and easy installation and eliminating the need to clean the drill hole for installation in ceilings and walls. The external metric thread allows for multiple adjustments once set.

Clamping Range (MM)

N/A

Diameter (MM)

10.00

Drill Diameter (MM)

10

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Concrete screw

Torque Moment (NM)

N/A

Thread Length (MM)

35

Thread

N/A

Size

M12

Pack Size

50

Package Contents

N/A

Material

N/A

Length (MM)

140

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

Saw tooth geometry: Quick, safe and easy installation.
Available in stainless steel A4 and HCR: Ideal for use in reinforced and unreinforced normal concrete and in cracked and non-cracked concrete
Available in zinc-coated steel, tested to DIN EN ISO 9227 – for corrosion category C5 – 4800hrs
Can be loaded immediately, with adjustment possible: Time saving.
Extrenal Thread: Multiple adjustments possible.
Fire rated and ETA approved: Pedigree.
