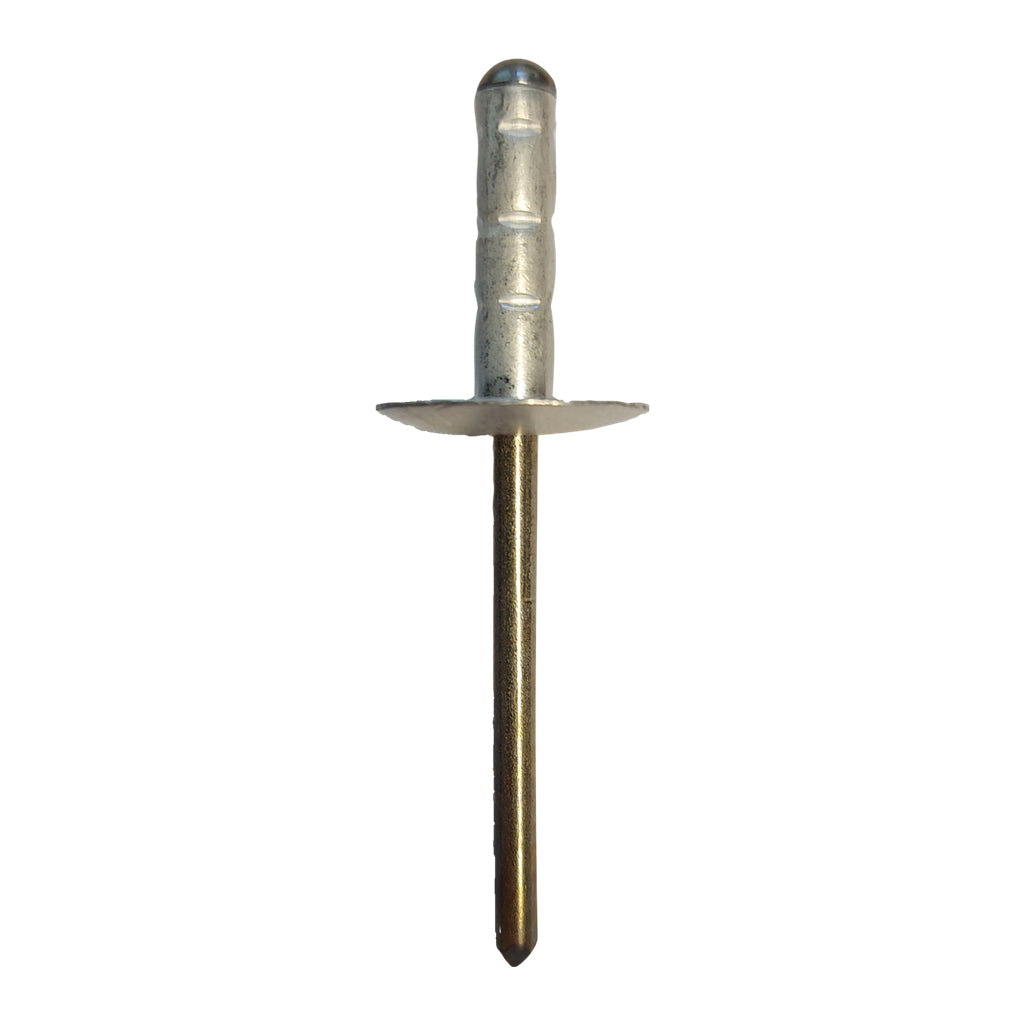

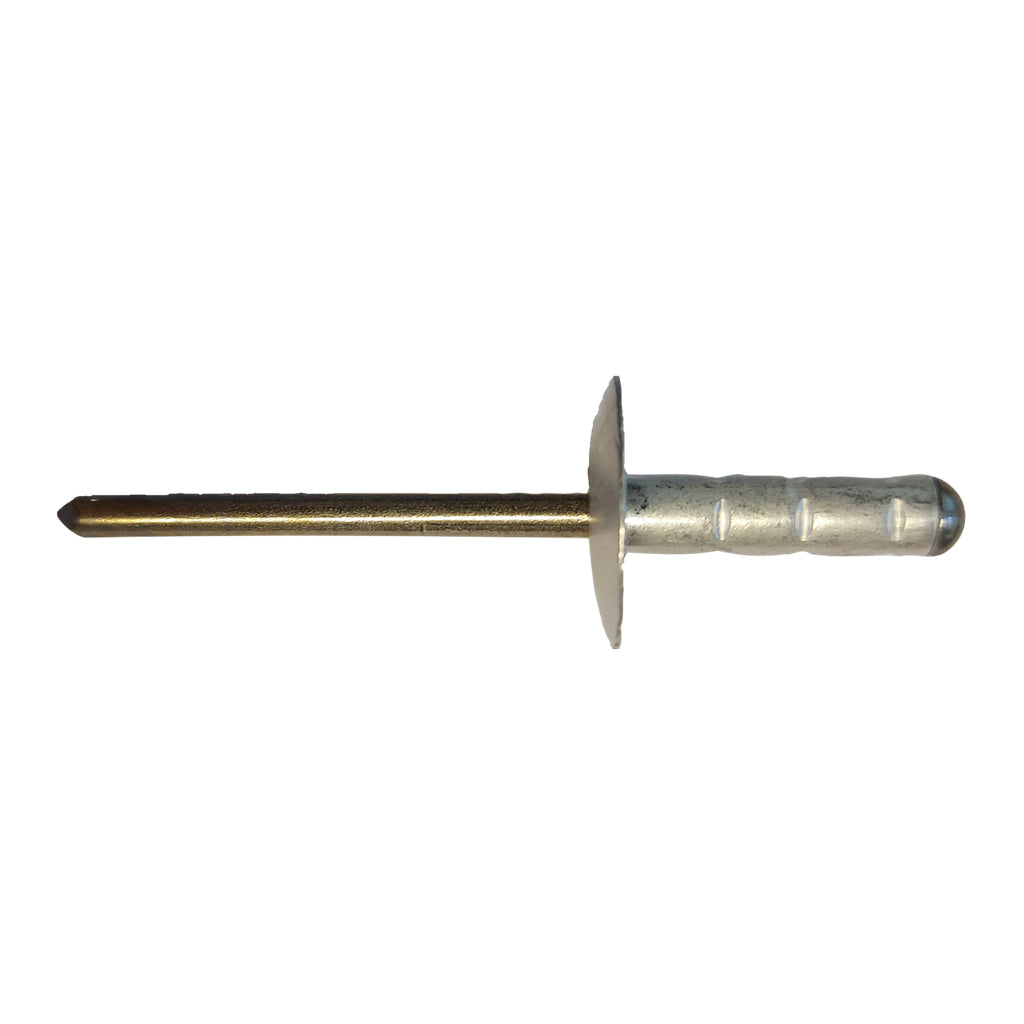

Certifix rivet large dome head multi-grip large flange A4/A4 4.8 x 20 coated to match (RAL 1015)

Pack Size: 200
£167.52

Certifix rivet large dome head multi-grip large flange A4/A4 4.8 x 20 coated to match (RAL 1015) is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

Our Certifix 4.8 x 20 large flange rivets are made of A4 stainless steel, which provides improved corrosion resistance. The large flange provides better coverage of oversized or irregular shaped holes, and also provides a secure hold when fixed into soft materials We specialise in matching Façade panel colours including metallic colours, and we stock the plain rivets ready for coating which suits most Façade panels. We also coat to most RAL colours. Lead time depending on quantities typically 3 - 12 working days for coating and delivery. Surcharges may apply on small order quantities and special powders. Available upon request. Stocked as standard. Contact us for samples.

Technical Datasheet

Tech Datasheet:

Applications

Fastening façade panels to fixing system
Fastening in coastal / marine applications

Features

One size: Allows the fastening of multiple grip due to the rivet design.
Full stainless variant: Allows for a longer building design life.
Full batch traceability from start to finish: Reliable.
Large flange: Ideal for face fixing Façade panels.
High tensile strength: Durable.
Rivets are specially treated: Consistent high quality coating.

Specifications
  • Body Material
    A4 Stainless AISI 316
  • Brand
    Certifix
  • coated
    Yes
  • Colour
    RAL 1015
  • Diameter (mm)
    4.80
  • Flange (mm)
    16.00
  • Grip Range
    5-13mm
  • Head Diameter (mm)
    16.00
  • Length (MM)
    20
  • Mandrel Material
    A4 Stainless AISI 316
  • Material
    Coated/A4 Stainless Steel
  • Pack Size
    200
  • Shear (N)
    4000 N
  • Tensile (N)
    5000 N
  • Tensile N/mm
    5000 N
  • Type
    Rivet

Reviews (0)

Delivery & Returns

For full UK delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Certifix

Certifix rivet large dome head multi-grip large flange A4/A4 4.8 x 20 coated to match (RAL 1015)

£167.52
Our Certifix 4.8 x 20 large flange rivets are made of A4 stainless steel, which provides improved corrosion resistance. The large flange provides better coverage of oversized or irregular shaped holes, and also provides a secure hold when fixed into soft materials We specialise in matching Façade panel colours including metallic colours, and we stock the plain rivets ready for coating which suits most Façade panels. We also coat to most RAL colours. Lead time depending on quantities typically 3 - 12 working days for coating and delivery. Surcharges may apply on small order quantities and special powders. Available upon request. Stocked as standard. Contact us for samples.

Clamping Range (MM)

N/A

Diameter (MM)

4.80

Drill Diameter (MM)

N/A

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Rivet

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

N/A

Pack Size

200

Package Contents

N/A

Material

N/A

Length (MM)

20

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

One size: Allows the fastening of multiple grip due to the rivet design.
Full stainless variant: Allows for a longer building design life.
Full batch traceability from start to finish: Reliable.
Large flange: Ideal for face fixing Façade panels.
High tensile strength: Durable.
Rivets are specially treated: Consistent high quality coating.
