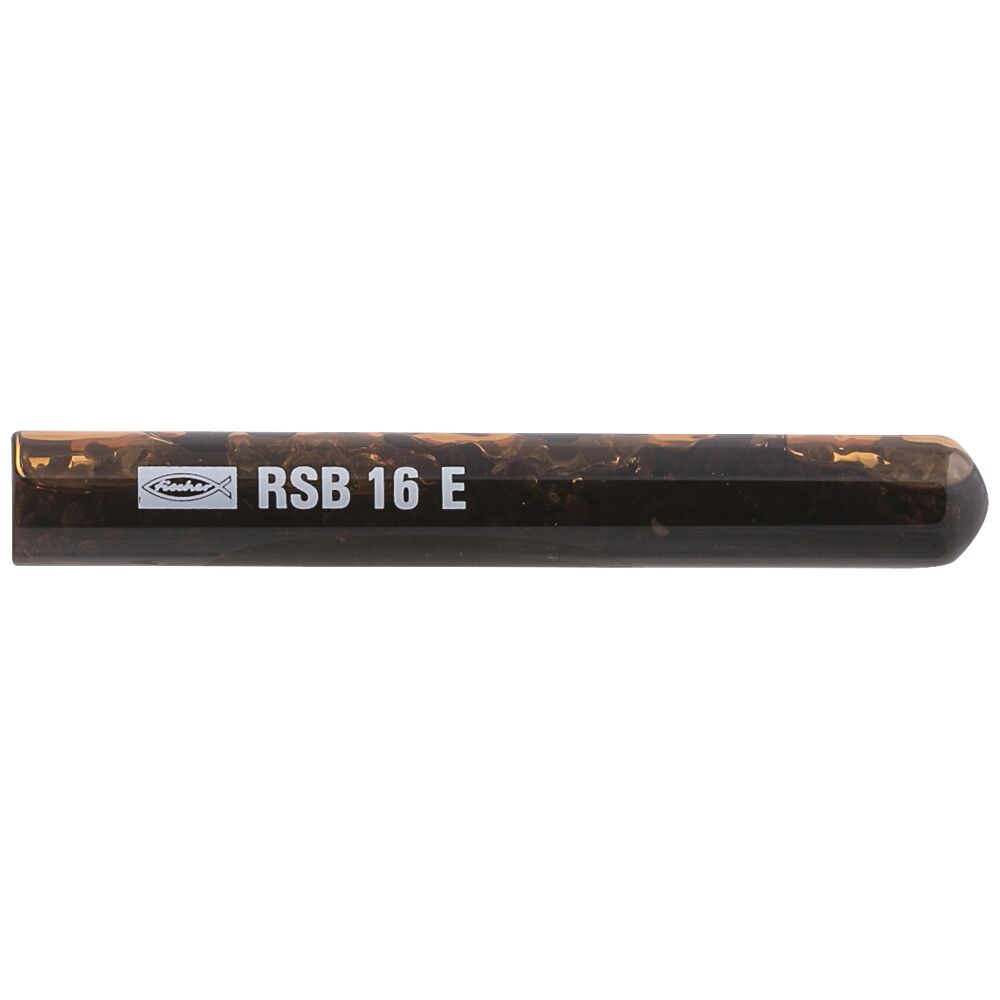

fischer Superbond resin capsule RSB 16 E [518826]

Barcode: 4048962153859
Pack Size: 10
£30.92

Usually shipped in 1-2 days

fischer Superbond resin capsule RSB 16 E [518826] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

fischer Superbond resin capsule RSB 16 E is a solution for fixing heavy-duty steel constructions, soundproof walls, and high racks in cracked and non-cracked concrete. The capsule contains a hybrid mortar based on styrene-free vinyl ester. The components are fixed using the fischer rod anchor RG M (available in either zinc-plated steel,stainless steel or highly corrosion-resistant steel, as well as the fischer internal threaded version). When the capsule is inserted into a drilled hole and the anchor rod is inserted via the rotation and hitting motion of a hammer dril, the capsule is destroyed, mixing and activating the mortar compound. The mortar then expands to create a secure and durable fixing. The fischer resin capsule is easy to use and a cost-effective solution that offers excellent performance.

Technical Datasheet

Curing Time Document:

Declaration of Performance Document:

European Technical Approval (ETA) Document:

Fire Test Document:

Installations Instructions Document:

Load Table Document:

Safety Data Document:

Applications

Guard rails
Staircases
Suspensions of pipes, cable trays and suspended ceilings
Temporary fixings, e.g. for machines
Scaffold anchoring

Building Materials

Approved for anchorings in:
Concrete C20/25 to C50/60, cracked and non-cracked
Also suitable for:
Natural stone with dense structure
You can find detailed information on building materials in the registration document.

Certifications

ETA-12/0258
ETA-19/0501
DoP No. 0217
GS 3.2/11-243-2

Features

Pre-portioned resin capsule RSB: Cost-effective for individual applications and overhead installations.
Approval-compliant processing down to -30°C, also approved for water-filled and diamond-drilled holes as well as for seismic applications in performance category C1 (only in conjunction with RG M): The ideal solution for difficult conditions and installations with no waiting time due to fast hardening.
For each diameter, up to three anchorage depths can be realised with the threaded rod RG M through a combination of the resin capsules RSB mini.
Internal threaded anchor RG M I: Enables the surface-flush removal of the fixture and the reuse of the fixing point.
The angular threaded rod RG M can be set for light dynamic loads with the resin capsule system RSB in sizes M12, M16, M20 and M24 in stainless steel R with the fischer filling set.

Specifications
  • Anchorage Depth (mm)
    160mm
  • Brand
    Fischer
  • Certifications
    ETA-12/0258
    ETA-19/0501
    DoP No. 0217
    GS 3.2/11-243-2
  • Drill Diameter (MM)
    24
  • Drill Hole Depth (MM)
    160
  • Functionality
    The 2-component resin capsules RSB and RSB mini contain vinyl ester hybrid mortar with silane technology. They are suitable for pre-positioned installation.
    During setting, the oblique edge of the anchoring element destroys the capsule, and mixes and activates the mortar.
    The glass particles of the capsule body roughen the inside of the drill hole, which reduces the cleaning effort to just four blowing passes.
    The mortar bonds the entire surface of the anchor rod with the drill hole wall and seals the drill hole.
  • Matching Anchor Type
    RG22 x 160 M16 I
  • Pack Size
    10
  • Type
    Resin capsule

Reviews (0)

Delivery & Returns

For full delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Fischer

fischer Superbond resin capsule RSB 16 E [518826]

£30.92
fischer Superbond resin capsule RSB 16 E is a solution for fixing heavy-duty steel constructions, soundproof walls, and high racks in cracked and non-cracked concrete. The capsule contains a hybrid mortar based on styrene-free vinyl ester. The components are fixed using the fischer rod anchor RG M (available in either zinc-plated steel,stainless steel or highly corrosion-resistant steel, as well as the fischer internal threaded version). When the capsule is inserted into a drilled hole and the anchor rod is inserted via the rotation and hitting motion of a hammer dril, the capsule is destroyed, mixing and activating the mortar compound. The mortar then expands to create a secure and durable fixing. The fischer resin capsule is easy to use and a cost-effective solution that offers excellent performance.

Clamping Range (MM)

N/A

Diameter (MM)

N/A

Drill Diameter (MM)

24

Drill Hole Depth (MM)

160

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Resin capsule

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

N/A

Pack Size

10

Package Contents

N/A

Material

N/A

Length (MM)

N/A

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

Pre-portioned resin capsule RSB: Cost-effective for individual applications and overhead installations.
Approval-compliant processing down to -30°C, also approved for water-filled and diamond-drilled holes as well as for seismic applications in performance category C1 (only in conjunction with RG M): The ideal solution for difficult conditions and installations with no waiting time due to fast hardening.
For each diameter, up to three anchorage depths can be realised with the threaded rod RG M through a combination of the resin capsules RSB mini.
Internal threaded anchor RG M I: Enables the surface-flush removal of the fixture and the reuse of the fixing point.
The angular threaded rod RG M can be set for light dynamic loads with the resin capsule system RSB in sizes M12, M16, M20 and M24 in stainless steel R with the fischer filling set.
