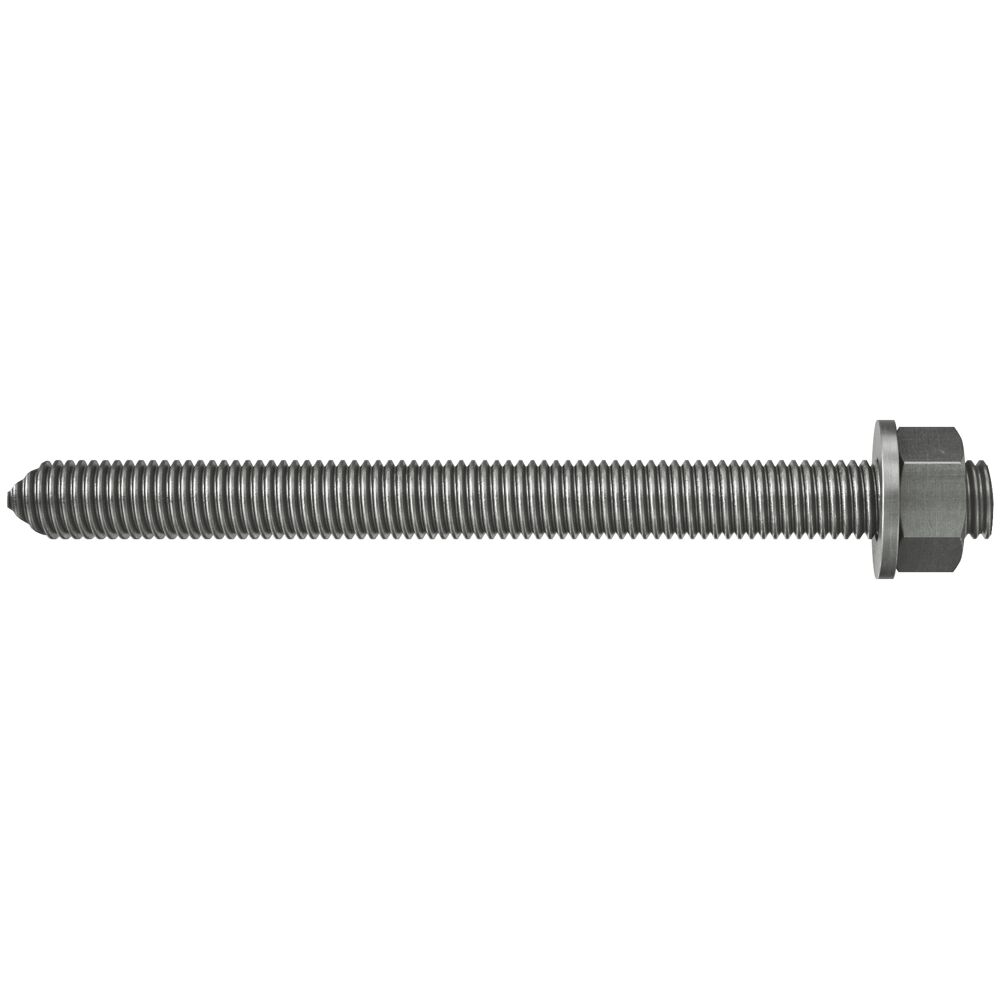

fischer RG M10 x 130 R A4 stainless threaded rod (resin stud) [050264]

Barcode: 4006209502648
Pack Size: 10
£20.84

Usually shipped in 1-2 days

fischer RG M10 x 130 R A4 stainless threaded rod (resin stud) [050264] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

The fischer rod anchor RG M10 x 130 R is a cost-effective and versatile solution for fixing machines, steelwork constructions, and supporting feet in internal areas. The anchor rod is made of zinc-plated steel with a grade of 5.8 and is compatible with a variety of fischer mortar cartridges or injection mortars. When using pre-portioned mortar cartridges, the fischer rod anchor RG M can be installed quickly and easily. The capsule is destroyed during the setting process, which mixes and activates the mortar compound. The mortar then expands to create a secure and durable fixing. To install the anchor rod with injection mortars, manually push it into the drill hole while lightly rotating it.

Technical Datasheet

Declaration of Performance Document:

European Technical Approval (ETA) Document:

Applications

Approved anchorings with Resin capsules RSB and RM II
Approved anchorings with Injection mortars FIS SB, FIS EM, FIS EB, FIS V, FIS VL, FIS Green and FIS P Plus

Building Materials

In connection with the fischer resin capsules approved or suitable for cracked and non-cracked concrete.
In connection with several fischer injection mortars approved or suitable for different building materials.
You can find detailed information on building materials in the registration document.

Certifications

ETA-02/0024
ETA-19/0501
ETA-20/0603
DoP No. 0756-CPD-0300

Features

RG M family from M8 to M30: Opens up to an array of applications and therefore offers great flexibility.
The wide range of approved steel types for RG M allows for use in all corrosion resistance classes: Offers the best possible application safety.
The system is the first to offer lightweight, dynamic load specifications in an ETA mounted with FIS SB injection mortar and RSB mortar in cracked and non-cracked concrete: Pioneering.

Specifications
  • Brand
    Fischer
  • Certifications
    ETA-02/0024
    ETA-19/0501
    ETA-20/0603
    DoP No. 0756-CPD-0300
  • Drill Diameter (MM)
    12
  • Functionality
    Due to its oblique edge, the anchor rod RG M is particularly suitable for use in conjunction with resin capsules.
    The anchor rod RG M is set using a hammer drill and the accompanying setting tool in rotating and hitting motions.
    During setting, the oblique edge of the RG M destroys the capsule, and mixes and activates the mortar.
    Use with injection mortar is also possible. Here, the anchor rod is manually inserted into the drill hole with a light rotating movement until it reaches the base of the hole.
  • Length (MM)
    130
  • Material
    A4 Stainless Steel
  • Max Fixture Thickness (MM)
    56
  • Pack Size
    10
  • Size
    M10
  • Type
    Resin stud
  • Width Across Nut (MM)
    17

Reviews (0)

Delivery & Returns

For full delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Fischer

fischer RG M10 x 130 R A4 stainless threaded rod (resin stud) [050264]

£20.84
The fischer rod anchor RG M10 x 130 R is a cost-effective and versatile solution for fixing machines, steelwork constructions, and supporting feet in internal areas. The anchor rod is made of zinc-plated steel with a grade of 5.8 and is compatible with a variety of fischer mortar cartridges or injection mortars. When using pre-portioned mortar cartridges, the fischer rod anchor RG M can be installed quickly and easily. The capsule is destroyed during the setting process, which mixes and activates the mortar compound. The mortar then expands to create a secure and durable fixing. To install the anchor rod with injection mortars, manually push it into the drill hole while lightly rotating it.

Clamping Range (MM)

N/A

Diameter (MM)

N/A

Drill Diameter (MM)

12

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Resin stud

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

M10

Pack Size

10

Package Contents

N/A

Material

N/A

Length (MM)

130

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

56

Width Across Nut (MM)

17

Features

RG M family from M8 to M30: Opens up to an array of applications and therefore offers great flexibility.
The wide range of approved steel types for RG M allows for use in all corrosion resistance classes: Offers the best possible application safety.
The system is the first to offer lightweight, dynamic load specifications in an ETA mounted with FIS SB injection mortar and RSB mortar in cracked and non-cracked concrete: Pioneering.
