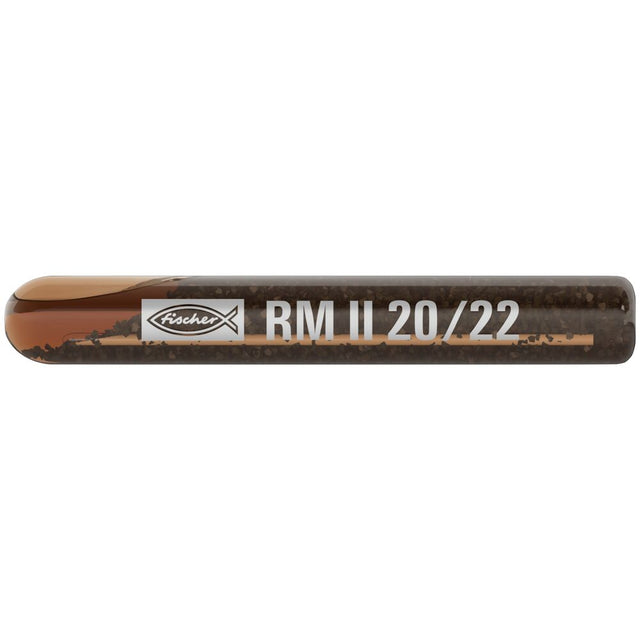

fischer Resin Capsule RM II 20/22 [539802]

Barcode: 4048962271812
Pack Size: 10
£36.20

Usually shipped in 1-2 days

fischer Resin Capsule RM II 20/22 [539802] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

fischer Resin Capsule RM II 20/22 is a composite anchor that does not require drill hole cleaning. It is the first composite anchor with European Technical Assessment Option 1 for cracked concrete and can be used with a standard threaded rod (RG M) or the Fischer internal threaded anchor RG MI. It can be used to fix steel constructions, machines, or staircases both indoors and outdoors. The RM II can support comparatively high loads, making it a fast and secure way to anchor.

Technical Datasheet

Curing Time Document:

Declaration of Performance Document:

European Technical Approval (ETA) Document:

Fire Test Document:

Installations Instructions Document:

Load Table Document:

Safety Data Document:

Applications

Suitable for:
Steel constructions
Guard rails
Staircases
Column bases
Machines
Masts
Removable fixings
Temporary fixings, e.g. for machines
Scaffold anchoring
Approved for:
Overhead installations
Water-filled drill holes

Building Materials

Approved for:
Concrete C20/25 to C50/60, cracked and non-cracked
Also suitable for:
Natural stone with dense structure
You can find detailed information on building materials in the registration document.

Certifications

ETA-16/0340
DoP No. 0196
GA-2016/093

Features

RM II is the first bonded anchor with threaded rod RG M or internal-threaded anchor RG M I that does not need drill hole cleaning: Fast progress and efficient installation.

The construction site is less affected by drill dust: Increases safety for the user.

Pre-portioned resin capsule: Easy to use and particularly suitable for individual applications and overhead installations.

Use of the internal threaded anchor RG MI allows the surface-flush removal and reuse of the fixing point: Offers the best possible flexibility.

Specifications
  • Anchorage Depth (mm)
    170 / 190mm
  • Brand
    Fischer
  • Certifications
    ETA-16/0340
    DoP No. 0196
    GA-2016/093
  • Drill Diameter (MM)
    25
  • Functionality
    The resin capsule RM II in conjunction with the threaded rod RG M or internal-threaded anchor RG MI is suitable for pre-positioned installation.
    The 2-component resin capsule RM II contains styrene-free vinyl ester resin and hardener.
    The fixing element is set using a hammer drill and the accompanying setting tool in rotating and hitting motions.
    During setting, the oblique edge of the fixing element destroys the capsule, and mixes and activates the mortar.
    The mortar bonds the entire surface of the anchor with the drill hole wall and seals the drill hole.
  • Matching Anchor Type
    RG M20
  • Pack Size
    10
  • Type
    Resin capsule

Reviews (0)

Delivery & Returns

For full delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Fischer

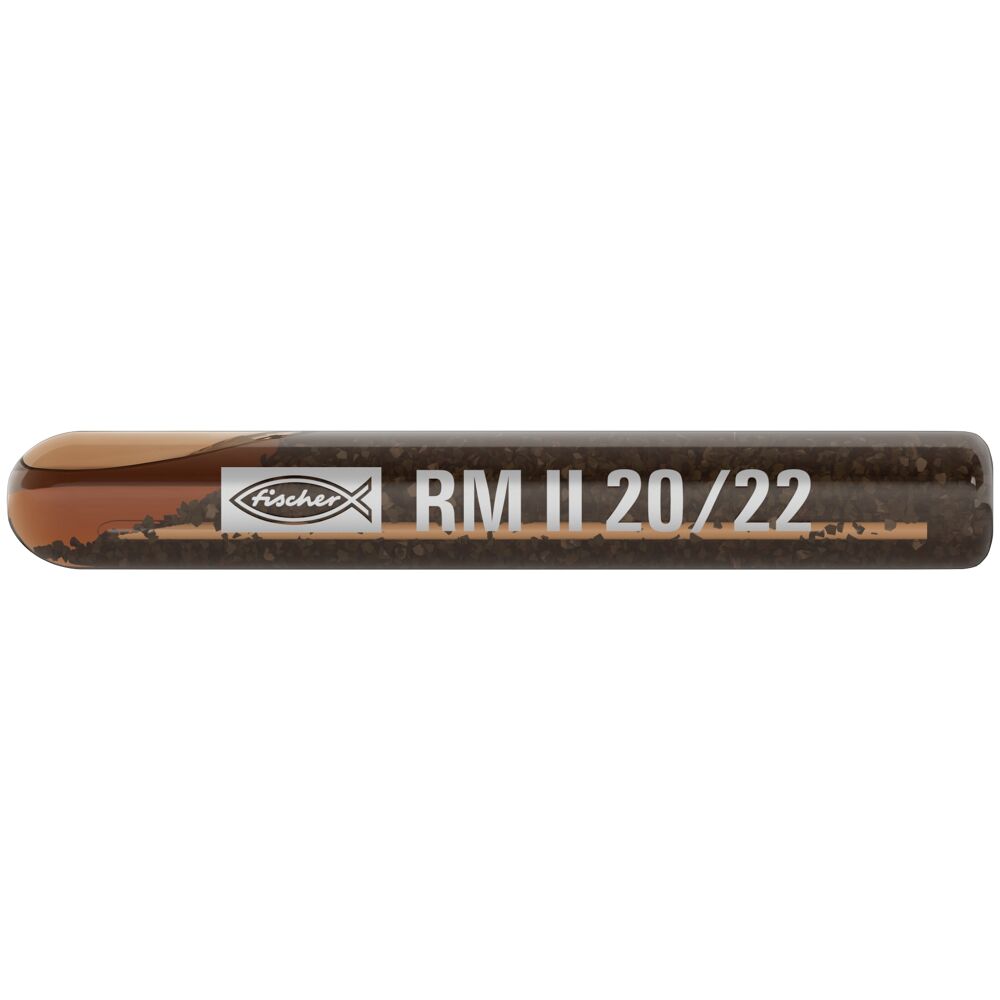

fischer Resin Capsule RM II 20/22 [539802]

£36.20
fischer Resin Capsule RM II 20/22 is a composite anchor that does not require drill hole cleaning. It is the first composite anchor with European Technical Assessment Option 1 for cracked concrete and can be used with a standard threaded rod (RG M) or the Fischer internal threaded anchor RG MI. It can be used to fix steel constructions, machines, or staircases both indoors and outdoors. The RM II can support comparatively high loads, making it a fast and secure way to anchor.

Clamping Range (MM)

N/A

Diameter (MM)

N/A

Drill Diameter (MM)

25

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Resin capsule

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

N/A

Pack Size

10

Package Contents

N/A

Material

N/A

Length (MM)

N/A

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

RM II is the first bonded anchor with threaded rod RG M or internal-threaded anchor RG M I that does not need drill hole cleaning: Fast progress and efficient installation.

The construction site is less affected by drill dust: Increases safety for the user.

Pre-portioned resin capsule: Easy to use and particularly suitable for individual applications and overhead installations.

Use of the internal threaded anchor RG MI allows the surface-flush removal and reuse of the fixing point: Offers the best possible flexibility.
