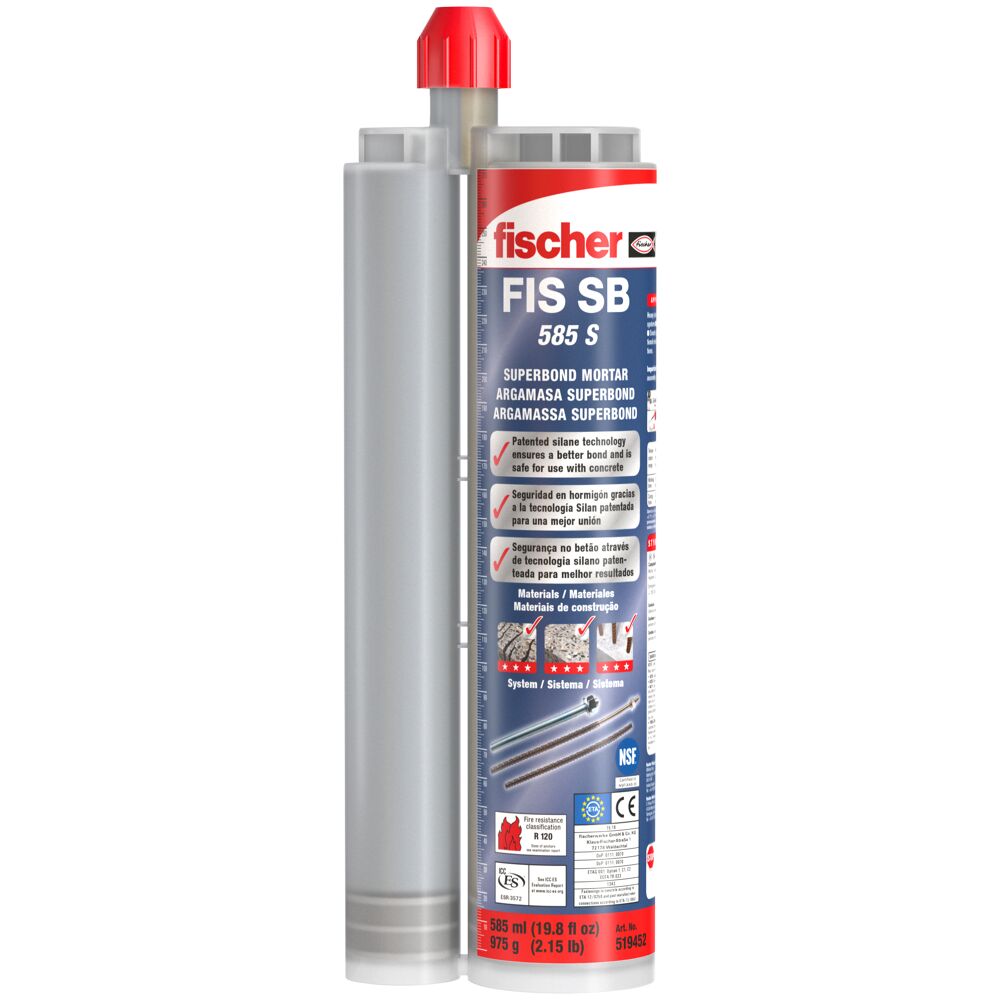

fischer injection mortar FIS SB 585 S [519452]

Barcode: 4048962161953
Pack Size: 1
£32.89

Usually shipped in 1-2 days

fischer injection mortar FIS SB 585 S [519452] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

The fischer Superbond mortar FIS SB is a hybrid mortar based on styrene-free vinyl ester with silane technology, enabling extremely high bond strength and load level. It can be used with various system components, including anchor rods FIS A and RG M, reinforced threaded anchors FRA, and reinforcement steel. When using the internal threaded anchor RG M I, the fixing point can be removed when surface-flush. The FIS SB is suitable for fixing heavy-duty items such as railings, noise barriers, and steel structures in internal and external areas.

Technical Datasheet

Curing Time Document:

Declaration of Performance Document:

Environmental Product Declaration Document:

European Technical Approval (ETA) Document:

Fire Test Document:

Load Table Document:

Safety Data Document:

Tech Datasheet:

Applications

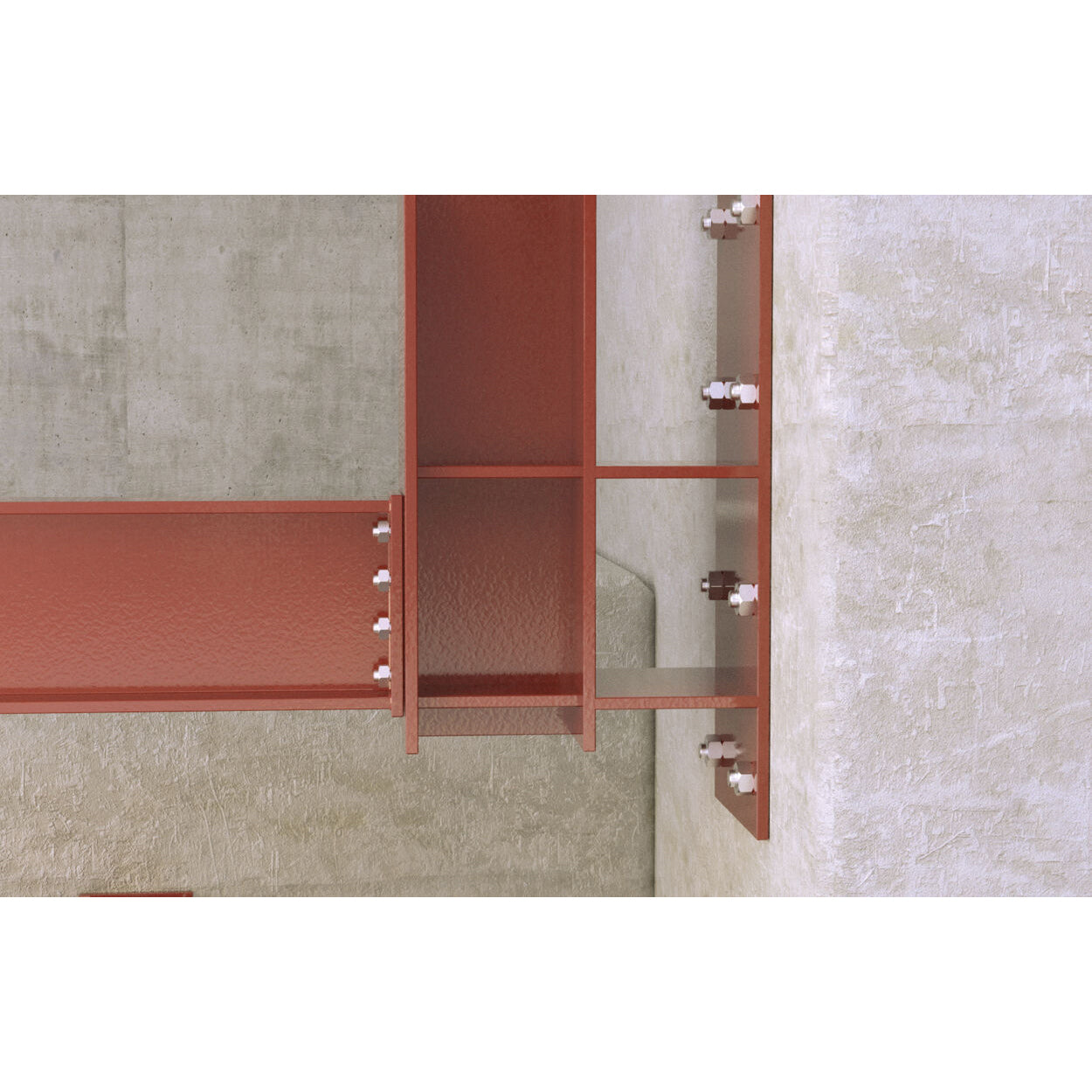

Heavy steel constructions
Silo installations
Tall shelving

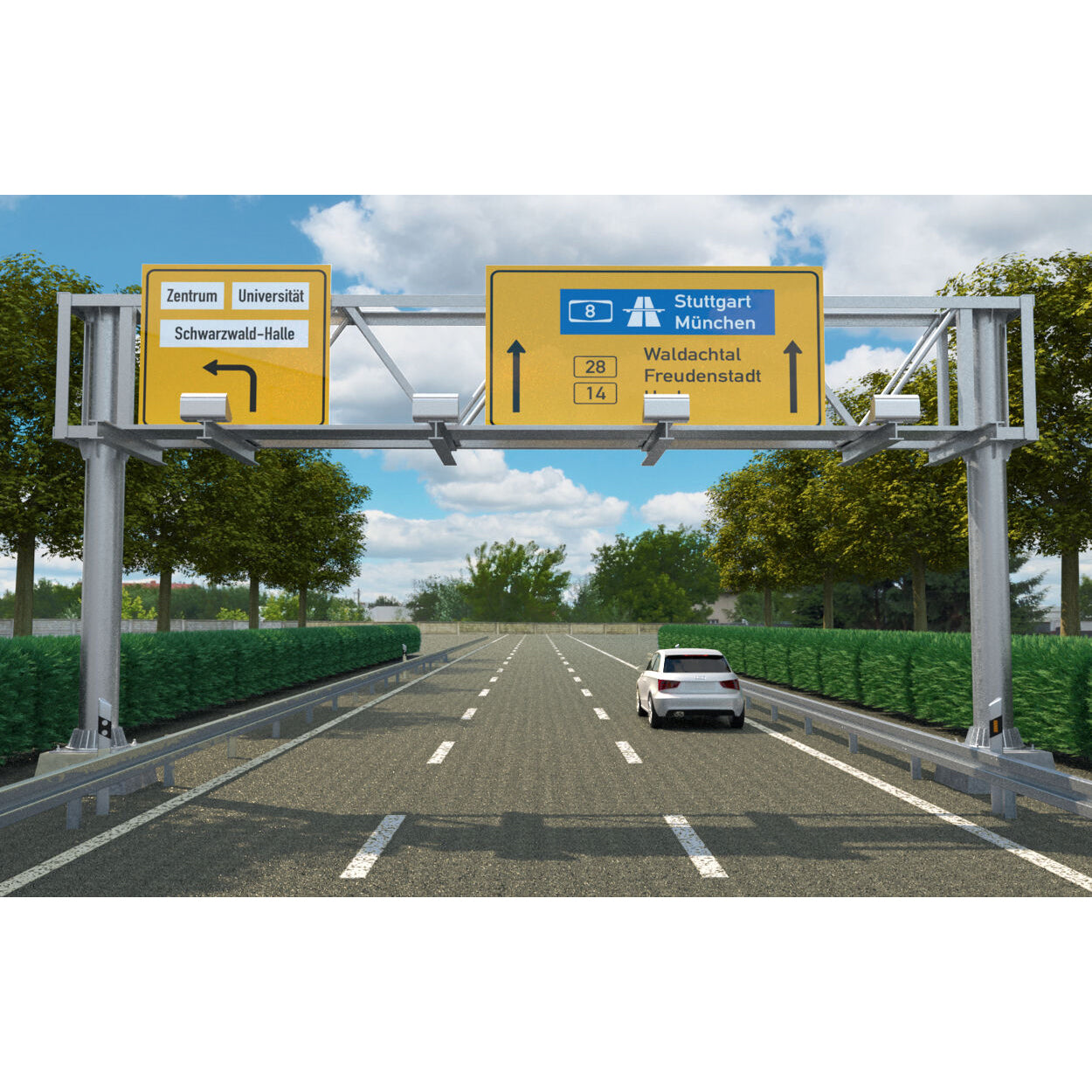

Sound barriers
Guard rails
Staircases
Suspensions of pipes, cable trays and suspended ceilings
Temporary fixings, e.g. for machines
Scaffold anchoring

Building Materials

Approved for anchorings in:
Concrete C20/25 to C50/60, cracked and non-cracked
Also suitable for:
Natural stone with dense structure
You can find detailed information on building materials in the registration document.

Certifications

ETA-12/0258
ETA-13/0651
ETA-19/0501
DoP No. 0070
DoP No. 0165
DoP No. 0191
DoP No. 0217
GS 3.2/11-243-2
EPD­DBC­FIW­20220088­IBE2­DE

Features

Strong bond strength: The injection mortar FIS SB achieves a really high load level.
Variable anchorage depths from 4x to 20x the threaded rod diameter enable perfect adaptation in line with the load to be applied: Ensures an optimised installation time and use of materials.
Top application temperatures of up to +150°C and even approved down to a chilly –15°C: Opens up new usage areas for bonded anchors.
In combination with the internal threaded anchor RG M I, this product enables surface-flush removal and the reuse of the fixing point: Providing top flexibility.
The standard threaded rod FIS A can be set for light dynamic loads with the mortar injection system FIS SB in the sizes M12 and M16 in steel grade 8.8 or in the sizes M12, M16, M20 and M24 in stainless steel R and the fischer filling set.

Specifications
  • Brand
    Fischer
  • Certifications
    ETA-12/0258
    ETA-13/0651
    ETA-19/0501
    DoP No. 0070
    DoP No. 0165
    DoP No. 0191
    DoP No. 0217
    GS 3.2/11-243-2
    EPD­DBC­FIW­20220088­IBE2­DE
  • Functionality
    The injection mortar FIS SB is based on a vinyl ester hybrid with silane technology. It is suitable for pre-positioned and push-through installation and can be used with the threaded rod FIS A or the internal threaded anchor RG MI.
    Resin and hardener are stored in two separate chambers and are not mixed and activated until dispensed through the injection cartridge.
    The mortar is extruded bubble free from the drill hole base.
    The mortar bonds the entire surface of the anchor with the drill hole wall and seals the drill hole.
    With push-through installations, the annular gap between the threaded rod and fixture is filled with the injection mortar FIS SB.
  • Package Contents
    1x cartridge 390ml
  • Pack Size
    1
  • Type
    Injection resin
  • Volume (ml)
    390ml

Reviews (0)

Delivery & Returns

For full delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Fischer

fischer injection mortar FIS SB 585 S [519452]

£32.89
The fischer Superbond mortar FIS SB is a hybrid mortar based on styrene-free vinyl ester with silane technology, enabling extremely high bond strength and load level. It can be used with various system components, including anchor rods FIS A and RG M, reinforced threaded anchors FRA, and reinforcement steel. When using the internal threaded anchor RG M I, the fixing point can be removed when surface-flush. The FIS SB is suitable for fixing heavy-duty items such as railings, noise barriers, and steel structures in internal and external areas.

Clamping Range (MM)

N/A

Diameter (MM)

N/A

Drill Diameter (MM)

N/A

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Injection resin

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

N/A

Pack Size

1

Package Contents

1x cartridge 390ml

Material

N/A

Length (MM)

N/A

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

Strong bond strength: The injection mortar FIS SB achieves a really high load level.
Variable anchorage depths from 4x to 20x the threaded rod diameter enable perfect adaptation in line with the load to be applied: Ensures an optimised installation time and use of materials.
Top application temperatures of up to +150°C and even approved down to a chilly –15°C: Opens up new usage areas for bonded anchors.
In combination with the internal threaded anchor RG M I, this product enables surface-flush removal and the reuse of the fixing point: Providing top flexibility.
The standard threaded rod FIS A can be set for light dynamic loads with the mortar injection system FIS SB in the sizes M12 and M16 in steel grade 8.8 or in the sizes M12, M16, M20 and M24 in stainless steel R and the fischer filling set.
