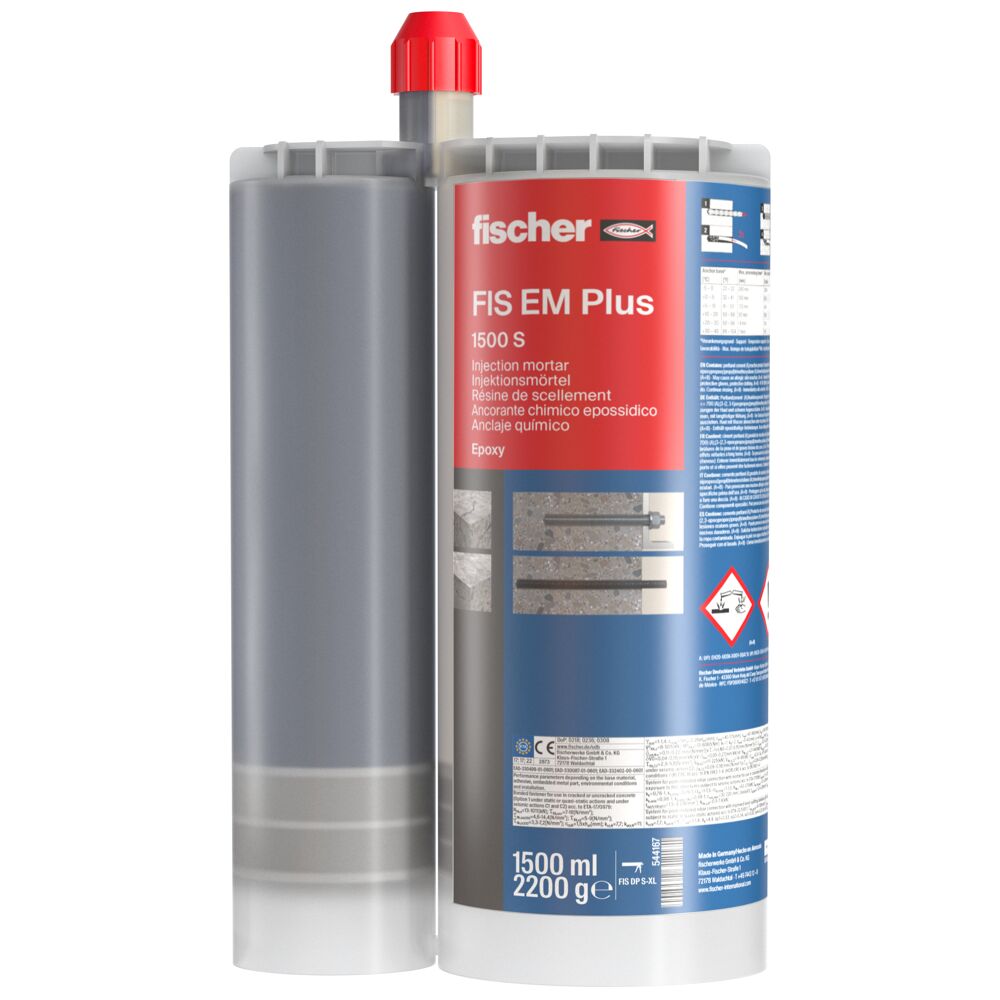

fischer injection mortar FIS EM 1500 S [544167]

£492.65
The fischer injection mortar FIS EM Plus 1500 S is a high-quality epoxy resin mortar that provides maximum load-bearing capacity in cracked and non-cracked concrete. It is used with reinforcement steel and the approved system components anchor rod FIS A and internal threaded anchor RG M I. The anchor rod FIS A can be set with variable anchorage depths to optimize the use of materials and ensure that the system is ideally adjusted to the load to be supported. The FIS EM Plus 1500 S is suitable for fixings in indoor and outdoor areas, such as shear connectors for concrete layers, high racks, and heavy-duty steel constructions.

fischer injection mortar FIS EM 1500 S [544167] is backordered and will ship as soon as it is back in stock.

Applications

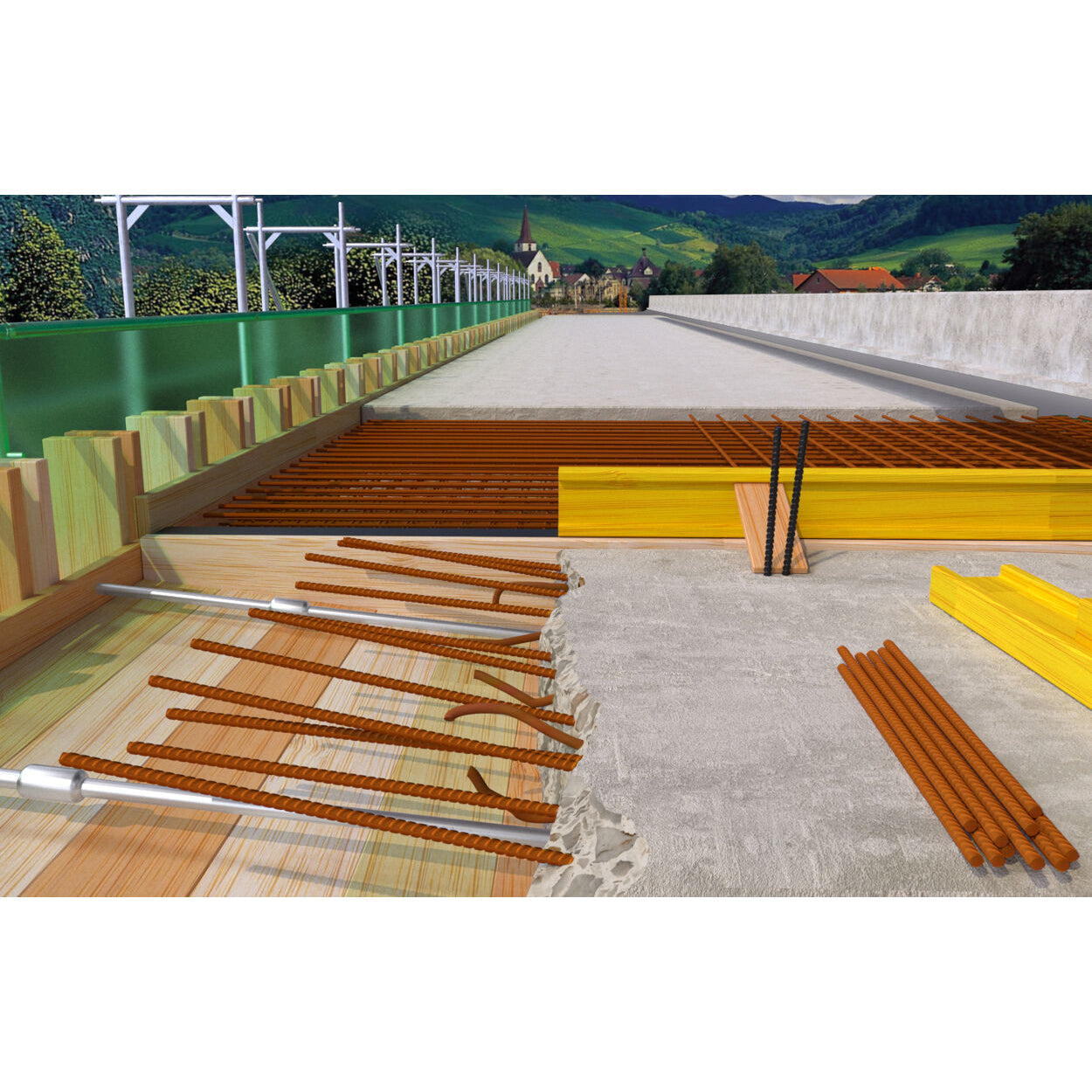

Post-installed rebar connections
Jointers for concrete layers
Rim beam anchorings
Seismic applications
Anchorings in diamond-drilled or in waterfilled drill holes

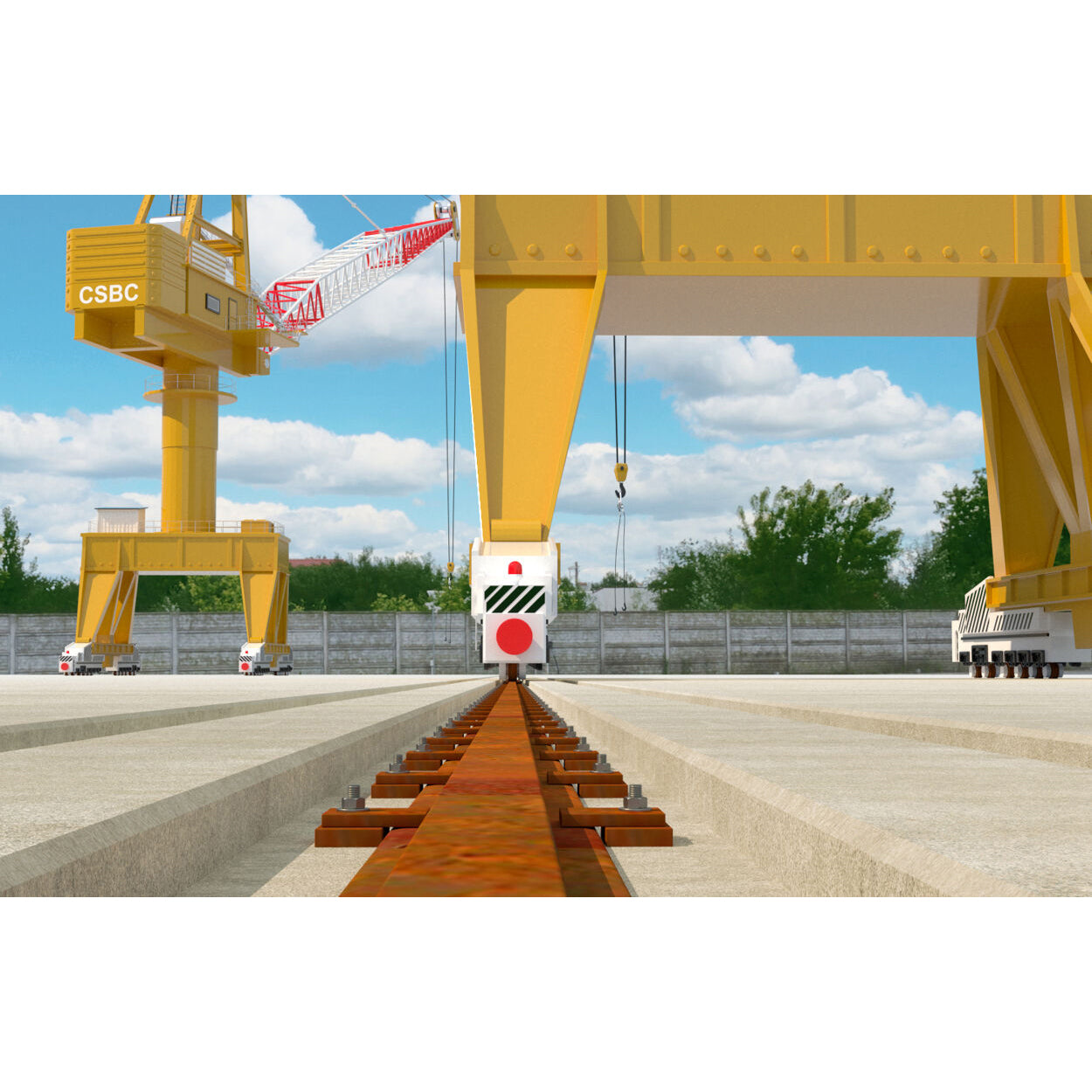

Heavy steel constructions
Silo installations
Tall shelving
Sound barriers
Temporary or removable fixings (with internal threaded anchor RG M I)
Anchorings in sealing surfaces according to WRL (Water Ressources Law)

Building Materials

Approved for anchorings in:
Concrete C20/25 to C50/60, cracked and non-cracked
Also suitable for:
Natural stone with dense structure
You can find detailed information on building materials in the registration document.

Certifications

ETA-17/0979
ETA-17/1056
ETA-22/0001
DoP No. 0190
DoP No. 0218
DoP No. 0236
DoP No. 0308
Z-74.8-199
Report No MRF 19 26082687/C

Features

The ETA assessment guarantees a service life of 100 years. The expert report of IEA Stuttgart even confirms a working life up to 120 years: Underlines the reliability and durability of the FIS EM Plus.
Optimised formulation: Leads to improved load values in cracked and non-cracked concrete.
The mortar can be used for rebar connections from diameter 8 to 40: Including seismic applications.
With the threaded rod FIS A, the loads to be applied can be designed variably by selecting the anchorage depth.The mortar is approved for diamond drilled and water-filled drillholes as well as seismic applications: Offers safety under extreme conditions.
FIS EM Plus can be processed at low temperatures down to -5°C: For practical use on the building site.

Specifications
  • Type
    Injection resin
  • Pack Size
    1
  • Package Contents
    1x cartridge 300ml,2x static mixers FIS MR Plus
  • Declaration of Performance Document
    Fischer_FIS-EM-PLUS_DOP4.pdf
  • European Technical Approval (ETA) Document
    Fischer_FIS-EM-PLUS_ETA3.pdf
  • Fire Test Document
    Fischer_FIS-EM-PLUS_fire_test.pdf
  • Installations Instructions Document
    Fischer_FIS-EM-PLUS_install_inst.pdf
  • Load Table Document
    Fischer_FIS-EM-PLUS_load_table2.pdf
  • Safety Data Document
    https://files.plytix.com/api/v1.1/file/public_files/pim/assets/92/a1/b6/64/64b6a1926974570001d44ef8/texts/d1/a3/f9/65/65f9a3d17ce09dc067f196a2/Fischer_FIS-EM-PLUS_SDS1.pdf,https://files.plytix.com/api/v1.1/file/public_files/pim/assets/92/a1/b6/64/64b6a1926974570001d44ef8/texts/d1/a3/f9/65/65f9a3d18114cd0fd1e40bb5/Fischer_FIS-EM-PLUS_SDS2.pdf,https://files.plytix.com/api/v1.1/file/public_files/pim/assets/92/a1/b6/64/64b6a1926974570001d44ef8/texts/d2/a3/f9/65/65f9a3d2cbbf7e65bf1f3998/Fischer_FIS-EM-PLUS_SDS3.pdf
  • Cartridge Volume (ml)
    300
  • Volume (ml)
    300

Reviews (0)

Delivery & Returns

Lorem Ipsum Dolor Sit Amet

Safe & Secure

  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Fischer

fischer injection mortar FIS EM 1500 S [544167]

£492.65
The fischer injection mortar FIS EM Plus 1500 S is a high-quality epoxy resin mortar that provides maximum load-bearing capacity in cracked and non-cracked concrete. It is used with reinforcement steel and the approved system components anchor rod FIS A and internal threaded anchor RG M I. The anchor rod FIS A can be set with variable anchorage depths to optimize the use of materials and ensure that the system is ideally adjusted to the load to be supported. The FIS EM Plus 1500 S is suitable for fixings in indoor and outdoor areas, such as shear connectors for concrete layers, high racks, and heavy-duty steel constructions.

Clamping Range (MM)

N/A

Diameter (MM)

N/A

Drill Diameter (MM)

N/A

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Injection resin

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

N/A

Pack Size

1

Package Contents

1x cartridge 300ml,2x static mixers FIS MR Plus

Material

N/A

Length (MM)

N/A

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

The ETA assessment guarantees a service life of 100 years. The expert report of IEA Stuttgart even confirms a working life up to 120 years: Underlines the reliability and durability of the FIS EM Plus.
Optimised formulation: Leads to improved load values in cracked and non-cracked concrete.
The mortar can be used for rebar connections from diameter 8 to 40: Including seismic applications.
With the threaded rod FIS A, the loads to be applied can be designed variably by selecting the anchorage depth.The mortar is approved for diamond drilled and water-filled drillholes as well as seismic applications: Offers safety under extreme conditions.
FIS EM Plus can be processed at low temperatures down to -5°C: For practical use on the building site.
