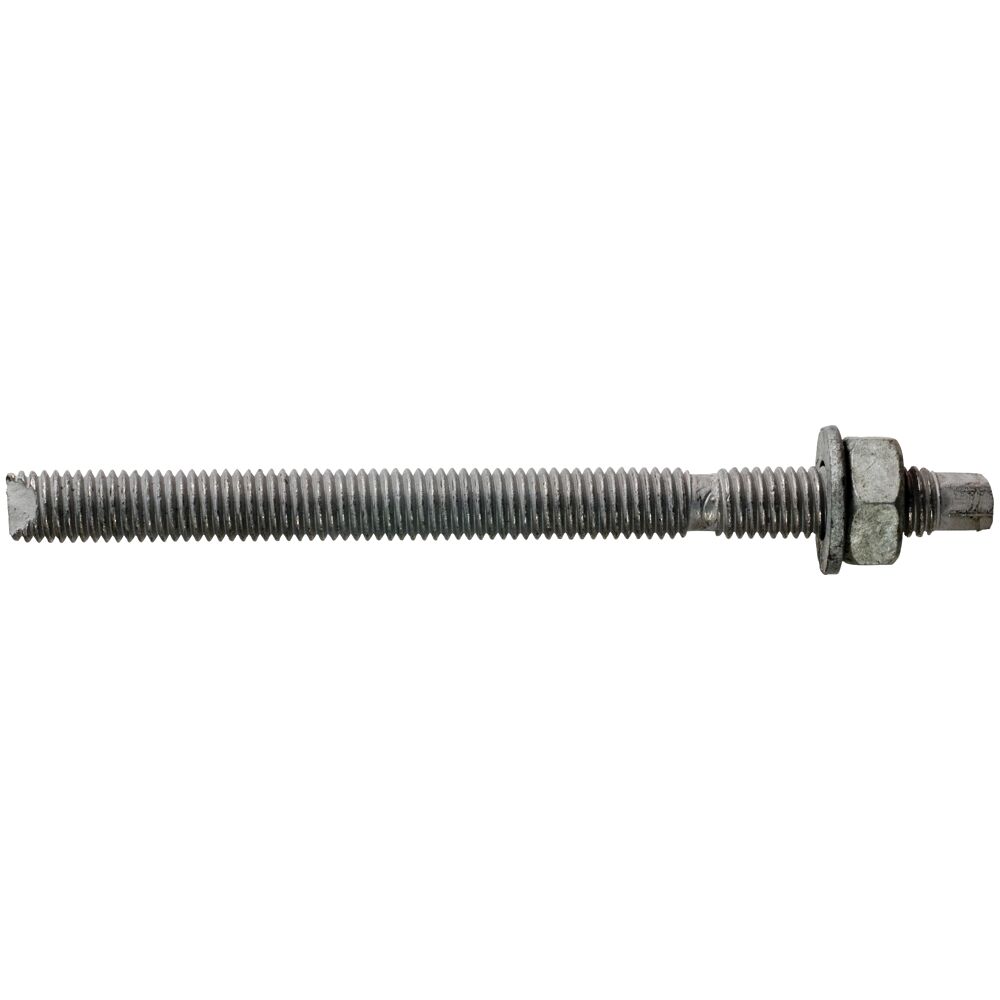

fischer FTR M12 x 160 Galvanised threaded rod (resin stud) [531609]

Pack Size: 10
£6.76

Usually shipped in 1-2 days

fischer FTR M12 x 160 Galvanised threaded rod (resin stud) [531609] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

The fischer threaded rod FTR M12 x 160 Galvanised is a cost-effective and versatile system component for use with fischer resin capsules and injection mortars. The threaded rod is made of hot-dip galvanized or zinc-plated steel, making it suitable for a wide range of applications.

Applications

Anchorings with resin capsules without approval
Anchorings with injection mortars without approval

Building Materials

Concrete
Natural stone with dense structure
You can find detailed information on building materials in the registration document.

Features

The threaded rod FTR is the cost-effective solution for applications with resin capsules where no approval is required: Simple installation.
Oblique edge on tip: Suitable for use with resin capsules.

Specifications
  • Brand
    Fischer
  • ETA (Dynamic)
    No
  • Functionality
    Due to its oblique edge, the threaded rod FTR is particularly suitable for use in conjunction with resin capsules.

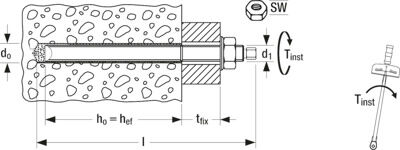

    The threaded rod FTR is set using a hammer drill and the accompanying setting tool in rotating and hitting motions.
    During setting, the oblique edge of the FTR destroys the capsule and mixes and activates the mortar.
    Use with injection mortar is also possible. Here, the threaded rod is manually inserted into the drill hole with a light rotating movement until it reaches the base of the hole.
  • Length (MM)
    160
  • Material
    Galvanised Steel
  • Pack Size
    10
  • Size
    M12
  • Type
    Resin stud

Reviews (0)

Delivery & Returns

For full delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Fischer

fischer FTR M12 x 160 Galvanised threaded rod (resin stud) [531609]

£6.76
The fischer threaded rod FTR M12 x 160 Galvanised is a cost-effective and versatile system component for use with fischer resin capsules and injection mortars. The threaded rod is made of hot-dip galvanized or zinc-plated steel, making it suitable for a wide range of applications.

Clamping Range (MM)

N/A

Diameter (MM)

N/A

Drill Diameter (MM)

N/A

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Resin stud

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

M12

Pack Size

10

Package Contents

N/A

Material

N/A

Length (MM)

160

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

The threaded rod FTR is the cost-effective solution for applications with resin capsules where no approval is required: Simple installation.
Oblique edge on tip: Suitable for use with resin capsules.
