fischer FIS H 18 x 85 N Injection anchor sleeve with net [50472]

Barcode: 4006209504727
Pack Size: 20
£34.30

Usually shipped in 1-2 days

fischer FIS H 18 x 85 N Injection anchor sleeve with net [50472] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

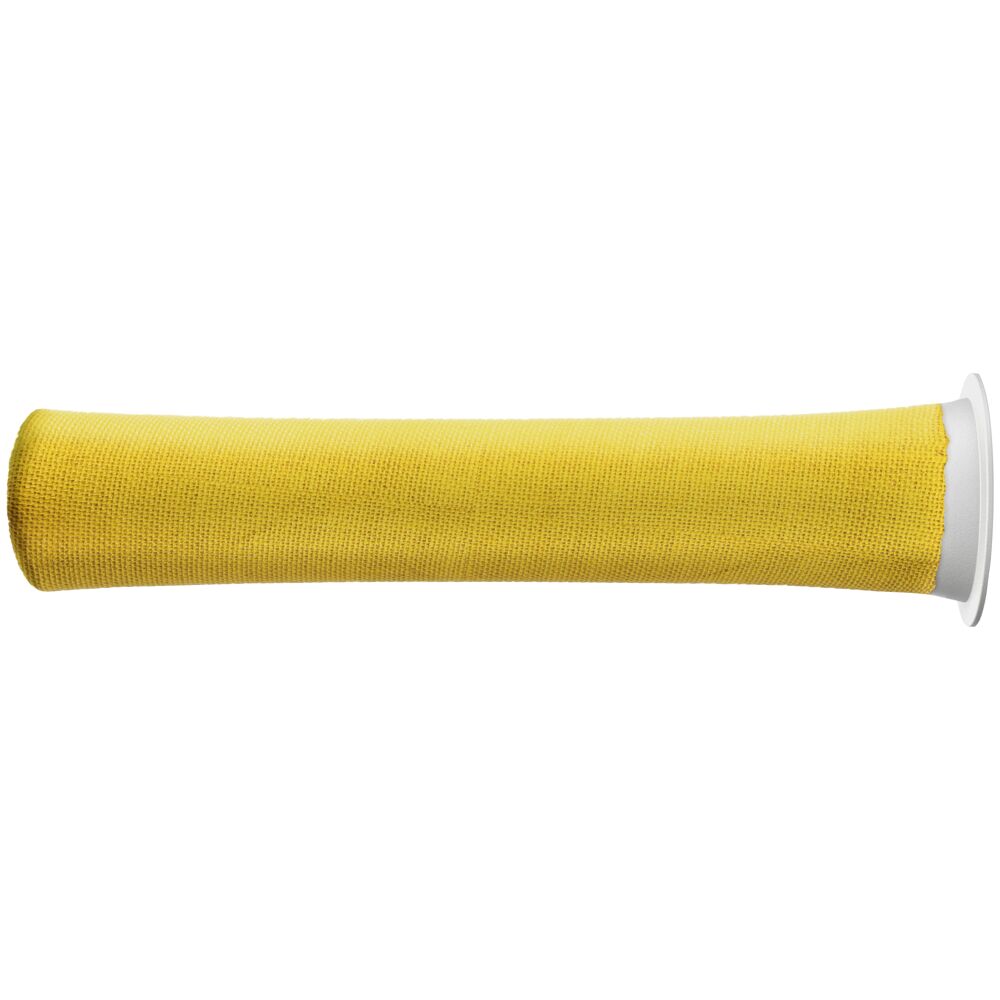

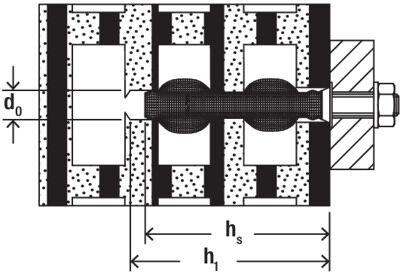

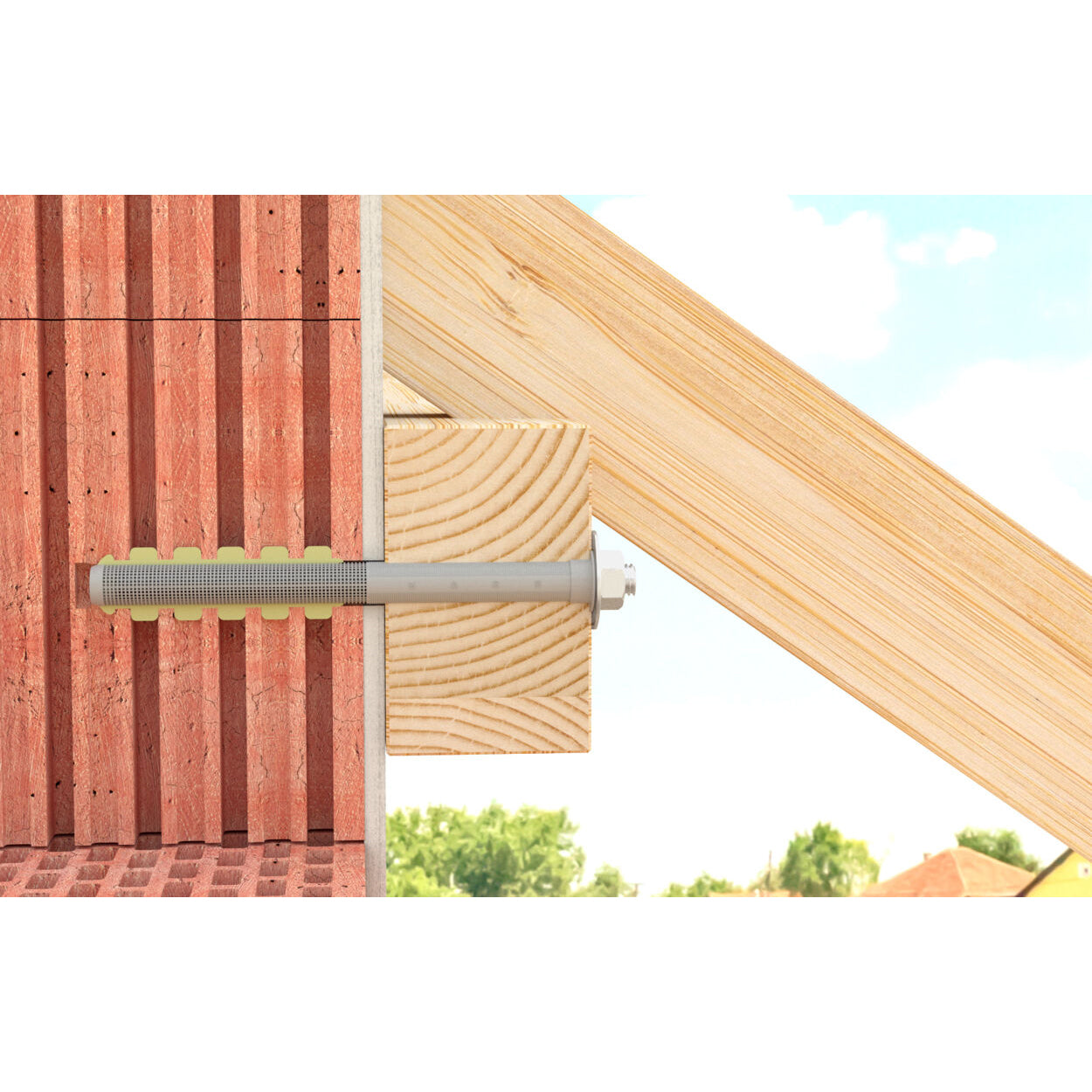

The fischer injection anchor sleeve with net is a system component for the use of fischer injection mortars in perforated brick masonry. The FIS H 18 x 85 N anchor sleeve is made of plastic and features a lattice structure that expands when the injection mortar is set. This creates a secure and durable fixing by interlocking with the perforated brick. To install the anchor sleeve, it is placed in the drill hole and filled with injection mortar from the anchor sleeve base. When the rod anchor is set, the mortar presses the lattice structure outwards and then connects with the perforated brick by an interlock. This means that the load is directed into the building material. The injection anchor sleeve with net is a versatile solution for a wide range of fixing applications in perforated brick masonry.

Applications

Anchorings in perforated brick masonry with injection mortars FIS V, FIS VL, FIS P Plus, FIS P, and FIS Green without approval

Building Materials

Suitable for:
Vertically perforated brick
Hollow blocks made from lightweight concrete
Hollow blocks made from concrete
Perforated sand-lime brick
Solid sand-lime brick
Solid brick
Hollow pumice slabs
Slabs made of hollow brick and other perforated brick
Solid pumice and other solid building materials
You can find detailed information on building materials in the registration document.

Features

The net structure of the anchor sleeve allows for uniform distribution of mortar in the drill hole: Secure hold.

Specifications
  • Brand
    Fischer
  • Effective Anchorage Depth (mm)
    85.00
  • ETA (Dynamic)
    No
  • Functionality
    The anchor sleeve is placed in the drill hole, and filled with injection mortar from the anchor sleeve base.
    Turning in the anchor causes the mortar to be pushed through the anchor sleeve's grating structure, so that it fits the base material perfectly.
    The load is borne by the interlock.
  • Length (MM)
    85
  • Matching Anchor Type
    Ø10/M10
  • Material
    Plastic
  • Minimum Drill Hole Depth (mm)
    95.00
  • Pack Size
    20
  • Type
    Resin sleeve
