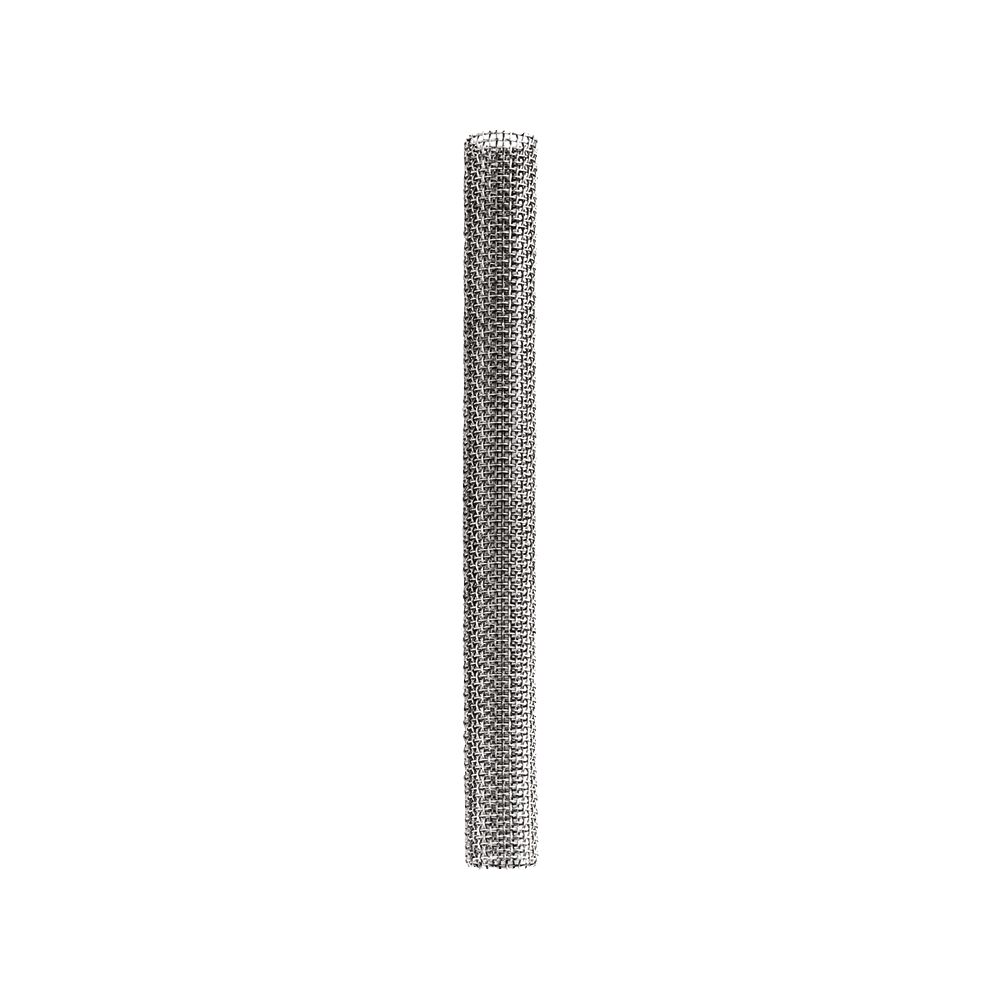

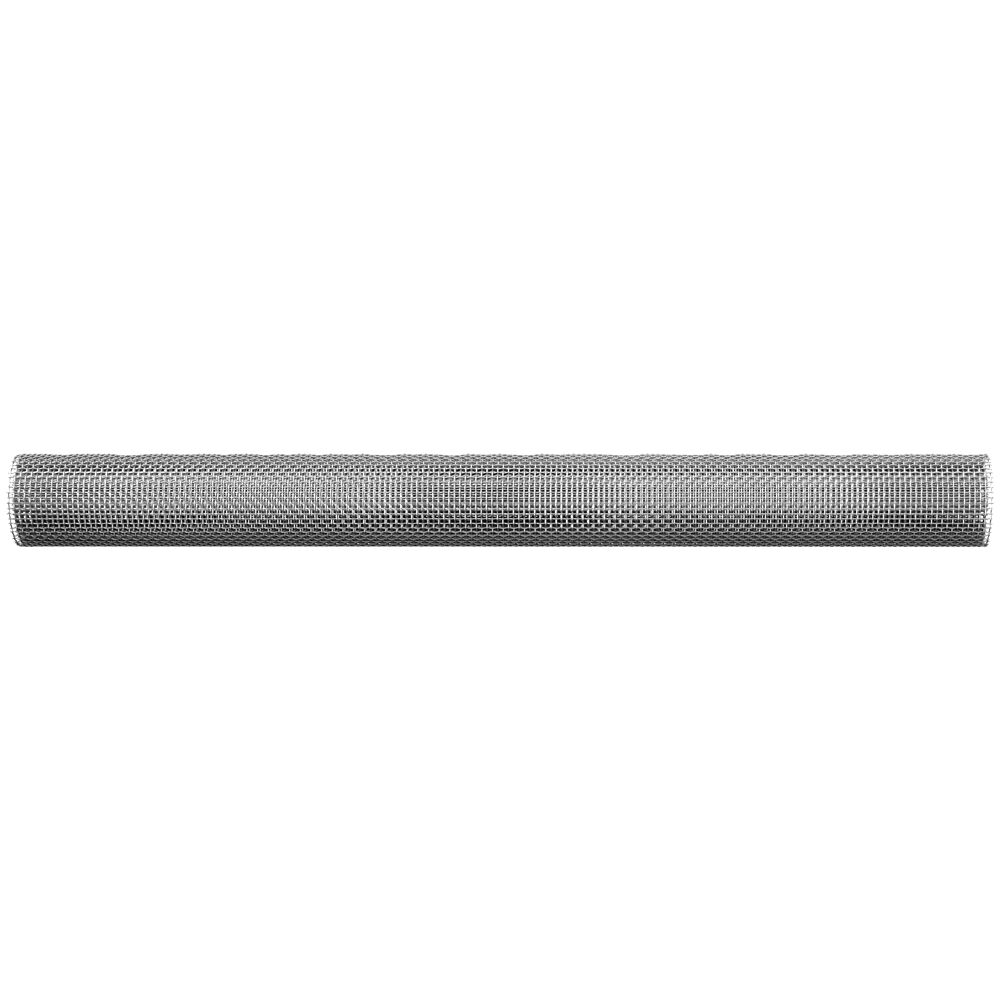

fischer FIS H 12 x 1000 L 1m length Injection anchor sleeve [50598]

Barcode: 4006209505984
Pack Size: 10
£67.09

Usually shipped in 1-2 days

fischer FIS H 12 x 1000 L 1m length Injection anchor sleeve [50598] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

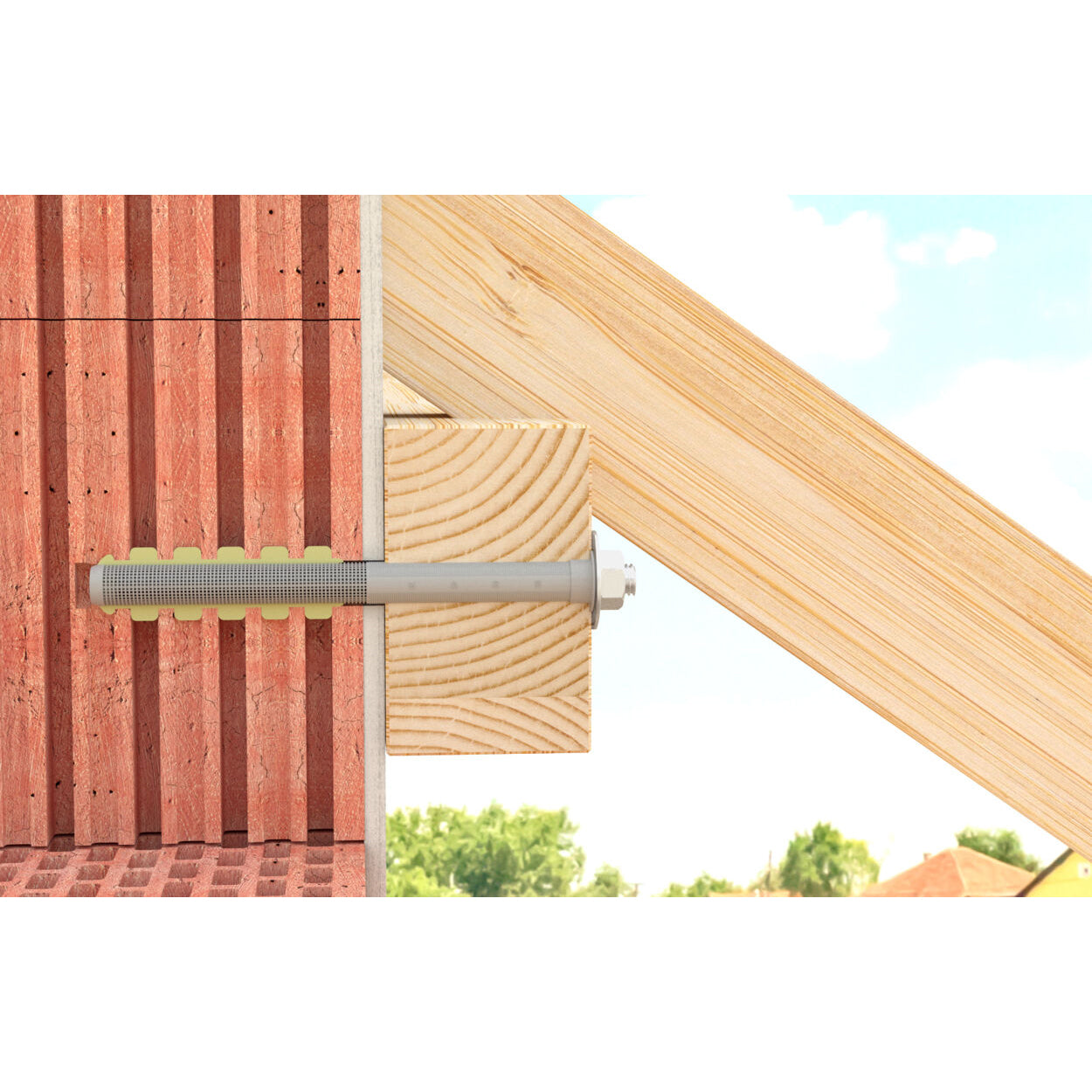

The fischer yard-goods metal injection anchor sleeve FIS H 12 x 1000 L is a cost-effective and versatile system component for use with fischer injection mortars in perforated brick masonry. The anchor sleeve is made of metal and is cut to size, making it a versatile solution for a wide range of applications. To install the anchor sleeve, it is placed in the drill hole and filled with injection mortar from the anchor sleeve base. When the anchor rod is set, the mortar is pressed through the lattice structure and then connects with the perforated brick by an interlock. This means that the load is directed into the building material, providing a secure and durable fixing. The FIS H K injection anchor sleeve is also suitable for bridging non-bearing layers. This makes it a versatile solution for a wide range of fixing applications in perforated brick masonry.

Technical Datasheet

Load Table Document:

Applications

Anchorings in perforated brick masonry with injection mortars FIS V, FIS VL, FIS P Plus, FIS P, and FIS Green without approval

Building Materials

Suitable for:
Vertically perforated brick
Hollow blocks made from lightweight concrete
Hollow blocks made from concrete
Perforated sand-lime brick
Solid sand-lime brick
Solid brick
Hollow pumice slabs
Slabs made of hollow brick and other perforated brick
Solid pumice and other solid building materials
You can find detailed information on building materials in the registration document.

Features

The metal anchor sleeve can be cut to the required length: Allows for a range of usable lengths with just one produce, providing flexibility and cost-effectiveness.
The grating structure of the anchor sleeve allows for uniform distribution of mortar in the drill hole: Secure hold.

Specifications
  • Brand
    Fischer
  • Drill Diameter (MM)
    12
  • ETA (Dynamic)
    No
  • Functionality
    The anchor sleeve is at first cut to the required length.
    The anchor sleeve is placed in the drill hole, and filled with injection mortar from the anchor sleeve base.
    Turning in the anchor causes the mortar to be pushed through the anchor sleeve's grating structure, so that it fits the base material perfectly.
    The load is borne by the interlock.
  • Length (MM)
    1,000
  • Matching Anchor Type
    Ø6/M6 - Ø8/M8
  • Pack Size
    10
  • Type
    Resin sleeve

Reviews (0)

Delivery & Returns

For full delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Fischer

fischer FIS H 12 x 1000 L 1m length Injection anchor sleeve [50598]

£67.09
The fischer yard-goods metal injection anchor sleeve FIS H 12 x 1000 L is a cost-effective and versatile system component for use with fischer injection mortars in perforated brick masonry. The anchor sleeve is made of metal and is cut to size, making it a versatile solution for a wide range of applications. To install the anchor sleeve, it is placed in the drill hole and filled with injection mortar from the anchor sleeve base. When the anchor rod is set, the mortar is pressed through the lattice structure and then connects with the perforated brick by an interlock. This means that the load is directed into the building material, providing a secure and durable fixing. The FIS H K injection anchor sleeve is also suitable for bridging non-bearing layers. This makes it a versatile solution for a wide range of fixing applications in perforated brick masonry.

Clamping Range (MM)

N/A

Diameter (MM)

N/A

Drill Diameter (MM)

12

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Resin sleeve

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

N/A

Pack Size

10

Package Contents

N/A

Material

N/A

Length (MM)

1,000

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

The metal anchor sleeve can be cut to the required length: Allows for a range of usable lengths with just one produce, providing flexibility and cost-effectiveness.
The grating structure of the anchor sleeve allows for uniform distribution of mortar in the drill hole: Secure hold.
