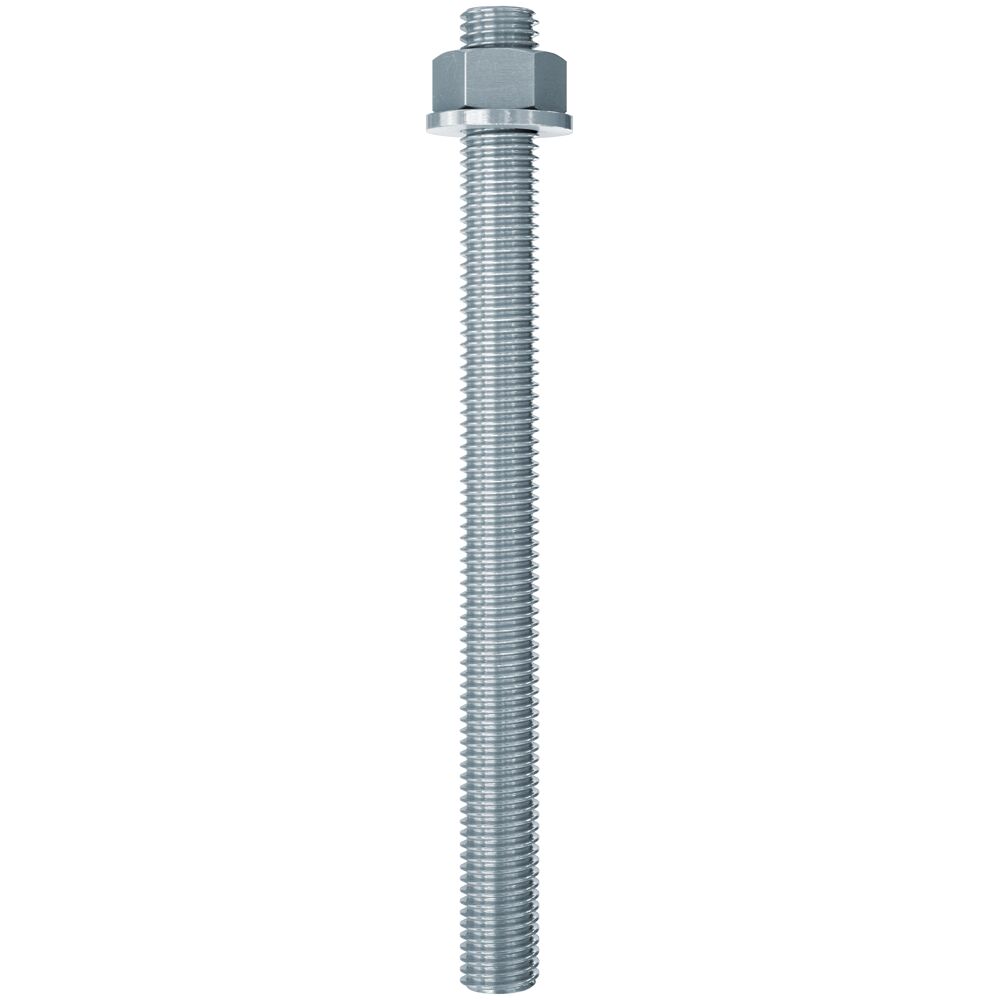

fischer FIS A M12 x 180 grade 5.8 zinc threaded rod (resin stud) [090285]

Barcode: 4006209902851
Pack Size: 10
£14.76

Usually shipped in 1-2 days

fischer FIS A M12 x 180 grade 5.8 zinc threaded rod (resin stud) [090285] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

The fischer threaded rod FIS A M12 x 180 is a zinc-plated steel grade 5.8 system component for fischer injection mortars. Suitable and approved for all subsurfaces, it achieves maximum load-bearing capacity when the drill hole is thoroughly cleaned. The system of zinc-plated threaded rods and fischer injection mortars is suitable and approved for fixings in dry interiors.

Technical Datasheet

European Technical Approval (ETA) Document:

Applications

Approved anchorings with Injection mortars FIS SB, FIS EM, FIS EB, FIS PM, FIS V, FIS VL and FIS Green

Building Materials

In connection with several fischer injection mortars the anchor rod FIS A is approved or suitable for different building materials.
You can find detailed information on building materials in the registration document.

Certifications

ETA-02/0024
ETA-19/0501
ETA-20/0603

Features

The threaded rod FIS A can be used with almost every fischer injection mortar (except Highbond special mortar FIS HB). It can be individually selected based on requirements: Allowing for a wide range of applications.
The wide range of approved threaded rods FIS A from M6 to M30: Versatility.
Please refer to the approvals of the injection mortar used.
The system is the first to offer lightweight, dynamic load specifications in an ETA mounted with FIS SB injection mortar and RSB mortar in cracked and non-cracked concrete: Pioneering.

Specifications
  • Brand
    Fischer
  • Certifications
    ETA-02/0024
    ETA-19/0501
    ETA-20/0603
  • Drill Diameter (MM)
    14
  • ETA (Dynamic)
    No
  • Functionality

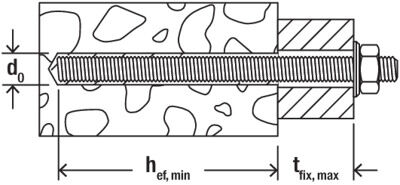

    The anchor rod FIS A is suitable for pre-positioned and push-through installation.
    FIS A is set manually into the drill hole, by lightly rotating it until it reaches the drill hole base.
  • Length (MM)
    180
  • Material
    Zinc-Plated
  • Pack Size
    10
  • Size
    M12
  • Type
    Resin stud

Reviews (0)

Delivery & Returns

For full delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Fischer

fischer FIS A M12 x 180 grade 5.8 zinc threaded rod (resin stud) [090285]

£14.76
The fischer threaded rod FIS A M12 x 180 is a zinc-plated steel grade 5.8 system component for fischer injection mortars. Suitable and approved for all subsurfaces, it achieves maximum load-bearing capacity when the drill hole is thoroughly cleaned. The system of zinc-plated threaded rods and fischer injection mortars is suitable and approved for fixings in dry interiors.

Clamping Range (MM)

N/A

Diameter (MM)

N/A

Drill Diameter (MM)

14

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Resin stud

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

M12

Pack Size

10

Package Contents

N/A

Material

N/A

Length (MM)

180

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

The threaded rod FIS A can be used with almost every fischer injection mortar (except Highbond special mortar FIS HB). It can be individually selected based on requirements: Allowing for a wide range of applications.
The wide range of approved threaded rods FIS A from M6 to M30: Versatility.
Please refer to the approvals of the injection mortar used.
The system is the first to offer lightweight, dynamic load specifications in an ETA mounted with FIS SB injection mortar and RSB mortar in cracked and non-cracked concrete: Pioneering.
