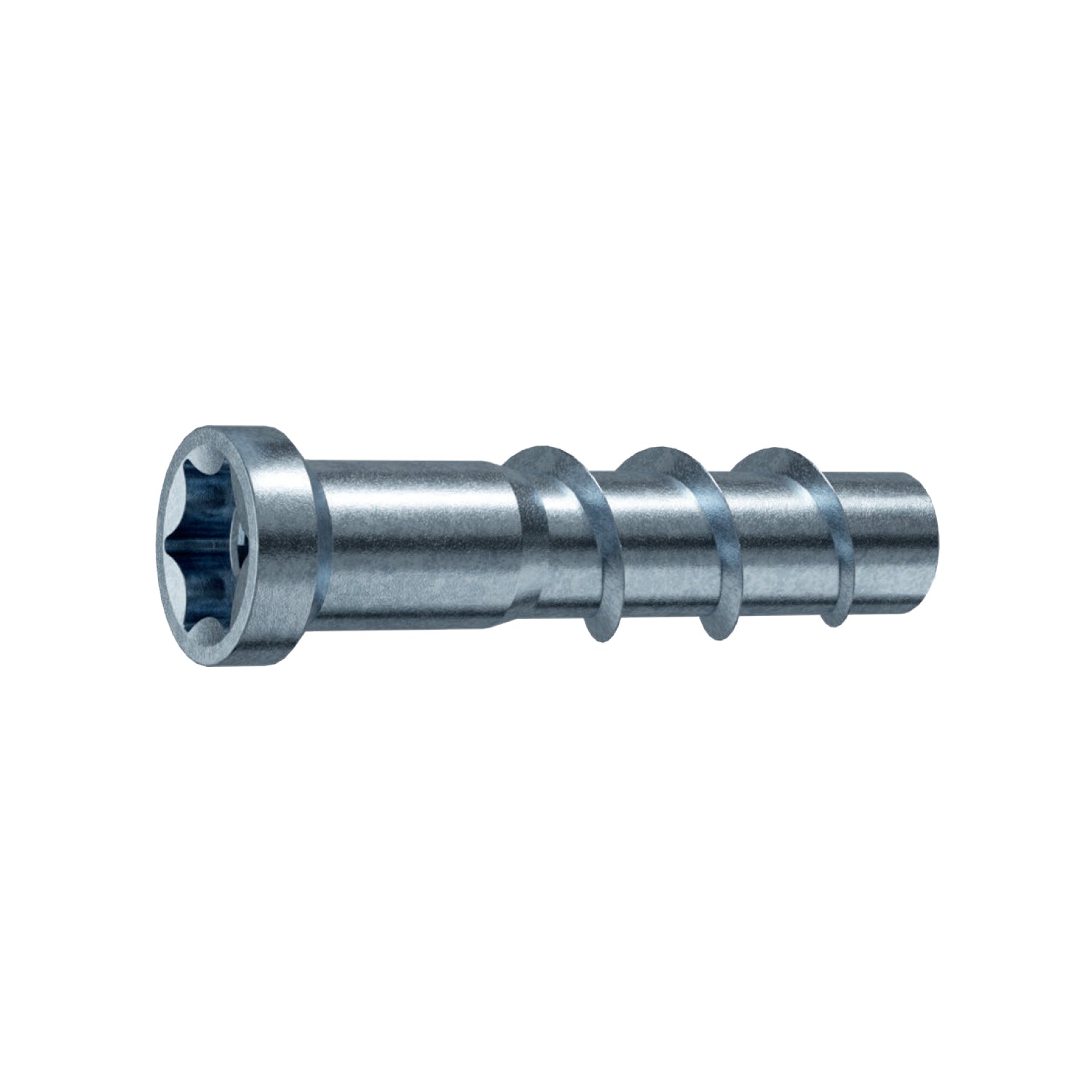

Certifix CFCSMG concrete screw 10 x 40 / IM8 x 10 with internal metric thread zinc-plate TX55

Pack Size: 100
£87.99
The Certifix CFCSMG female threaded screw for various substrates. Female thread M6, M8, M10 in steel, zinc-plated.

Certifix CFCSMG concrete screw 10 x 40 / IM8 x 10 with internal metric thread zinc-plate TX55 is backordered and will ship as soon as it is back in stock.

Technical Datasheet

Download the technical datatsheet here.

Applications

Fastening of cable ducts
Fastening of piping
Fastening of ceiling suspension of any kind

Features

Easy Installation: Easy, fast and safe installation with a impact screwdriver. This makes overhead work in particular much easier.
Flush with surface: The flush surface installation results in a clean installation appearance without any interfering elements.

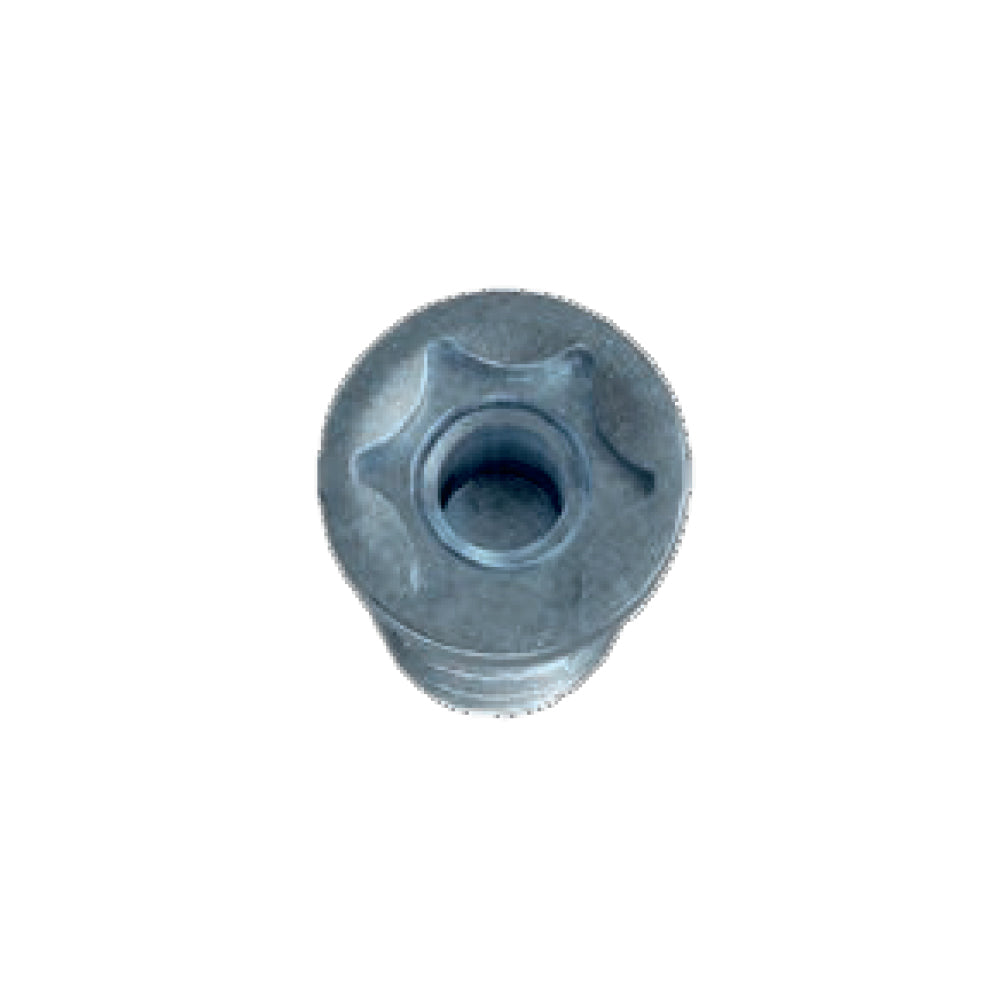

Internal thread: The practical internal thread enables use for a wide range of applications.
Demountable If required: The CFCSMG can be quickly and easily dismounted.
High load values: The special thread geometry ensures secure hold and high loads in concrete.
Small edge distances: Small edge distances and spacing allow particularly close-edge and closely spaced installation.

Specifications
  • Diameter (MM)
    10.00
  • Drill Hole Depth (MM)
    50
  • Type
    Concrete screw
  • Thread Length (MM)
    10
  • Size
    M8
  • Pack Size
    100
  • Material
    Zinc-Plated
  • Length (MM)
    40
  • Tech Datasheet
    Certifix_CFCS_MultiGround_TDS-compressed.pdf
  • Driver Type
    TX55
  • Size
    M8
  • Head Type
    Internal Thread
  • Embedment Depth (mm)
    40
