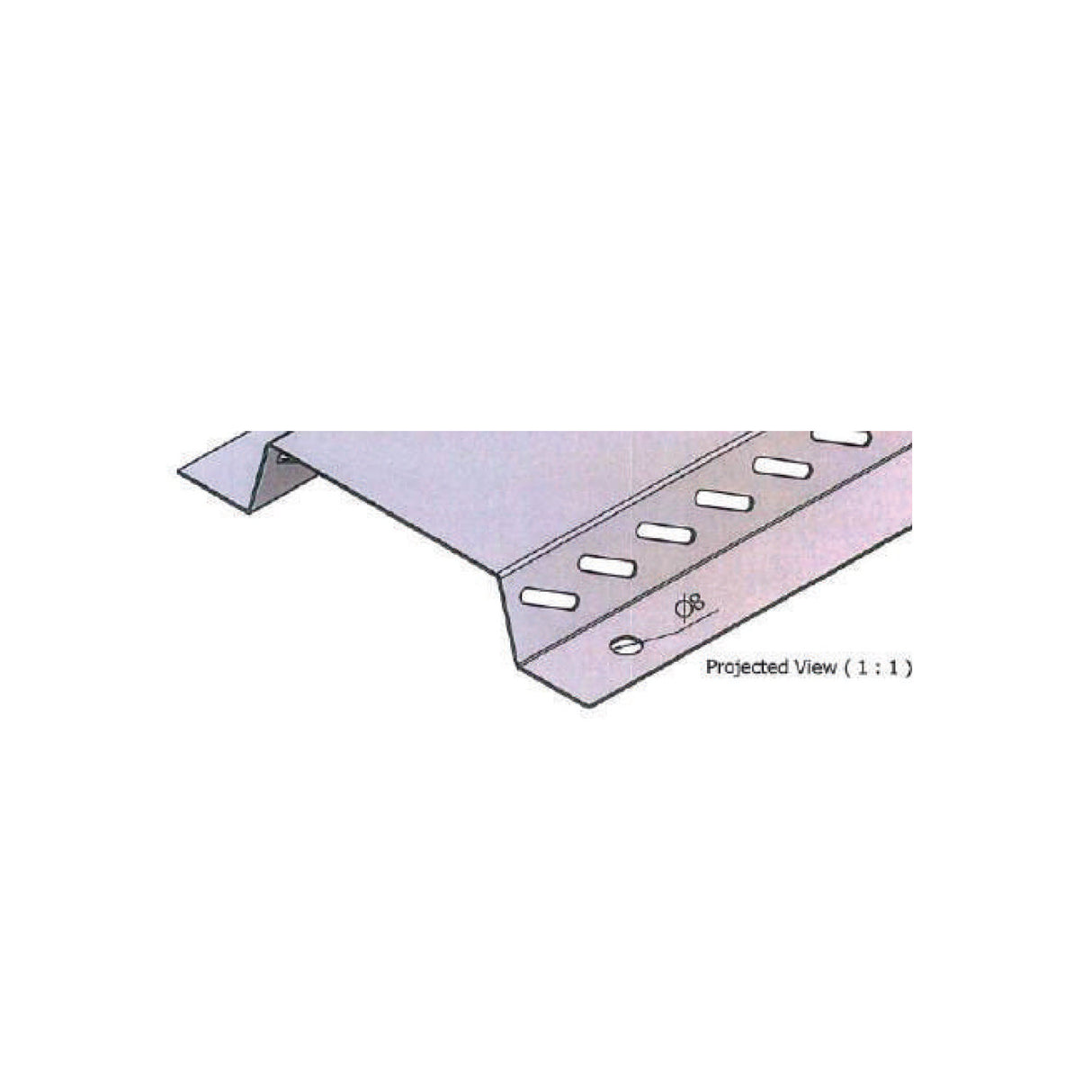

Certifix Galvanised Steel Slotted Top Hat Profile

Certifix Galvanised Steel Slotted Top Hat Profile is backordered and will ship as soon as it is back in stock.

Product Enquiry

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

Top hat cladding profiles are versatile steel battens primarily used to create a stable, level base for attaching exterior cladding, roofing materials, or interior wall and ceiling finishes. Their "top hat" shape allows for easy attachment and provides a ventilation gap or furring out for uneven surfaces, ensuring proper airflow and creating a flush surface for boards and panels

Technical Datasheet

Tech Datasheet:

Applications

Exterior Cladding and Roofing: They provide a secure, continuous framework for fixing metal roofing, tiles, or facade cladding panels, ensuring stability against wind loads.
Interior Walls: Top hat profiles are used to fur out walls, creating a level surface for installing drywall or construction panels, especially over uneven masonry or existing surfaces.
Suspended Ceilings: They form the structural frame for suspended ceilings, allowing for the installation of panels over existing structures and creating a valuable air gap for ventilation and services.
Sound Insulation: Some profiles are designed as spring rails for direct mounting of boards, improving sound insulation under sloping roof claddings and wooden beam ceilings.

Features

Stability & Support: The profiles provide essential support for external cladding and interior finishes.
Ventilation: The gap created by the profile's shape facilitates important airflow and ventilation in facades and ceilings.
Level Surface: They are ideal for "furring out" uneven surfaces, creating a flat, consistent plane for the final cladding or board material.
Flexibility: Their design allows for flexible positioning and attachment, even when panel joints don't align with underlying studs.
Durability: Made from materials like galvanized steel, they offer good corrosion resistance and long-term performance.

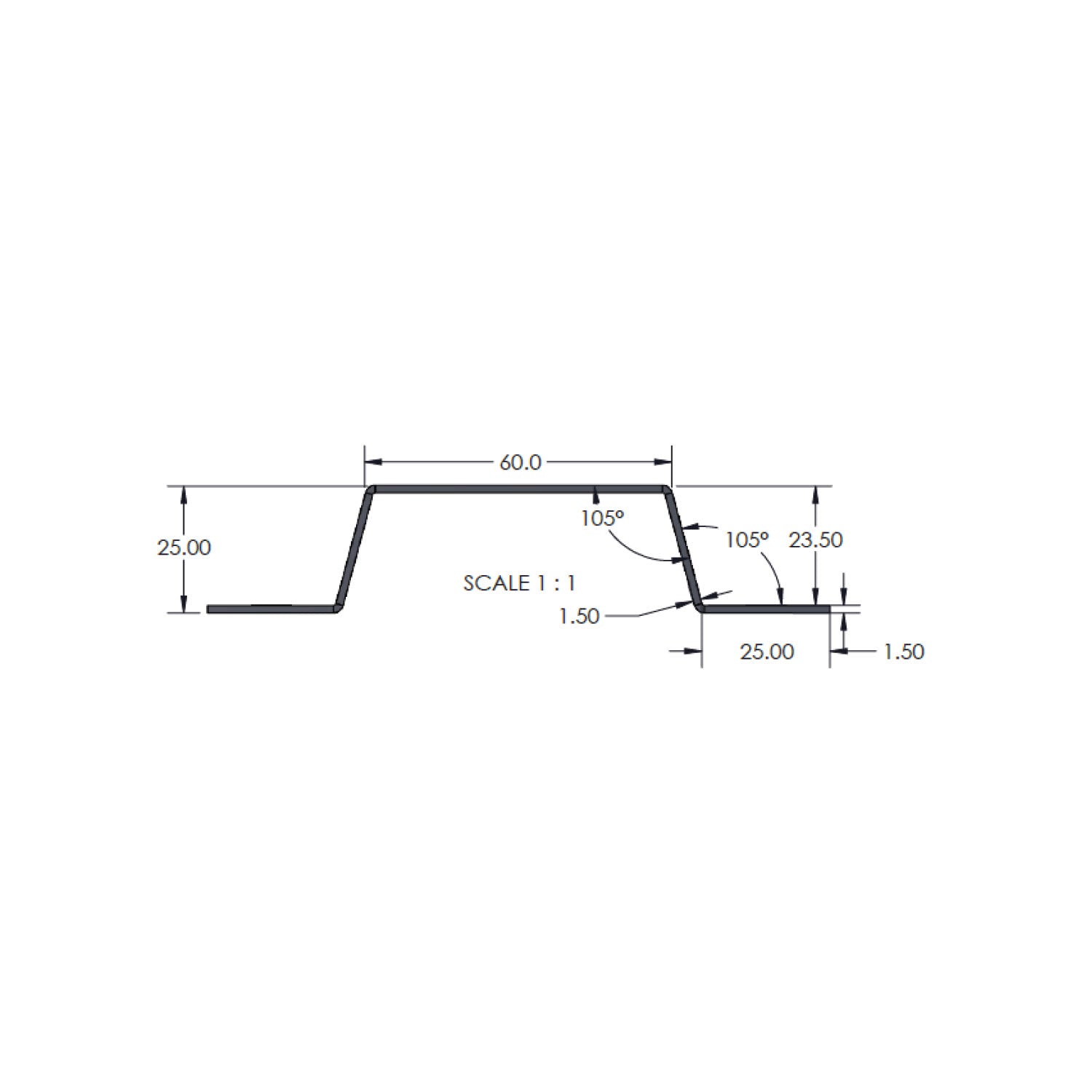

Specifications
  • Adapted For
    certifix-galvanised-steel-slotted-top-hat-profile
  • Brand
    Certifix
  • Height (mm)
    25.00
  • Length (MM)
    3,000
  • Material
    Stainless Steel Dx51d - Z275
  • Pack Size
    1
  • Thickness (mm)
    2
  • Type
    Galvanised Profile
  • Width (mm)
    110.00
