Certifix CertiShield 1250mm x 50m Class A2 Breather Membrane

Pack Size: 1
£523.50

Usually shipped in 1-2 days

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

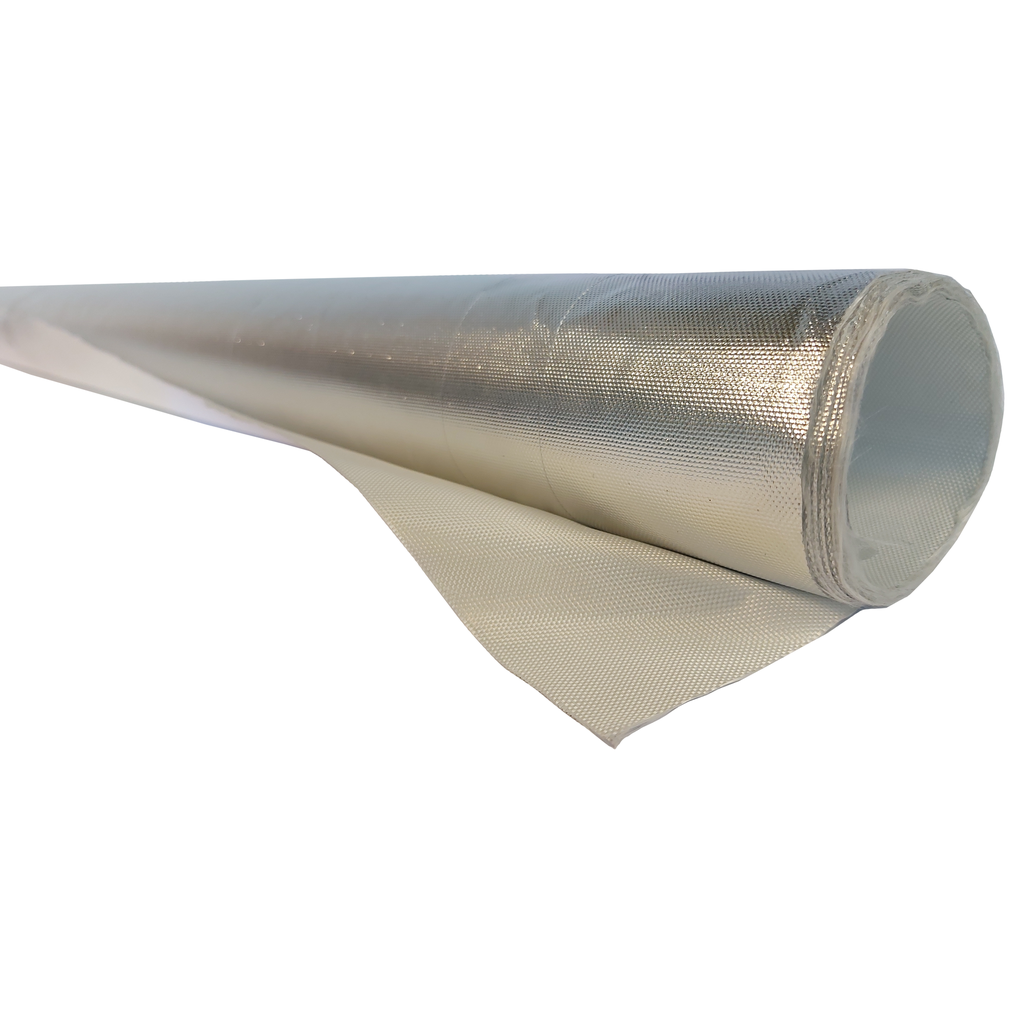

CertiShield 1250mm x 50m Class A2 Breather Membrane is a non-combustible, fire resistant membrane that achieves Class A2 (EN13501-1). Vapour permeable and suitable for use as a lining within ventilated façade systems, including applications above 18 metres. CertiShield Class A2 Breather Membrane is a strong, breathable woven glass substrate aluminised on one side, suitable for jointing with foil tape. It is manufactured in the UK by TBA FIREFLY

Technical Datasheet

Tech Datasheet:

Applications

Vapour permeable and suitable for use as a lining within ventilated façade systems, including applications above 18 metres.

Features

CertiShield Class A2
Breather Membrane is designed to be a vapour
permeable, reflective insulation layer in commercial
facades and rain screen cladding system: Weatherproof and breathable.
Classified A2 (EN13501-1), suitable for use over 18m –
combining non-combustible fire resistance with
traditional construction membrane performance
requirements: Ideal for upgrading fire performance both on remedial
work and new installations of cladding and rain screen
systems.
Outstanding strength and durability both before and
after age testing: Demonstrating sustainable
performance attributes when weathered.
 Lightweight, flexible: Simple to install and resistant to
damage during installation at temperatures as low as
-40°C.

Specifications
  • Area (m2)
    62.50
  • Brand
    Certifix
  • coated
    No
  • Dimensional Stability
    EN 1107-2 (% change): MD 0.01%, CD 0.0%
  • Elongation
    EN 12311-1 (modified by EN 13859-1, EN 13859-
    2): MD 4% (pre-ageing) MD 4% (post-ageing
    CD 4% (pre-ageing) CD 3% (post ageing)
  • Fire Performance
    EN 13501-1:2018: A2, S1 d0
    Non-combustible, no significant contribution to fire at any
    stage of the fire
  • Flame Propagation
    BS476 Part 6 &7: Class 0
  • Flexibility at Low Temperature
    EN 1109: No cracking at -40°C
  • Length (m)
    50.00
  • Material
    Aluminised Woven Glass/Aluminium
  • Pack Size
    1
  • Thickness (mm)
    0
  • Type
    Breather membrane
  • Water Vapour Resistivity
    EN ISO 12572 Sdc (m): 0.02m silver face, 0.03m reverse
  • Weight
    14kg
  • Width (mm)
    1250.00
