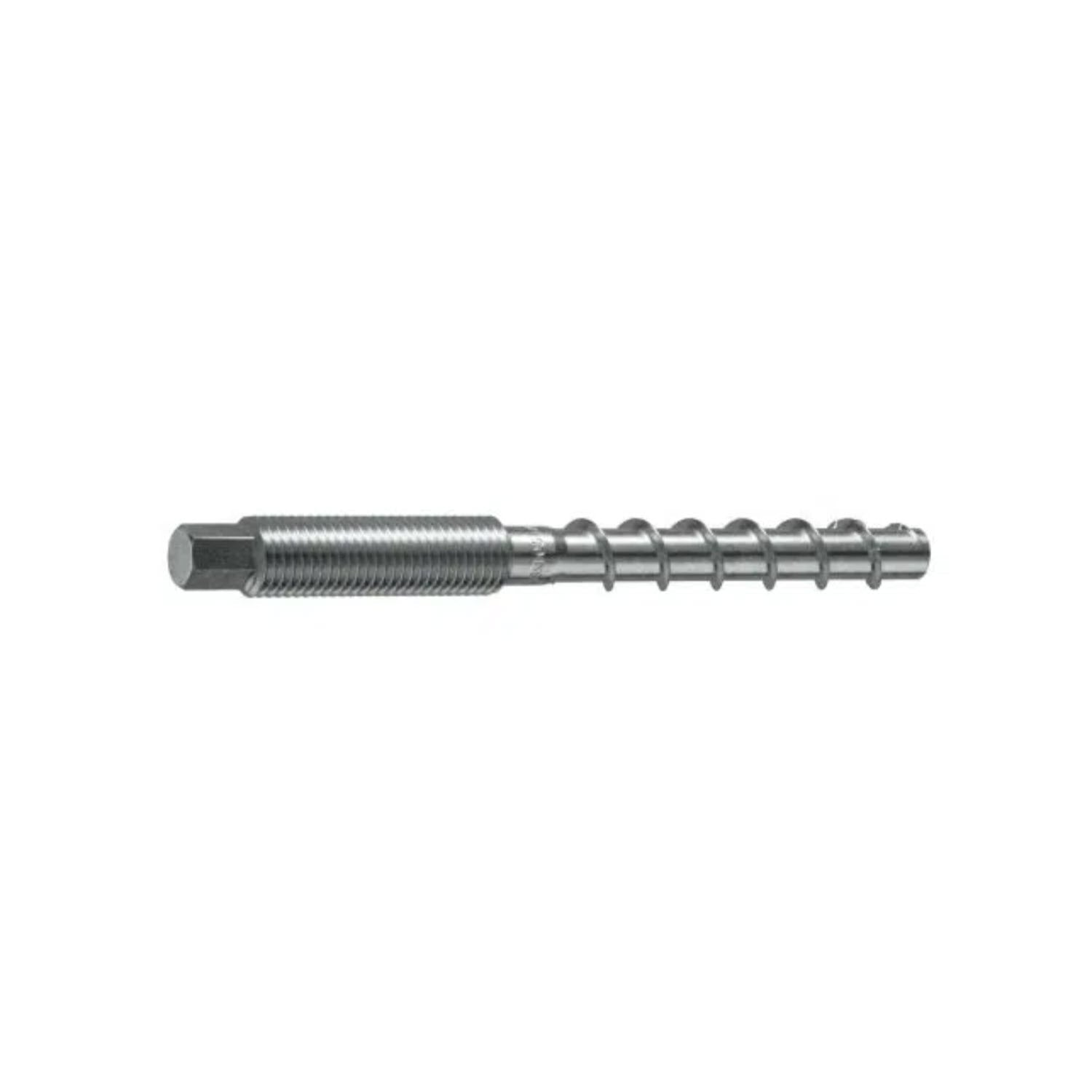

CFCS concrete screw 8x140 Metric thread A4 stainless M12x35 SW9

Certifix CFCS concrete screw with external thread, A4 stainless is a high performance, highly versatile concrete screw, ideally suited for use on helping fasten hand brackets, fire barrier brackets, high racking, safety rails, metal profiles, base plates and consoles. Available in both A4 Stainless and HCR, Certifix CFCS Concrete Screws feature a saw tooth geometry, making them perfect for a quick and easy installation and eliminating the need to clean the drill hole for installation in ceilings and walls.

CFCS concrete screw 8x140 Metric thread A4 stainless M12x35 SW9 is backordered and will ship as soon as it is back in stock.

Product Enquiry

Technical Datasheet

Download the technical datatsheet here.

Applications

Suitable for helping hand bracket fixings – used with a full nut and washer.

Must be used in scenarios where post install BS8539:2012 proof load tests (aka pull tests) are required (for example in an LABC or NHBC Premier Guarantee warranty). The external thread option allows for unlimited adjustments to the bracket packing/spacing as the nut & washer can be adjusted/removed for testing as many times as necessary after installation, for other fixing head types it is impossible to know how many times it has been adjusted by the installer, therefore for ETA approval on post install checks this option must be used.

Building Materials

Certifications

Features

Saw tooth geometry: Quick, safe & easy installation.
Available in stainless steel A4 & HCR: Ideal for use in
reinforced/unreinforced normal concrete and in
cracked/non-cracked concrete
Available in zinc-coated steel, tested to DIN EN ISO 9227
– for corrosion category C5 – 4800hrs
Can be loaded immediately, with adjustment possible:
Time saving.
Fire rated and ETA approved: Pedigree.

Specifications
  • Diameter (MM)
    8.00
  • Drill Diameter (MM)
    8
  • Drill Hole Depth (MM)
    85
  • Type
    Concrete screw
  • Thread Length (MM)
    35
  • Size
    M12
  • Pack Size
    50
  • Material
    A4 Stainless Steel
  • Length (MM)
    140
  • Tech Datasheet
    Certifix_ CFCS_Concrete Screws_TDS_combined-compressed.pdf
  • Driver Type
    SW 9
  • Size
    M12
  • Head Type
    External Thread
  • Embedment Depth (mm)
    75
