fischer EA II M10 x 40 R A4 stainless hammerset drop in anchor [48414]

Barcode: 4006209484142
Pack Size: 50
£115.46

Usually shipped in 1-2 days

fischer EA II M10 x 40 R A4 stainless hammerset drop in anchor [48414] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

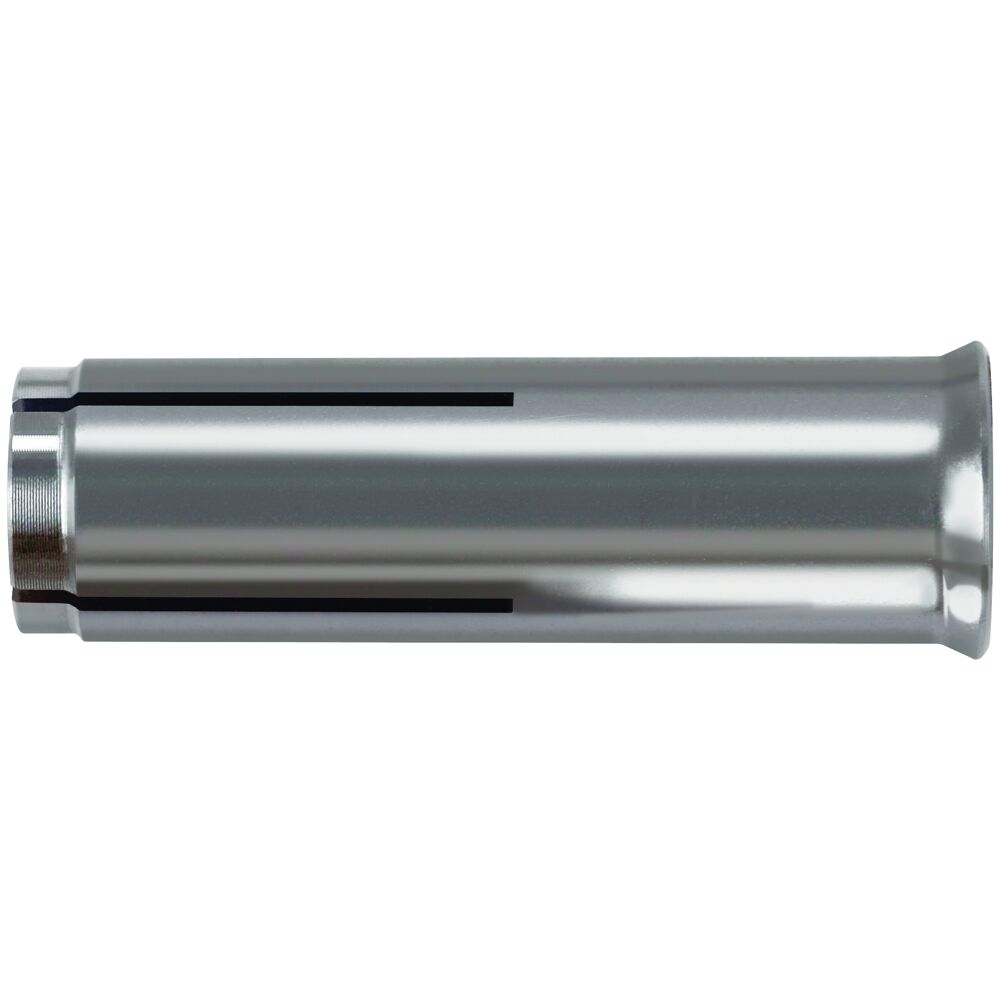

The fischer Hammerset anchor EA II M10 x 40 R is a versatile and easy-to-use internal threaded anchor made of stainless steel. It can be installed using a hammer or a machine setting tool, and it is flush to the surface of the anchoring base when installed. The sleeve is expanded by driving in the internal rod, which expands against the drill hole wall. No torque must be applied to the screw or the threaded rod for correct expansion to take place. The fischer Hammerset anchor EA II R is ideal for fixing steel constructions and formwork props in external areas with approval.

Applications

Pipelines and ventilation ducts
Sprinkler systems
Cable conduits and wires
Gratings
Steel constructions
Machines
Consoles
Shuttering props

Building Materials

Approved for:
Concrete C20/25 to C50/60, cracked, for the multiple fixings of non-load-bearing systems
Concrete C20/25 to C50/60, non-cracked
Also suitable for:
Concrete C12/15
Natural stone with dense structure
You can find detailed information on building materials in the registration document.

Certifications

ETA-07/0135
ETA-07/0142
DoP No. 0291
DoP No. 0292
DoP No. 0756-CPD-0332

Features

Embossed rim prevents the anchor sleeve from slipping: Ensures a trouble-free hammerset installation.
Made of stainless steel: For outside fixing applications.
Metric internal thread: Possible to use standard screws or threaded rods for the ideal adaptation to suit the intended use.
EMS machine setting tool allows for effortless installation:Handy in the case of series installations.
Embossing is applied when expanding with the EHS Plus setting tool: Offers a simple control of the anchoring and provides increased safety.
Fixing point at hef 25 mm: Prevents anchor of falling out of the drill hole before being expanded.
Black fixing point: Prevents the anchor from falling out of the drill hole during overhead installation.

Specifications

Reviews (0)

Delivery & Returns

For full delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Fischer

fischer EA II M10 x 40 R A4 stainless hammerset drop in anchor [48414]

£115.46
The fischer Hammerset anchor EA II M10 x 40 R is a versatile and easy-to-use internal threaded anchor made of stainless steel. It can be installed using a hammer or a machine setting tool, and it is flush to the surface of the anchoring base when installed. The sleeve is expanded by driving in the internal rod, which expands against the drill hole wall. No torque must be applied to the screw or the threaded rod for correct expansion to take place. The fischer Hammerset anchor EA II R is ideal for fixing steel constructions and formwork props in external areas with approval.

Clamping Range (MM)

N/A

Diameter (MM)

N/A

Drill Diameter (MM)

12

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Drop-in anchor

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

M10

Pack Size

50

Package Contents

N/A

Material

A4 Stainless Steel

Length (MM)

40

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

Embossed rim prevents the anchor sleeve from slipping: Ensures a trouble-free hammerset installation.
Made of stainless steel: For outside fixing applications.
Metric internal thread: Possible to use standard screws or threaded rods for the ideal adaptation to suit the intended use.
EMS machine setting tool allows for effortless installation:Handy in the case of series installations.
Embossing is applied when expanding with the EHS Plus setting tool: Offers a simple control of the anchoring and provides increased safety.
Fixing point at hef 25 mm: Prevents anchor of falling out of the drill hole before being expanded.
Black fixing point: Prevents the anchor from falling out of the drill hole during overhead installation.
